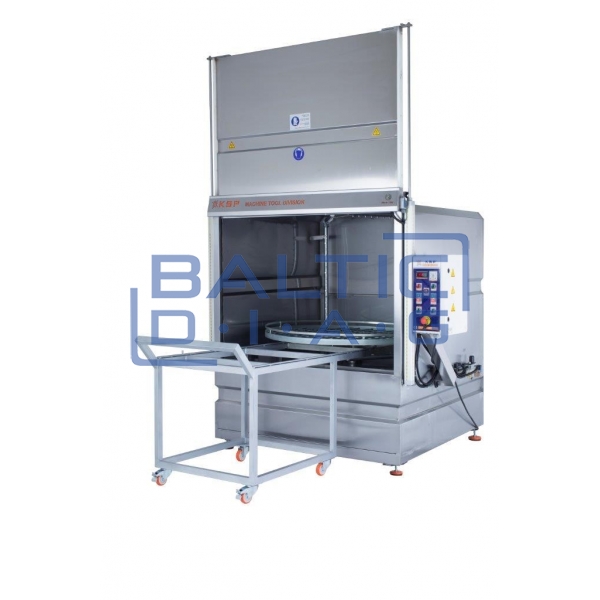

Industrial parts washing equipment KSP WM1750

Industrial parts washing equipment KSP WM1750

Manufacturer: KSP Machine (Turkey)

The parts that are ready to be washed are placed on a net made of stainless steel and on a rotating platform with a sliding system. They are washed in a closed part at high pressure with a special detergent. The washing process takes place through nozzles, they clean waste, oil and chips on the dirty surfaces to be washed at various angles. The equipment is designed to use minimal water, detergent, electricity and time consumption with a cycle and filter water system.

Specifications:

Pneumatic movement of the front door

Automatic water supply system

Pneumatic pistons

Stainless steel body

Made of stainless steel components

Minimal cleaning process time

Designed for minimal consumption of water, detergent and electricity

Minimal water consumption in a closed water cycle system

Heated water (solution) is discharged through nozzles into the part to be washed

Platform turntable

Technical data:

Platform diameter: 1350 mm

Max. height of the part: 700 mm

Maximum weight: 650 kg

Tank capacity: 300 l

Pump pressure: 2 x 2.5 bar

Pump quantity and power: 2 x 3 HP

Heater: 15 kW

Power supply: 220-380-415 V / 3-1 Phase / 50-60 Hz

Process timer: 0-30 min

Operating temperature: 0-90°C

Automatic loading: standard

Turntable: standard

Oil filter skimmer: standard

Automatic loop feeding system: standard

AISI 430 stainless steel body: standard

AISI 304 stainless steel body: on request

Package size and weight: 1930 x 1800 x 2010 mm

Weight: 680 kg
