Hydraulic profile bending machine PB 50-3H Profi Bend RHTC

Hydraulic Profile Bending Machine PB 50-3H Profi Bend RHTC

Country of origin: Netherlands, warranty period – 24 months

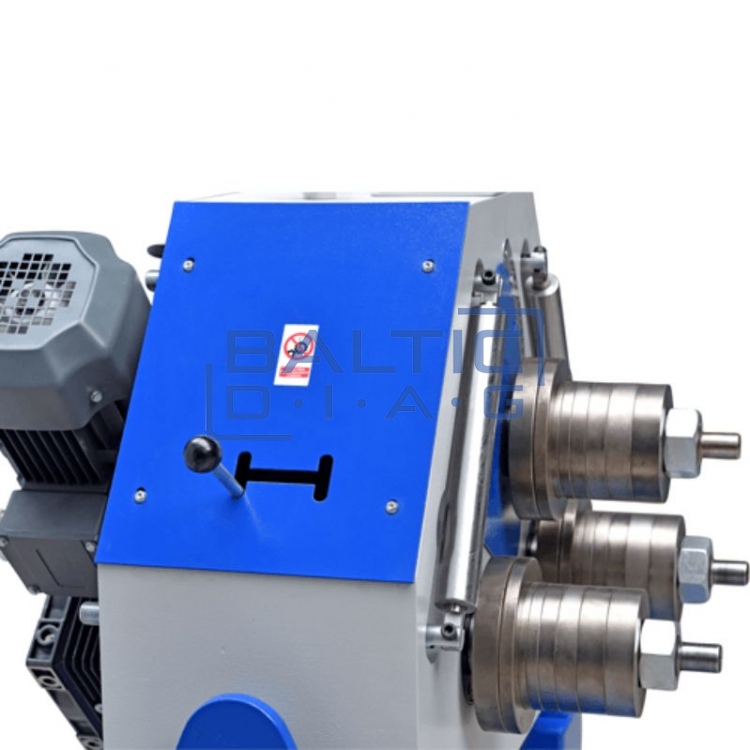

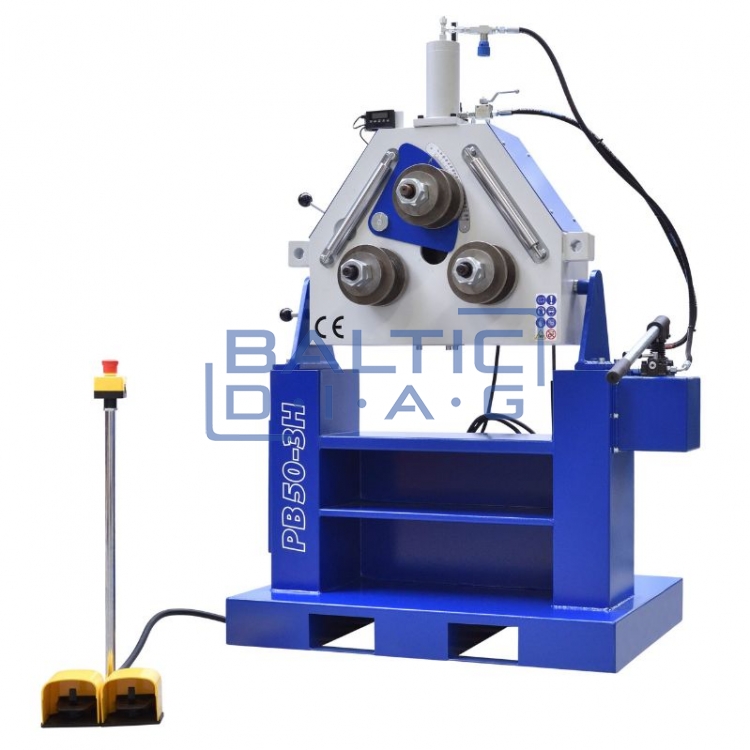

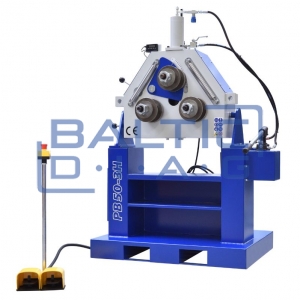

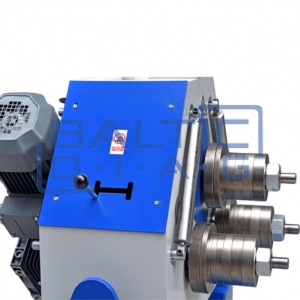

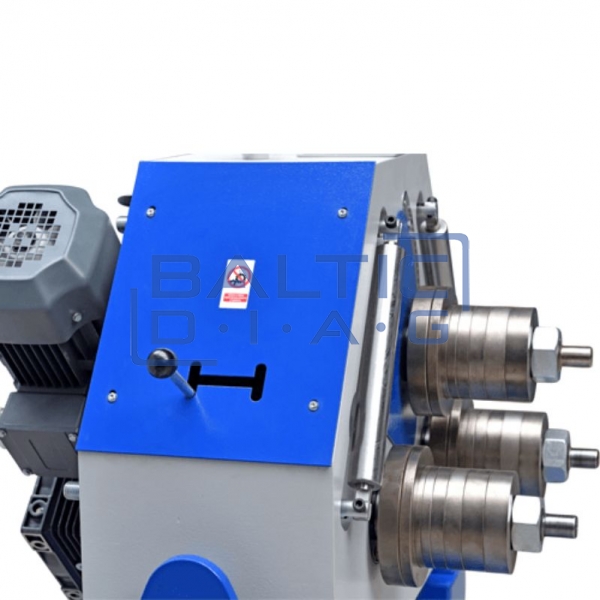

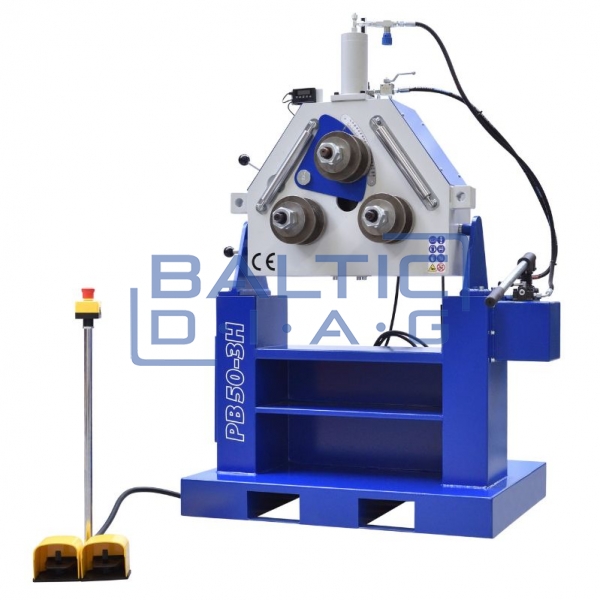

The PB 50-3H is a hydraulic profile bending machine designed for bending various metal profiles, flat bars, pipes, and tubes. This machine is manufactured in Europe and delivered directly from stock. It features 50 mm diameter shafts and three driven rolls. Switching between two or three driven rolls is quick and easy using the gear selector on the side of the machine. The bending direction is controlled via a foot pedal.

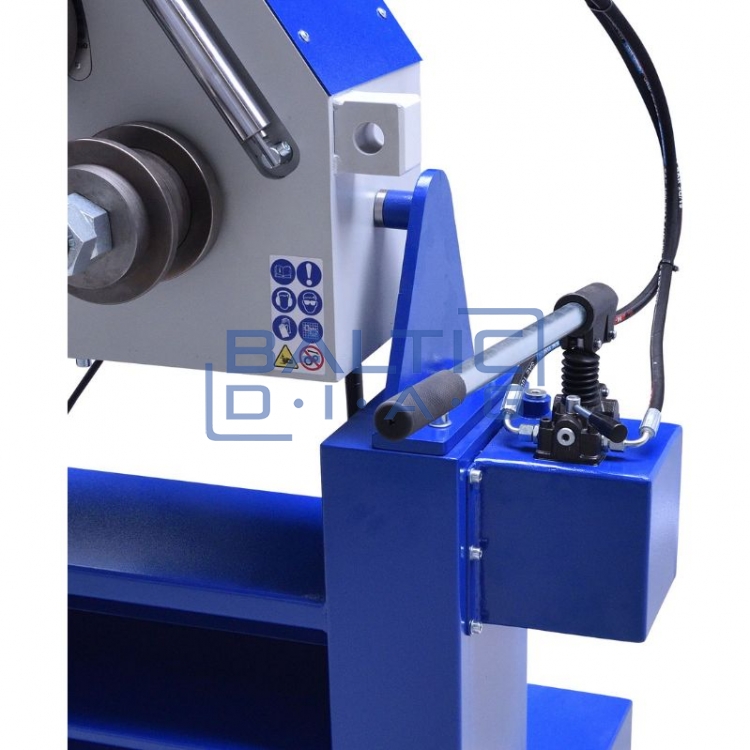

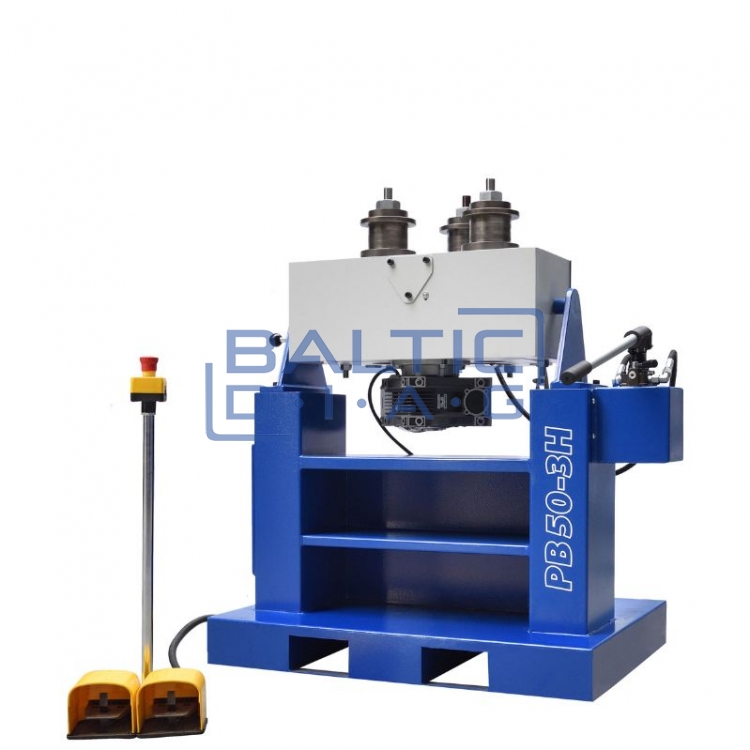

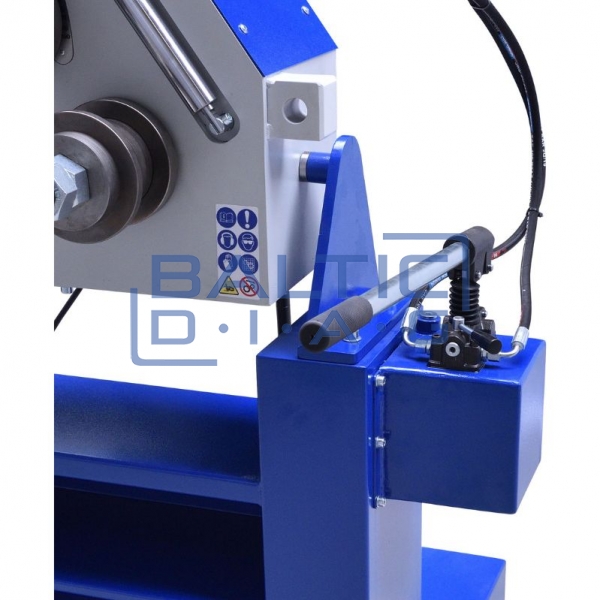

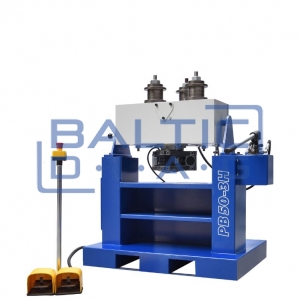

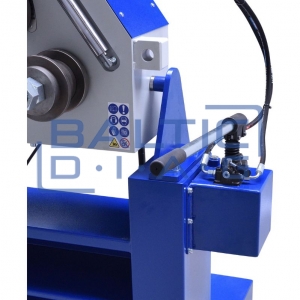

The upper (center) roll position is adjusted hydraulically using a hand pump, and its position can be monitored both on a scale and on the digital display (accuracy – 0.1 mm). The machine can operate in both vertical and horizontal working positions – changing position is simple by tilting the machine head (there is no need to tilt the entire frame). The weight of the head is counterbalanced by a hydraulic cylinder.

Features:

• Hydraulic adjustment of the upper roll using a hand pump
• Digital read-out of the upper roll position
• Vertical and horizontal working positions
• Three driven rolls
• Foot pedal control
• Supplied with a standard roller set for bending profiles and flat bars
• Optional accessories: rollers for tube and pipe bending, distance rollers, spiral bending template, and bending yoke
• Built-in storage compartment for tools and accessories

Technical Specifications:

• Shaft diameter: 50 mm
• Roll diameter: 155 mm
• Roll rotation speed: 11 rpm
• Voltage: 400 V / 50 Hz
• Main motor power: 1.5 kW
• Adjustment stroke: 160 mm
• Weight: 430 kg
• Total length: 1200 mm
• Total width: 800 mm
• Total height: 1750 mm
