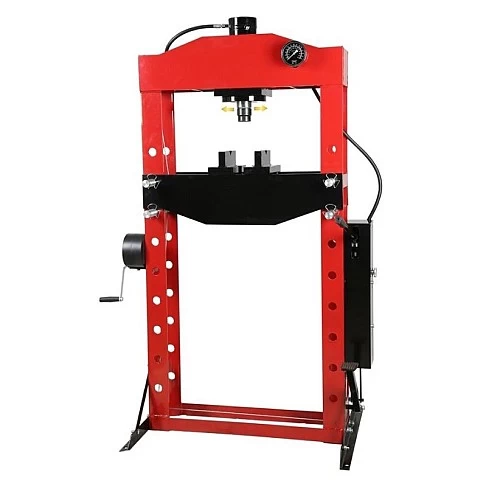

Hydraulic foot-operated press with pressure gauge 50 t

Hydraulic foot-operated press with pressure gauge 50 t

Before using the press, make sure to loosen the breather screw on the hydraulic pump!

Functions:

• Foot and manual operation allow you to choose the most convenient working mode as needed
• Integrated pressure gauge enables accurate control of working pressure
• Strong welded construction ensures stability and long-lasting performance
• Side-sliding cylinder allows comfortable work with components of various sizes
• Adjustable working area with winch mechanism makes it easy to set the desired height
• Built-in return spring ensures quick return to the initial position
• CE certification confirms compliance with European safety and quality standards

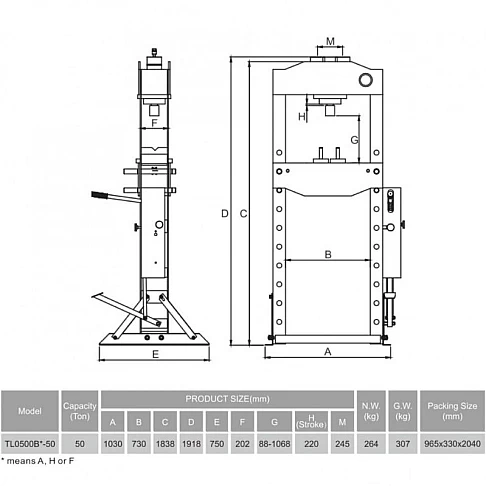

Technical specifications:

• Capacity: 50 t
• Cylinder stroke: 220 mm
• Working range: 88–1068 mm
• Operation: foot and manual
• Cylinder: side-sliding
• Return spring: integrated
• Working area adjustment: winch mechanism
• Construction: welded, reinforced frame structure
• Package dimensions: 2070 x 970 x 330 mm
• Weight: 264 kg
• CE compliance: yes
