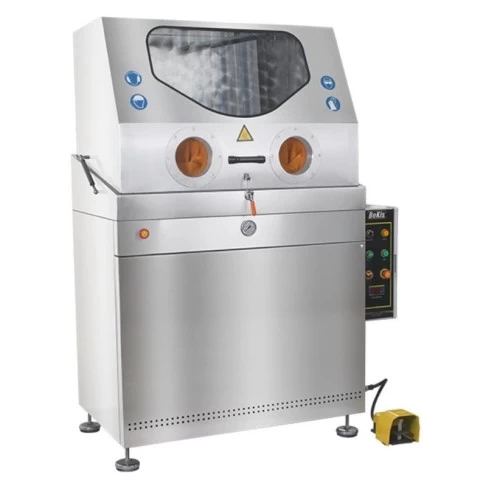

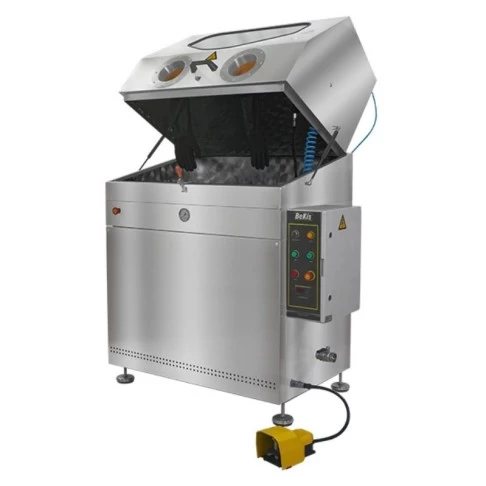

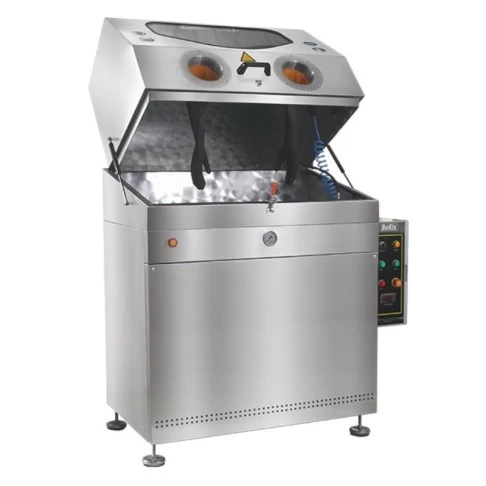

High-pressure mechanical parts washer TW2001

High-pressure mechanical parts washer TW2001

A high-pressure manual washer allows you to wash parts that are normally difficult to wash. The operator starts the washing process using the foot pedal and can properly regulate all washing processes with its help. Washable parts - 100% cleaned with hot water, special washing solvent and high pressure. This washer also allows you to adjust the water temperature and pressure. And after washing, you will always have the opportunity to dry the parts using compressed air, this is achieved thanks to the compressed air gun integrated in the washing cabin. The use of cabin and external capacity filters ensures longer water use and ecology.

Features:

• Stainless steel body
• High pressure pump
• Washing gun and gloves
• Temperature control
• Pressure control system
• Mechanical door
• Cartridge and tank filters
• Water level sensor
• Safe electrical components

Technical parameters:

• Construction material: AISI430 (AISI 304 additionally)
• Power supply: 400 V / 50 Hz / 3 fz or 230 V / 50 Hz / 1 fz
• Cleaning pump: 2.5 kW
• Pump pressure: 150 bar
• Water temperature sensor: built-in
• Water heater: 2 x 2.5 kW
• Maximum water temperature: 80°
• Electronic components: Scheider / Siemens Electric
• Filters: cartridges and containers
• Management: mechanical
• Required compressed air input: 10 bar
• Lighting system: LED, integrated and waterproof
• Foot Control Pedal: Yes
• Manometer: yes
• Drying: blowing with air
• External dimensions: 950 x 850 x 2000 mm
• Internal dimensions: 850 x 600 x 500 mm
• Working weight: 110 kg
• Tank capacity: 120 l
