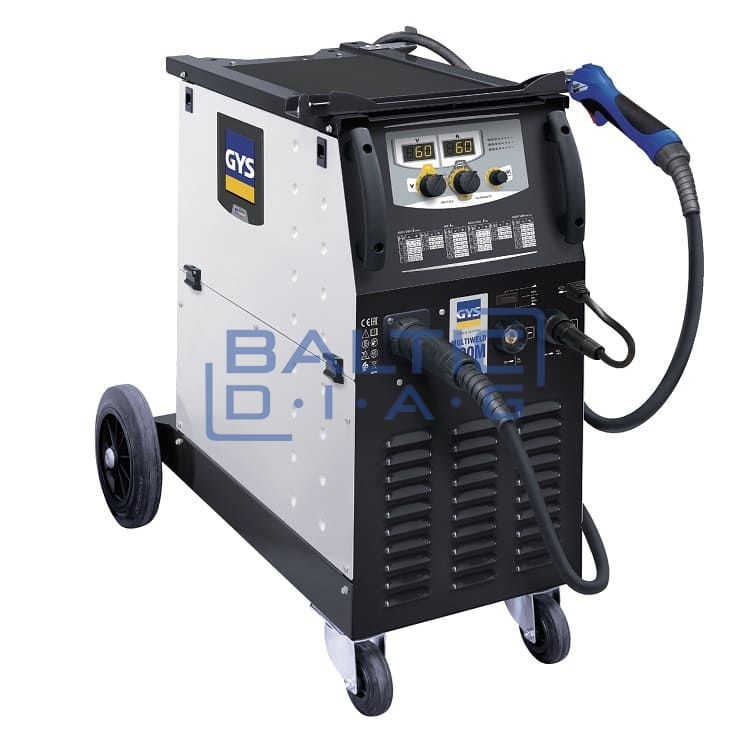

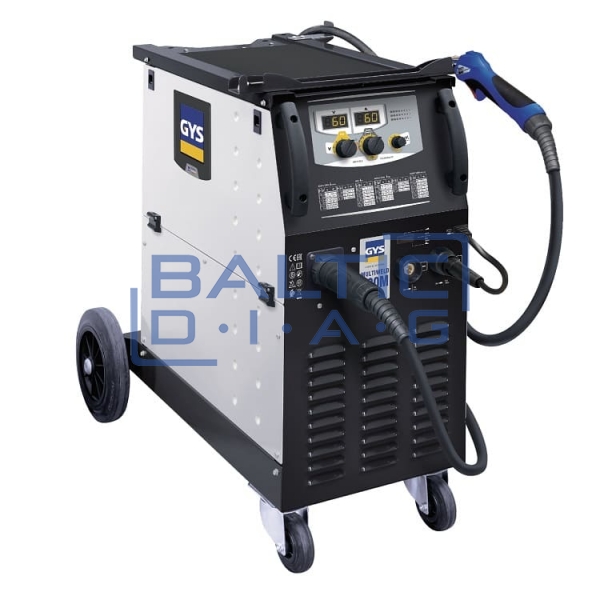

GYS MULTIWELD 200M semi-automatic welding machine with accessories

GYS MULTIWELD 200M semi-automatic welding machine with accessories

Manufacturer: GYS, France; Warranty: 24 months

GYS MULTIWELD 200M is a compact single-phase welding machine for MIG-MAG, flux-cored wire and MMA welding. Its intuitive interface includes two digital screens where the desired parameters can be easily and precisely set. Equipped with a precise four-roller unwinding system, welding quality is impeccable even when working with aluminum or other more receptive metals.

MIG-MAG welding:

Steel wire: Ø 0.6 - 1.0 mm

Stainless steel wire: Ø 0.8 - 1.0 mm

Aluminum wire: Ø 0.8 and 1.0 mm

Wire with core: Ø 0.9 mm

MMA welding:

Simple and rutile electrodes: up to Ø 4 mm

Optimizing MIG-MAG Settings:

Manually adjust the dynamics of the welding arc

Welding aid: the table on the front of the welding machine helps the user to adjust the wire tension and diameter according to the thickness of the metal to be welded

Features:

Large wheels for easy repositioning of the device.

Support for gas cylinder up to 4 m3 (20l)

Easy to control screen

Simple user interface with dials and knobs for gloved operation for easy adjustment

Compatible wire feed reels: Ø 200 and 300 mm

Powerful, motorized, four-roll wire feed reel

European torch connector for quick

Technical data:

Supply voltage: 230V / 1 phase

Fuse: 16A

MMA welding current: 30 – 180 A

MIG welding current: 30 - 200 A

Welding wire thickness for gas welding: 0.6 – 1.0 mm

Welding wire thickness when welding without gas: 0.9 mm

Four wire roll system

Welding wire coils: 200/300 mm

Steel wire: Ø 0.6 - 1.0 mm

Stainless steel wire: Ø 0.8 - 1.0 mm

Aluminum wire: Ø 0.8 and 1.0 mm

Wire with core: Ø 0.9 mm

Dimensions: 77 x 79 x 47 cm

Weight: 34.5 kg

Required generator power: 9 kW

Protection class: IP21

Code: 066595

Complete set:

Manometer 30l/min

Ø 0.9/1.0 and 1.2 mm welding wire set

Type A welding wire roller

Burner set MB25 (250 A)
