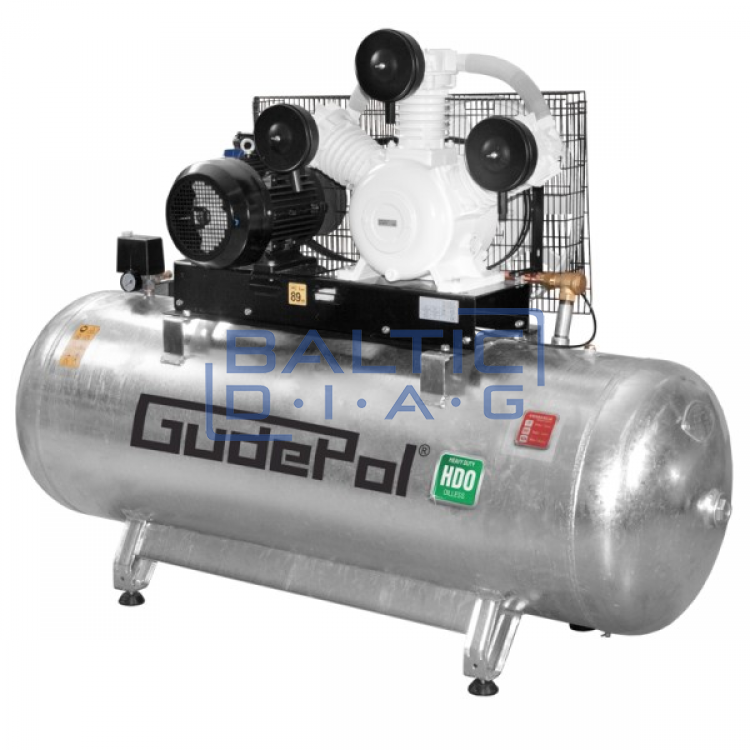

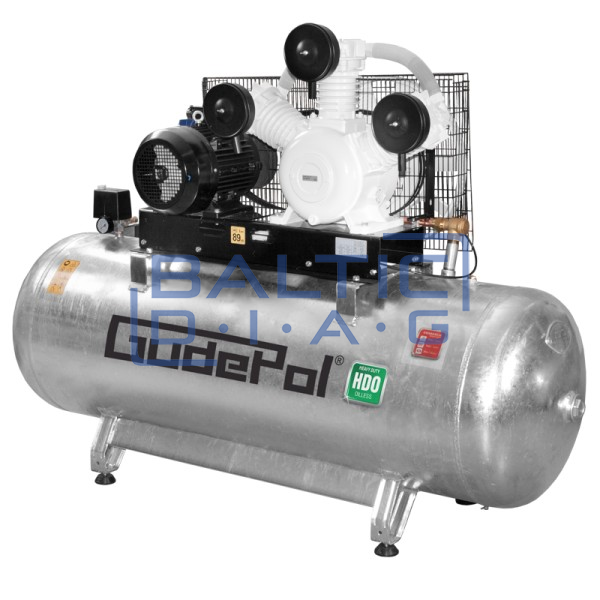

Gudepol oil-free air compressor 500l 1150l / min 10bar

Gudepol oil-free air compressor 500l 1150l / min 10bar

Manufacturer GudePol (Poland)

Guarantees:

1 year for pump and pressure switch

3 years for electric motor

10 years for HDO pressure tank

Description:

The GUDEPOL HDO series reciprocating compressors have been developed based on 25 years of company experience and state-of-the-art global solutions for the highest quality materials. Well aware of the market needs, GUDEPOL has developed an innovative solution in the reciprocating compressor segment using a galvanized tank together with a highly efficient and modern suction system. All units are subject to strict quality control by inspecting each compressor element. The compressors were designed for use in harsh environments and industrial loads. The slow-acting cast iron pump together with the 100% galvanized tank inside and outside gives the compressor a long service life. All components used in the production of the HDO series compressor are of the highest quality.

Technical parameters:

Suction capacity: 1150 l / min

Suction capacity: 69 m3 / h

Bako capacity: 500 l

Maximum pressure: 10 bar

Engine power: 7.5 kW

Number of cylinders: 3 n0

Compression ratio: 1 n0

Voltage: 400 V

Noise level: 91 dB

Speed: 740 rpm

Dimensions: 190x60x118 cm

Additional information: without oil

Weight: 260 kg
