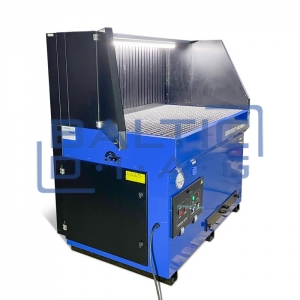

Grinding table with dust extraction system KTF downdraft FRESHWELD

Grinding Table with Dust Extraction System KTF Downdraft FRESHWELD

Country of origin: Turkey, warranty period – 24 months

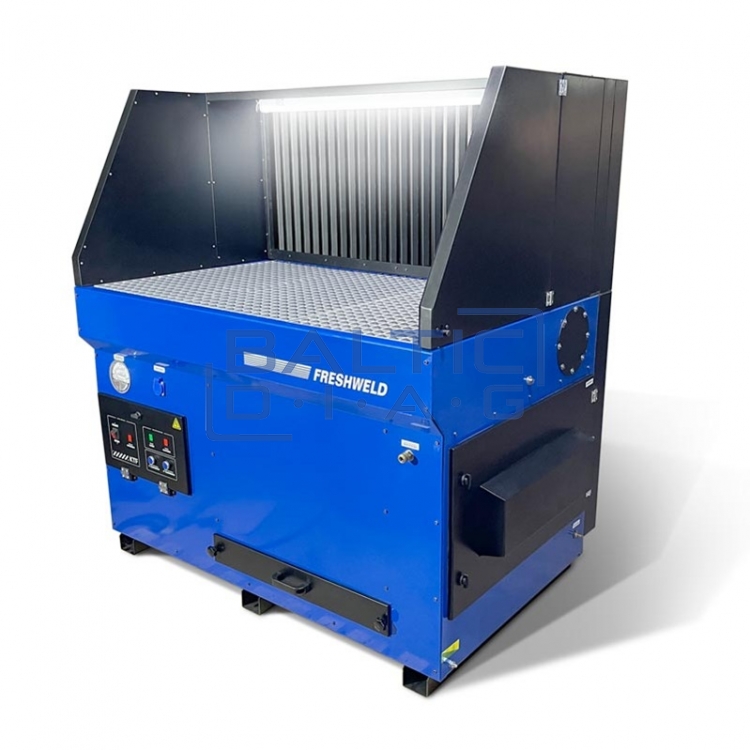

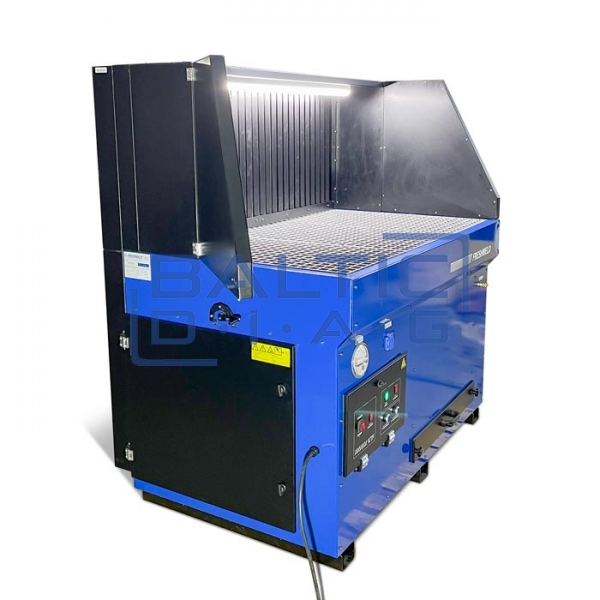

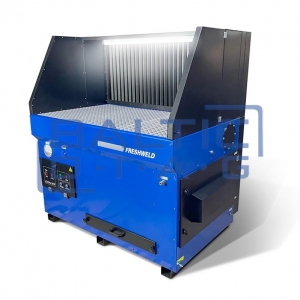

The KTF Downdraft is a mobile grinding table equipped with an integrated filtration system and fan, designed for effective removal of dust and fumes directly from the work surface. This unit is ideally suited for welding, grinding, leveling, and other industrial processes that produce harmful particles. With its ergonomic design, low noise level, and modular grating, the table ensures a safe, clean, and comfortable working environment. The integrated filtration system with Jet-Pulse automatic cleaning functionality allows prolonged use without the need for frequent filter maintenance.

Features:

• Downdraft extraction protects the operator’s respiratory tract from dust and fumes.
• Robust construction ensures safety and durability.
• Integrated dust tray allows for convenient cleaning of collected particles.
• Ergonomic design provides comfortable operation.
• Wooden grate prevents painted surfaces from being scratched.
• Three-sided closed shield system prevents the spread of particles.
• Quiet and efficient operation with the plug-in fan.
• Mobile unit mounted on wheels for easy movement.

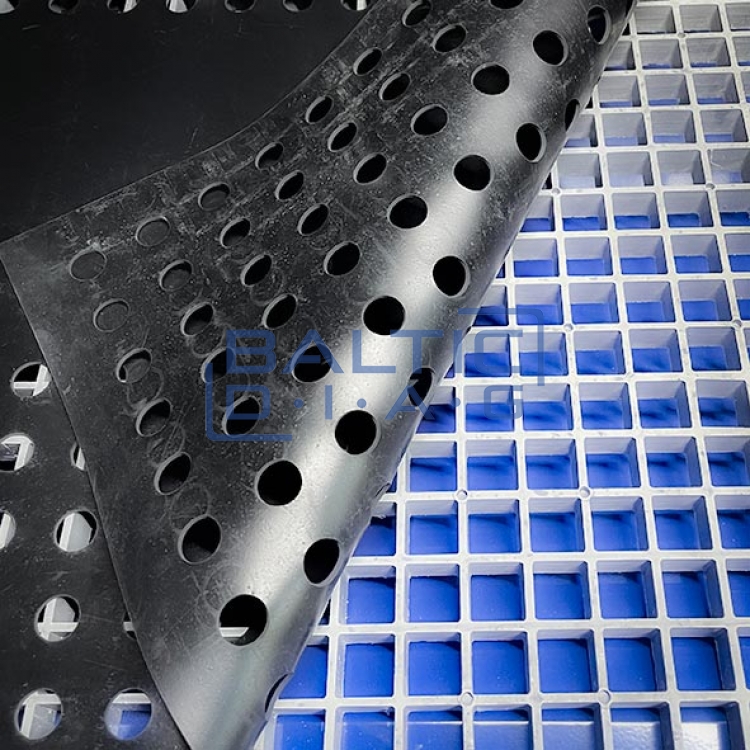

• Optional accessories: rubber mat, modular composite grate.
• Integrated pressure reducer for stable system performance.
• Built-in lighting ensures clear and comfortable working conditions.

Technical Specifications:

• Application: extraction of dust during grinding and welding.
• Construction: durable metal body with wooden grating.
• Filtration system: integrated with Jet-Pulse automatic filter cleaning.
• Filters: F9 (EN 779), E12 EPA (≤99.99%, EN 1822).
• Fan: integrated plug fan.
• Noise level: 72 dB.
• Power supply: 3x400V / 50Hz (other voltage options available).
• Lighting: integrated.
• Packaging: palletized, shrink-wrapped with cord straps.

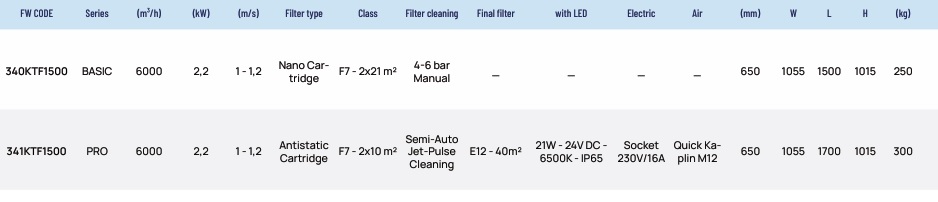

AVAILABLE VERSIONS:
