Gluing press Holzmann VSTR3000

Gluing press Holzmann VSTR3000

Country of origin: Austria, warranty period - 24 months

The Holzmann VSTR3000 is a professional gluing press designed for pressing wooden workpieces in carpentry workshops. Its robust steel construction, dual hydraulic cylinder system, and easily adjustable pressing height ensure efficient operation. Thanks to the continuous feed option, fast movement of the pressing units, and stable pressure parameters, this press is ideal for tasks that require high precision.

Functions:

• Robust steel construction
• Easily adjustable pressing unit height
• Quick and convenient repositioning of pressing units
• Option to work in continuous feed mode
• Spring-guided cylinders from the side
• Durable wrenches to maintain stable pressing force
• Additional reinforcements to prevent frame deformation

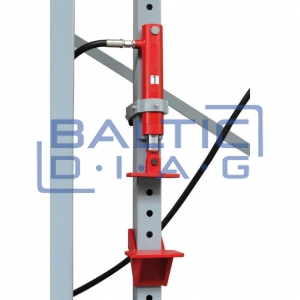

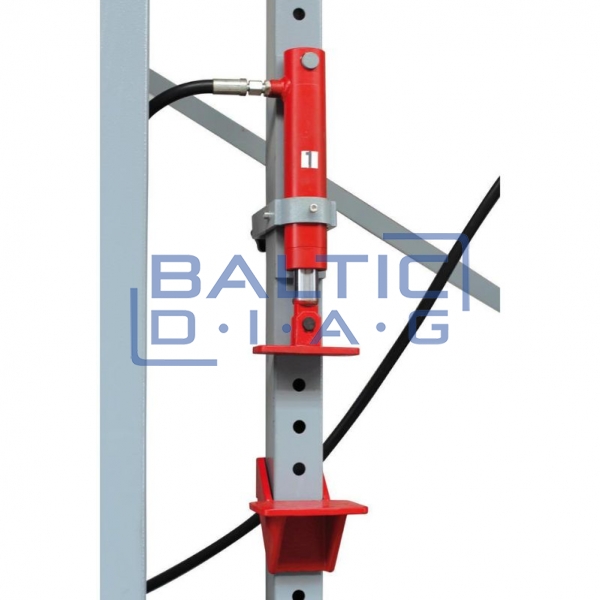

• Pressing unit with two stepless hydraulic cylinders

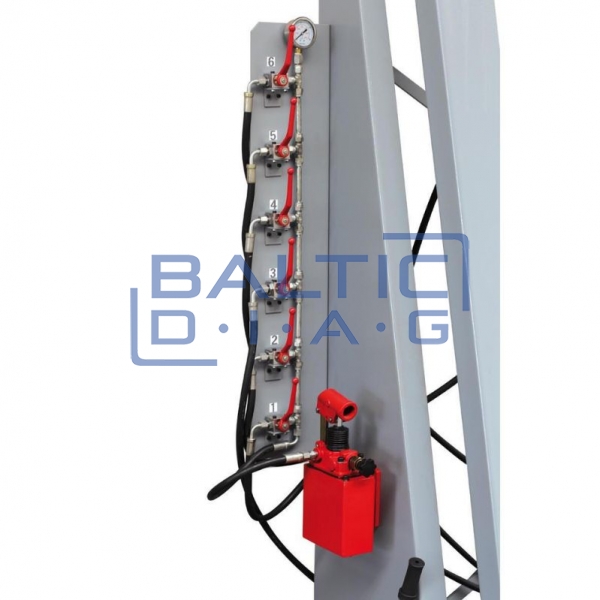

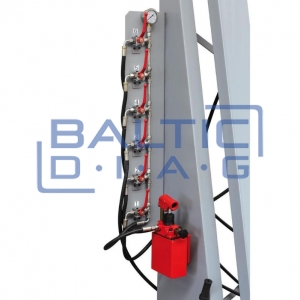

• Hydraulic valves to maintain stable pressing force
• Integrated pressure gauge

Technical specifications:

• Overall dimensions: 2040 x 3000 mm
• Pressing force: 6 x 2 t
• Distance between pressing holes: 50 mm
• Minimum distance between pressing units: 240 mm
• Maximum pressing height: 1550 mm
• Net weight: 325 kg
• Gross weight: 370 kg
• Package dimensions: 3030 x 450 x 660 mm
