Fully automatic air conditioning service station BD 545 (R1234yf)
Pre-order
2,649.00€
Ex Tax: 2,189.26€
- Manufacturer:: BALTIC DIAG
- SKU: BD2065971
Prices include VAT
Want to buy or learn more?
Fill out the inquiry form

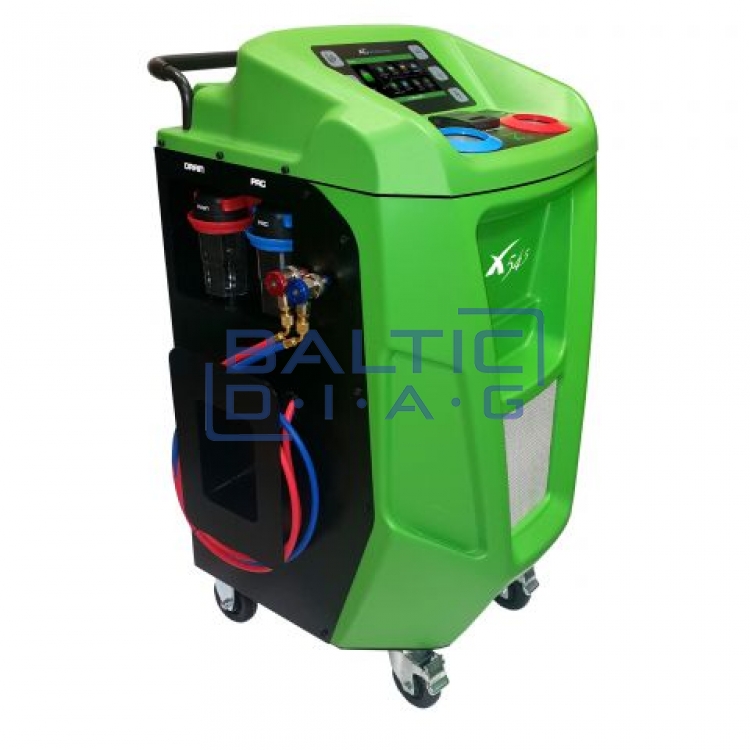

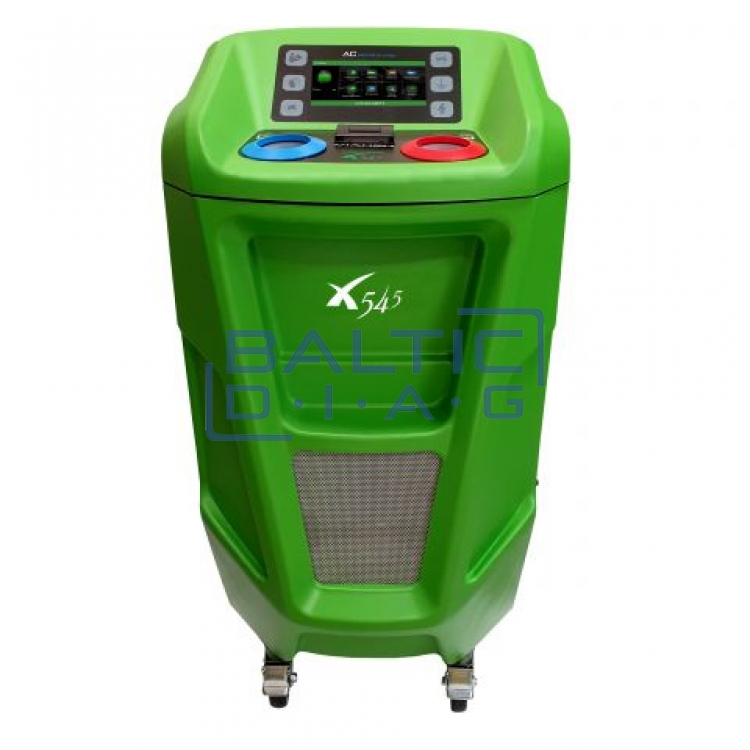

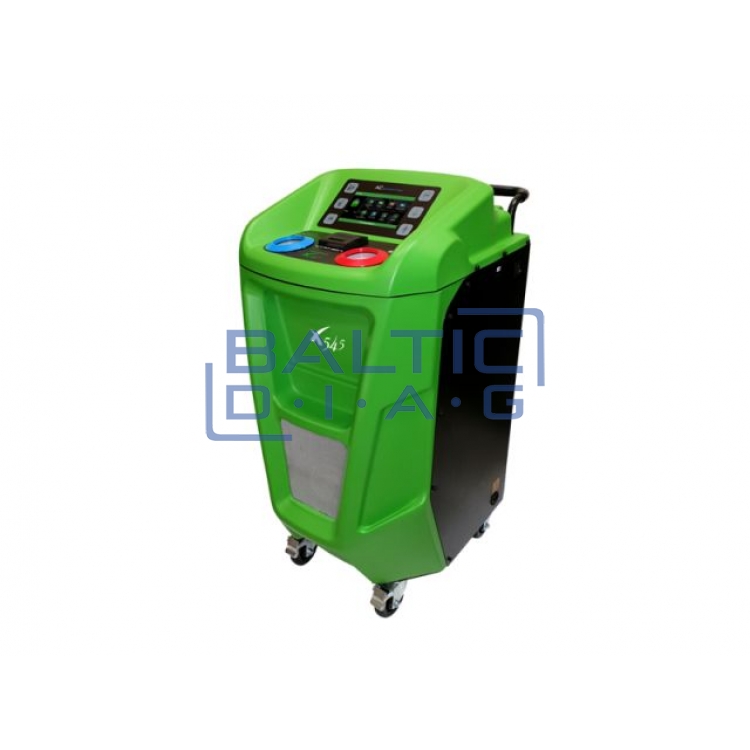

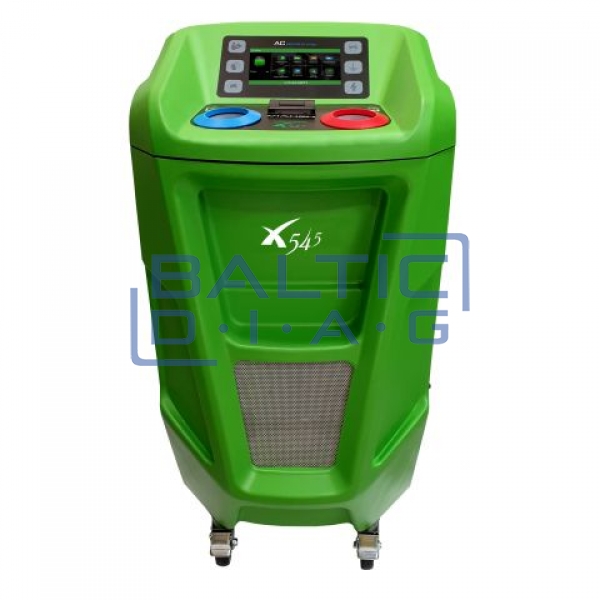

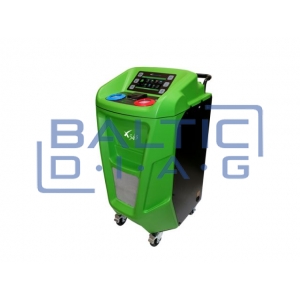

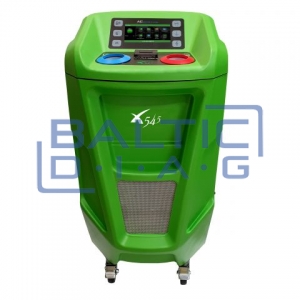

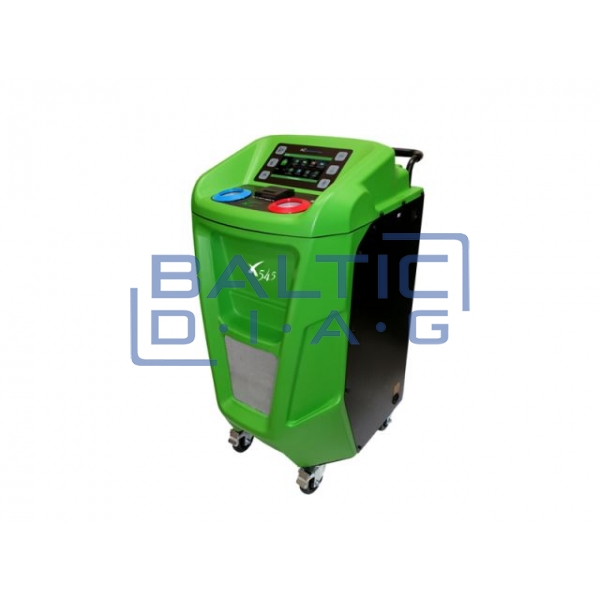

Fully Automatic Air Conditioning Service Station BD 545 (R1234yf)
Country of origin: Poland, warranty period – 24 months

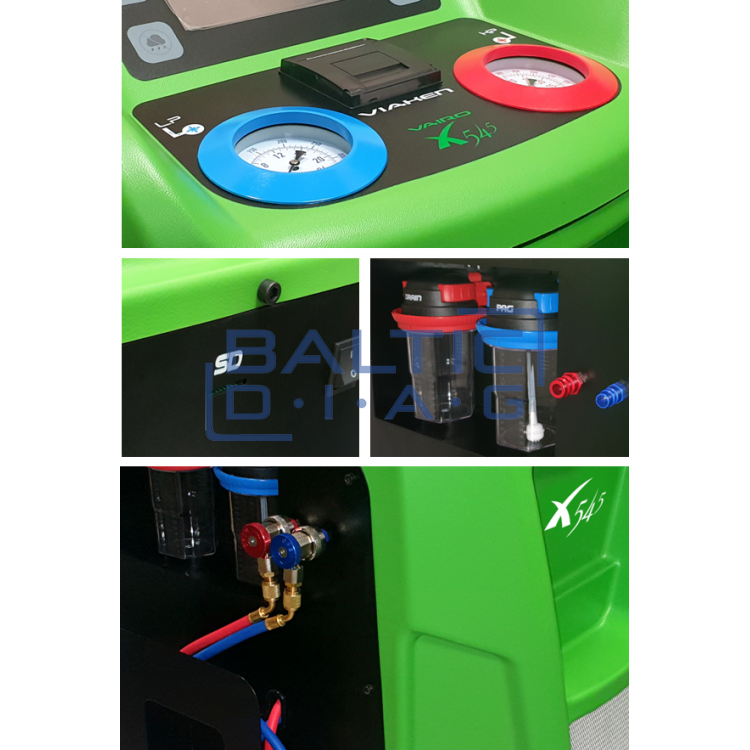

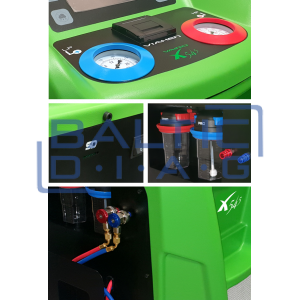

The fully automatic BD 545 air conditioning service station is designed for professional servicing of air conditioning systems filled with R1234yf refrigerant. The unit performs all necessary cycles – refrigerant recovery, vacuum creation, leak test, oil extraction, and system refilling. The integrated vehicle database allows for quick selection of the correct parameters, while the large color touchscreen and automatic operating mode ensure smooth and precise work. All performed functions can be printed using the built-in thermal printer. This station is perfectly suited for workshops and service centers that value reliability, speed, and automation.
Functions:
- Refrigerant recovery from the air conditioning system and separation of used oil
- Vacuum creation in the system
- Air conditioning system refilling
- Primary vacuum leak test
- Oil dosing
Technical Specifications:
- Refrigerant type: R1234yf
- Power: 750 W
- Recovery rate: 300 g/min
- Filling rate: 800 g/min
- Vacuum pump capacity: 5.4 m³/h
- Filtering capacity: 200 kg
- Scale accuracy: 10 g
- System capacity: 10 kg
- Package dimensions: 750 x 600 x 1160 mm
- Weight: 90 kg
Included in the package:
- Main unit of the air conditioning service station
- HP and LP service hoses
- HP and LP couplings
- Power cable
