Four-post triple parking lift

Four-Post Triple Parking Lift

Country of origin: China, warranty period – 24 months

The only difference between the standard and the wider model is the width.

The wider model is 20 cm wider in total.

This provides a more convenient drive-through width, especially for wide and sports cars. All other dimensions, such as length, height, and platform thickness, are exactly the same. The lifts can also be linked together in a row, for example, forming a line of 6 lifts: 2 wider and 4 standard ones.

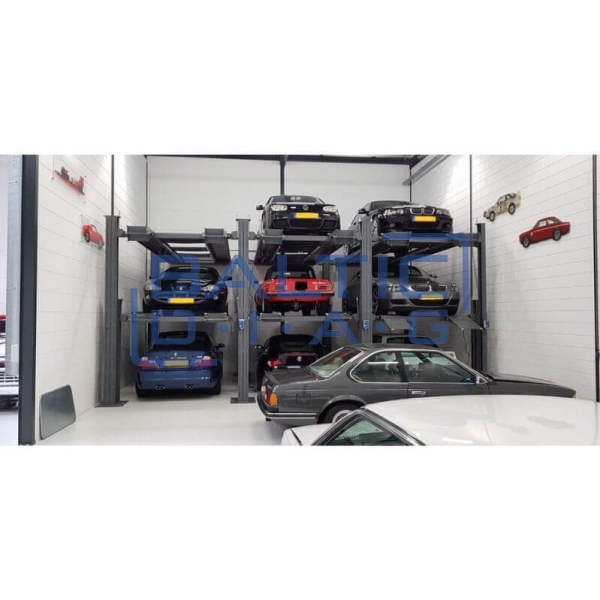

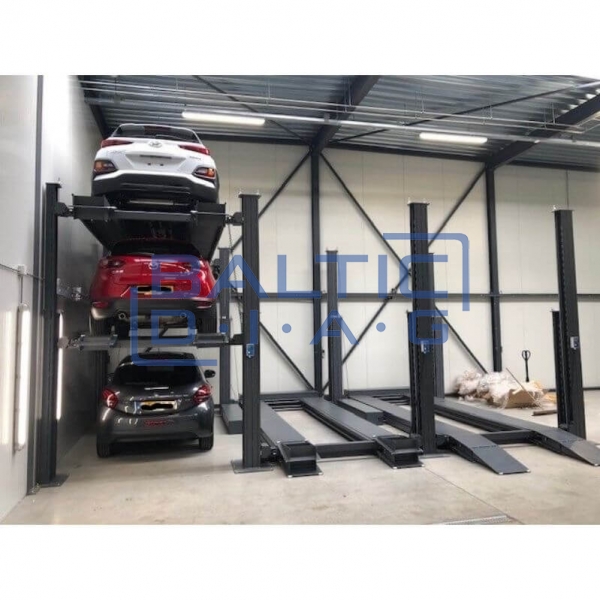

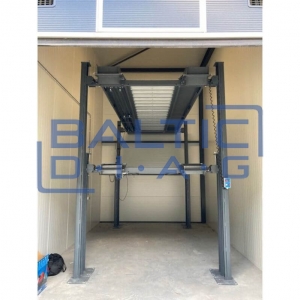

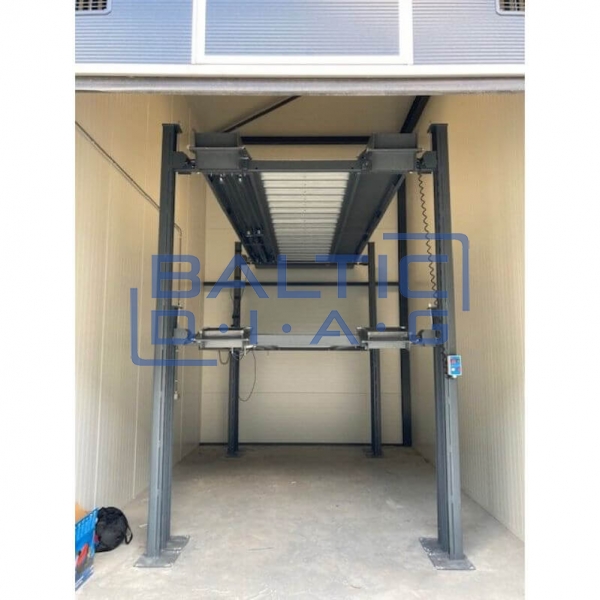

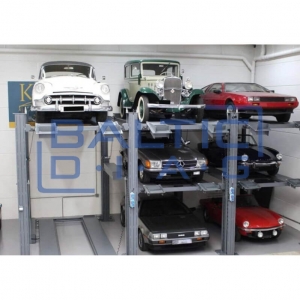

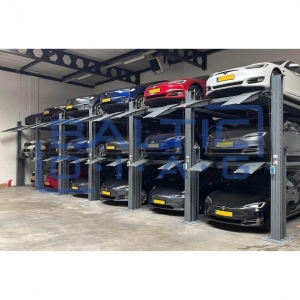

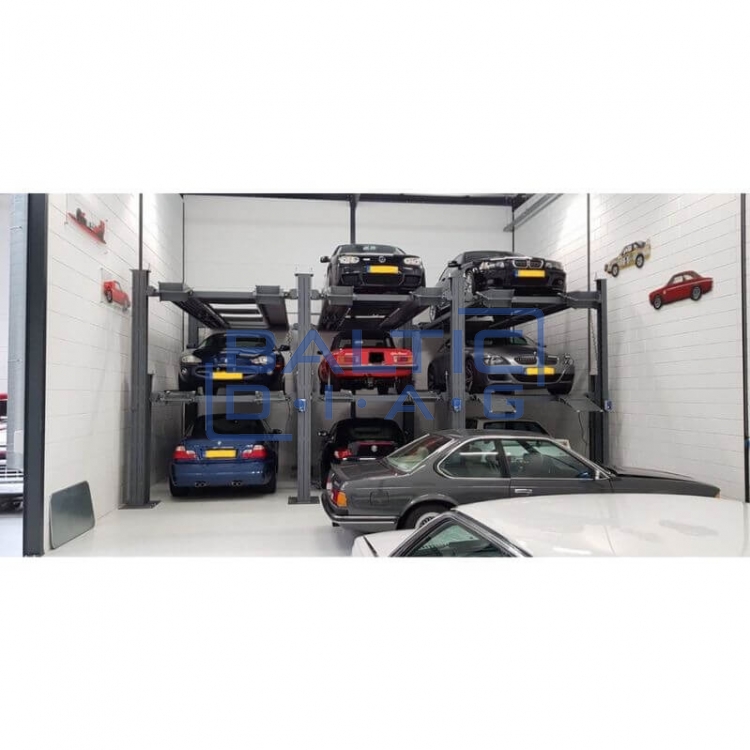

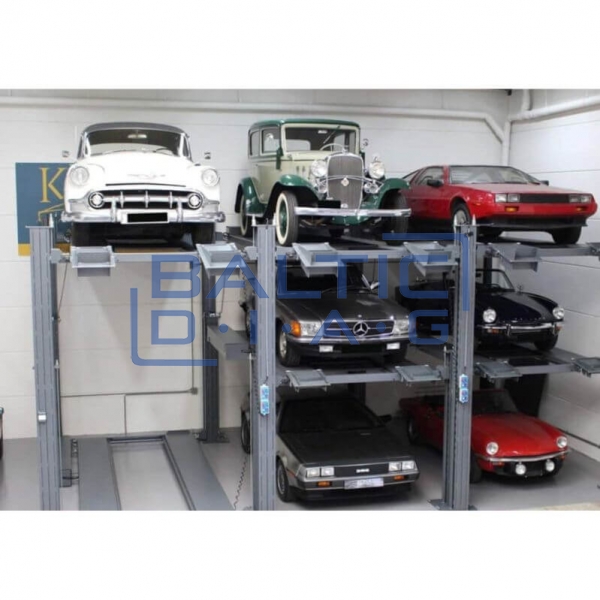

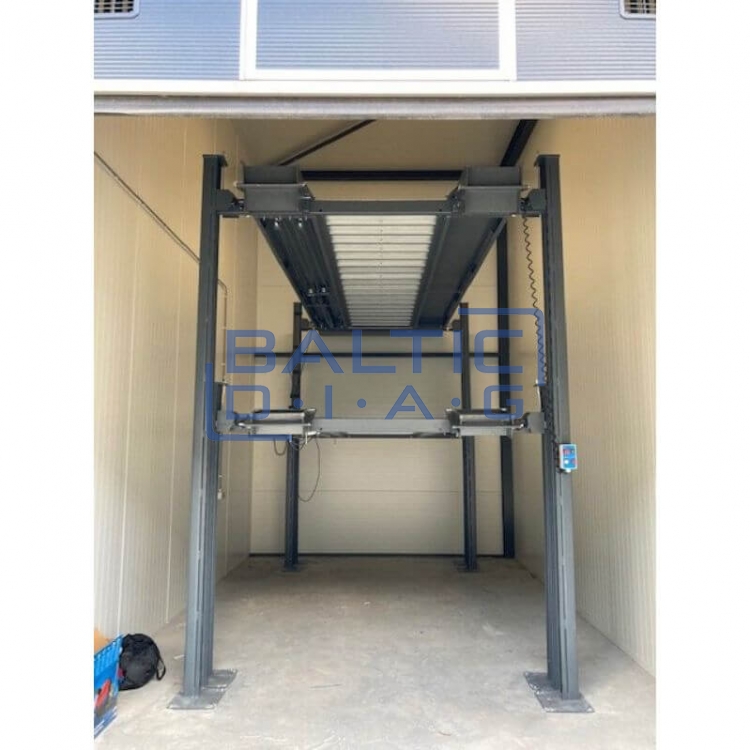

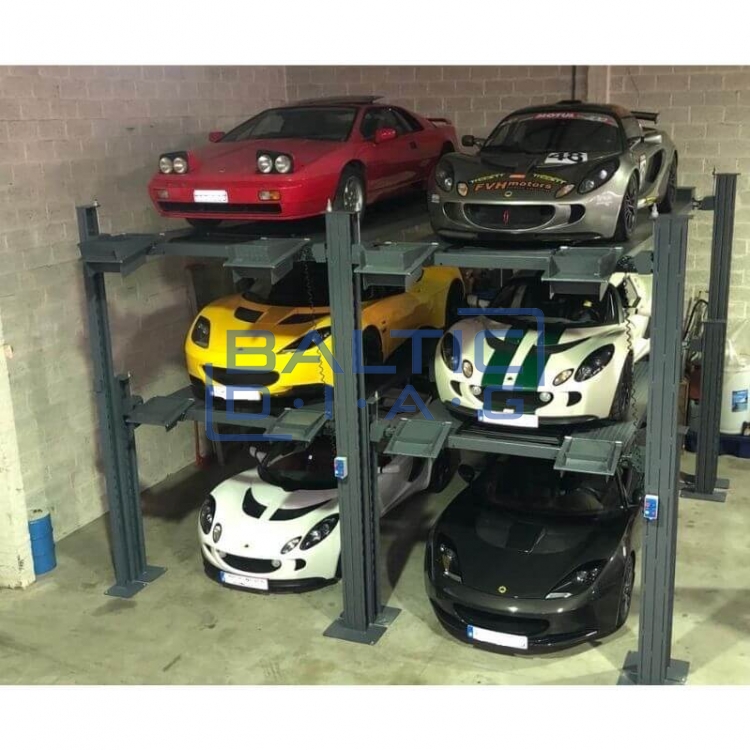

This four-post triple parking lift allows you to park up to three vehicles on top of each other. It is the ideal solution for maximizing the use of available vertical space in warehouses, garages, car storage areas, or valet parking zones. The lift consists of two integrated platforms: the upper platform raises up to 3400 mm, and the lower platform lifts up to 1900 mm. The third car is parked directly on the floor beneath the other two. Heights can be adjusted every 10 cm according to the ceiling height and vehicle dimensions. Operation is simple and intuitive via a control box.

Features:

• Ability to park 3 cars vertically
• Each platform supports up to 3500 kg
• Suitable for both SUVs and sedans

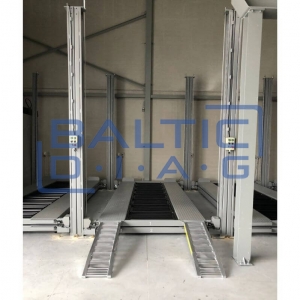

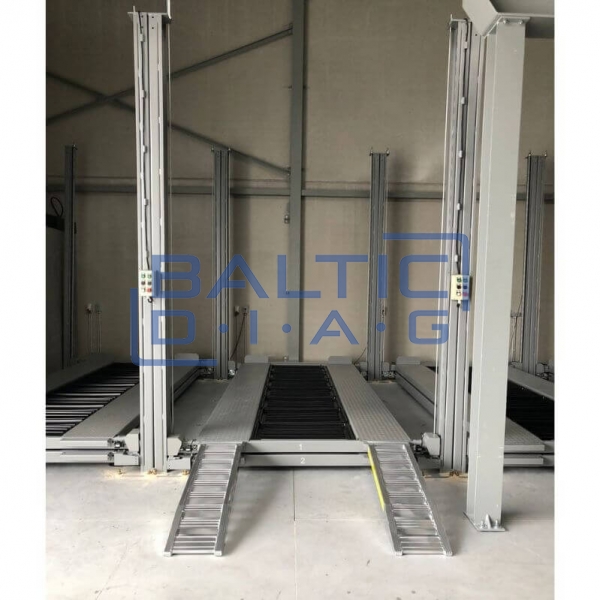

• Convenient low and extra-long ramps
• High lifting speed due to hydraulic cylinder
• Adjustable platform height according to need
• Easy push-button control

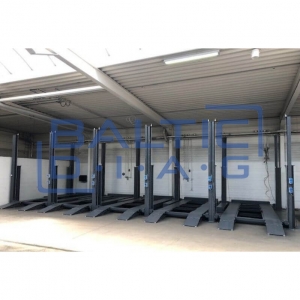

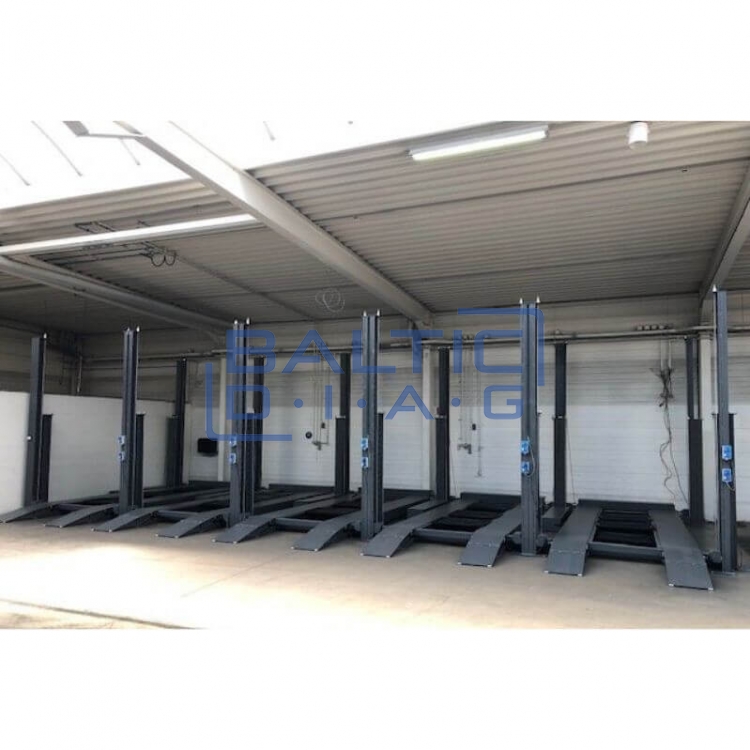

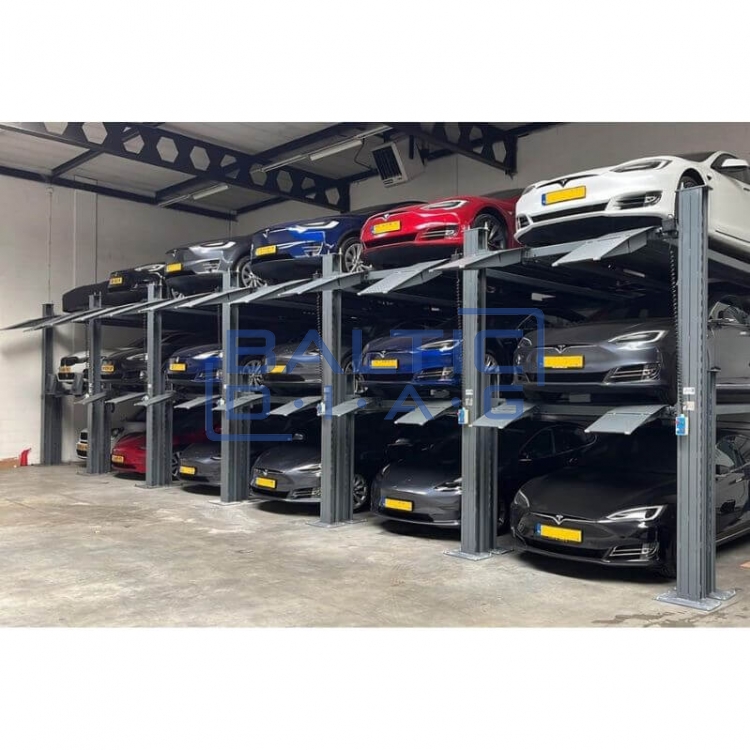

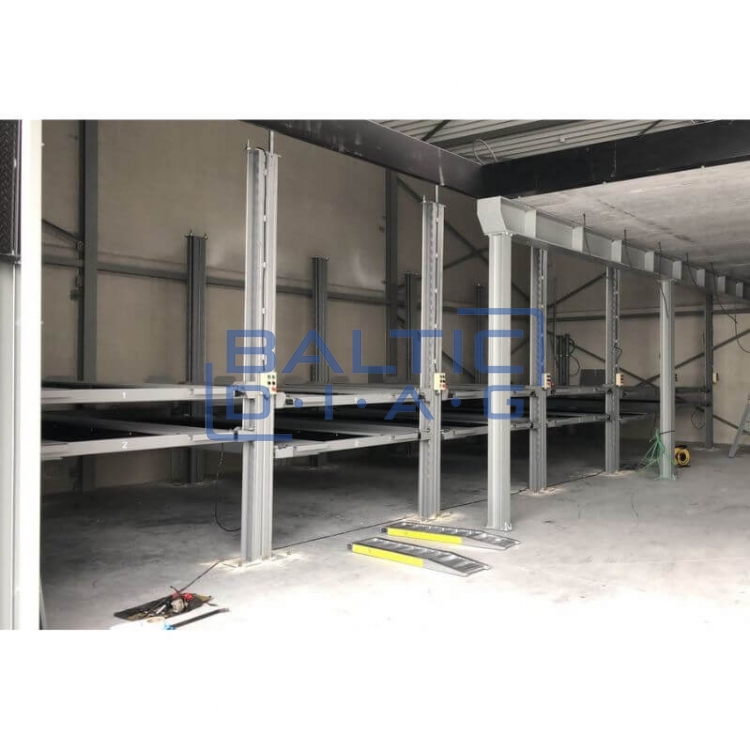

• Multiple lifts can be linked in a row (e.g., 6-lift row: 2 wide, 4 standard)
• Durable powder coating ensures long-term corrosion protection
• CE-compliant safety standards

Technical Specifications:

• Lifting capacity: 3500 kg per vehicle
• Maximum lifting height: 3400 mm
• Lower platform lifting height: up to 1900 mm
• Minimum required ceiling height: ~4500 mm
• Track width: 1900 mm (2080 mm for the wider version)
• Drive-through width: 2350 mm (2550 mm for the wider version)
• Maximum total width: 2550 mm (2750 mm for the wider version)
• Motor: 2.2 kW
• Power supply: 230 V, 50 Hz
• Control: control box
• Control voltage: 24 V (low voltage)
• Lock-in: dynamic
• Lock-out: automatic
• Lifting speed: approx. 60 seconds
• Fuse: 16 A, slow-blow (C type)
• Surface coating: powder coating

DIMENSIONS OF THE STANDARD MODEL

DIMENSIONS OF THE WIDER MODEL
