Four-Post Six-Car Parking Lift

Country of origin: China, warranty period – 24 months

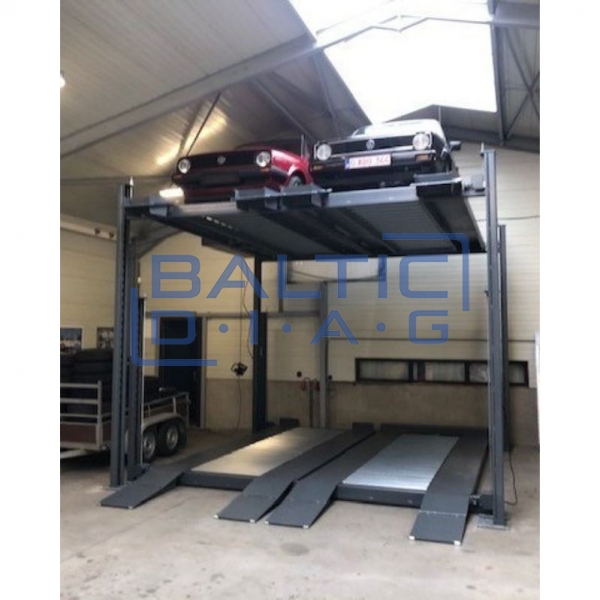

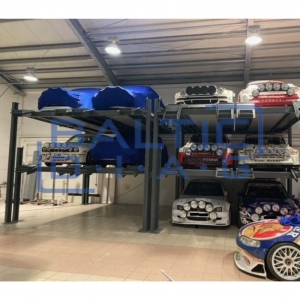

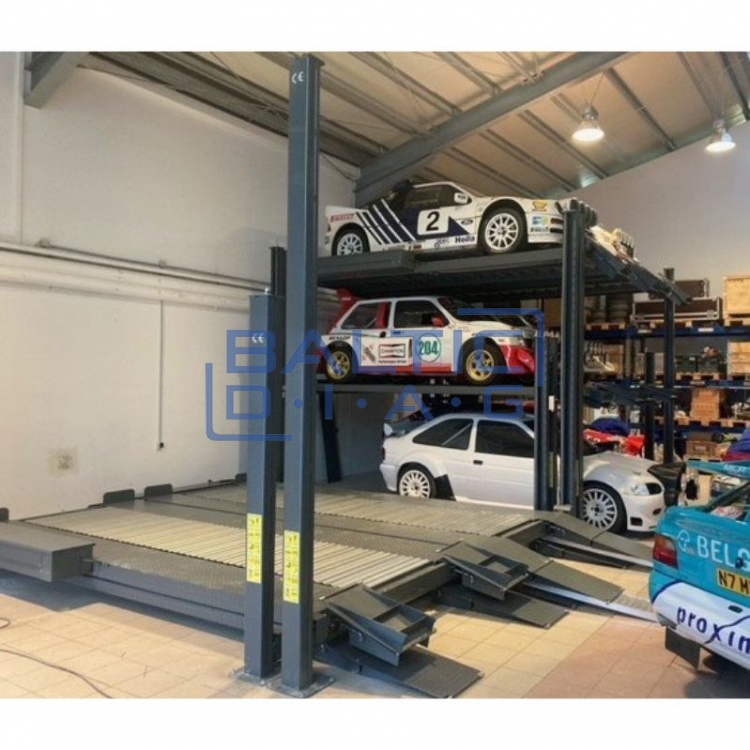

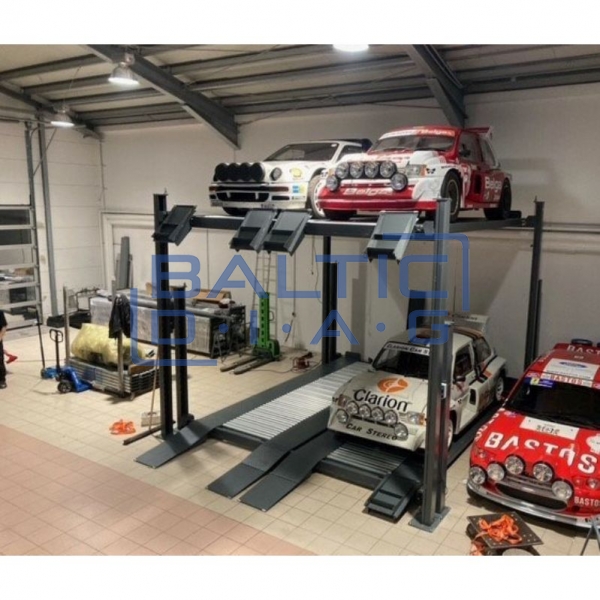

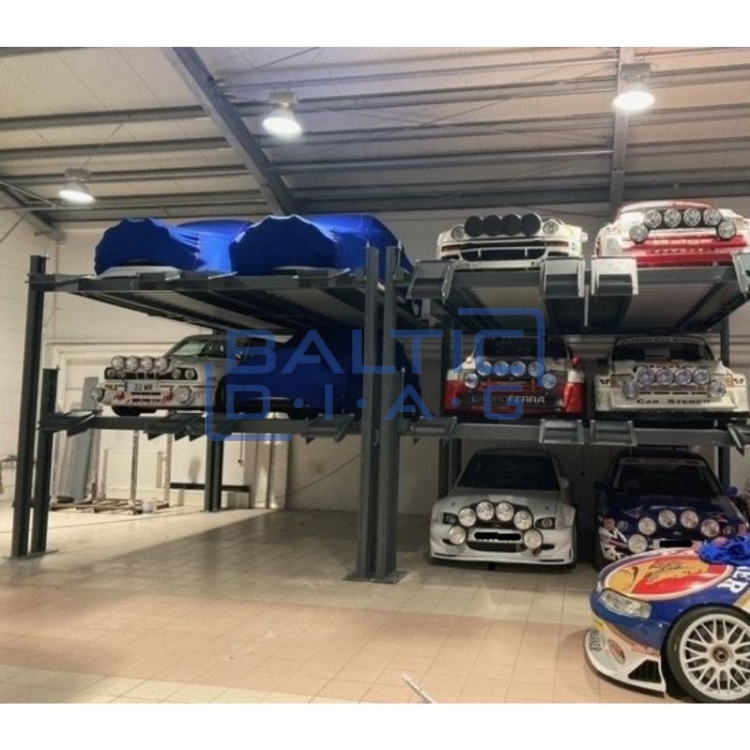

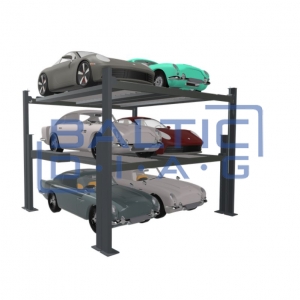

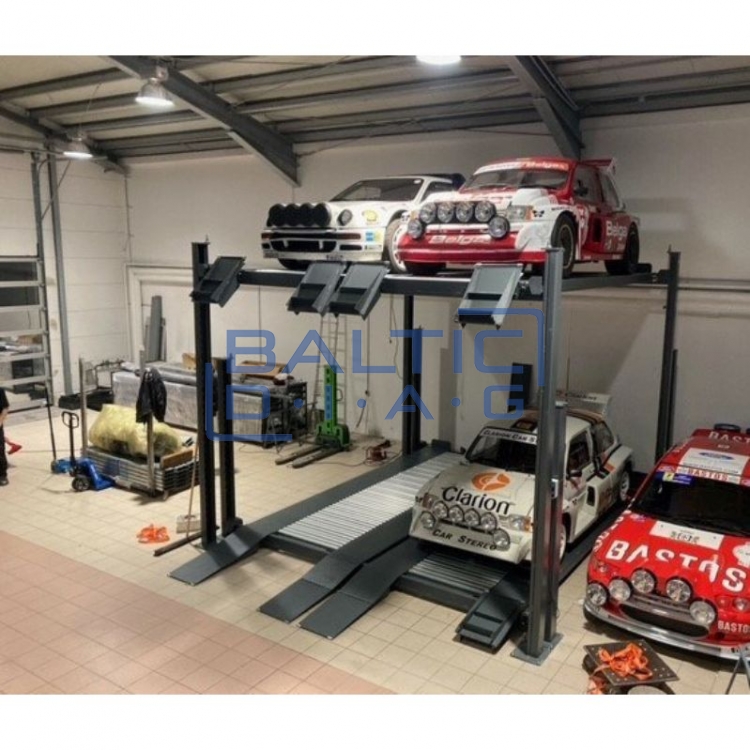

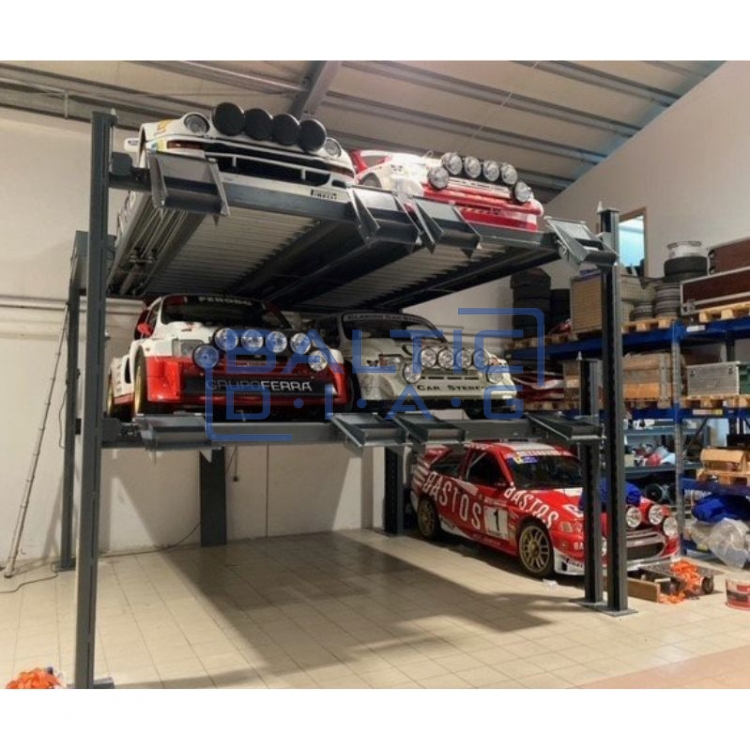

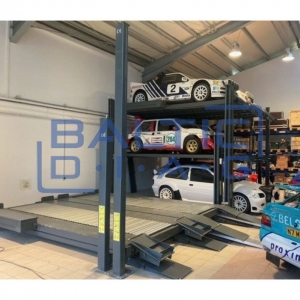

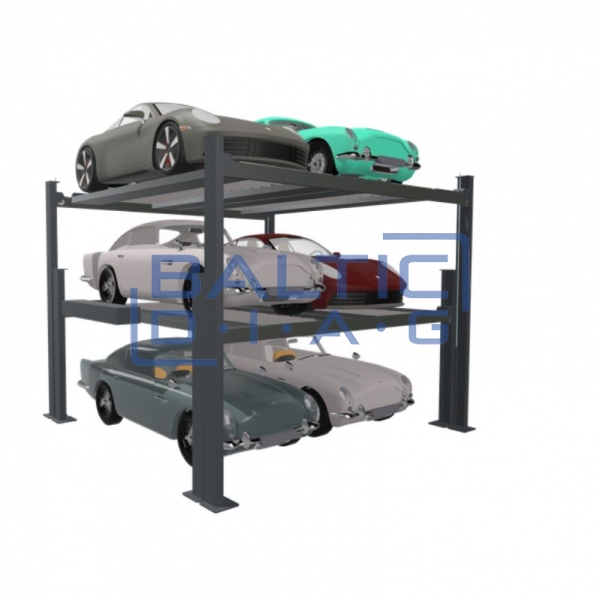

This is an advanced four-post six-car parking lift, allowing you to park up to six vehicles in a space where normally only two would fit. It features an especially compact design, making it ideal for long-term car storage, valet parking, or use in areas with limited floor space. The lift consists of two pairs of stacked platforms, enabling vehicle parking across three levels. Each vehicle can weigh up to a maximum of 2250 kg. Operation is simple via a control box, and all platforms lock automatically every 10 cm for safety.

Features:

• Ability to park 6 vehicles vertically (2 sets of 3)
• Maximum load capacity per vehicle: 2250 kg
• Compact design for efficient use of ceiling height
• Suitable for both SUVs and sedans
• High lifting speed ensured by hydraulic cylinders
• Automatic platform locking every 10 cm
• Low ramp height for the first platform – only 16 cm

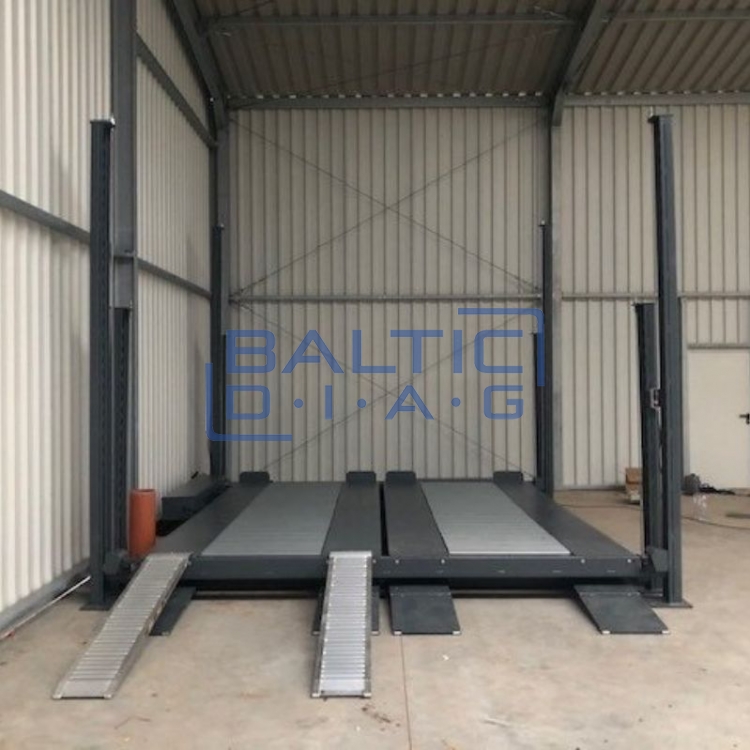

• Second platform height – 27 cm; extra-long aluminum ramps included, allowing low-profile vehicles to drive on easily
• Optional metal intermediate plates to create a fully enclosed, load-bearing platform
• Adjustable height according to ceiling clearance and vehicle dimensions
• Durable powder coating provides long-lasting corrosion resistance
• Complies with CE safety standards

Technical Specifications:

• Lifting capacity: 2250 kg per vehicle
• Maximum lifting height: 3500 mm
• Platform clearance height: 0–3400 mm
• Minimum required ceiling height: ~4500 mm
• Track width: 1900 mm
• Total width: 4550 mm
• Drive-through width: 4275 mm
• Motor power: 3.0 kW
• Power supply: 400 V, 50 Hz
• Control: control box
• Control voltage: 24 V (low voltage)
• Lock-in mechanism: dynamic
• Unlocking: automatic
• Lifting speed: approx. 60 seconds
• Fuse: 16 A, slow-blow (type C)
• Surface coating: powder coating
