Four-Post Parking Lift Standard

Country of origin: China, warranty period – 24 months

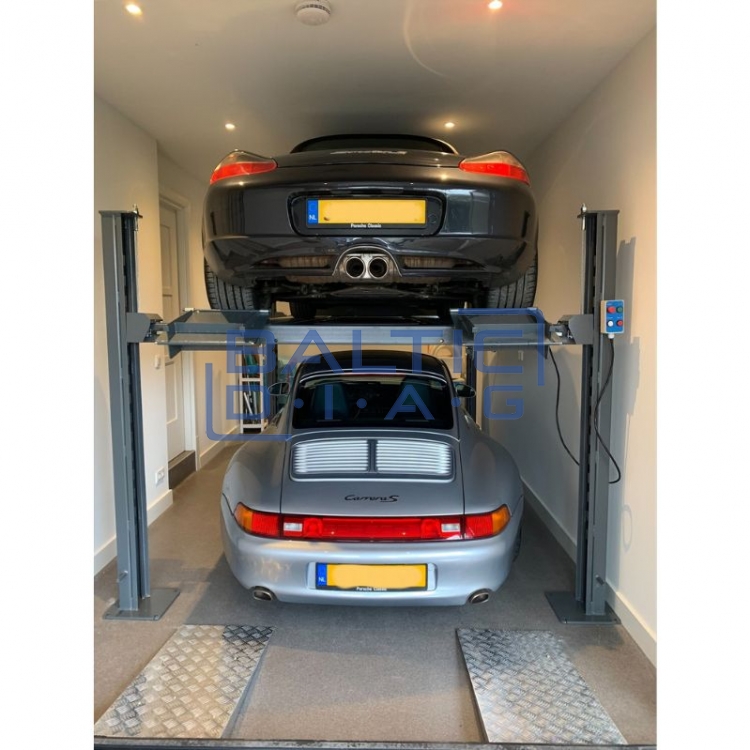

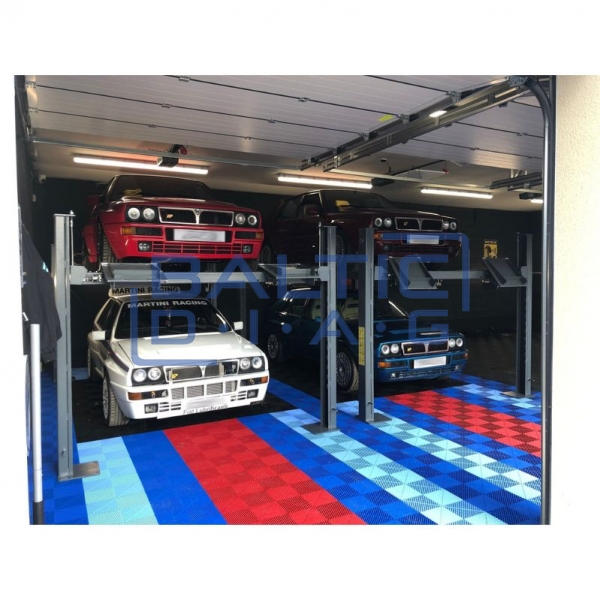

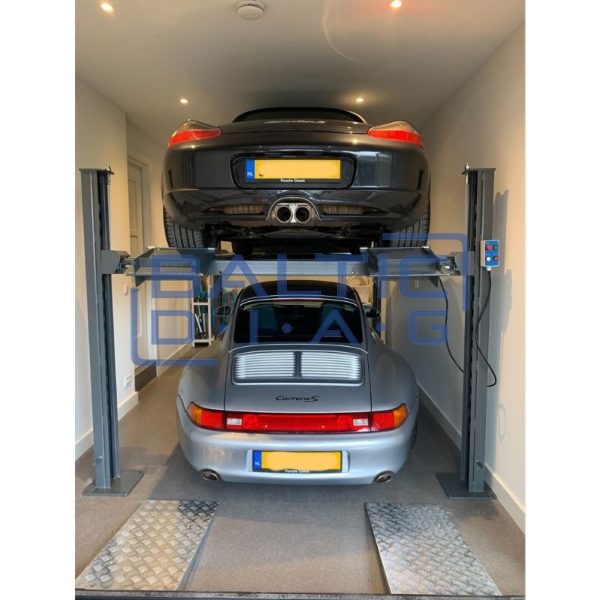

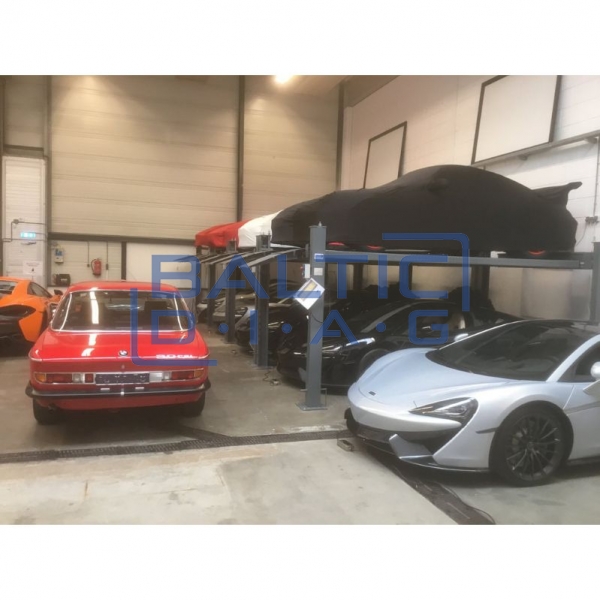

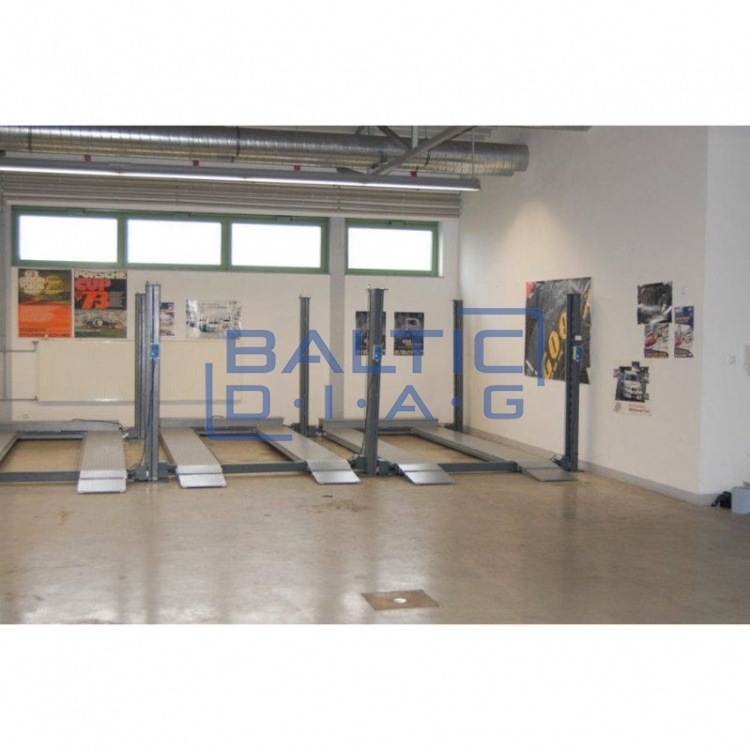

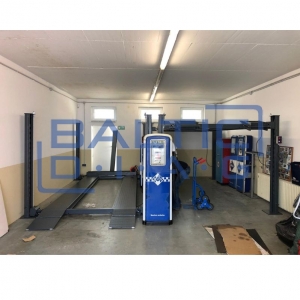

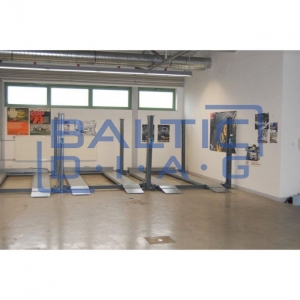

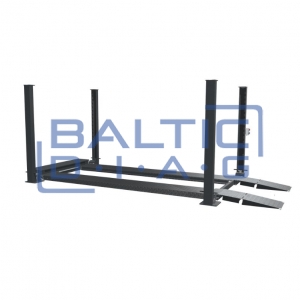

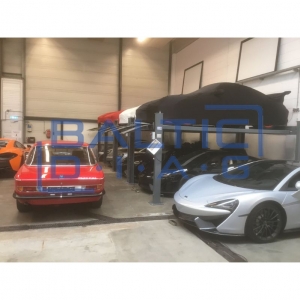

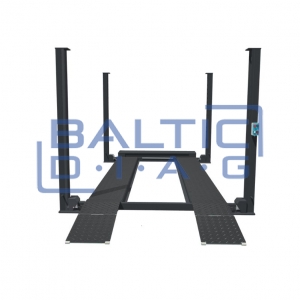

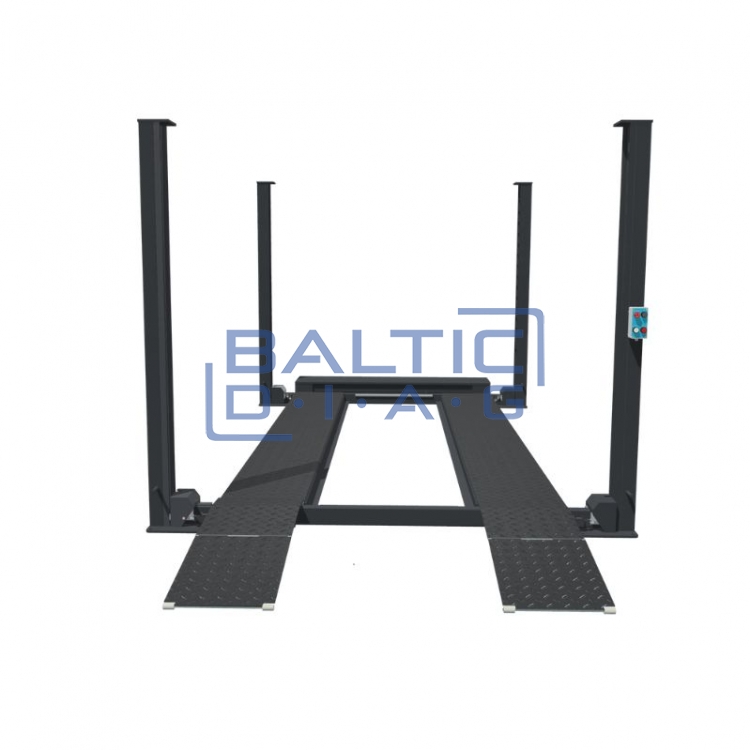

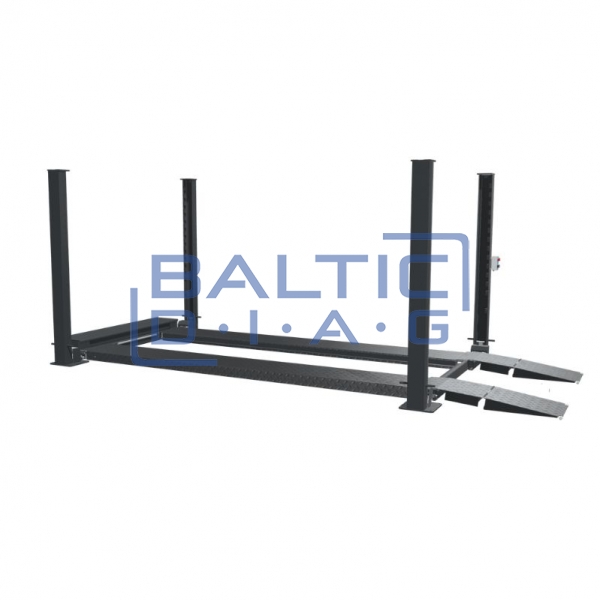

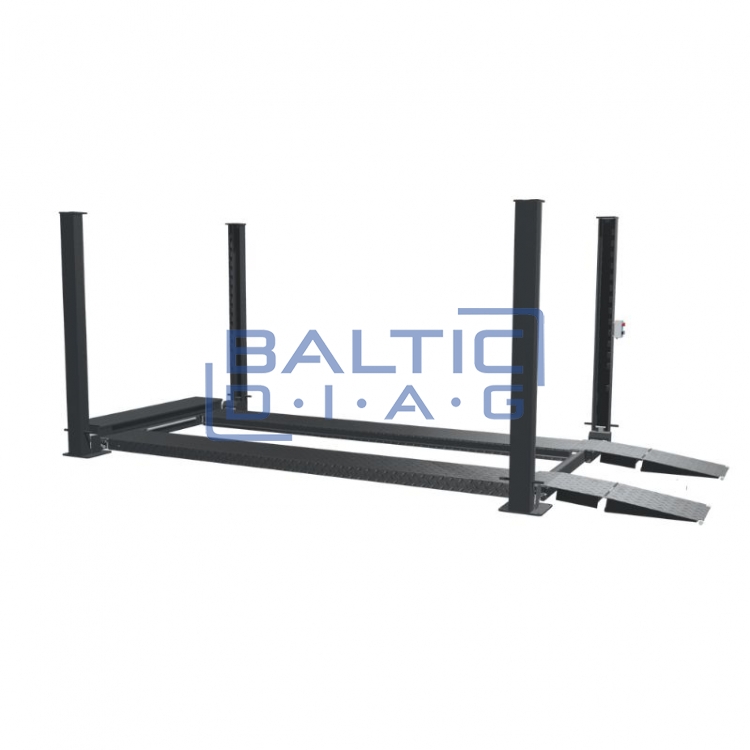

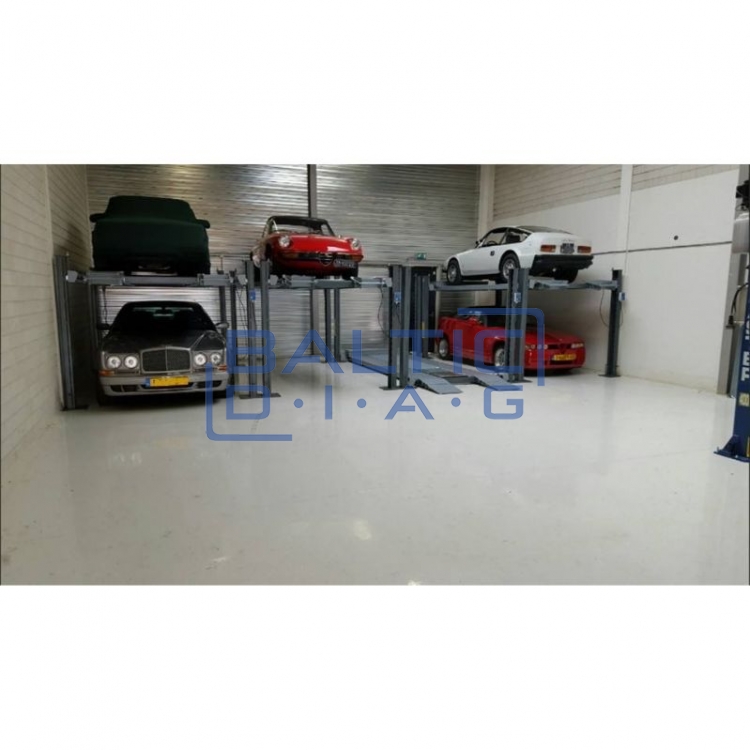

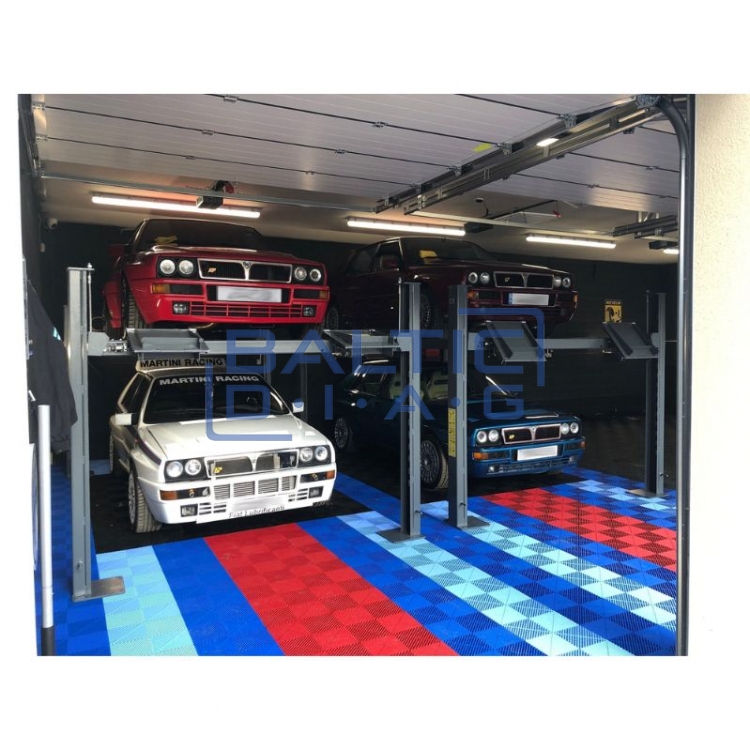

Standard is a hydraulic four-post parking lift designed to park two cars one above the other, making optimal use of vertical space. This model is ideally suited for both private use and automotive businesses – rental companies, workshops, or fleet managers. The lift is also perfect for classic car enthusiasts who want a convenient way to store and service their vehicles. Certified as a service lift and compliant with CE standards, this model ensures safety and durability. Thanks to its attractive price and easy operation, it is one of the most popular solutions on the market.

Features:

• Enables you to double the number of parking spaces.

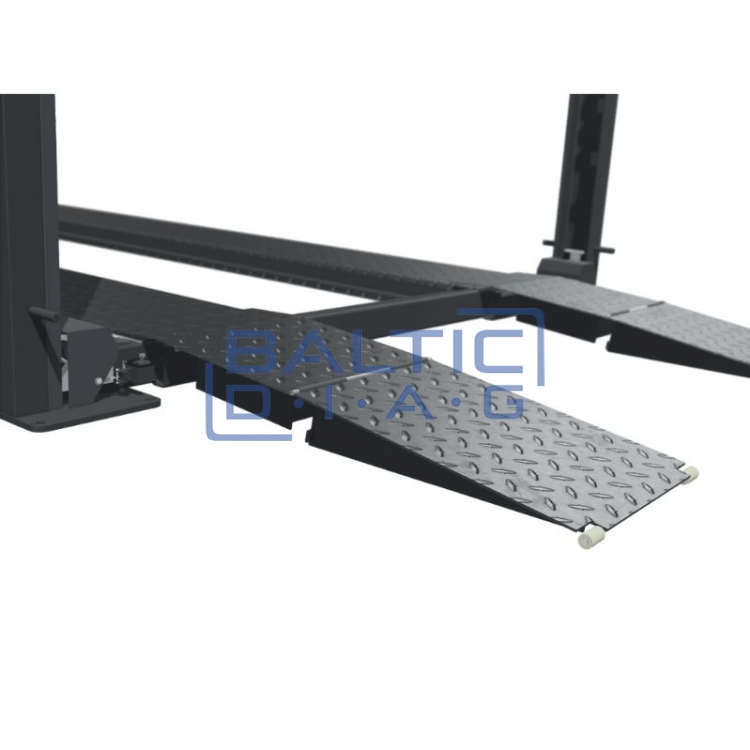

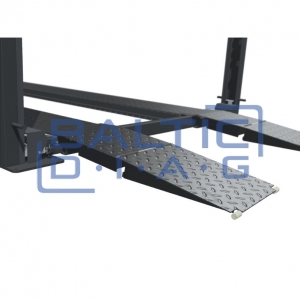

• Low entry angle due to low-profile ramps.
• Fast lifting thanks to the hydraulic cylinder.

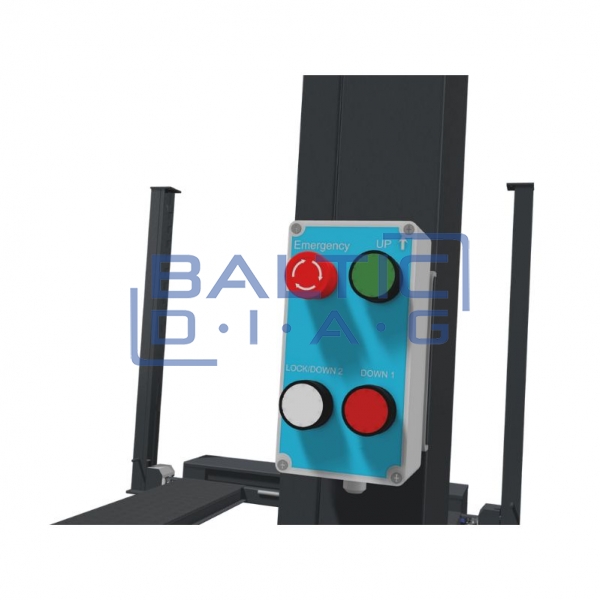

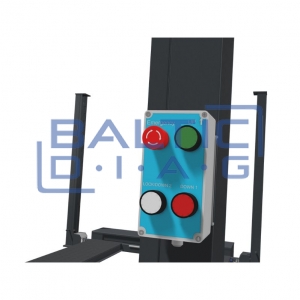

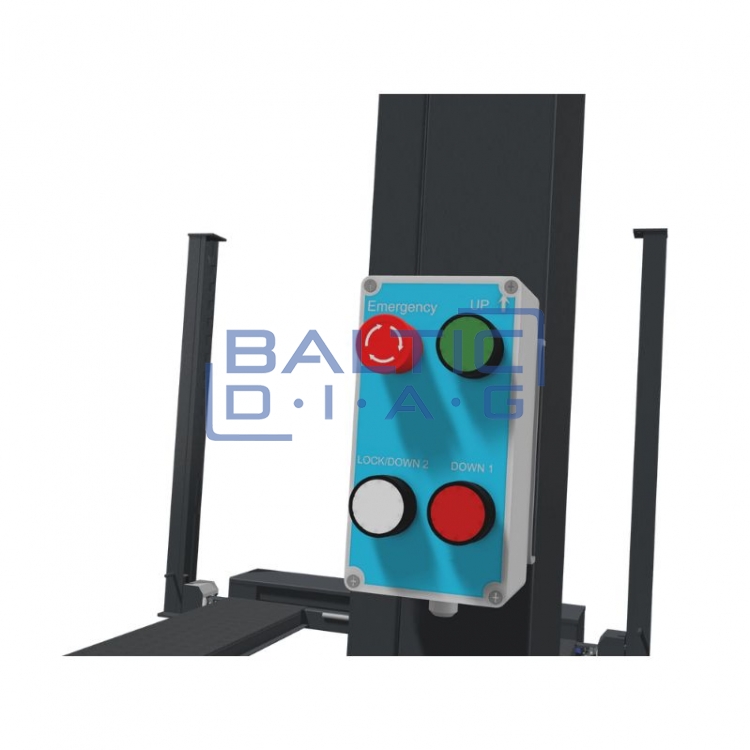

• Simple operation using control box buttons.

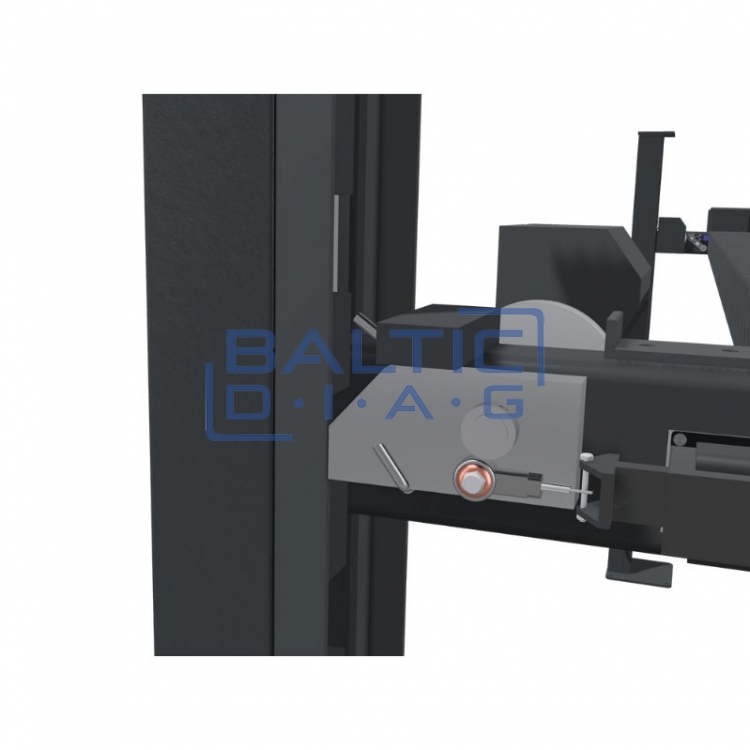

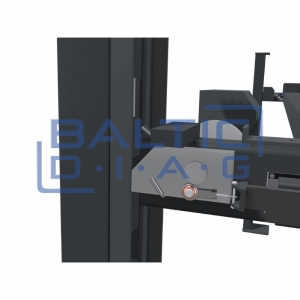

• Dynamic automatic safety locks.

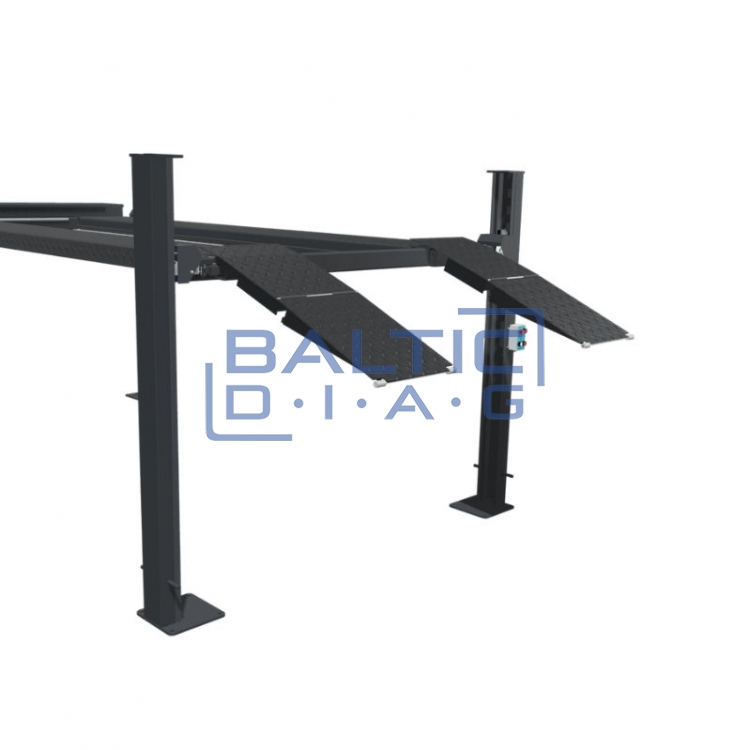

• Folding ramps and 24 V control voltage.
• High-quality powder coating ensures long-lasting corrosion protection.
• Can be moved using an optional caster kit.
• Complies with the latest CE safety standards and is approved for use in the European Union.

Technical Specifications:

• Lifting capacity: 3500 kg
• Lifting height from the ground: 1900 mm
• Width between outer runways: 1900 mm
• Maximum external width: 2550 mm
• Drive-through width: 2350 mm
• Clearance height under the platform: 1800 mm
• Power: 2.2 kW
• Voltage: 230 V, 50 Hz, single-phase
• Control: control box with buttons
• Control voltage: 24 V
• Lock type: dynamic, automatic
• Lifting speed: < 55 seconds
• Fuse: 16 C (slow-blow)
• Coating: powder coating
• Suitable for: sedans and SUVs

Is your garage ceiling high enough to park two cars one above the other?

• Use the table below to calculate the minimum required ceiling height for stacking two vehicles. It depends on the height of the vehicle parked below. Depending on the height range in which the lower car falls, a corresponding fixed added height is applied. You must add the height of the upper car to this fixed value – the result is the minimum required ceiling height.

Height of the car below Minimum required ceiling height = fixed height + upper car height

93 – 103 cm                          118 cm + height of the upper car

103 – 113 cm                  128 cm + height of the upper car

113 – 123 cm                  138 cm + height of the upper car

123 – 133 cm                  148 cm + height of the upper car

133 – 143 cm                  158 cm + height of the upper car

143 – 153 cm                  168 cm + height of the upper car

153 – 163 cm                  178 cm + height of the upper car

163 – 173 cm                  188 cm + height of the upper car
