Four-Post Parking Lift Smaller

Country of origin: China, warranty period – 24 months

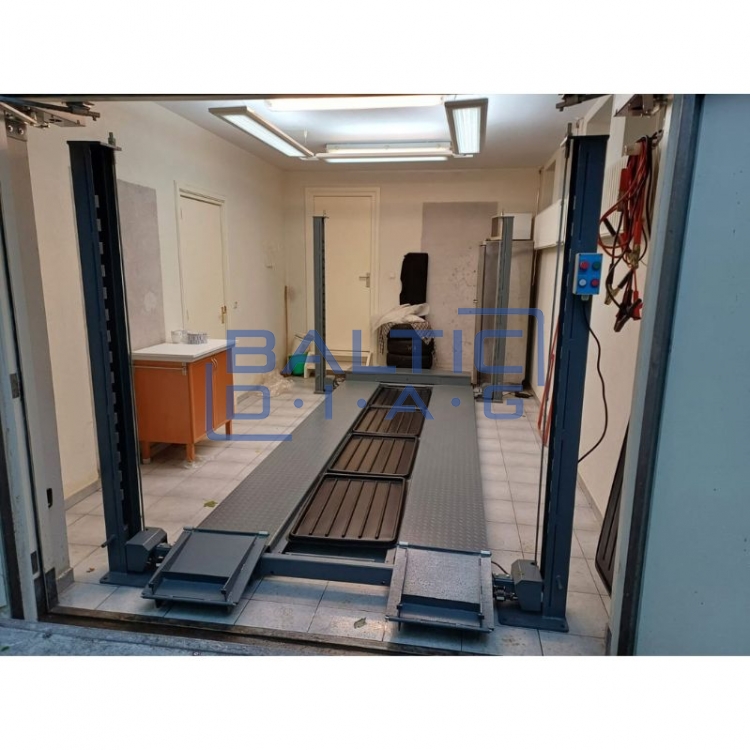

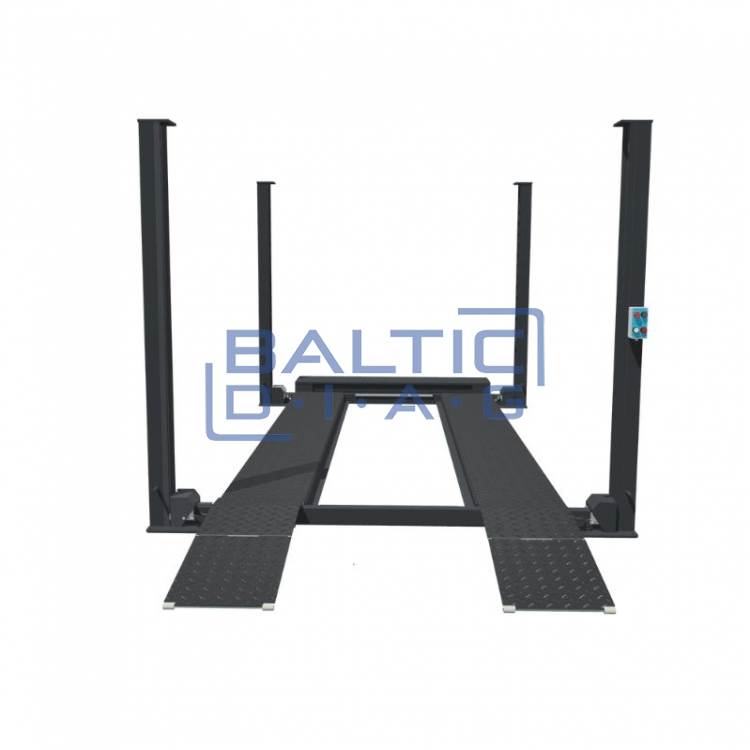

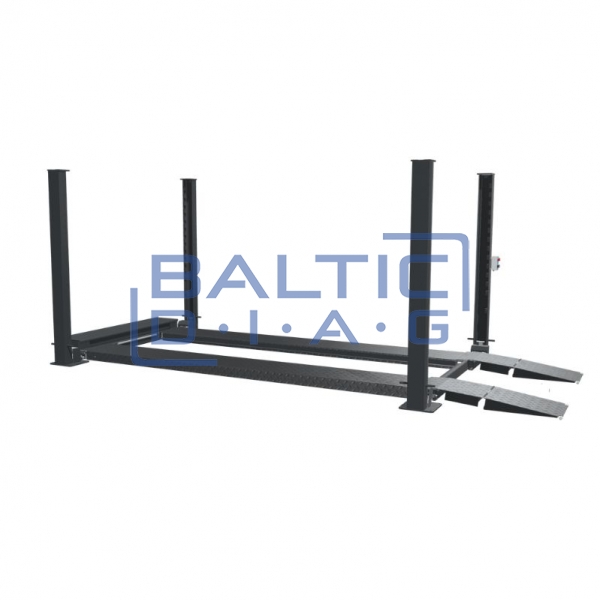

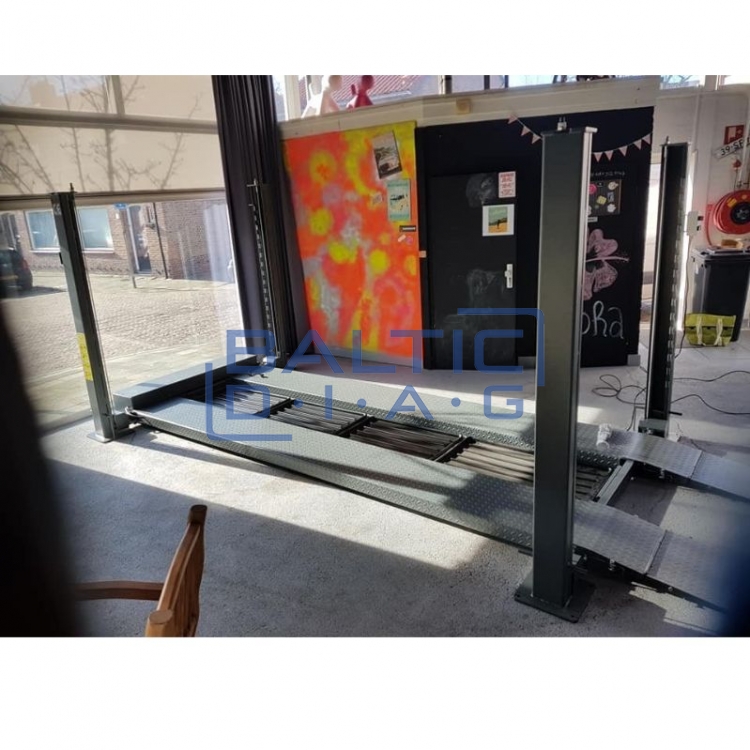

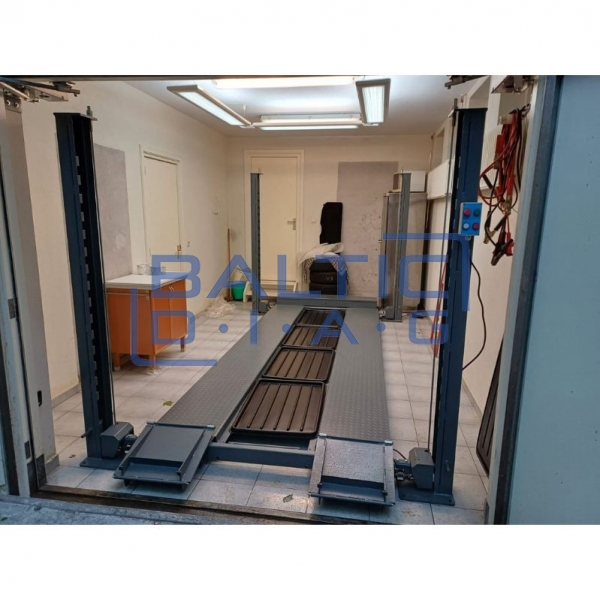

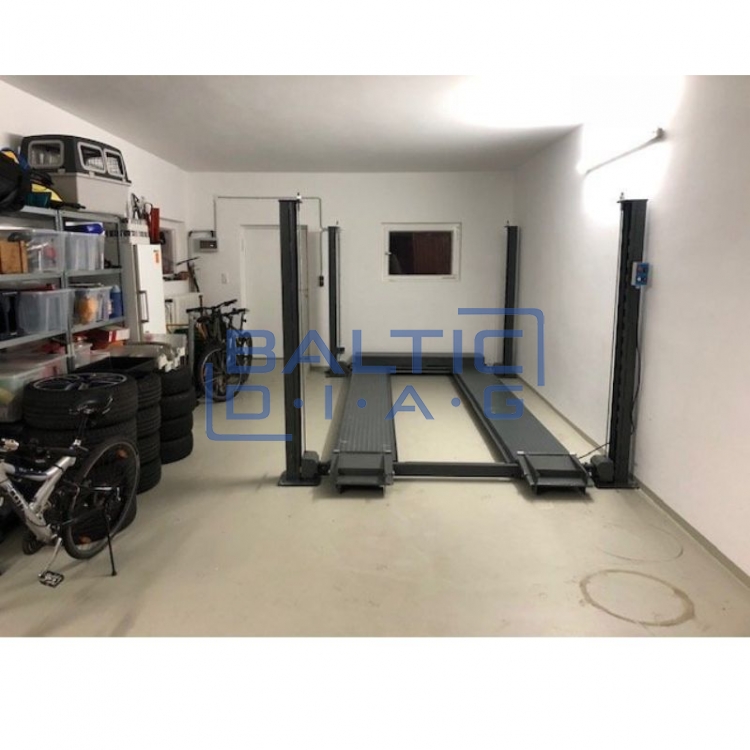

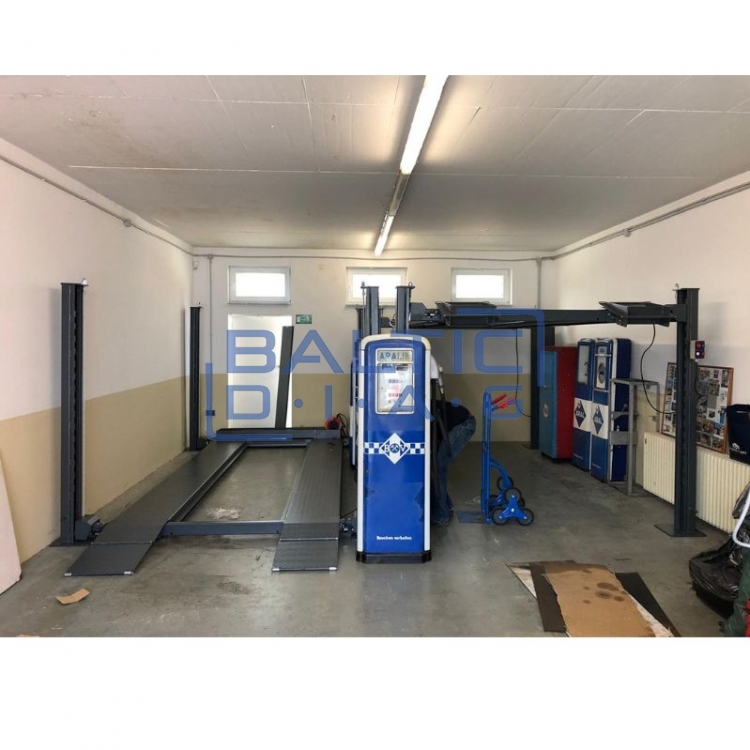

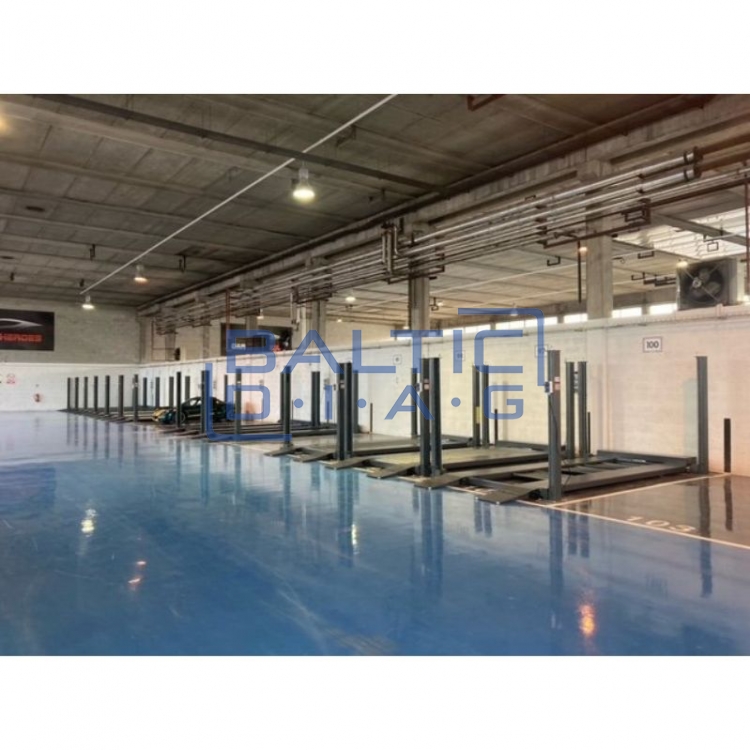

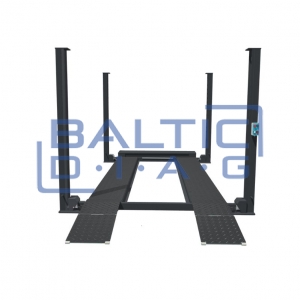

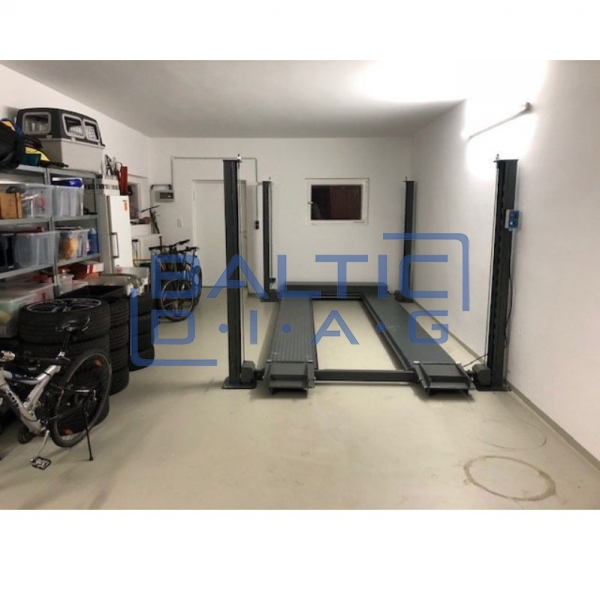

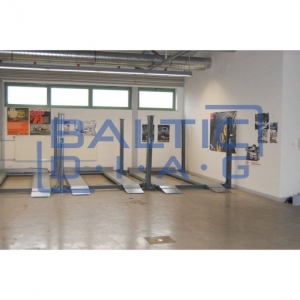

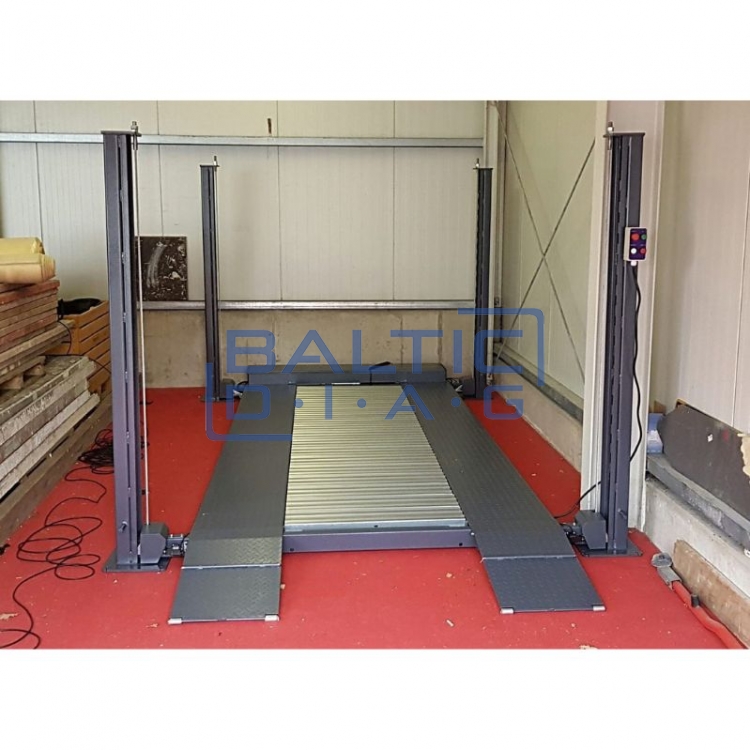

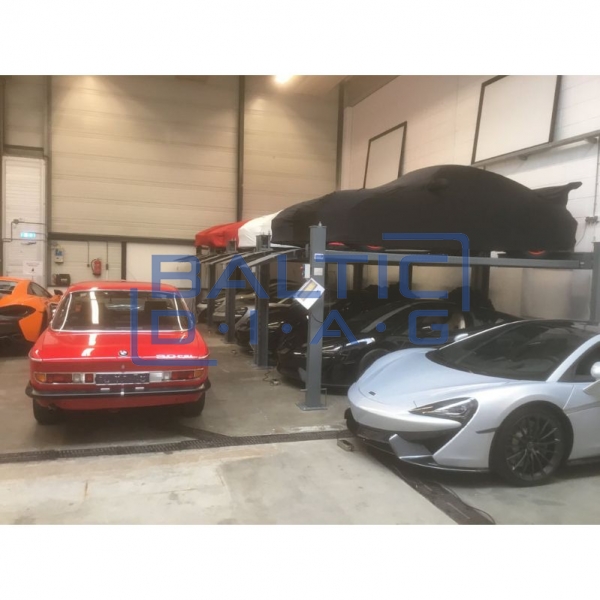

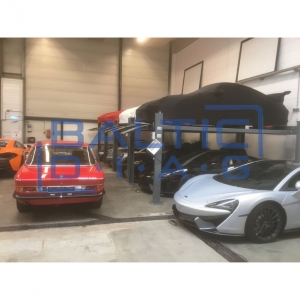

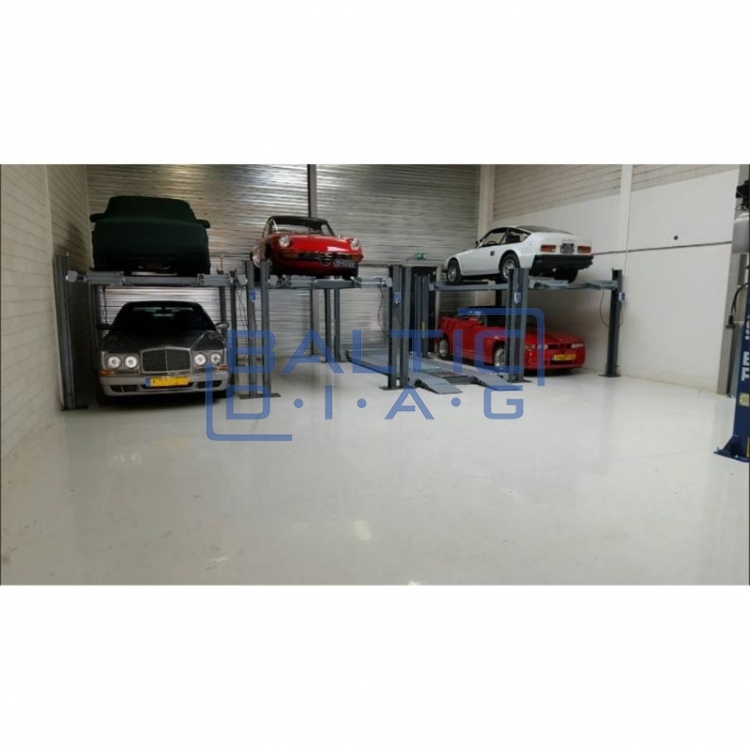

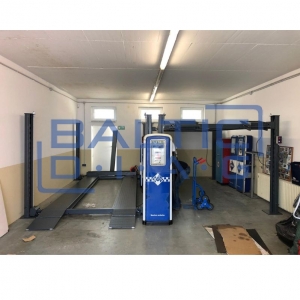

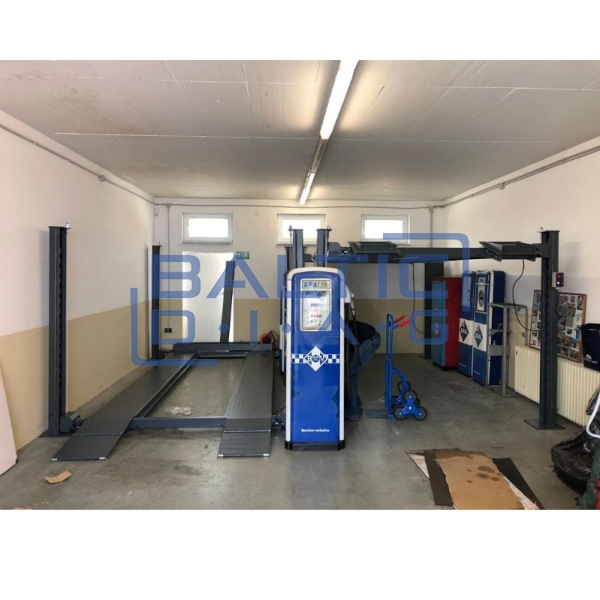

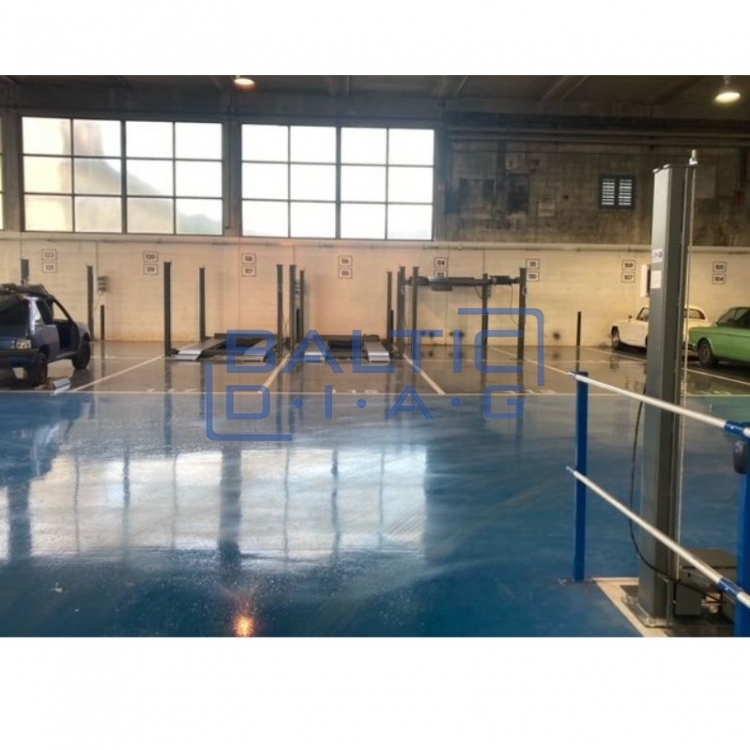

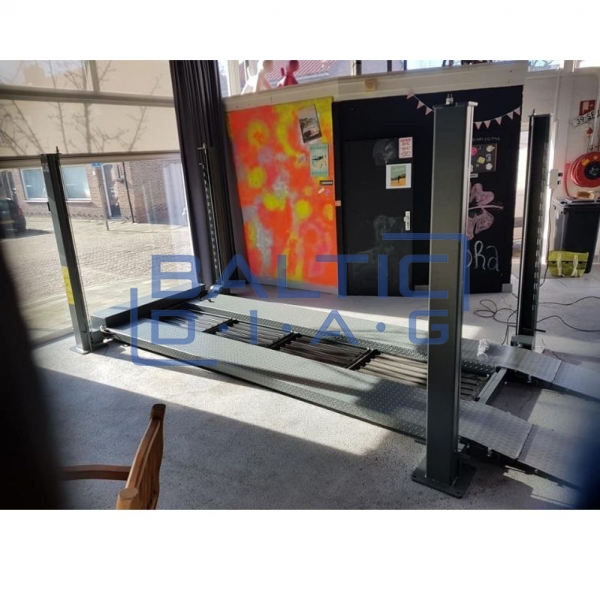

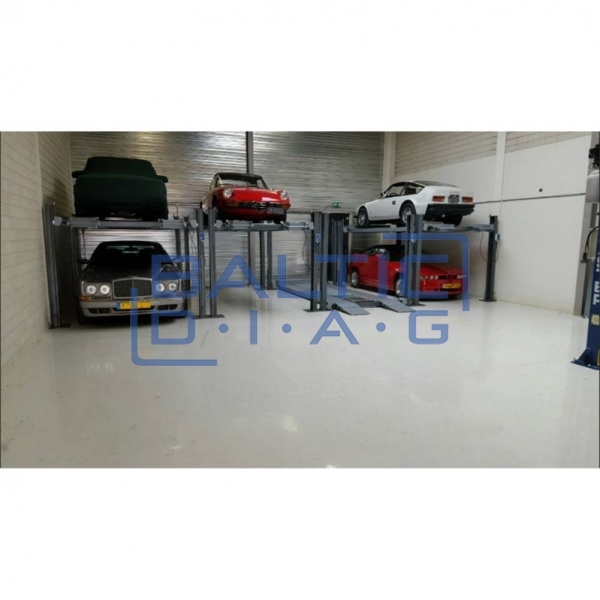

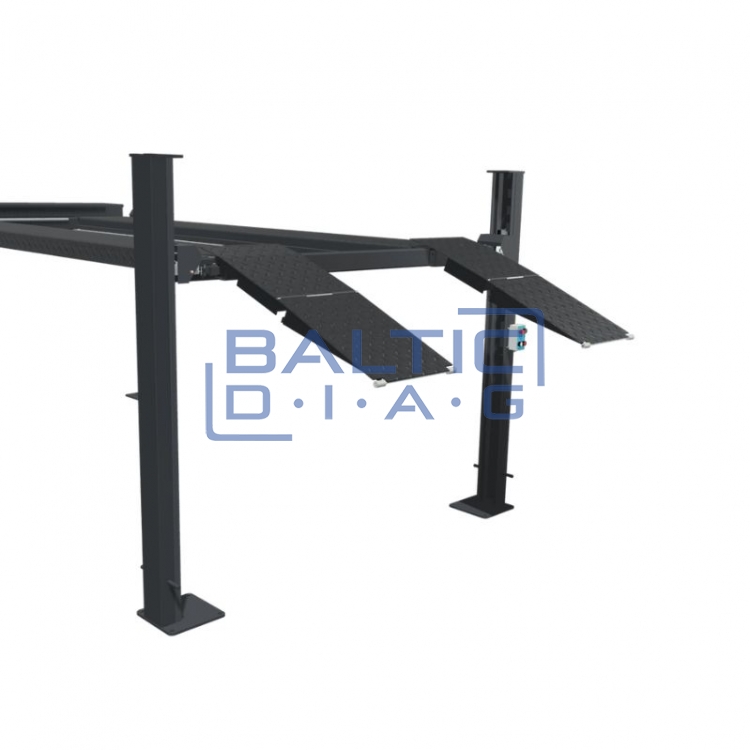

Smaller is a compact hydraulic four-post parking lift designed for parking two vehicles one above the other in especially tight spaces. This model is 30 cm narrower than the standard version, which means there is less space between the tracks, but it allows installation in places where other models do not fit. Certified as a workshop lift and compliant with CE standards, it is particularly popular among classic car enthusiasts and is widely used by fleet managers, service centers, rental companies, and private individuals. Due to its highly compact design, reliable construction, and attractive price, it is one of the most practical solutions for safely and conveniently doubling the number of parking spaces.

Features:

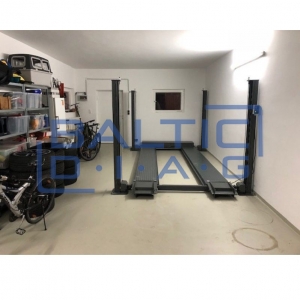

• Compact width – only 2250 mm – ideal for narrow garages.

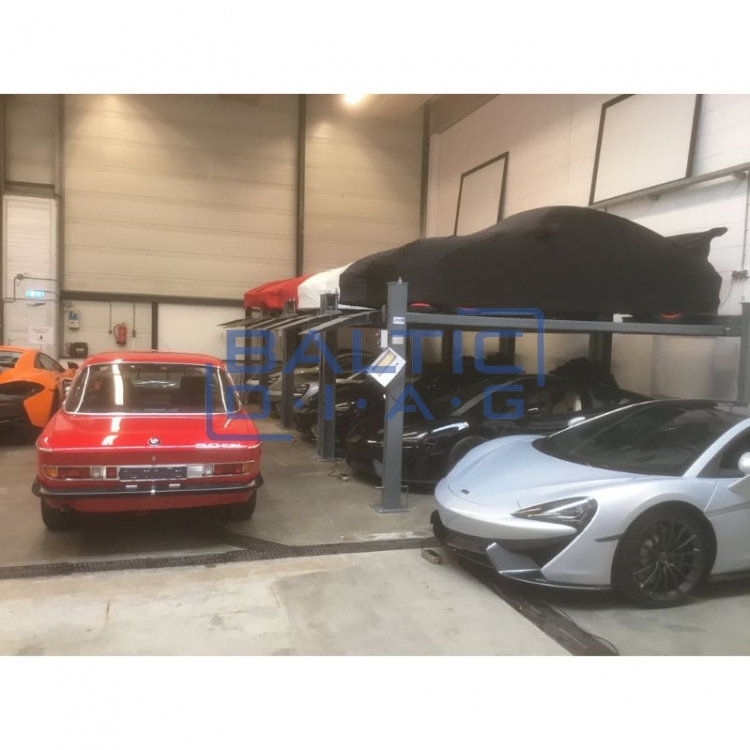

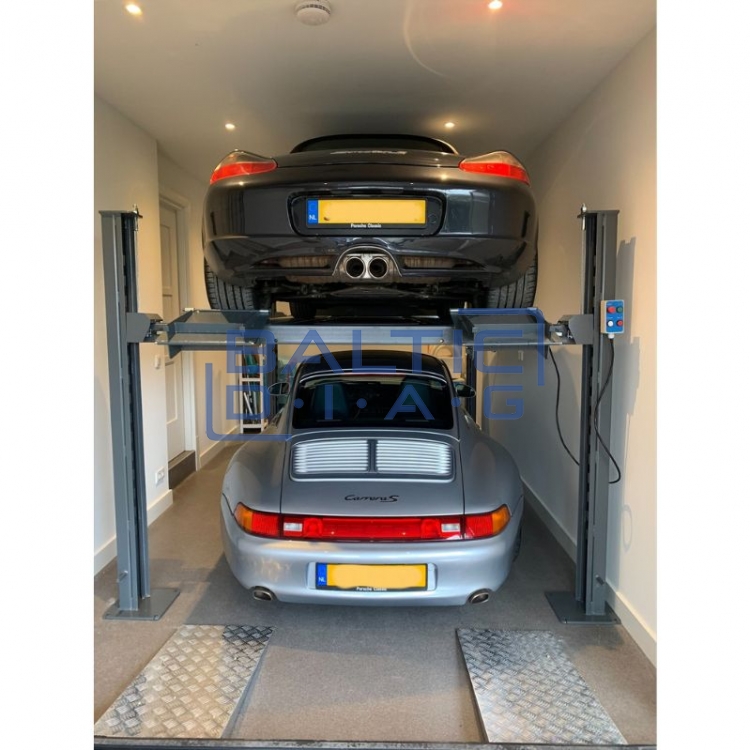

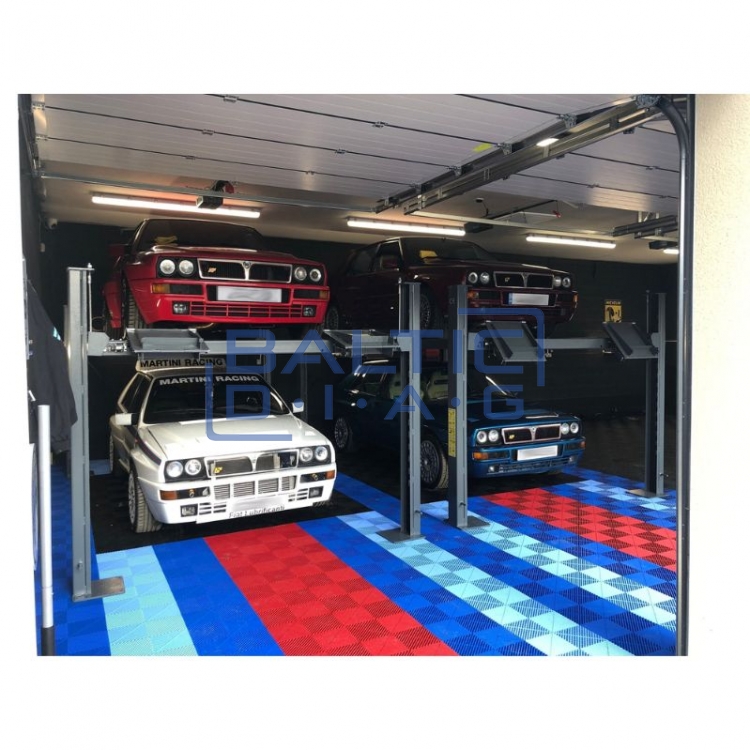

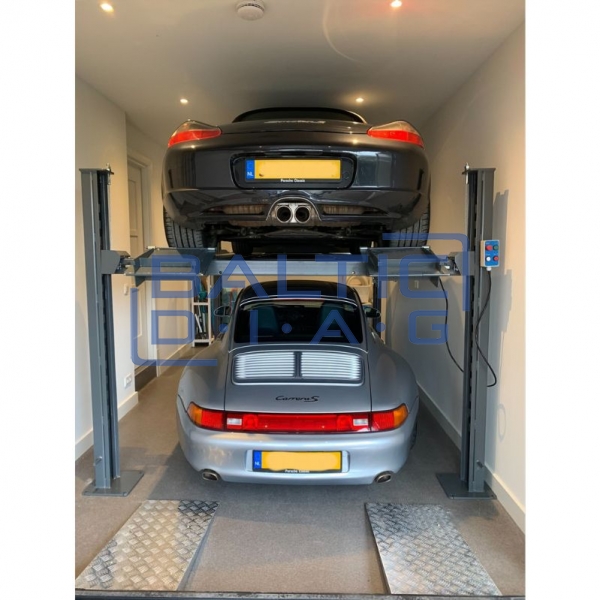

• Suitable for parking two vehicles one above the other.
• Low-profile ramps ensure convenient access.
• Fast lifting thanks to a powerful hydraulic cylinder.

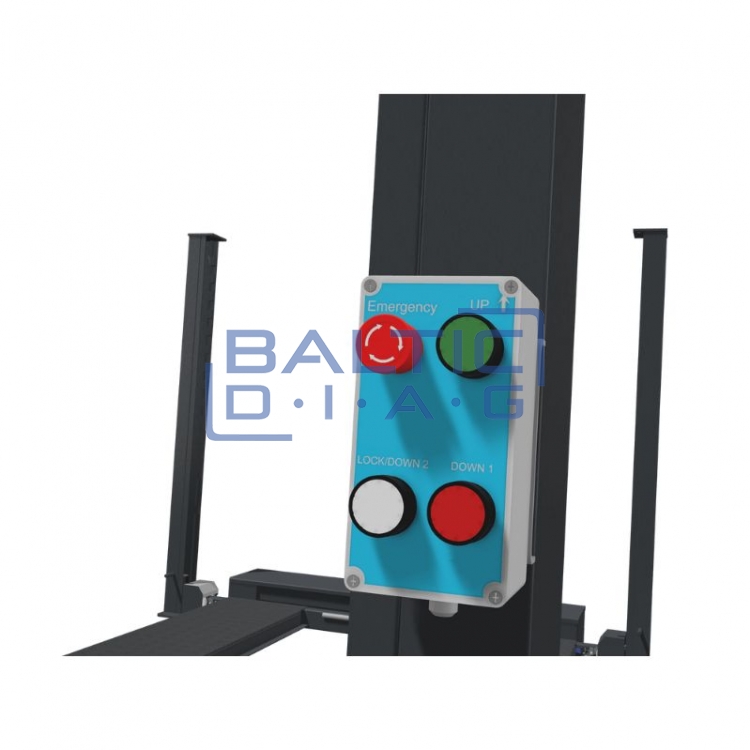

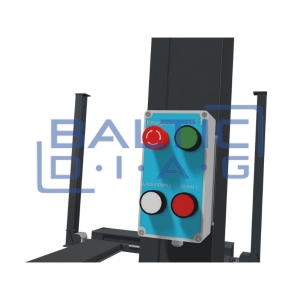

• Simple operation via control box push buttons.

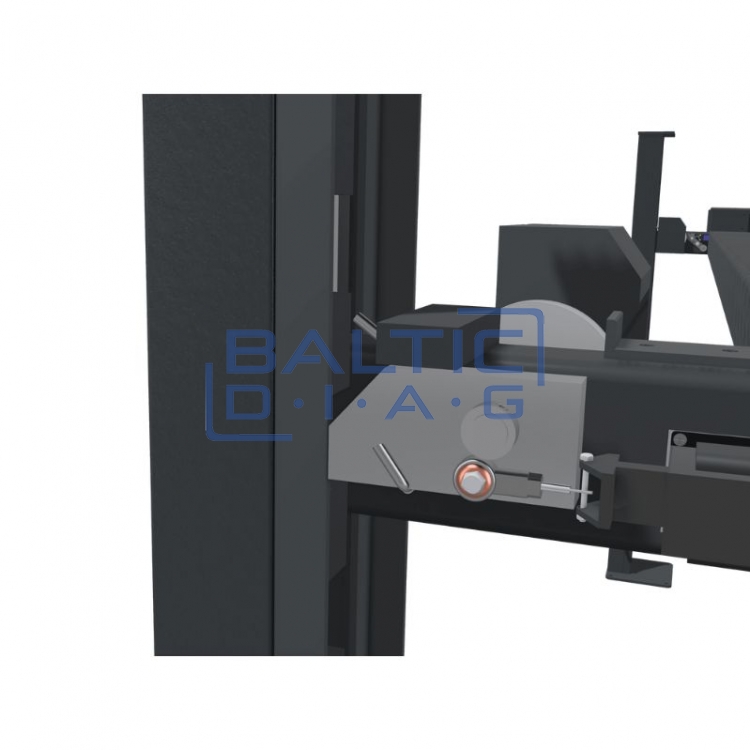

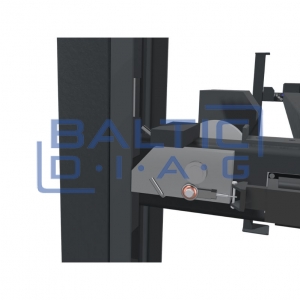

• Dynamic automatic safety locks.
• 24 V control voltage ensures safe operation.

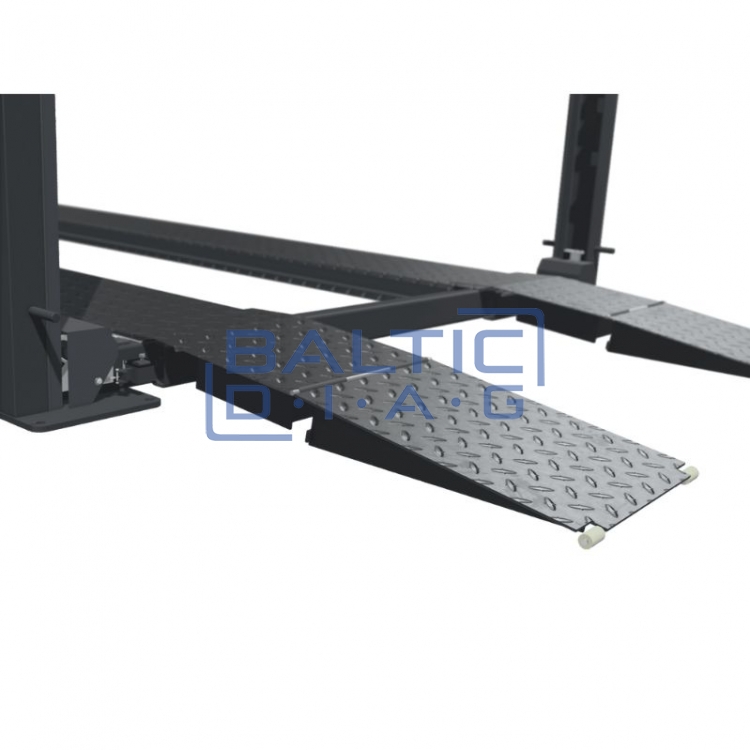

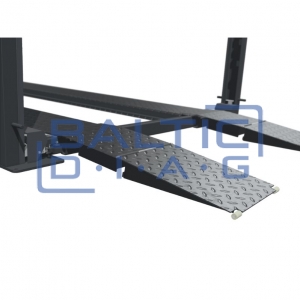

• Folding ramps.
• High-quality powder coating protects against corrosion.
• Can be moved using an optional caster kit.
• Complies with the latest CE safety standards, approved for use across the European Union.

Technical Specifications:

• Lifting capacity: 3500 kg
• Lifting height: 1900 mm
• Width between outer runways: 1600 mm
• Drive-through width: 2050 mm
• Maximum external width: 2250 mm
• Clearance height under the platform: 1800 mm
• Power: 2.2 kW
• Voltage: 230 V, 50 Hz, single-phase
• Control: control box with buttons
• Control voltage: 24 V
• Lock type: dynamic, automatic
• Lifting speed: < 55 seconds
• Fuse: 16 C (slow-blow)
• Coating: powder coating
• Suitable for: compact vehicles

Is your garage ceiling high enough to park two cars one above the other?

• The required ceiling height depends on the height of the car parked below. Based on that, a fixed added height is applied. You must add the height of the upper car to this fixed value to determine the minimum required ceiling height:

Height of the lower car Minimum required ceiling height = fixed value + upper car height

93 – 103 cm                         118 cm + upper car height

103 – 113 cm                 128 cm + upper car height

113 – 123 cm                 138 cm + upper car height

123 – 133 cm                 148 cm + upper car height

133 – 143 cm                 158 cm + upper car height

143 – 153 cm                 168 cm + upper car height

153 – 163 cm                 178 cm + upper car height

163 – 173 cm                 188 cm + upper car height
