- Manufacturer:: BALTIC DIAG
- SKU: BD70643
Fill out the inquiry form

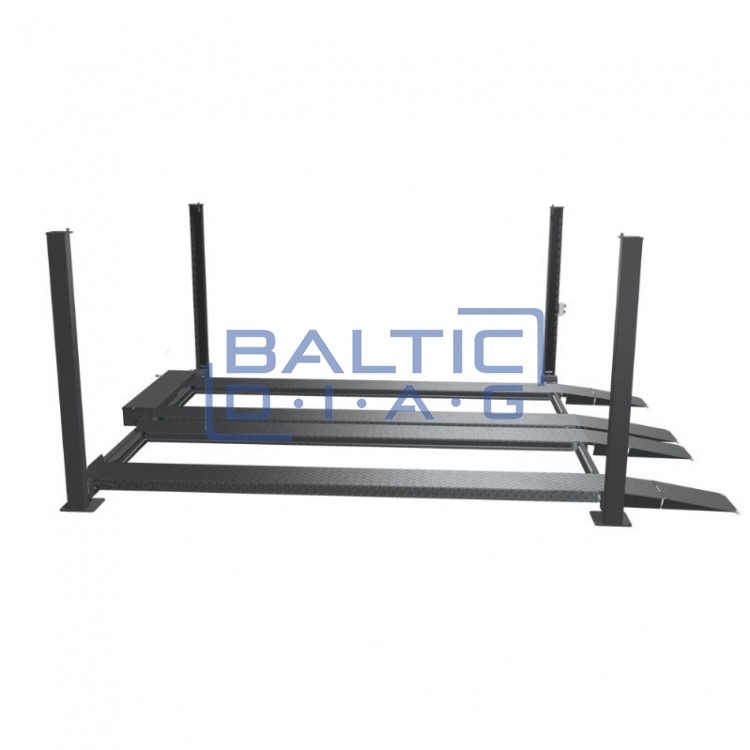

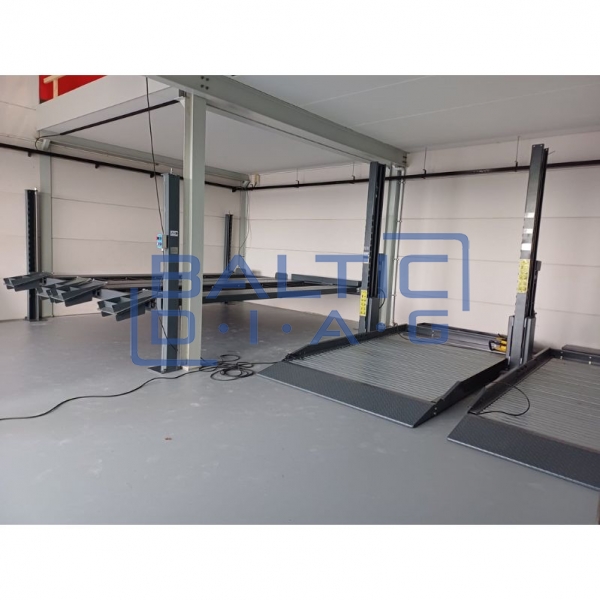

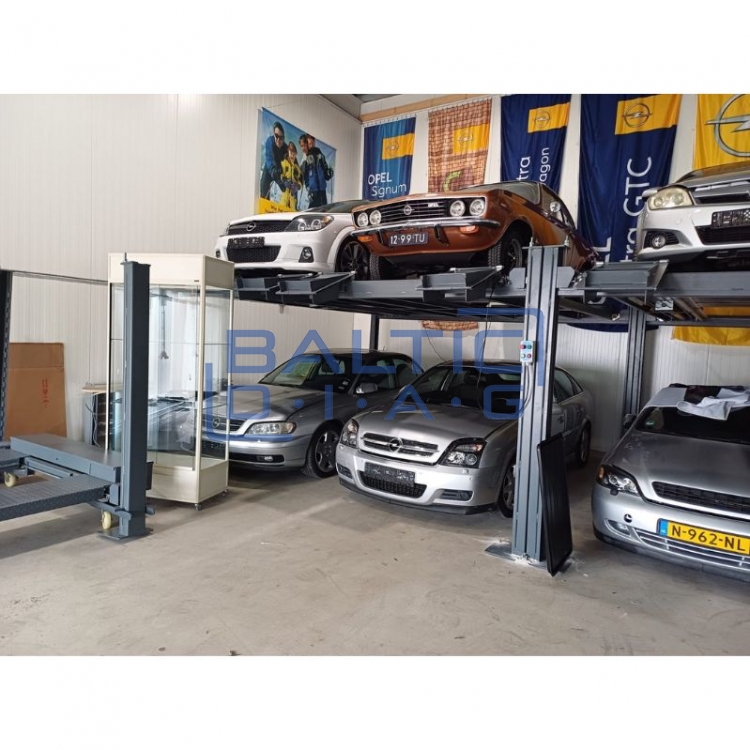

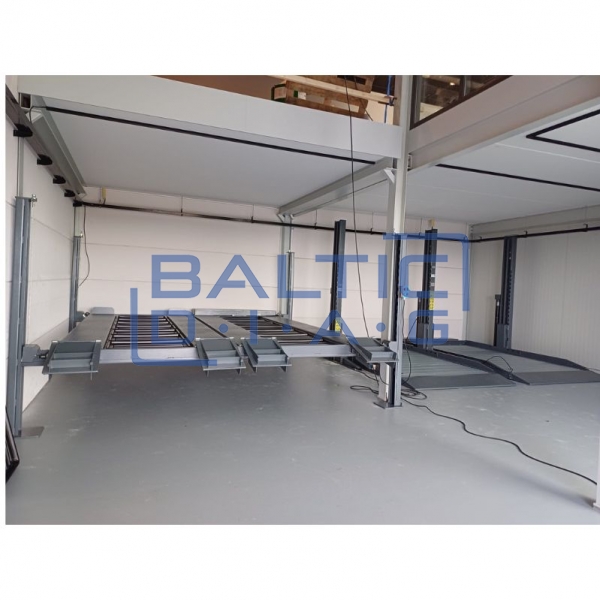

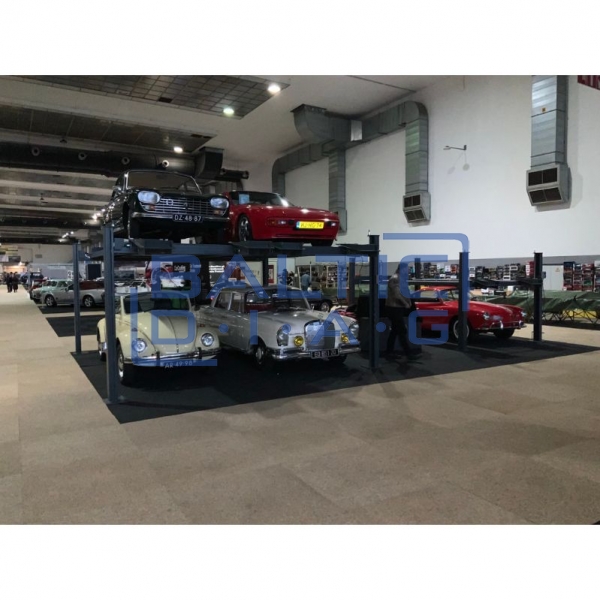

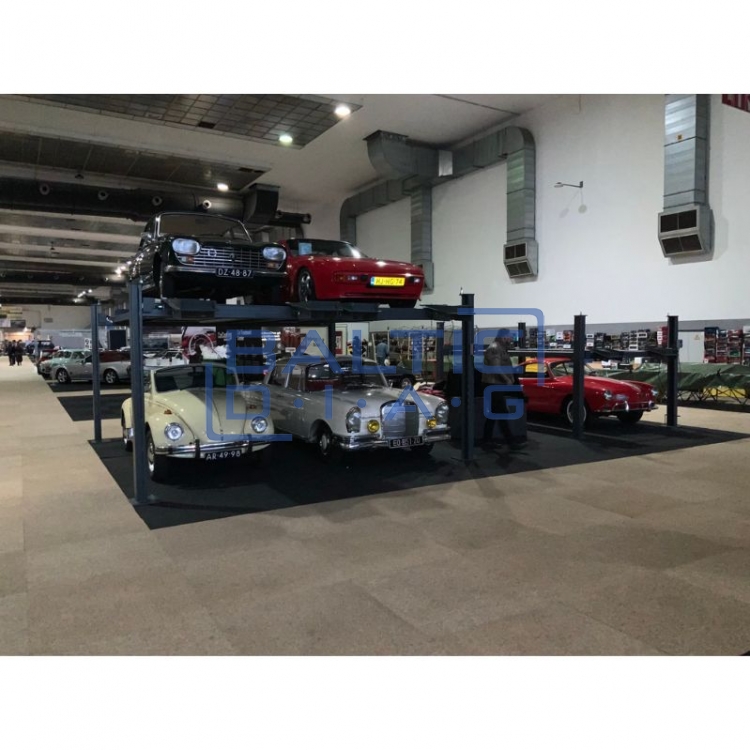

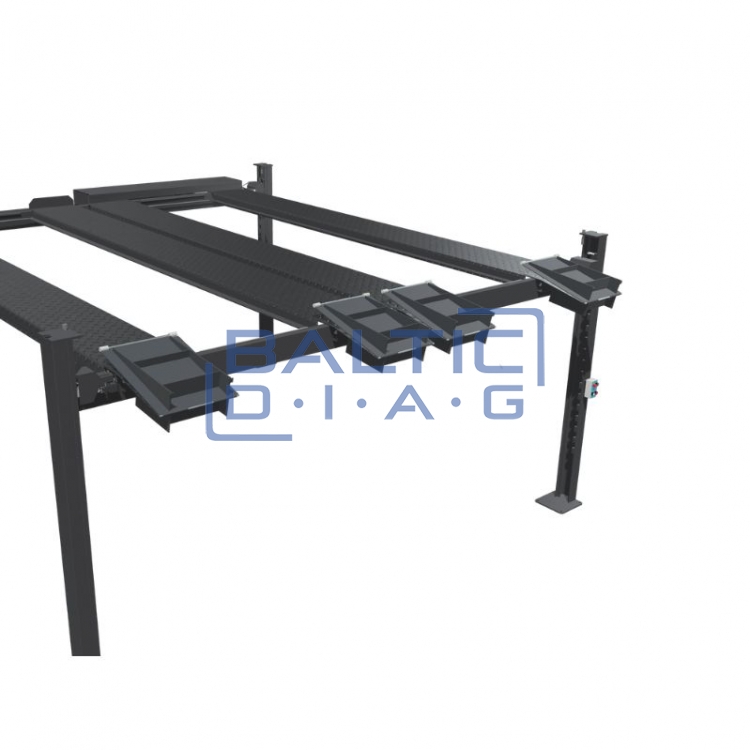

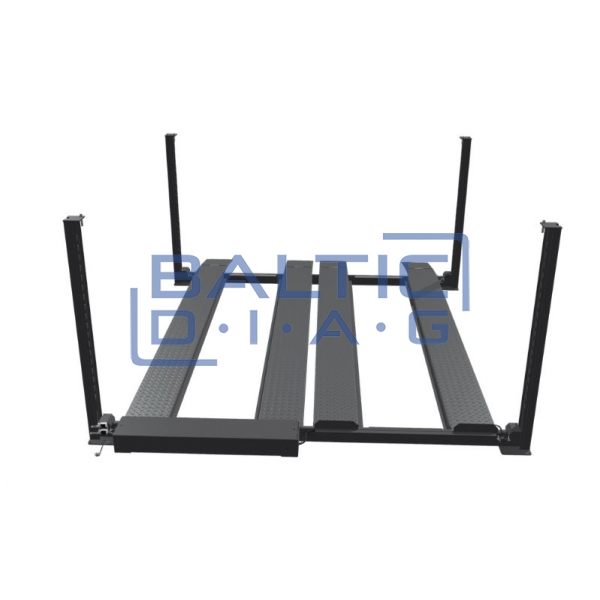

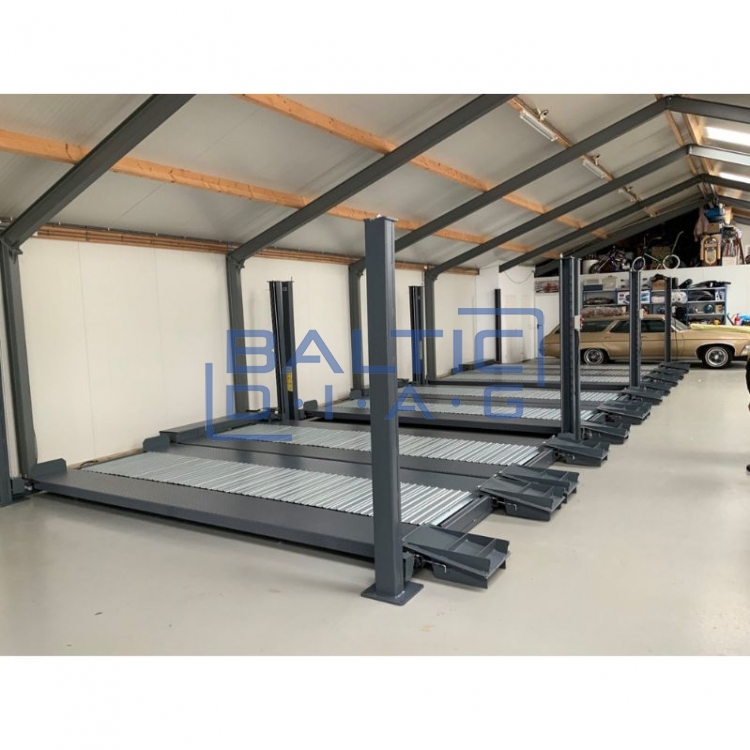

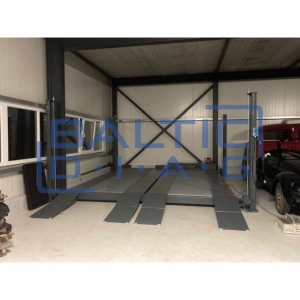

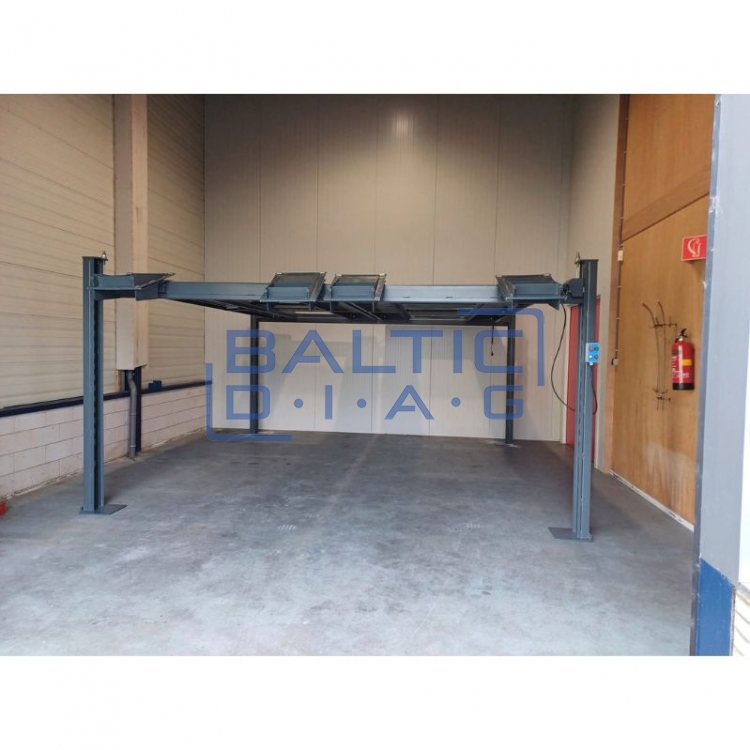

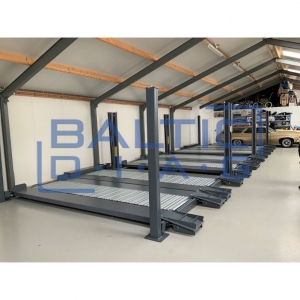

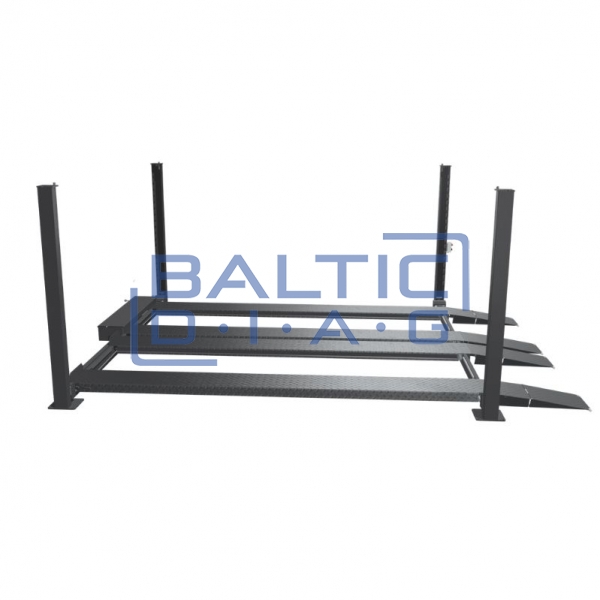

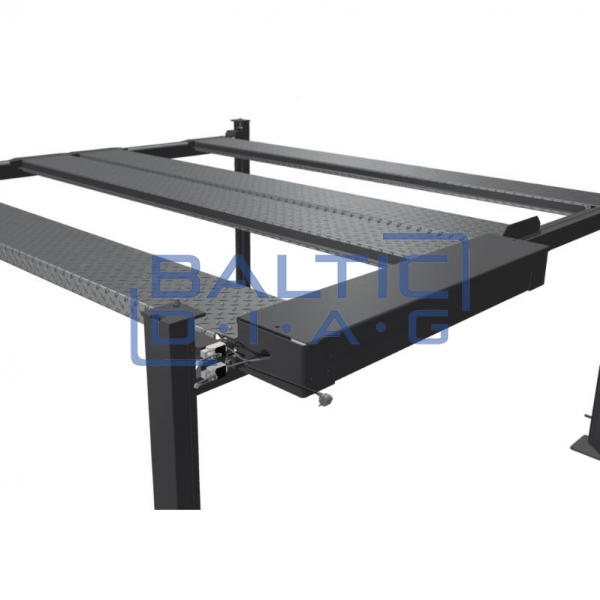

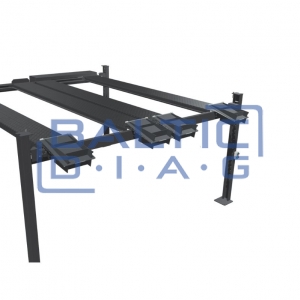

Four-Post, Four-Car Parking Lift
Country of origin: China, warranty period – 24 months

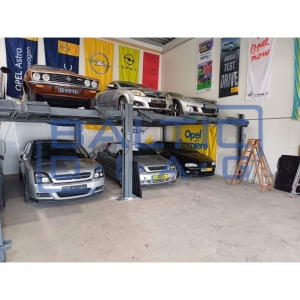

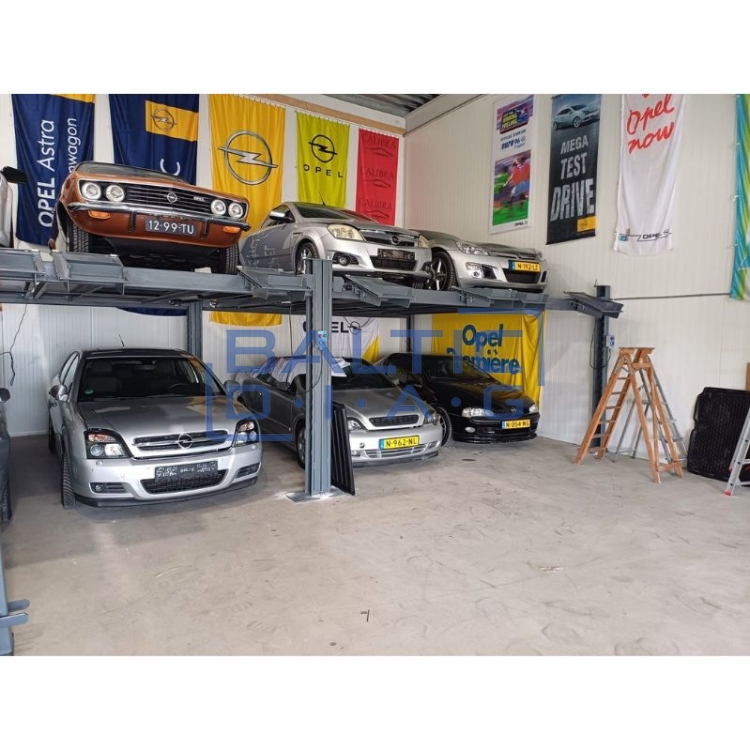

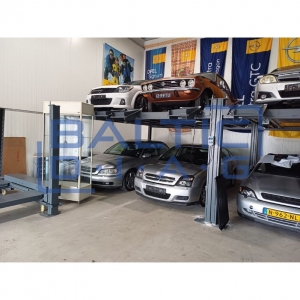

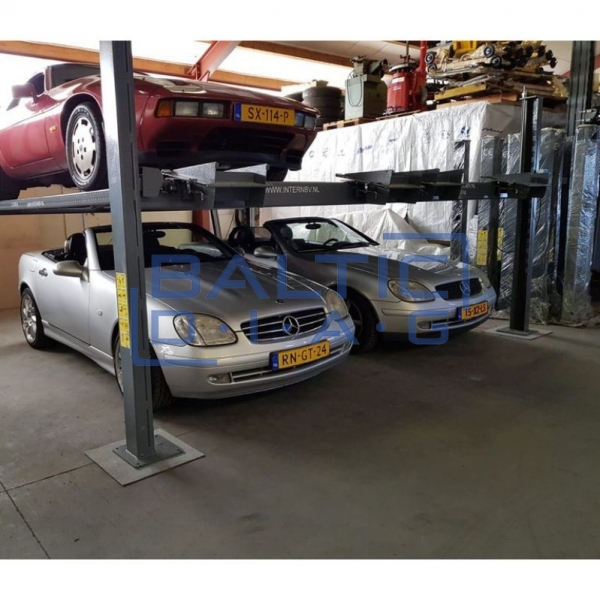

The four-post, four-car parking lift is a reliable and highly compact solution for parking four vehicles one above the other. It is ideal for long-term storage, for example, during the winter season. This model has been extremely popular for more than 10 years, with its quality proven by thousands of users. To lower the platform with two cars, the two lower cars must first be removed. The lift operates electro-hydraulically, features all essential safety functions, and is controlled via push buttons on the control box.
Features:
- Enables creation of 4 dependent parking spaces in the same footprint
- Compact total width – only 4550 mm

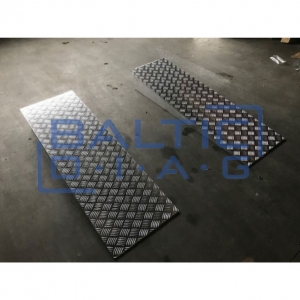

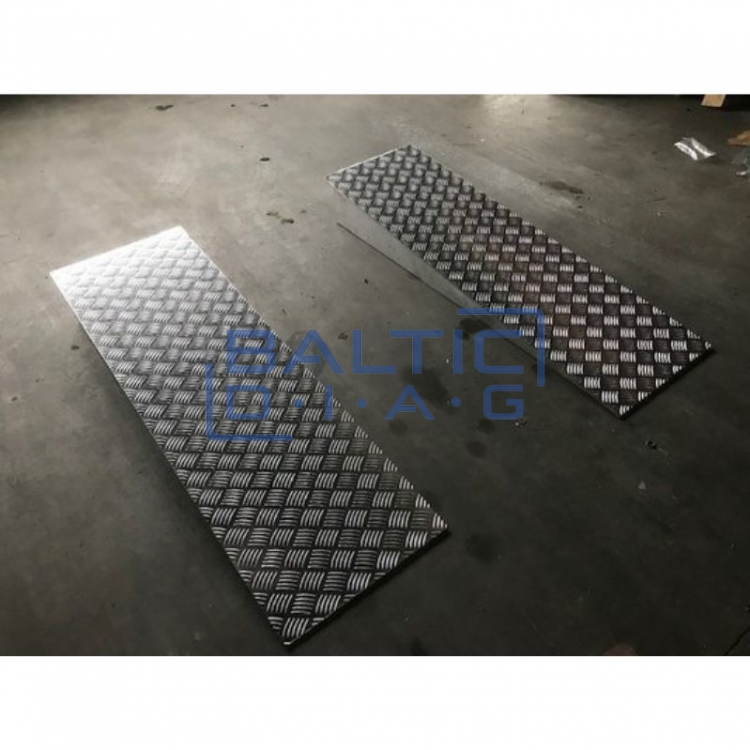

- Low-profile entry ramps – for smooth and easy access
- Fast lifting using a powerful hydraulic cylinder
- Folding ramps
- Electric motor can be mounted at the rear or side

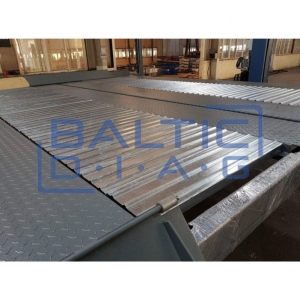

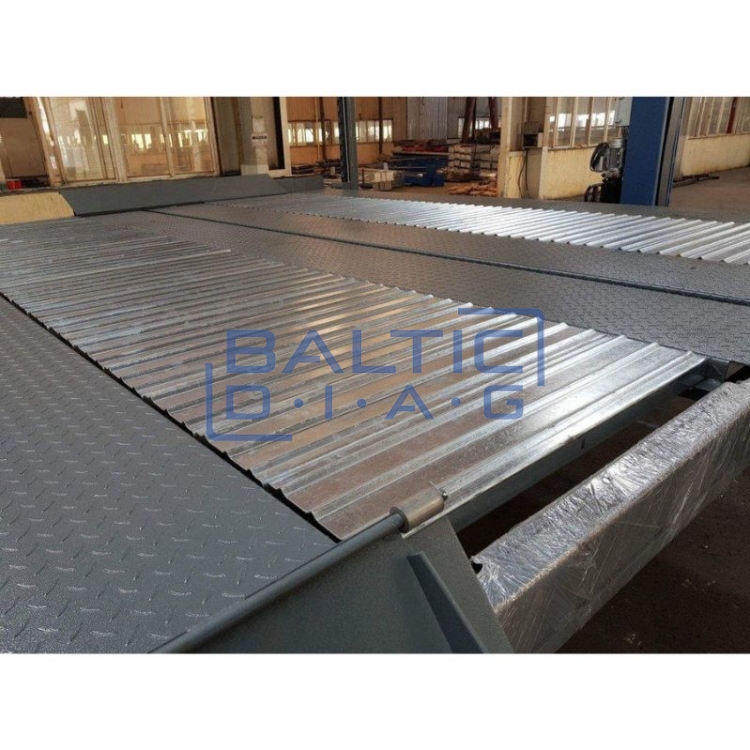

- Optional closed metal loading platform available

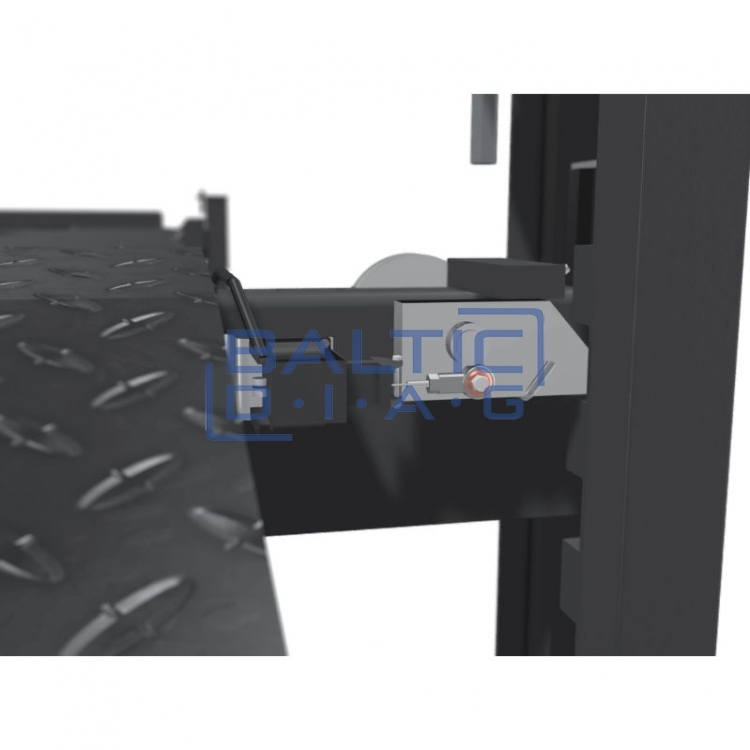

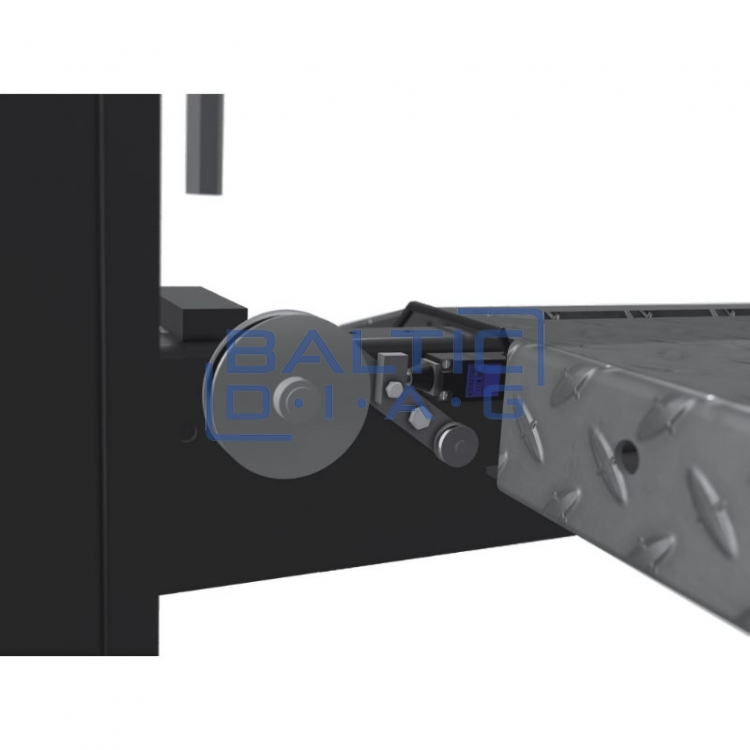

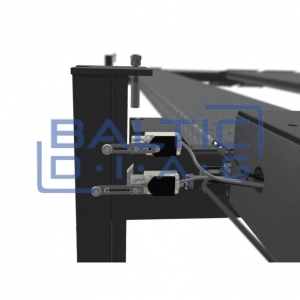

- Automatic dynamic safety locks
- 24 V control voltage – for safe operation
- High-quality powder-coated finish – corrosion protection
- CE compliant – approved for use throughout the EU
Technical Specifications:
- Lifting capacity: 4500 kg
- Lifting height: 2100 mm
- Track width (outer): 1900 mm
- Drive-through width: 4275 mm
- Maximum external width: 4550 mm
- Clearance height under platform: 1950 mm
- Suitable for: sedans and SUVs
- Power: 2.2 kW
- Voltage: 230 V, 50 Hz, single-phase
- Control: control box with push buttons
- Control voltage: 24 V
- Lock type: dynamic, automatic
- Lifting speed: < 55 seconds
- Surface finish: powder coating
Is Your Garage Ceiling High Enough to Stack Two Cars?
- This table will help you determine if your garage ceiling is high enough to stack two cars using a parking lift. Depending on the height of the bottom car, a fixed clearance value is added. Add the height of the top car to this value to determine the minimum required ceiling height:
Bottom Car Height Added Clearance Minimum Required Ceiling Height
88 – 98 cm 118 cm 118 cm + height of top car
98 – 108 cm 128 cm 128 cm + height of top car
108 – 118 cm 138 cm 138 cm + height of top car
118 – 128 cm 148 cm 148 cm + height of top car
128 – 138 cm 158 cm 158 cm + height of top car
138 – 148 cm 168 cm 168 cm + height of top car
148 – 158 cm 178 cm 178 cm + height of top car
158 – 168 cm 188 cm 188 cm + height of top car
168 – 178 cm 198 cm 198 cm + height of top car
178 – 188 cm 208 cm 208 cm + height of top car
188 – 198 cm 218 cm 218 cm + height of top car
