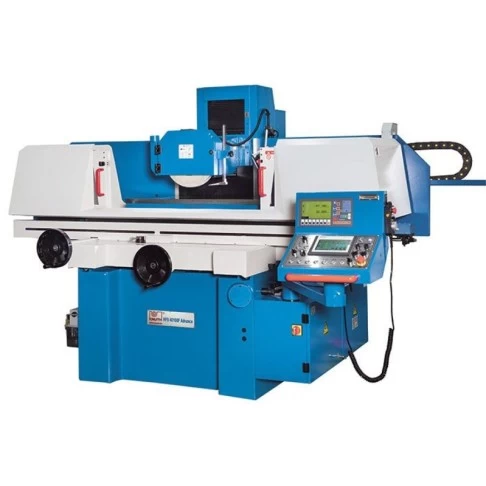

Flat metal grinding machine HFS 4080 F Advance Knuth

Flat metal grinding machine HFS 4080 F Advance Knuth

Country of origin: Germany, 24 months warranty period

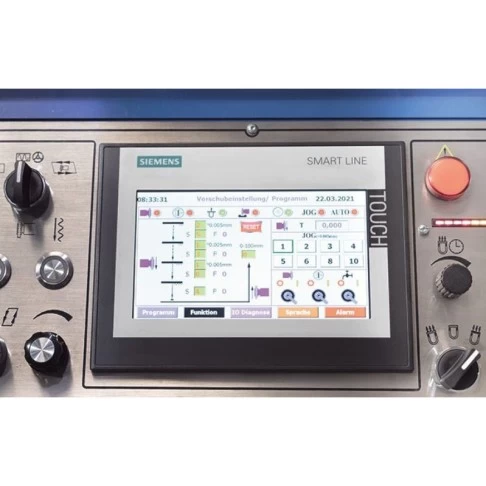

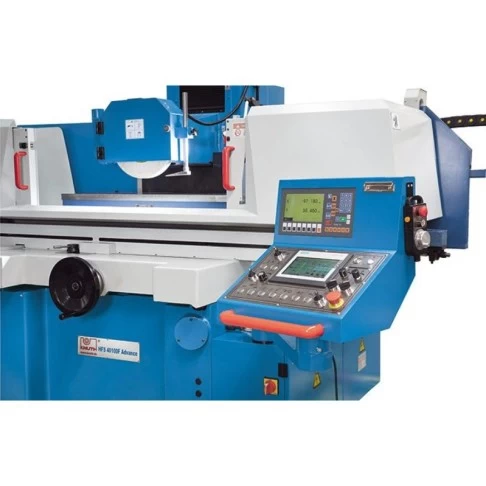

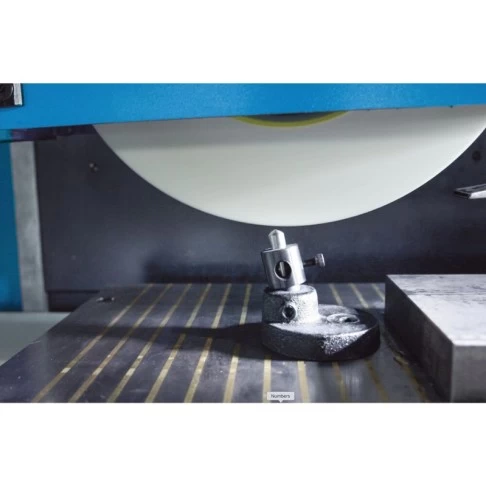

The HFS 4080 F Advance Knuth flat metal grinding machine is designed for precision machining of flat surfaces where high dimensional accuracy, quality surface finish and stable operation in intensive production environments are required. This model is an upgraded version of the proven HFS series, tailored for users who no longer need the functionality of a manual machine, but do not require full CNC control. The Siemens PLC control with touchscreen allows easy programming of automatic grinding cycles, while the vertical Z-axis controlled by a servo motor and a ball screw ensures accurate and repeatable grinding wheel feed. The magnetic clamping plate with integrated demagnetisation function, the robust cast iron construction and the extended standard equipment allow efficient operation in both toolmaking and industrial metalworking plants.

Technical specifications:

• Maximum workpiece weight: 500 kg
• Table dimensions: 813 x 406 mm
• Distance from spindle nose to table surface: 580 mm
• Magnetic clamping plate dimensions: 800 x 400 mm
• Y-axis scale division value: 0,005 mm
• Z-axis scale increment value: 0,02 mm
• Automatic transverse feed of the Z-axis: 0,1-8 mm
• Spindle speed: 1450 rpm
• Automatic vertical feed: 0,005-0,05 mm
• X-axis travel: 910 mm
• Y-axis travel: 450 mm
• Hydraulic X-axis feed: 7-23 m/min
• High-speed Y-axis feed: 480 mm/min
• High-speed Z-axis feed: 990 mm/min
• Main motor power: 4 kW
• Grinding wheel dimensions: 350 x 40 x 127 mm
• Overall dimensions (length x width x height): 3.6 x 2.4 x 1.9 m
• Weight: 3400 kg

The HFS 4080 F Advance Knuth flat metal grinding machine is the right choice for companies that need a reliable, accurate and semi-automated grinding solution. The robust construction, servo-controlled Z-axis, programmable work cycles and extensive standard equipment allow you to achieve high surface quality, shorten process times and ensure stable results in your daily production.
