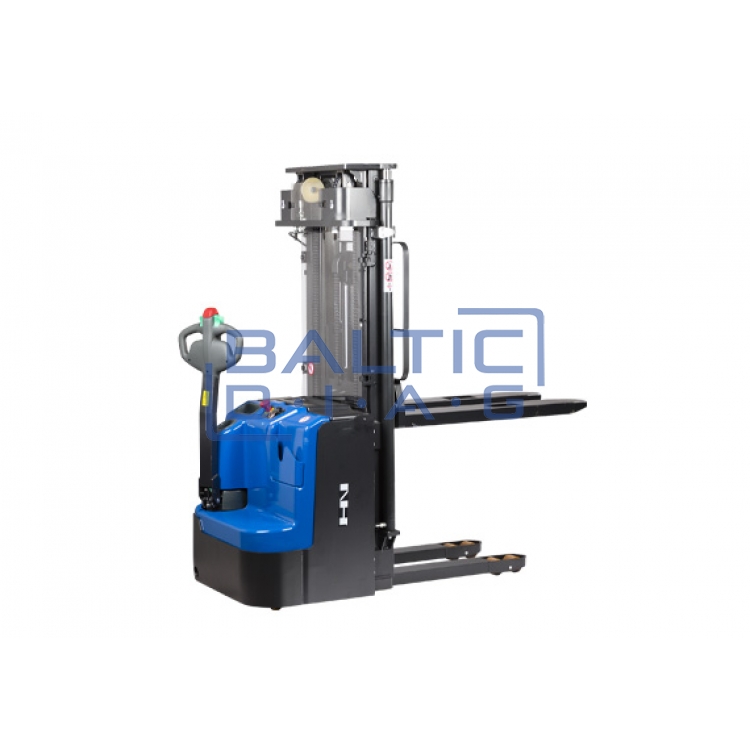

Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1653-L

Electro-hydraulic self-propelled loader 1600 kg NH Handling SKS1653-L

Manufacturer: NH Handling (Denmark) Warranty: 3 years

• Electro-hydraulic self-propelled loader with free lift
• With free lift, the forks can be raised up to 1756 mm above the floor without increasing the overall height of the truck
• All steering and control elements are ergonomically arranged in the steering handle
• Pulse control from fast to very sensitive
• When the steering wheel is released, the truck brakes automatically
• Do not unscrew when the truck starts to lift
• Built-in charger: 1 x 230V / 35 Amp

Technical data:

• Lifting capacity: 1600 kg
• Lifting function: electric hydraulic
• Propulsion engine: Schaubmuller
• Battery: 24 V / 270 Ah
• Lifting height: 5300 mm
• Overall height: 5780 mm
• Fork lifting height: 2343 mm
• Free lifting: 1756 mm
• Fork width: 570 mm
• Unladen speed: 6 / 5.7 km / h
• Lifting speed u / m load: 20/13 mm
• Maximum load increase u / m: 20 / 14˚
• Fork wheels Ø: 85 x 75 mm
• Steering / drive wheels Ø: 230 x 75 mm
• Support wheels Ø: 150 x 54 mm
• Weight: 1420 kg
