Electro-hydraulic riveting system with C-frame and universal die kit

Electro-hydraulic riveting system with C-frame and universal die kit

Country of origin: Italy, warranty period - 24 months

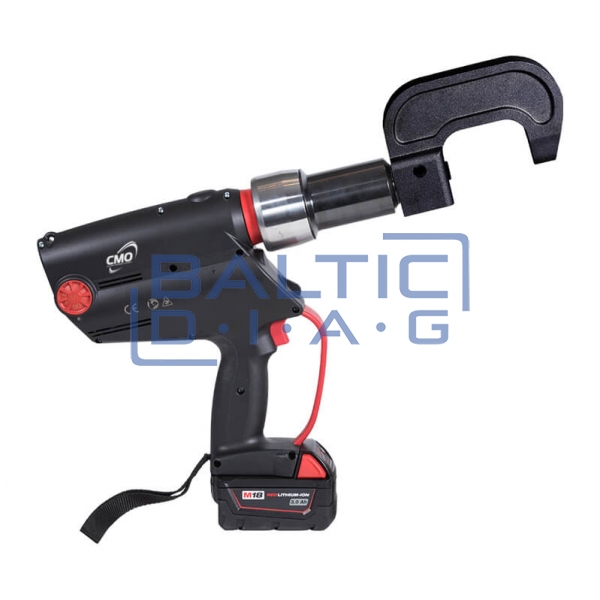

The 90 kN electro-hydraulic battery-operated riveting tool with a C-frame and a universal die kit is a powerful and mobile solution for efficient riveting. The device features an adjustable compression force ranging from 20 kN to 90 kN, making it suitable for rivets of various materials and sizes. It is equipped with built-in software that allows recording and printing reports for each riveting operation.

Functions:

• Adjustable compression force from 20 kN to 90 kN
• Integrated report recording and printing function
• Lightweight yet durable construction ensures comfortable use
• 360° rotating compression head allows access to hard-to-reach areas
• Option to use three different compression arms: 40 mm, 130 mm, and 240 mm
• Includes battery and charger

Technical specifications:

• Maximum compression force: 90 kN
• Compression head rotation: 360°
• Available compression arms: 40 mm, 130 mm, 240 mm
• Device weight: 5 kg
• Battery: 18V lithium-ion battery
• Included in the package: universal die kit, battery, charger
