Electro-hydraulic load lifting table 2000 kg, NH Handling HIW

Electro-hydraulic load lifting table 2000 kg, NH Handling HIW

SKU: BD99833
SKU:: 8636835

3,320.00 €

Prices shown include tax

Add to Cart

Send Message

Description

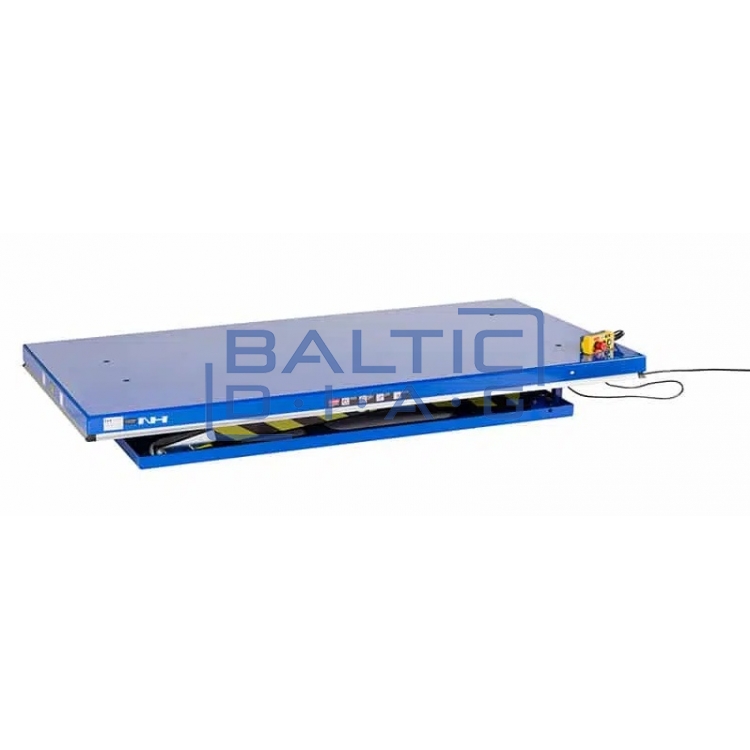

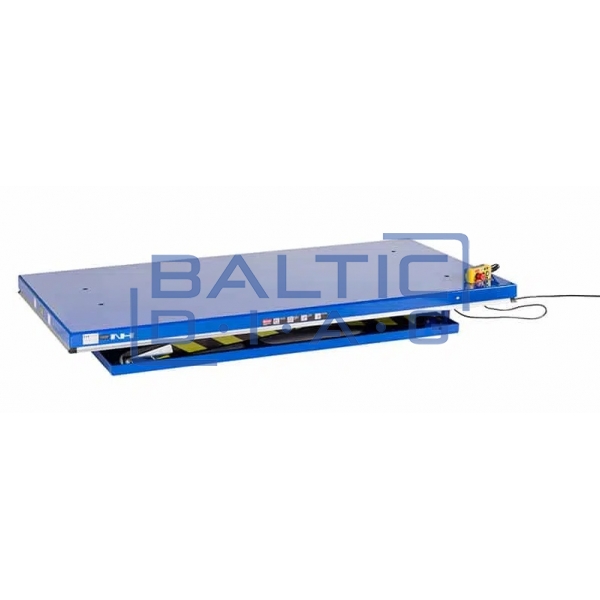

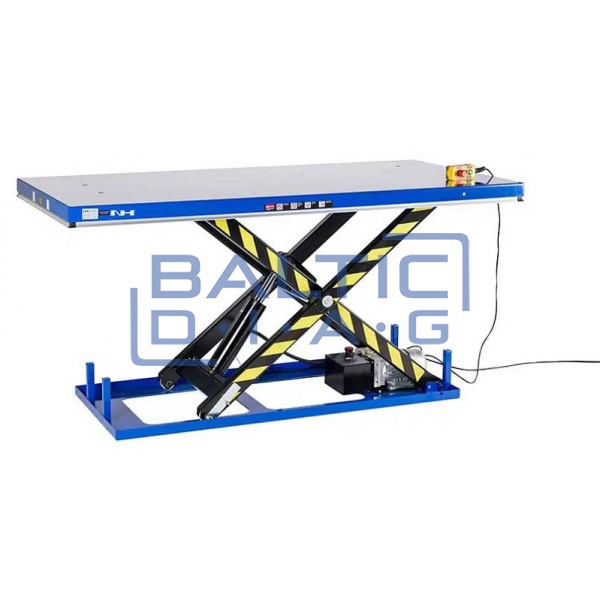

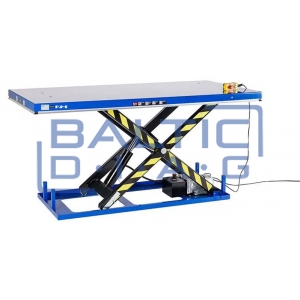

Electro-hydraulic load lifting table 2000 kg, NH Handling HIW

Manufacturer: NH Handling, Denmark.

Features:

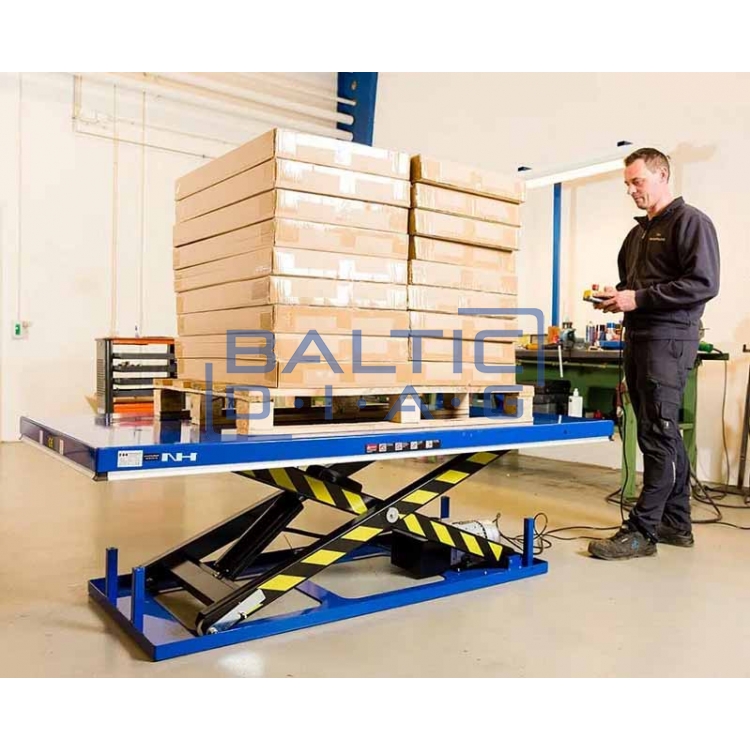

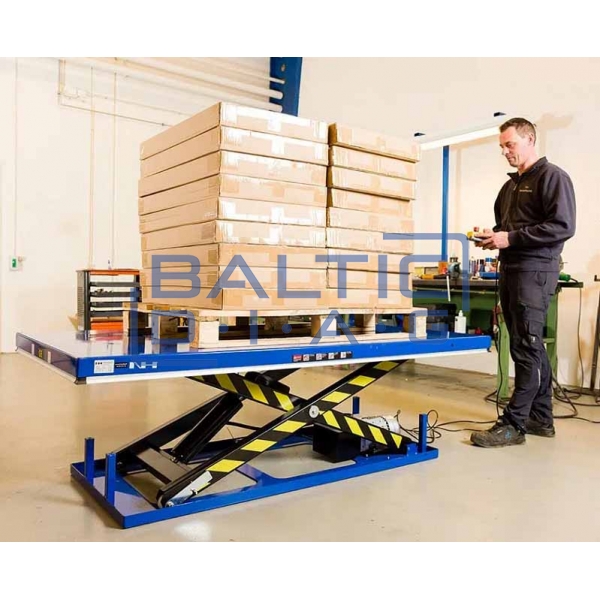

A table for lifting loads, which is designed for lifting various loads to a comfortable height for work
Lifting capacity of this series of lifting tables: 2000 kg

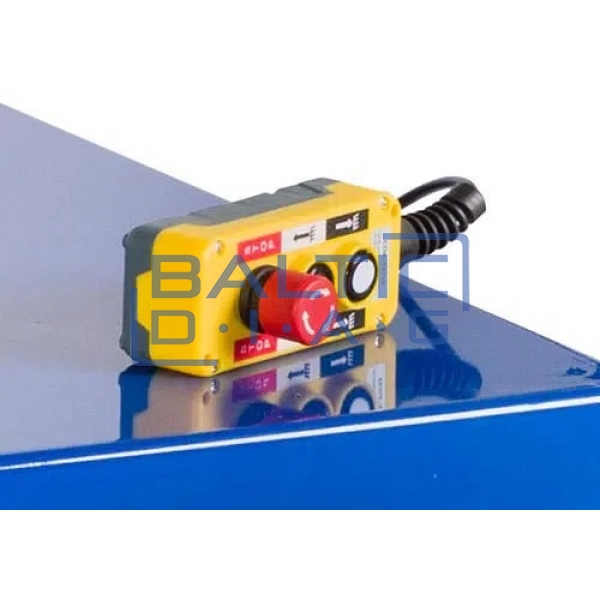

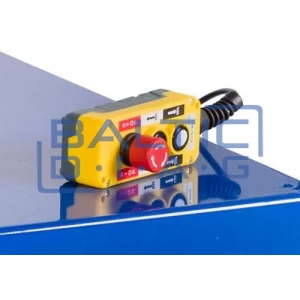

Remote control for raising/lowering the table. Built-in emergency stop button
Strong and reliable construction of the lifting table
Each lifting table has special protective walls that prevent the table from being crushed

Technical parameters:

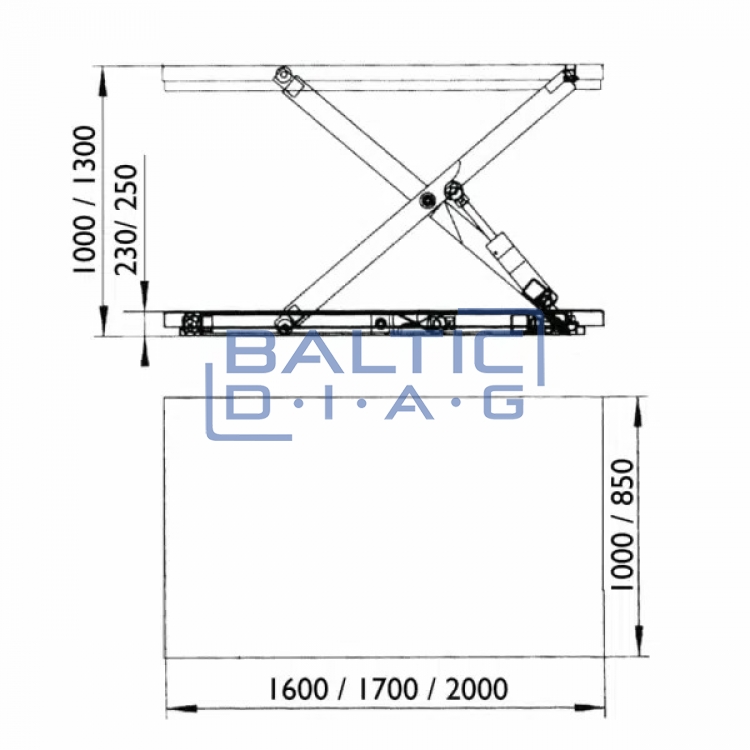

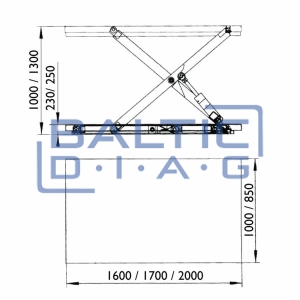

Lifting table model:	HIW2002	HIW2004	HIW2005	HIW2006
Lifting capacity:	2000 kg	2000 kg	2000 kg	2000 kg
Lifting mechanism:	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic	Electro-hydraulic
Power supply voltage:	3 x 400 V	3 x 400 V	3 x 400 V	3 x 400 V

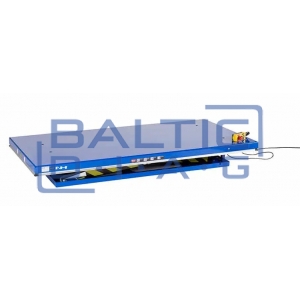

Minimum lift height:	230 mm	250 mm	250 mm	250 mm
Maximum lifting height:	1000 mm	1300 mm	1300 m	1300 mm
Working surface (tabletop) parameters:	1600 x 1000 mm	1700 x 1000 mm	2000 x 850 mm	2000 x 1000 mm
Tabletop lowering speed:	33 mm/s	33 mm/s	33 mm/s	33 mm/s
Tabletop lifting speed:	25 mm/s	25 - 35 mm/s	25 - 35 mm/s	25 - 35 mm/s
Weight:	268 kg	300 kg	300 kg	315 kg
Price with VAT:	3320,00 EUR	3660,00 EUR	3935,00 EUR	4515,00 EUR
