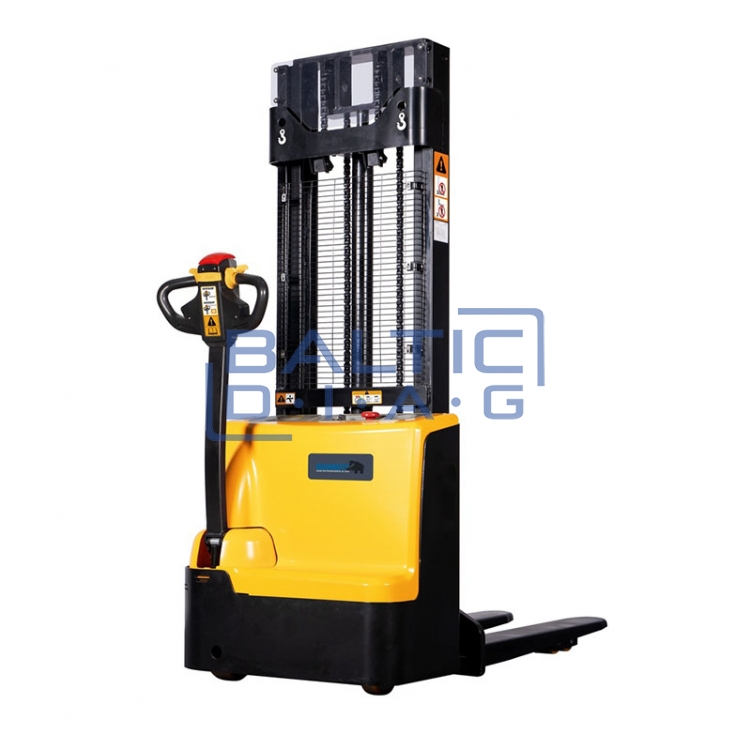

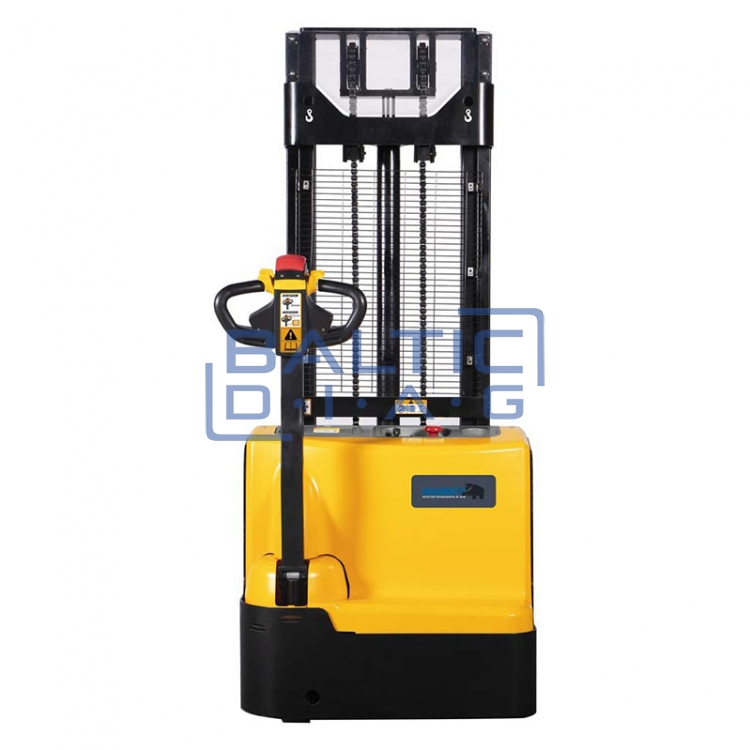

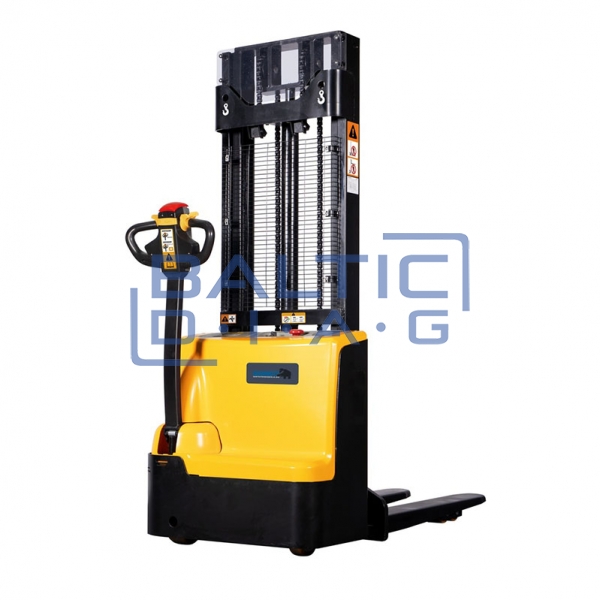

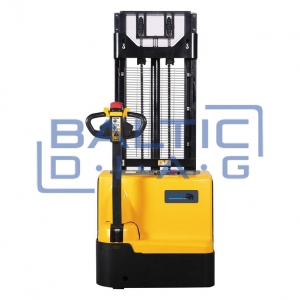

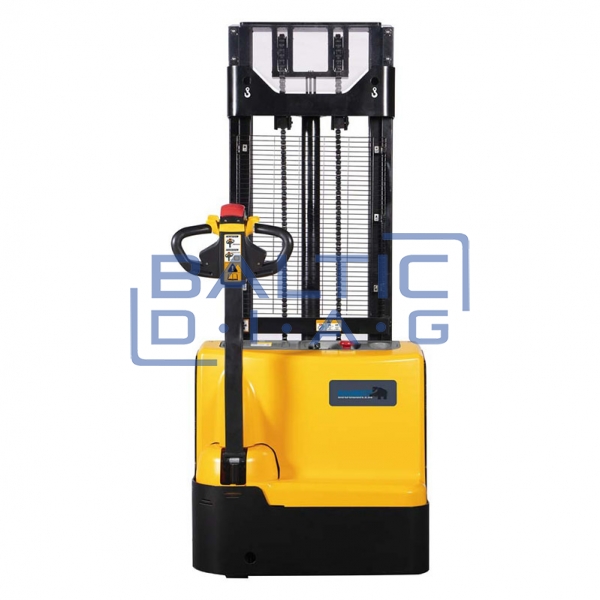

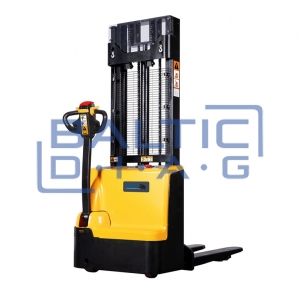

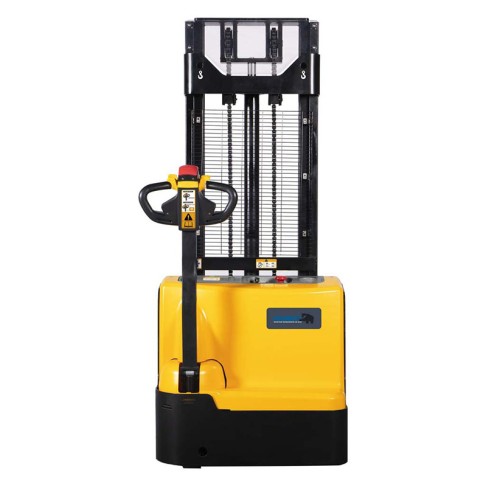

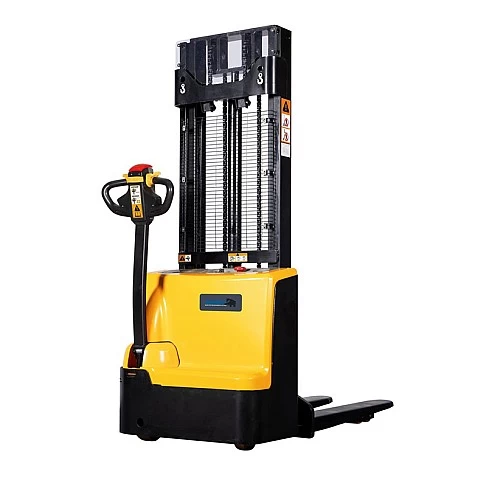

Electric pallet truck 1500 kg

Electric pallet truck 1500 kg

Manufacturer: Valkenpower

This electric pallet truck, which has a lifting capacity of 1500 kg and a fork length of 1150 mm, is perfect for various workshops, warehouses or other industrial premises. This electric forklift has a variable speed control system for lifting and lowering. It ensures a smooth process of lifting and lowering the load, accurate response to changing the speed of lifting or lowering, reduces the amount of mechanical shocks and vibrations. Automatic adjustment of the lowering speed, which ensures a soft and smooth lowering of the load. The electric pallet truck is equipped with a smart joystick, which enables rapid diagnosis of faults, facilitates service, shortens service time and reduces labor costs. The steering angle is designed to be greater than 180 degrees. For greater convenience, forklift operators can freely adjust the travel speed according to their needs. Also, for greater safety, the forklift is equipped with an electromagnetic brake, which ensures safe stopping of the forklift and helps prevent accidents.

Technical parameters:

• Loading capacity: 1500 kg
• Lifting height: 90 - 3500 mm
• Supply voltage: 230 V
• Hydraulic pump: 2.2 kW
• Total width: 820 mm
• Battery voltage: 12 V
• Total length: 1710 mm
• Engine power: 0.75 kW
• Total height: 2220 mm
• Fork length (length x width x height): 1150 x 160 x 65 mm
• Total width of the forks: 560 mm
• Turning radius: 1490 mm
• Driving speed with maximum load: 4 km/h.
• Driving speed without load: 4.5 km/h
• Lifting speed with maximum load: 0-85 mm/s
• Lifting speed without load: 0 - 130 mm/s
• Lowering speed with load: 27-137 mm/s
• Lowering speed without load: 22 - 167 mm/s
• Brake type: electromagnetic
• Maximum hill clearance, loaded/unloaded: 5%/15%
• Length of the loader: 1760 mm
• Loader width: 840 mm
• Height of the loader: 2220 mm
• Loader weight: 619 kg
