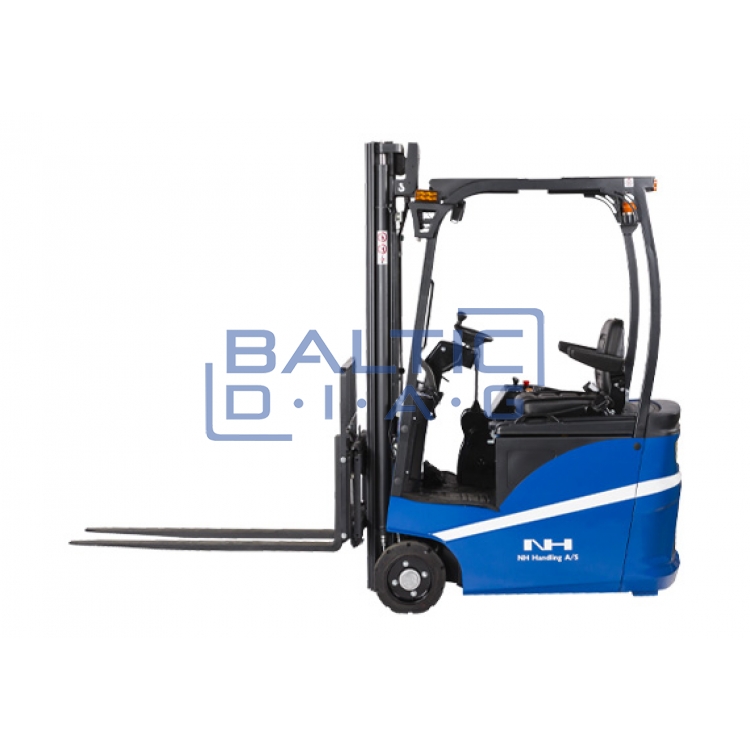

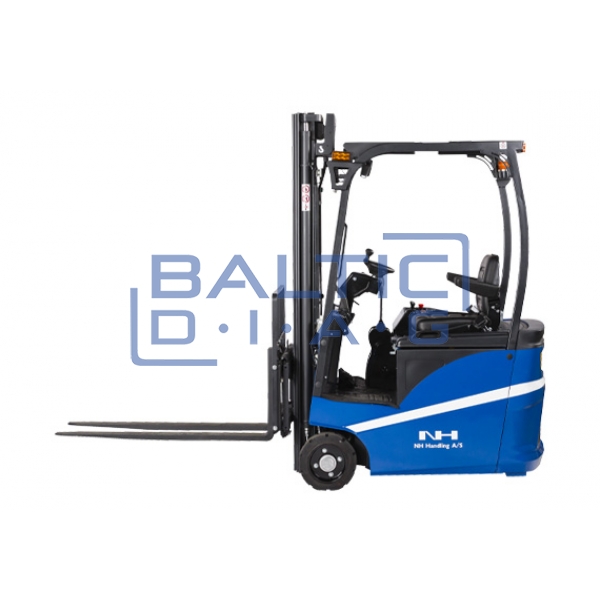

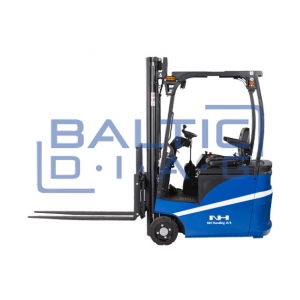

Electric forklift 1200 kg NH Handling NH1248-N

Electric Forklift 1200 kg NH Handling NH1248-N

Functions:

• Modern design and CURTIS controller for comfortable and safe operation
• Wan Nan motors with the latest AC technologies for efficient energy use
• Good visibility in front and rear, with protective roof grilles for operator safety
• Rear axle placement ensures stable turning and a small turning radius
• Extremely quiet operation, environmentally friendly
• Hydraulic fork shift – compatible with all types of pallets

Technical specifications:

• Drive unit: electric
• Maximum load: 1200 kg
• Load center: 500 mm
• Distance from drive wheel center to fork tip: 265 mm
• Wheelbase: 991 / 1073 mm
• Weight with battery: 2080 kg
• Axle load with load (front/rear): 2950 / 330 kg
• Axle load without load (front/rear): 880 / 1220 kg
• Wheel type: solid rubber
• Front wheel size: 13 x 4 - 1/2 x 8 mm
• Rear wheel size: Ø 343 x 140 mm
• Wheel configuration: 2 / 1 x
• Travel speed with / without load: 7 / 9 km/h
• Lifting speed with / without load: 0.15 / 0.22 m/s
• Lowering speed with / without load: 0.17 / 0.25 m/s
• Gradeability with / without load: 6 / 10 %
• Service brake: hydraulic
• Drive motor (S2 – 60 min.): 3 kW
• Lifting motor (S3 – 15%): 3 kW
• Battery: 24 V / 420 Ah
• Battery weight: 440 kg
• Controller: AC Curtiz
• Fork tilt forward / backward: 6 / 6.5°

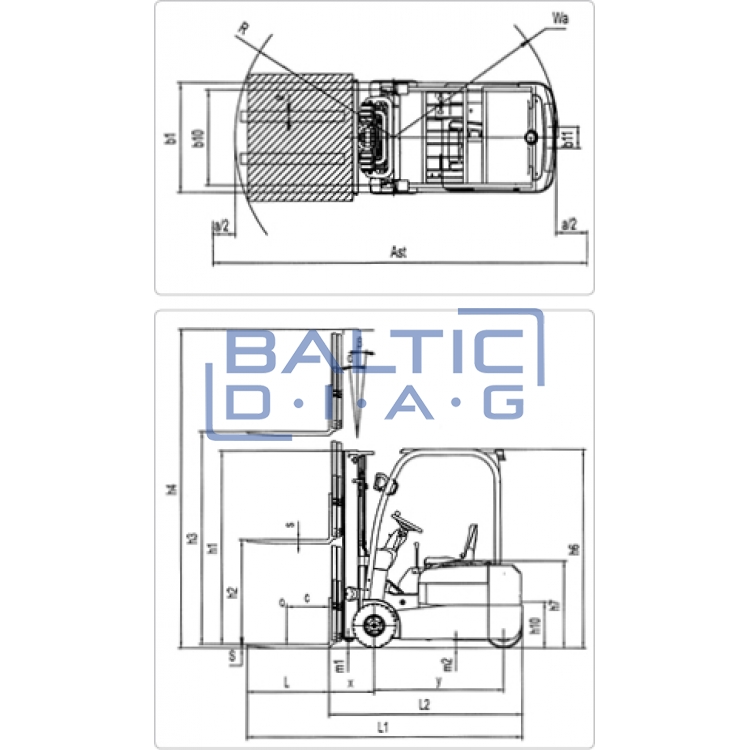

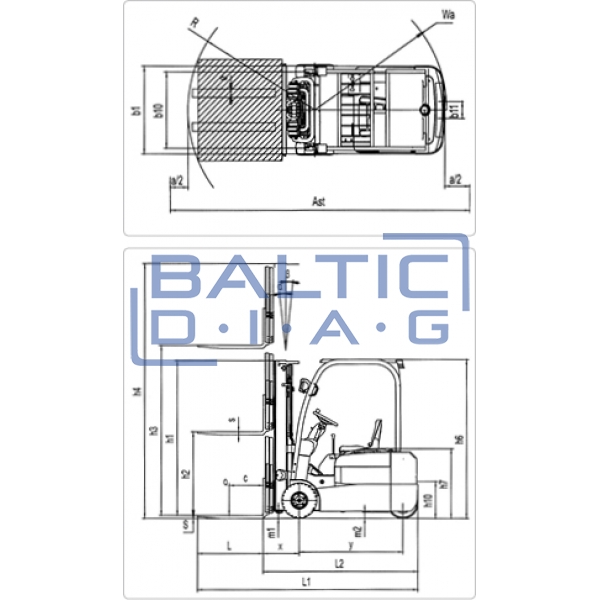

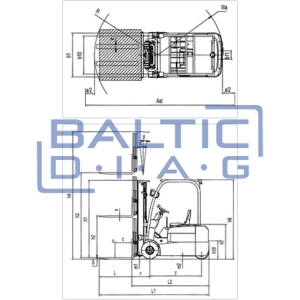

• Mast height (lowered): 2209 mm
• Fork height from floor to top: 1263 mm
• Lifting height: 4800 mm
• Mast height (raised): 5779 mm
• Overhead guard height: 1975 mm
• Seat height: 980 mm
• Tow hook height: 540 mm
• Overall length: 2460 mm
• Length to fork back: 1545 mm
• Overall width: 880 mm
• Fork dimensions: 35 x 100 x 1200 mm
• Fork carriage width: 825 mm
• Free lift under mast with load: 80 mm
• Ground clearance at wheelbase center: 90 mm
• Aisle width with 1000 x 1200 pallet crosswise: 2950 mm
• Aisle width with 800 x 1200 pallet lengthwise: 3068 mm
