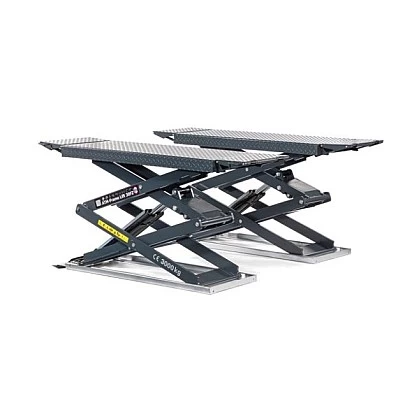

Double scissor lift ATH-Frame Lift 30FZ
Double scissor lift ATH-Frame Lift 30FZ

Double scissor lift ATH-Frame Lift 30FZ

  • SKU: BD11100
6,655.00 €

Prices shown include tax

Send Message

Description



Double scissor lift ATH-Frame Lift 30FZ



Made in Germany; Warranty: 3 years;



Description:



Highest quality: High-precision production by laser flame cutting and robot welding
Long-lasting technology: Robust and insensitive hydraulic drive, virtually maintenance-free
Flexible use: Suitable for mounting on the floor and floor-level installation (with optional accessories)
Precise lifting and lowering: even lifting and lowering of the shears by double master and slave system; Photocell for synchronism control
Powerful lifting: With a mechanical tilting lever system to lift from the bottom with full force
Easy drive-on: Very low drive- over height of only approx. 116 mm, rails with lockable lift-off flaps for extension of the receiving surface
Simple operation: lifting and lowering by push-button control, non-contact CE limit switches integrated in the swivel joints
Maximum occupational safety: Double hydraulic lowering lock (no safety catch or compressed air required), emergency lowering system for lowering in case of power failure, CE stop and lowering beep
Modern design: Powder coated lift in attractive anthracite gray
Perfect corrosion protection: Partial galvanizing and double powder coating
Ideal for painting and body work, repairs, brake and tire services



Technical parameters:



Load capacity 3000 kg
Lifting height 1900 mm
Lifting time loaded 47 s
Lowering time charged 49 s
Rise / ride height 116 mm
Installation width / length 2000/2030 mm
drive power 2.2 kW
Drive voltage (electric) (3 ~) 400/50 V / Hz
safeguarding 3C16A
Concrete strength / quality 200mm - C20 / 25
mass 699 kg
packaging 1600 x 700 x 1090 mm
amount of oil 12 l
Width / length of rails 600/1495 - 2030 mm
Synchronization control system hydraulic backpressure control
