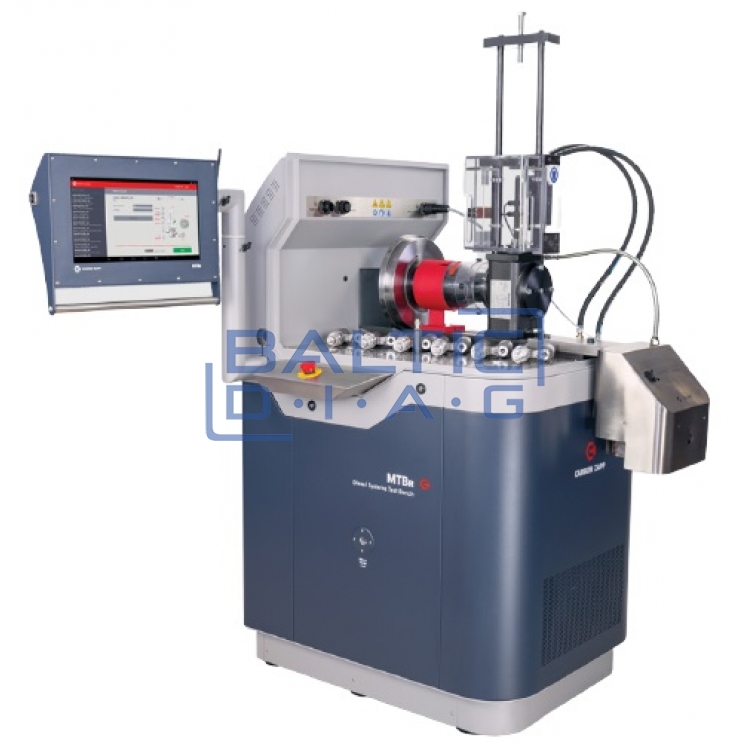

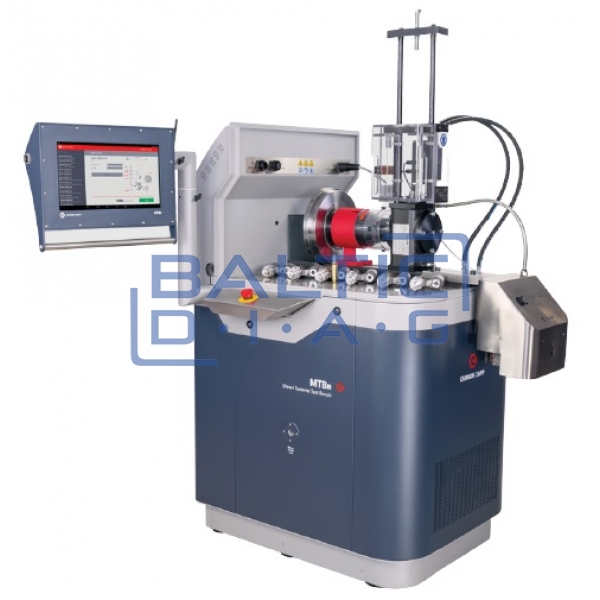

Diesel injector test bench Carbon Zapp Specialists MTBr CAMBOX
Manufacturer: Carbon Zapp (Greece)
The only completely stand-alone unit designed to test all automotive, commercial, industrial and marine diesel engine injection systems (UIS) on the market today.
Features:
Compact stand-alone diesel nozzle test bench
Controls all types and brands of nozzles and pumps. Includes the market's largest OEM and CZ database
Automatic function with full database and test plans
Cummins ISX / Scania HPI and Cummins QSK test plans
Easy and oil-free cam exchange (20 sec) using EZO-Kit (optional)
Testing 6 nozzles in less than 1 hour
Compact and robust device - 240° effective working area
Injector response time measurement for all systems using RSP sensor (optional)
Actuator valve measurement using RSP/BIP sensor
The smart injector/pump (E3/E1/DAF) will be coded quickly
Fully automatic and fast testing phase via 15" touch HMI with AZO software
Dynamic electronic mass (BK) measurement
Internal cooling system (no water connection required)
Emergency braking function (momentary electric brake)
Technical data:
Frequency: 50/60 Hz
Number of phases: 3 P/PE
Speed range: 0 - 3000 rpm 12.5HP
Powerful motor with thermal protection:-
Maximum working ambient temperature: 50°C
Height from base to axle center: 125mm
Pump pressure: 10 - 800 kPa
Oil tank: 38 l
Used oil tank: 15 l
Dimensions: 750 x 700 x 1610 mm
Weight: 350 kg
