DAF truck diagnostic equipment Jaltest

DAF Truck Diagnostic Equipment Jaltest

Why choose Jaltest DAF?

• Comprehensive and versatile functionality
• From basic diagnostics to advanced calibrations and ECU reprogramming – all in one device.
• Scalable solution for growing fleets
• As your truck fleet expands, simply activate additional brands through separate licenses without needing to purchase new hardware.
• Extensive Jaltest INFO technical database

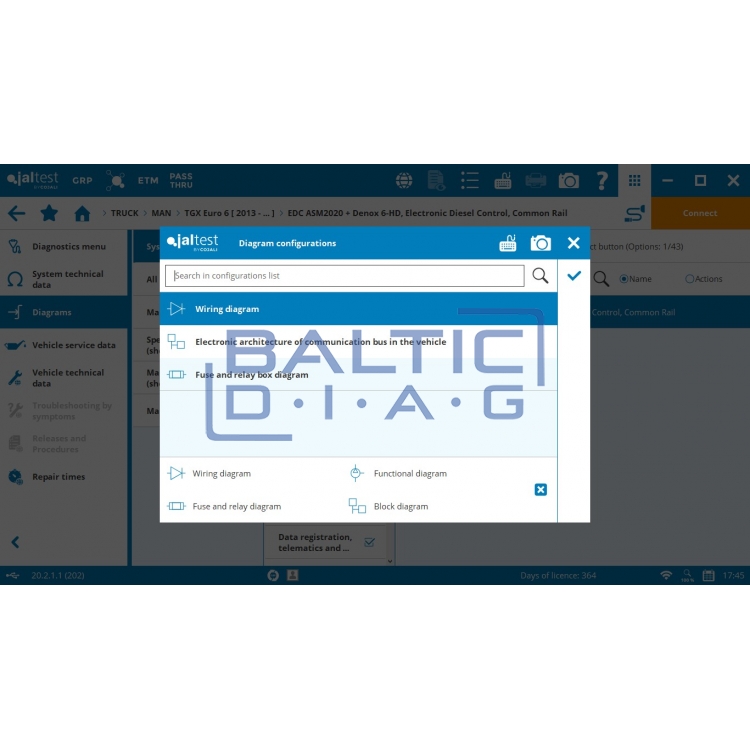

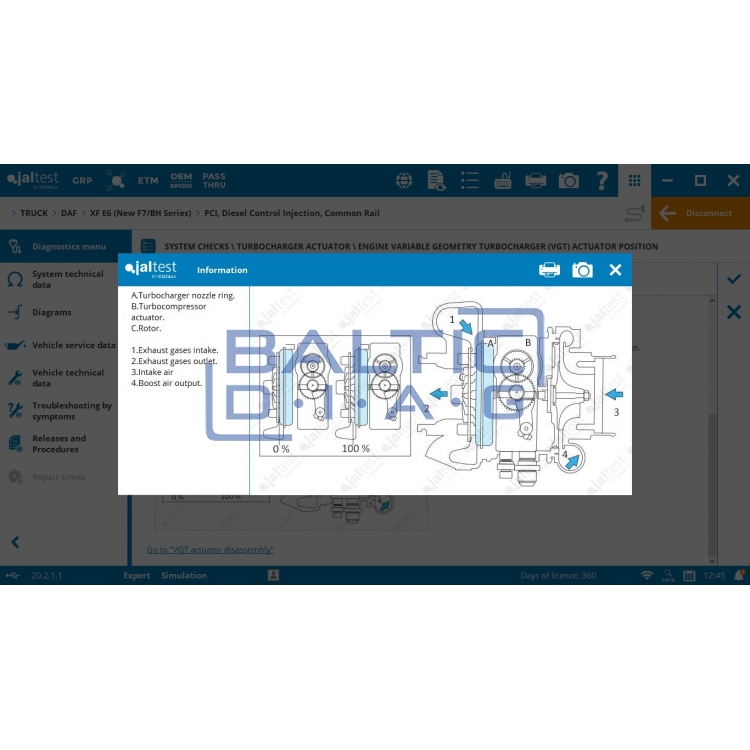

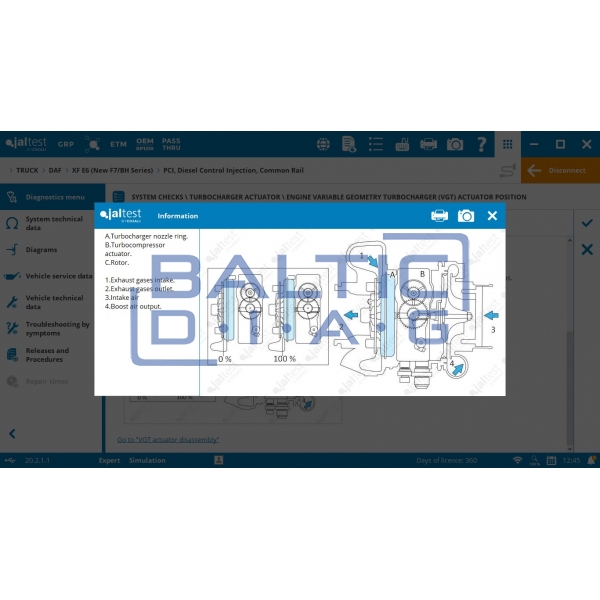

• Access wiring diagrams, component locations, repair guides, and graphical instructions that help you identify faults faster.
• Free trial before purchase
• Try the equipment at no cost – see the value of official diagnostic tools for yourself.
• Reliability and continuous updates
• Jaltest software is regularly updated, ensuring compatibility with the latest vehicle standards, including Euro 6.
• Official technical support
• Fast online assistance, warranty and post-warranty service, and dedicated support from the manufacturer.

Functions:

• Supports all commercial vehicle standards and protocols, including RP1210 and Pass-Thru

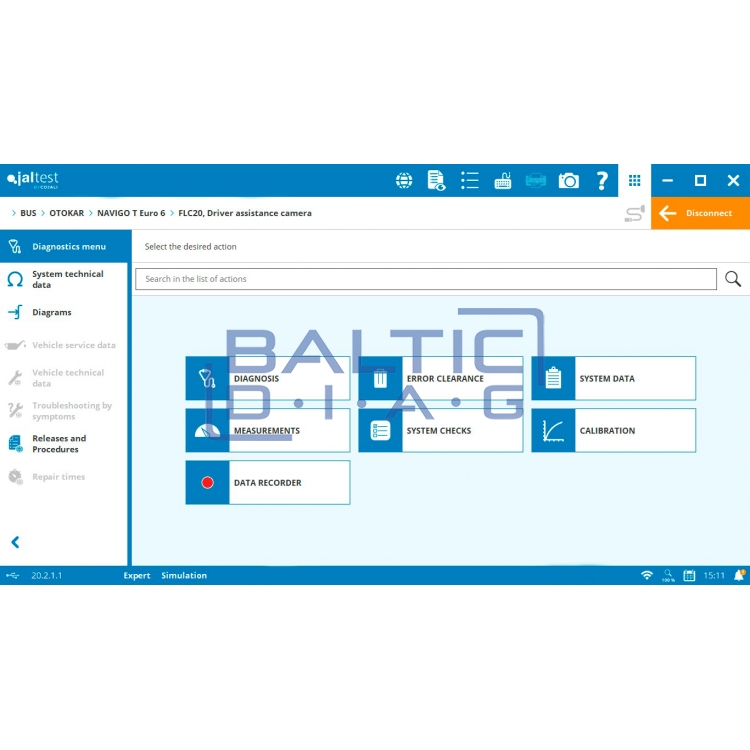

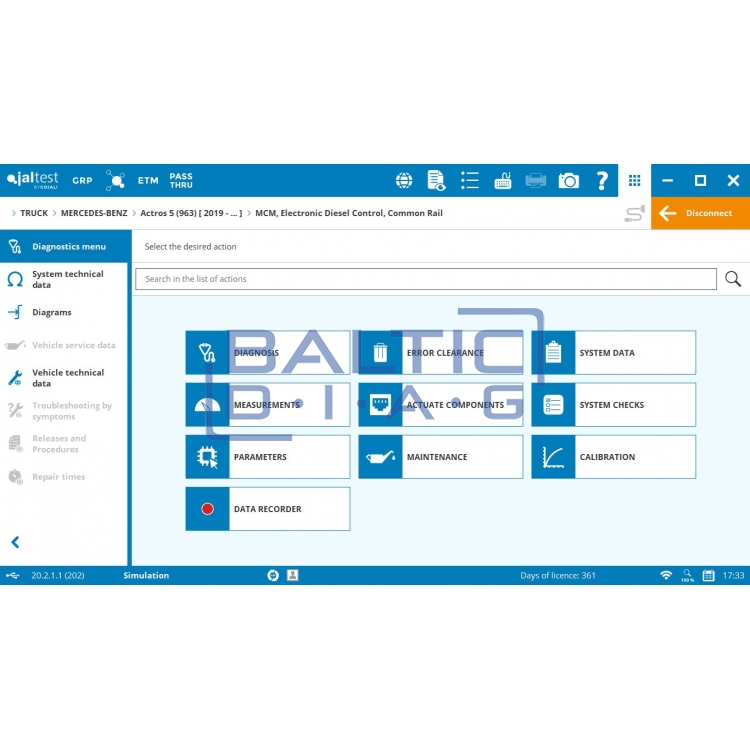

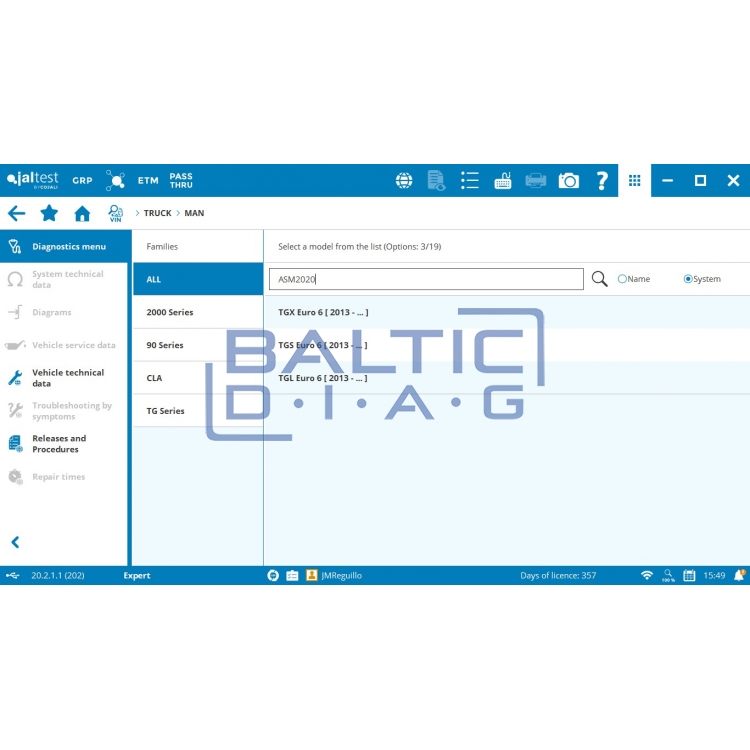

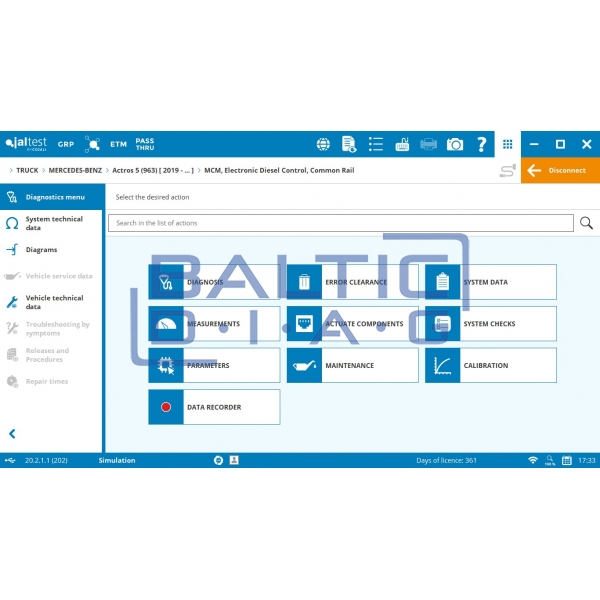

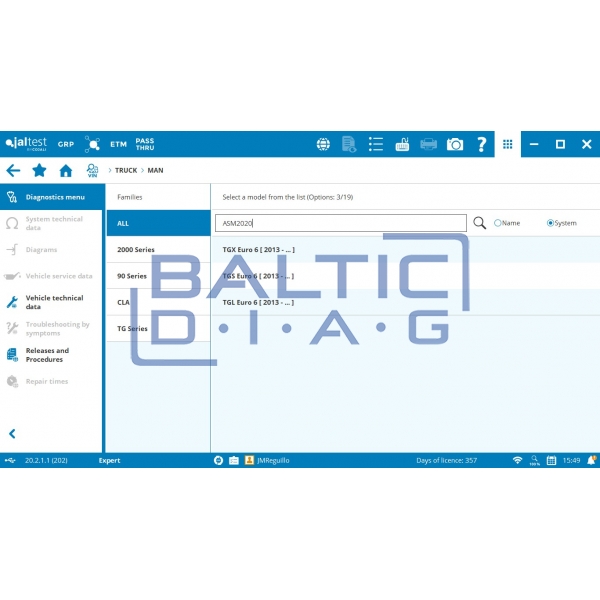

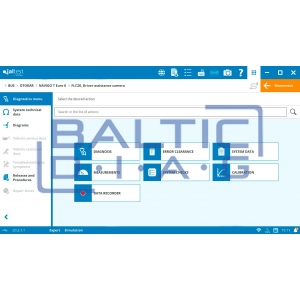

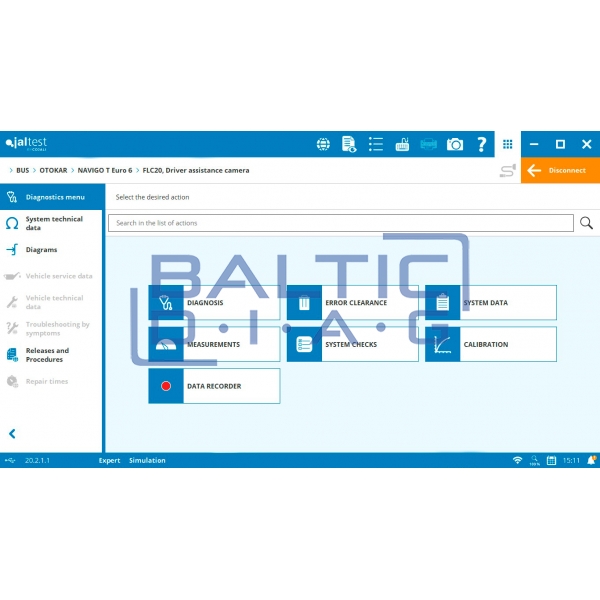

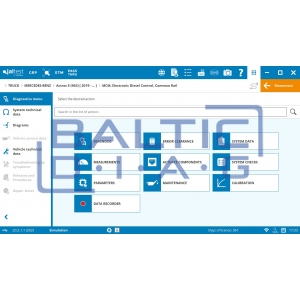

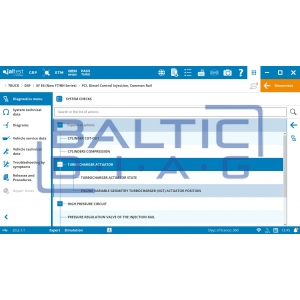

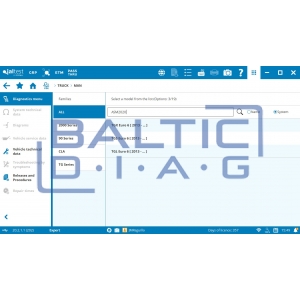

• Intuitive and fast software interface

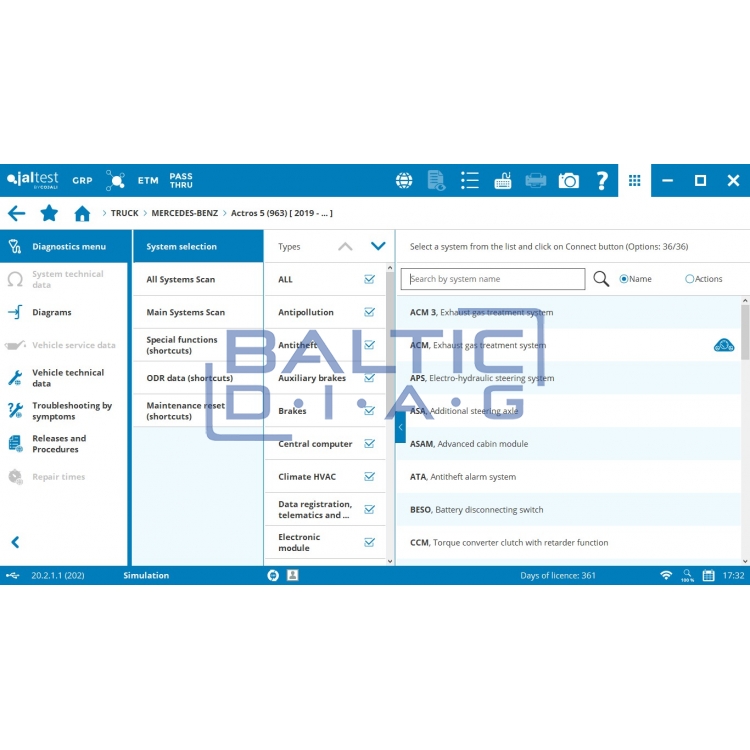

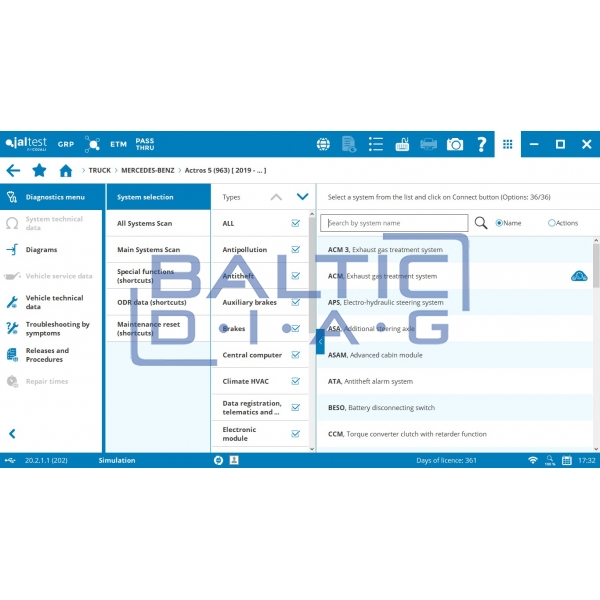

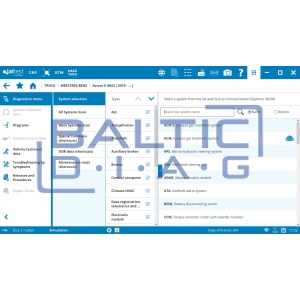

• Automatic system and fault detection
• Troubleshooting based on symptoms and fault codes

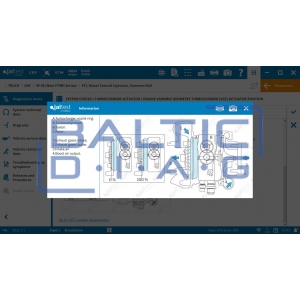

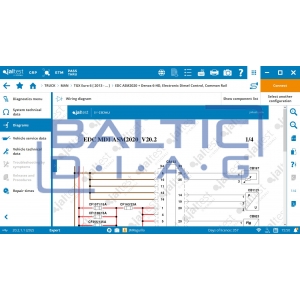

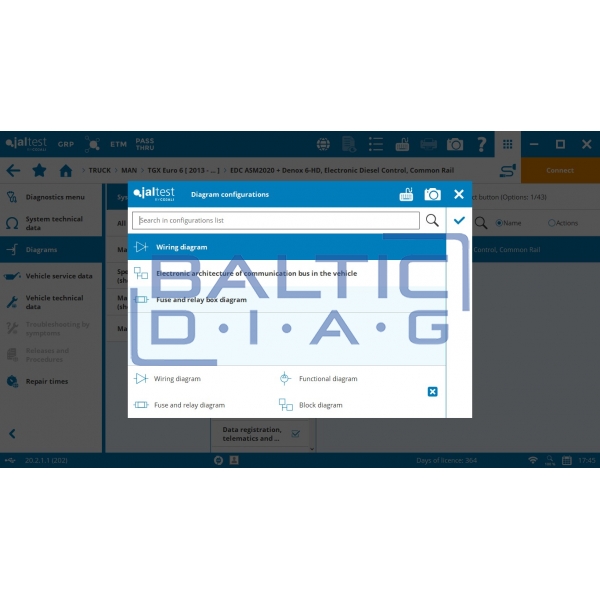

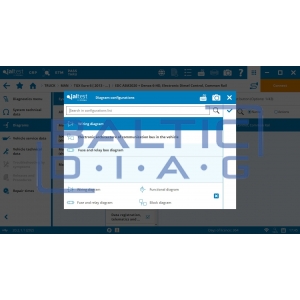

• Integrated technical data, wiring diagrams, and service documents
• ETM – electronic test module
• GRP – workshop resource planning
• Ability to purchase licenses separately for each brand
• Repair times
• ECU diagnostics via OBD interface or specific adapter
• Compatible with any diagnostic connector using a universal cable with dedicated adapters
• Built-in automatic multiplexer – auto-switching of K and L, CAN, SAE lines at any OBD terminal
• Diagnostic protocol support: ISO 9141-2, K/L lines; ISO 14230 (KWP2000), K/L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Middle Speed, Low Speed, single-wire CAN support); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU)
• Component activation: send signals to various systems (e.g., fan activation, cylinder deactivation, compression testing, component control)
• Simultaneous measurement and display of up to 8 values / nominal value ranges

Technical Specifications:

• Connects to desktop or laptop PC via Bluetooth or USB cable
• Bluetooth range: 20–50 m
• Minimum PC requirements: DVD reader, Windows XP, 7, 8, 10 64-bit OS, 2 GB RAM, 10 GB free disk space, USB port
• Power supply via OBD connector or 12/24 V DC power adapter
• Electrical power consumption: 7W
• Shock-resistant housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: 0°C to +45°C
• Multilingual menu
• Certifications: CE, FCC, RoHS

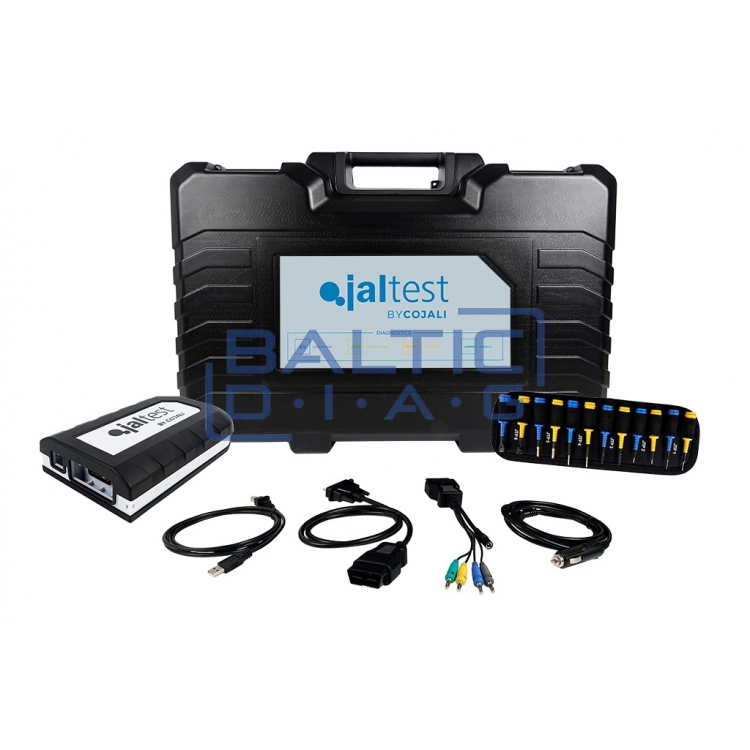

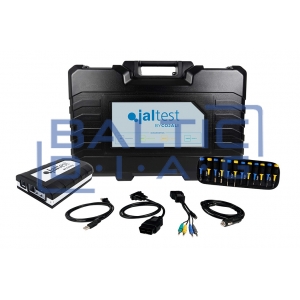

Standard Package Contents:

• 70001017 – Jaltest link kit
• 293110 – DAF truck license
• 29380 – carrying case
• JDC213M3 – OBD cable
• JDC107.4 – USB cable
• JTP96 – universal diagnostic cable with adapter set
• Power supply cables for battery and vehicle socket

Supported DAF Truck Models:

• 65CF; 75CF; 85CF; 95XF; CF E6 (New F7/BH Series); CF MX-11 E6; CF MX-13 E6; CF PX-7 E6; CF65; CF65 IV; CF75; CF75 IV; CF85; CF85 IV; F45; F55; F65; F75; F85; F95; LF E6; LF45; LF45 IV; LF55; LF55 IV; XF E6; XF E6 (New F7/BH Series); XF105; XF95

Who is this device for?

• Jaltest DAF is ideal for workshops, mobile diagnostic technicians, and maintenance professionals working with DAF truck fleets. It’s a powerful tool for both independent garages and large maintenance centers aiming to operate at OEM level.

More than just diagnostics – it's your workshop advantage!

• Try the Jaltest DAF diagnostic system risk-free – contact us today for a demonstration or a personalized offer. Experience the difference that certified, reliable, and advanced truck diagnostics can make.
