Continuous beam laser 3000 W

Continuous Beam Laser 3000 W

Country of origin: China, warranty period - 24 months

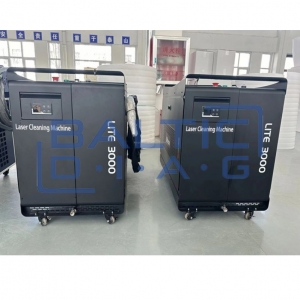

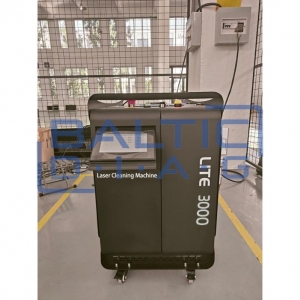

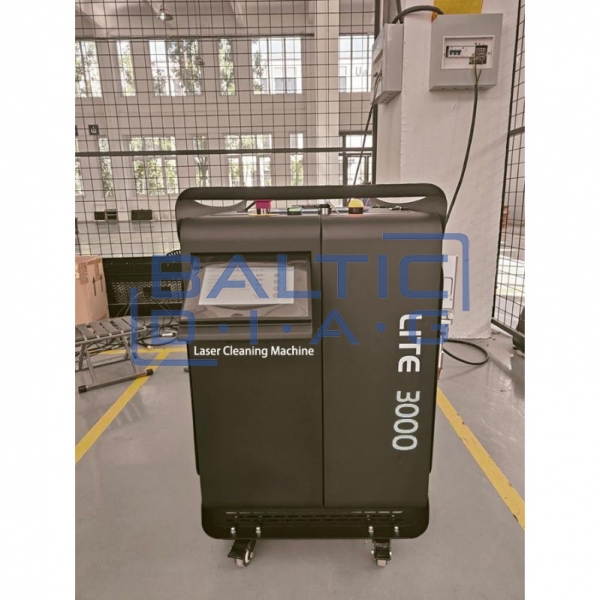

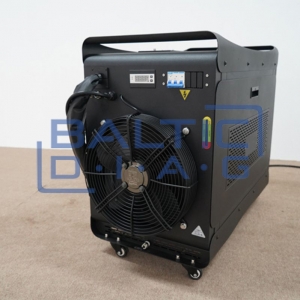

The Continuous Beam Laser 3000 W is a professional, water-cooled industrial device designed for effective surface cleaning from rust, paint, oxidation, oil, lime deposits, and other contaminants. The robust construction is mounted on large, durable wheels, allowing the unit to be easily moved between workstations. The clear touchscreen enables the use of pre-saved cleaning parameters, while the unique water-cooled ergonomic cleaning head ensures stable and uninterrupted operation. The integrated modern control system and efficient cooling system ensure durability and reliability even during intensive use.

Functions:

• Control system and design adapted to various cleaning needs up to 3000 W power
• Integrated multiple safety alarm systems and status indicators with quick response to malfunctions
• Real-time monitoring of all parameters and device status – ensures fault prevention and easy troubleshooting
• One-piece structural design reduces the likelihood of malfunctions and simplifies maintenance
• Stable process parameters and high repeatability – reduced adjustment time, increased productivity
• Water-cooled ergonomic cleaning head – comfortable to hold, ensures stable operation without interruptions
• Insulated housing with enhanced interference protection
• Daily inspection before use: check the cleanliness of the protective glass, check the tightness of the QB connection, check for water leakage, ensure proper connection of gas and water (water hose diameter – φ 6 mm)

Technical specifications:

• Laser power: 3000 W
• Laser source: Raycus / Max
• Cooling type: water
• Power supply voltage: 220V ±10% AC 50/60Hz
• Working environment: flat, without vibration or impacts
• Operating temperature: 10–40 °C
• Operating humidity: <70% RH
• Operating wavelength: 1064 nm (±10 nm)
• Compatible power: ≤3000 W
• Focusing parameters: D20*3.5 (F400/F600/F800)
• Maximum air pressure: 15 bar
• Vertical focusing adjustment range: ±10 mm
• Scanning width: 0–300 mm
• Cleaning head weight: 0.75 kg

Cleaning performance:

• Surface rust – 50 mm/s, 300 mm width, 20 μm depth, 30 m³/h
• Paint – 50 mm/s, 300 mm width, 100 μm depth, 19 m³/h
• Rust – 50 mm/s, 300 mm width, 120 μm depth, 9 m³/h

Set includes:

• 1 pc. Raycus / Max 3000 W laser source
• 1 pc. SUP22C cleaning head

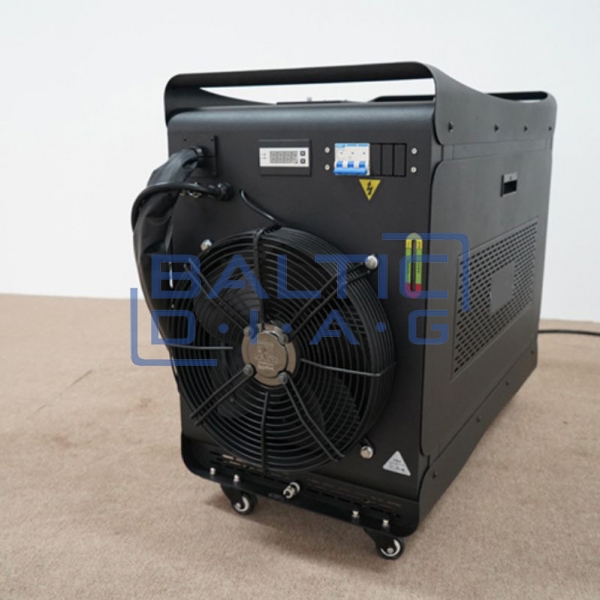

• 1 pc. water cooler for 3000 W power
• 1 pc. SUP22C control system
• 1 set of Chint, ABB electrical components
• 5 pcs. protective lenses
• 1 pc. grounding clamp
• 1 pc. RS232 data cable
• 2 pcs. hex keys

Laser head SUP-22C

The SUP-22C laser head is designed for efficient and precise surface cleaning, adaptable to various cleaning needs up to 3000 W power. It features a developed control system, multiple safety alarms, and an ergonomic design ensuring comfortable and stable operation. The unique air flow outlet design increases the protective gas flow rate, protecting the lens from contamination. Stable mechanical and optical parameters ensure high process repeatability and work efficiency.

Technical specifications:

• Operating voltage: 220V±10% AC 50/60Hz
• Operating temperature: 10–40 °C
• Operating humidity: <70%
• Cooling: water
• Operating wavelength: 1064 nm (±10 nm)
• Maximum power: ≤3000 W
• Collimation: D165-F60
• Focusing: D203.5 (F400/F600/F800)
• Reflection mirror: 20x15.2xT1.6
• Protective glass dimensions: D30*T5
• Maximum air pressure: 15 bar
• Vertical focusing adjustment: ±10 mm
• Scanning width: F400 – 0–150 mm, F600 – 0–225 mm, F800 – 0–300 mm
• Weight: 0.7 kg
