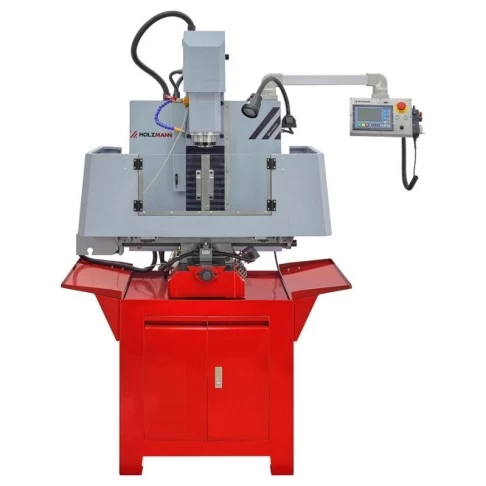

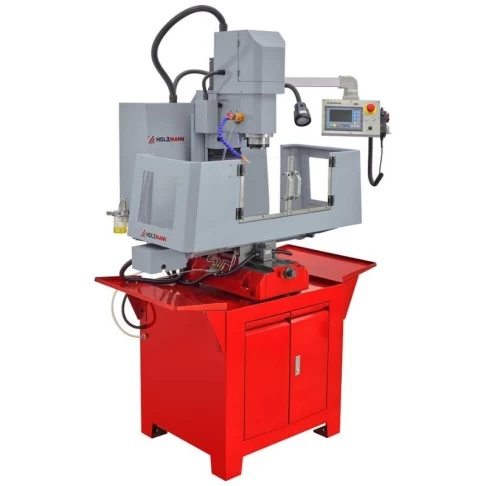

CNC Milling Machine HOLZMANN CF476Nano

CNC Milling Machine HOLZMANN CF476Nano

Country of origin: Austria, warranty period – 24 months

The HOLZMANN CF476Nano CNC milling machine is designed for precise metal machining in workshops, educational institutions, and technical laboratories where high accuracy, reliability, and a compact footprint are essential. This model is ideal for working in limited spaces while maintaining professional-grade CNC functionality. The integrated coolant system, powerful 1,000 W spindle drive, and modern CNC controller enable stable and precise milling operations using automatically generated G-code. The CF476Nano ensures efficient, safe, and consistent performance both in serial production and training applications.

Technical specifications:

• Total power: 3607 W
• Power supply: 400 V / 3-phase / 50 Hz
• Spindle power: 1000 W
• Spindle speed: up to 4500 rpm
• Feed motor power: X – 750 W, Y – 750 W, Z – 1000 W
• Ball screw diameter: 20 mm
• Maximum rapid traverse (X/Y/Z): 3000 mm/min
• Maximum feed rate (X/Y/Z): 2000 mm/min
• Minimum step size: 0.001 mm
• XY axis positioning accuracy: 0.08 mm
• Repeatability: 0.02 mm
• Table dimensions: 700 x 180 mm
• Maximum table load: 100 kg
• X-axis travel: 476 mm
• Y-axis travel: 156 mm
• Z-axis travel: 282 mm
• Maximum milling diameter: 20 mm
• T-slots: 12 mm
• Table height: 995 mm
• Coolant pump power: 90 W
• Coolant flow rate: up to 25 l/min
• Coolant tank capacity: 13 l
• Noise level: <83 dB(A)
• Net weight: 325 kg
• Overall dimensions: 1500 x 925 x 1950 mm

The HOLZMANN CF476Nano CNC milling machine is a reliable choice for professionals and educational institutions seeking a precise, compact, and versatile CNC solution. It is an investment in quality, work efficiency, and durability, ensuring high machining accuracy and stable results in daily operation.
