CNC milling machine for metal Holzmann CF500_400V

CNC Milling Machine for Metal Holzmann CF500_400V

Country of origin: Austria, warranty period - 24 months

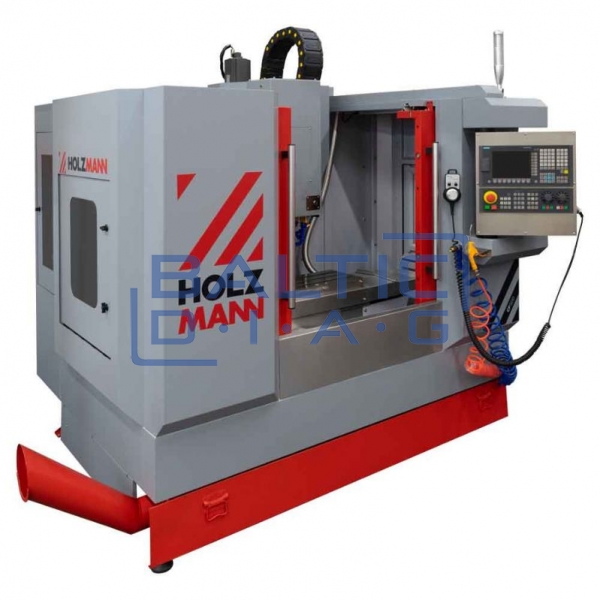

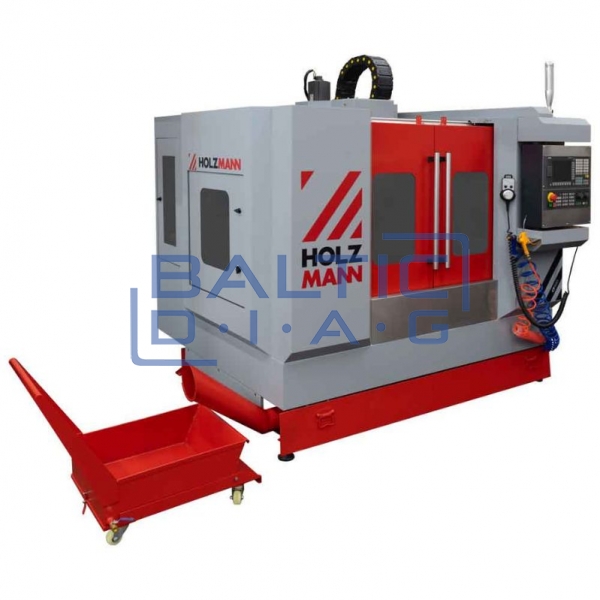

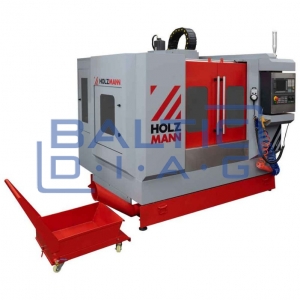

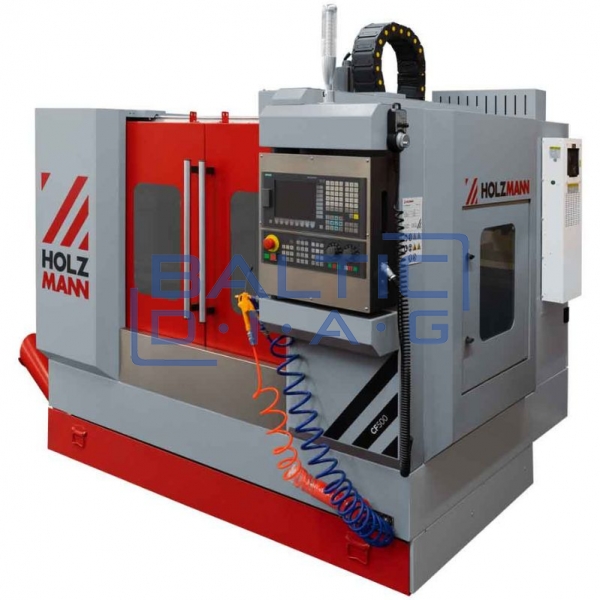

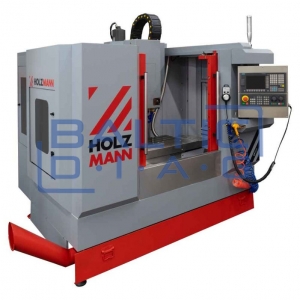

The HOLZMANN CF500 is an advanced CNC milling machine for metal, equipped with a Siemens 808D Advanced control system, a 12-position tool carousel changer, chip conveyor, central lubrication system, and coolant pump. It is ideally suited for metalworking workshops or practical training in educational institutions.

Features:

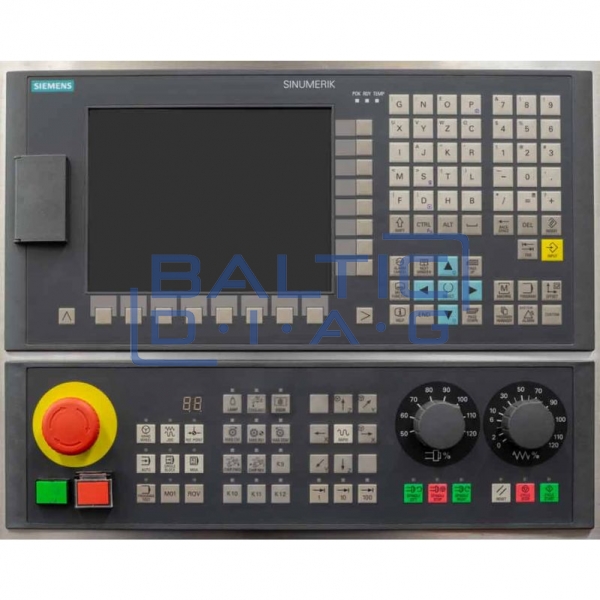

• Siemens 808D Advanced CNC control system
• 5.5 kW spindle motor (35 Nm torque)

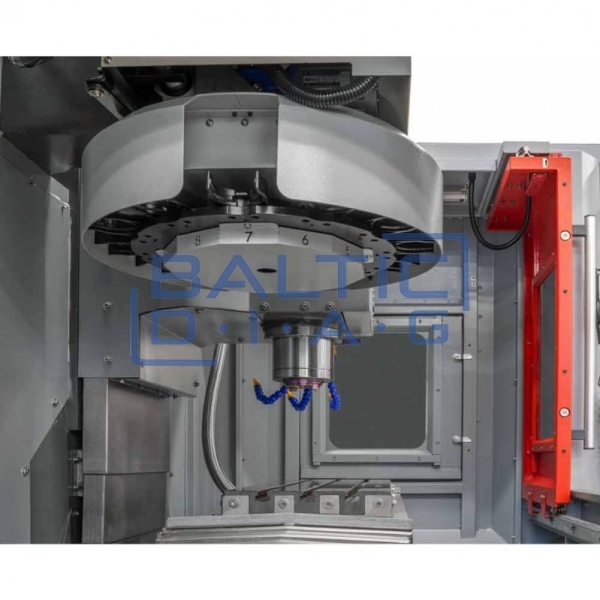

• 12-position tool carousel changer (tool change time – 3 s)

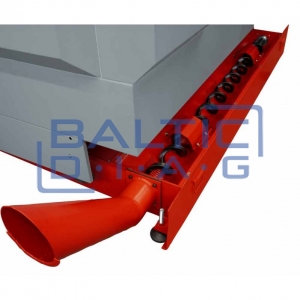

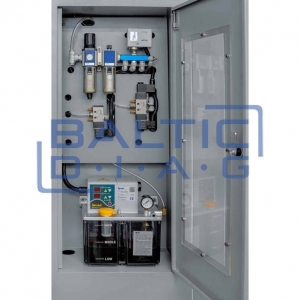

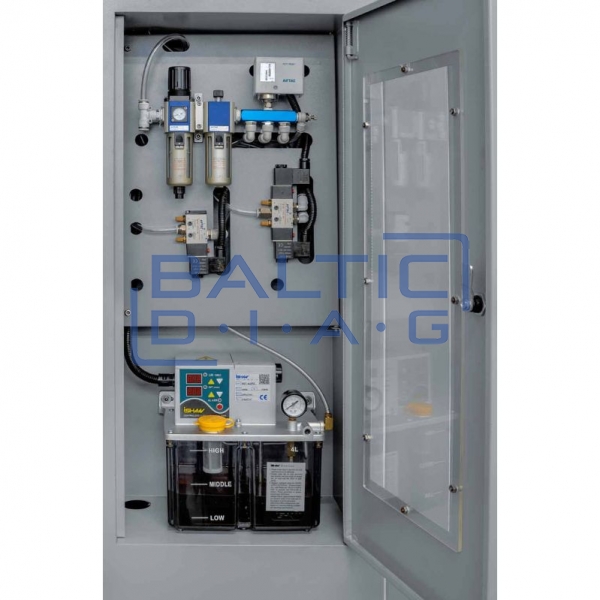

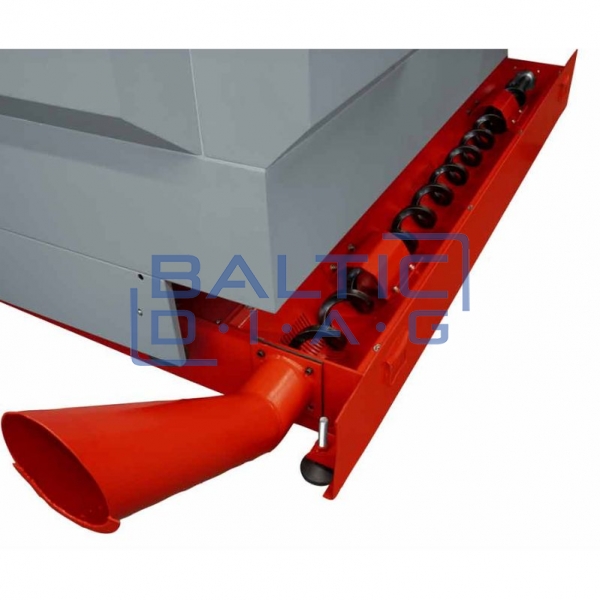

• Chip conveyor and central lubrication system
• Large travel range: X – 500 mm, Y – 350 mm, Z – 450 mm
• Precise positioning: ±0.01 mm, repeatability accuracy: ±0.015 mm
• Rapid feed rate up to 18 m/min, machining feed rate up to 8000 mm/min
• Coolant tank capacity – 17 l, oil tank capacity – 4 l
• Suitable for both professional and educational use

Technical specifications:

• Voltage: 400 V / 50 Hz
• Electrical power: 15 kVA
• Operating air pressure: 4–6 bar (0.4–0.6 MPa)

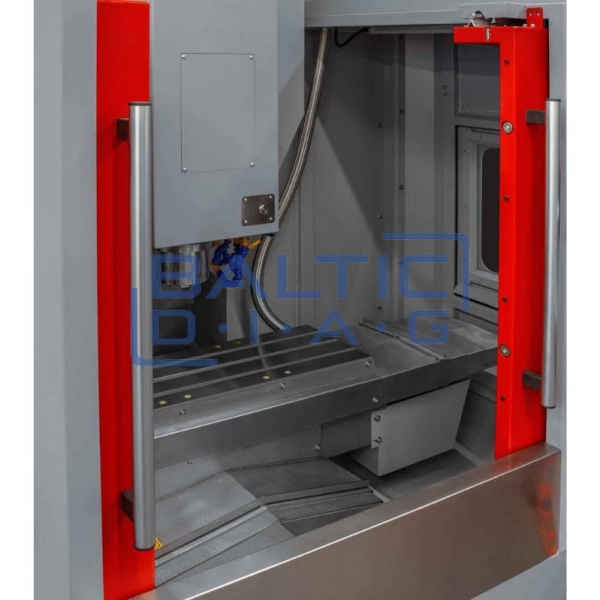

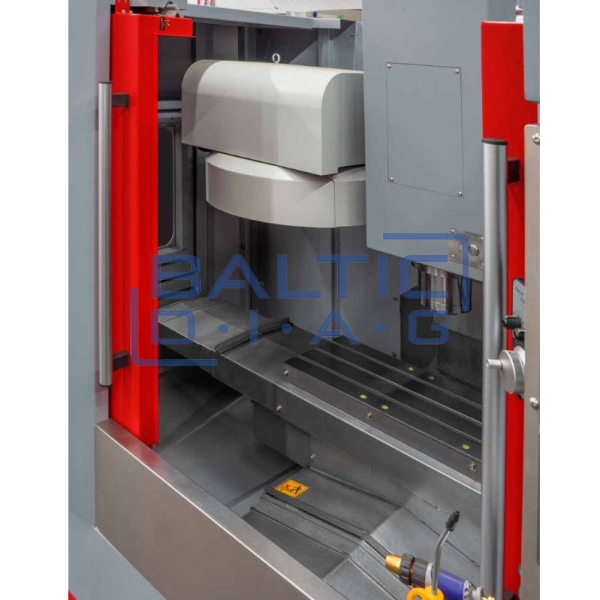

• Table size: 800 x 260 mm
• Maximum table load: 200 kg
• Maximum distance spindle-table: 100–550 mm
• Travel range X/Y/Z: 500 / 350 / 450 mm
• T-slot width: 16 mm
• Spindle speed: up to 10,000 rpm
• Maximum drilling capacity: Ø 20 mm
• Thread cutting capability: up to M16
• Spindle taper: BT40
• Sound pressure level: 80 dB(A)
• Net weight: 2200 kg
• Gross weight: 2600 kg
• Machine dimensions: 2100 x 1750 x 2300 mm
• Packaging dimensions (width x length x height): 1850 x 2200 x 2400 mm
