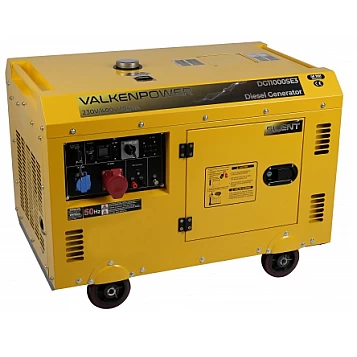

Closed design diesel generator 230 V / 400 V, 7,5 kW

Closed design diesel generator 230 V / 400 V, 7,5 kW

Manufacturer: Valkenpower, Holland

This powerful 10 kVA diesel generator has two electrical outlets, one 32 A 400 V and the other 230 V. This generator is very useful for various celebrations or events. This diesel generator is equipped with protection against extremely low oil level, which protects the internal combustion engine from unwanted damage. If the oil level reaches a critical limit, it is simply stopped, and a red warning light starts flashing on the control panel.

Standard features:

• Voltage gauge
• Frequency manometer
• Low oil level warning light
• Electric starter
• Integrated AVR voltage regulator

Technical parameters:

• Generated electricity voltage: 230 – 400 V
• Maximum power output (400 V): 8 kW
• Nominal power output (400 V): 7.5 kW
• Nominal electrical current output (400 V): 11 A (per phase)
• Maximum power output (230 V): 6.5 kW
• Nominal power output (230 V): 6 kW
• Nominal electrical current output (230 V): 32 A
• DC voltage output: 12 V / 8.3 A
• Frequency: 50 Hz
• Number of revolutions of the internal combustion engine: 3000 rpm
• Cylinder capacity: 633 cm3
• Isonorm: 9001
• Noise level: 85 dB
• Fuel consumption (maximum power): 3.44 l/h.
• Generator dimensions: 1100 x 750 x 760 mm (L x W x H)
• Generator weight: 212 kg
