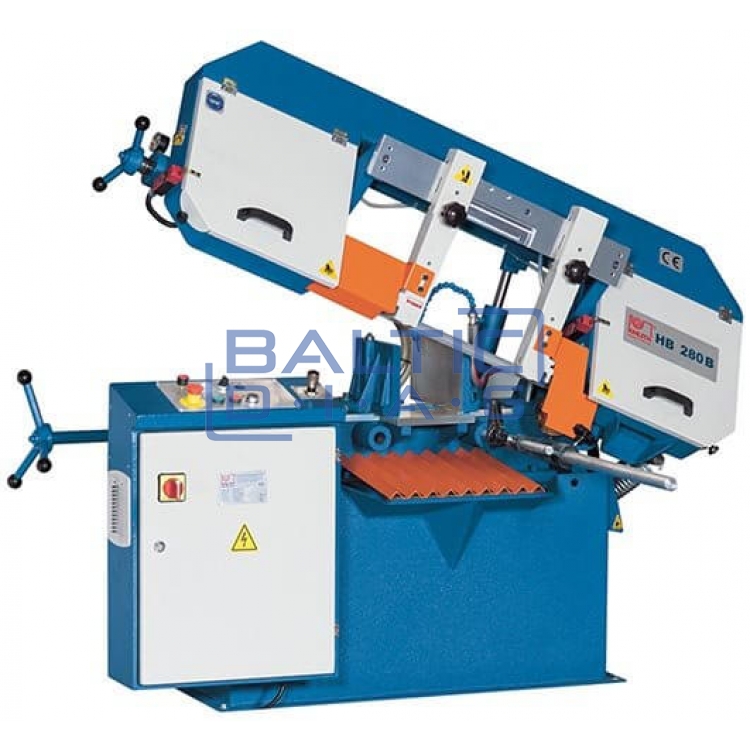

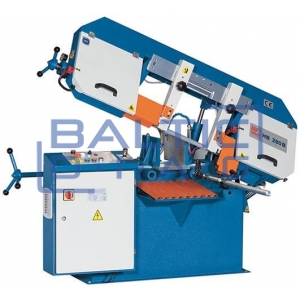

Band metal saw machine, Knuth HB 280 B

Band metal saw machine, Knuth HB 280 B

Manufacturer: Knuth, Germany

These metal band saws are entry level for large workshops. All functions of the machine are manual. The machine can make cuts at an angle of up to 45° when the clamp with the product is turned at an angle. They require little maintenance and their cutting speed can be adjusted using the integrated inverter. The feed of the saw frame can be adjusted by adjusting the hydraulic valve, and these changes can be made even during operation. Ideal for various workshops or amateur use.

• Semi-automatic operation
• Automatic stroke adjustment with optical sensor
• 45° swiveling vise for miter cutting
• Short setup time for machine and workpiece

More detailed description:

• Infinitely variable hydraulic saw advance ensures optimal cutting results and reduces wear and tear on mechanisms
• Automatic shut-off upon completion of saw process
• Band break sensor activates automatic shut-off upon band break
• Helical gears, designed for continuous operation with above average life time and low maintenance
• Infinitely variable cutting speed, from 20 to 100 m/min
• Cooling System
• Rigid guide arms
• HB 280 B: the clamping jaws of the vise can be adjusted by 45°

Technical data:

• Cutting capacity (Round), 0° angle: 280 mm
• Cutting capacity (Square), 0° angle: 280 mm
• Cutting capacity (Flat), 0° angle: 350 mm x 200 mm
• Cutting capacity (Round), at an angle of 45°: 240 mm
• Cutting capacity (Square), at an angle of 45°: 210 mm
• Cutting capacity (Flat), at an angle of 45°: 240 mm x 180 mm
• Cutting speed infinitely variable: 20 - 100 m/min
• Motor rating power of main drive: 1.5 kW
• Cooling system pump power: 0.12 kW
• Band blade dimensions: 3400 x 27 x 0.9 mm
• Overall dimensions: 1800 x 850 x 1000 mm (L x W X H)
• Weight: 530 kg

Standard equipment:

• Parts clamping
• Cooling System
• Linear stop
• Operator's manual

Additional ordered equipment:

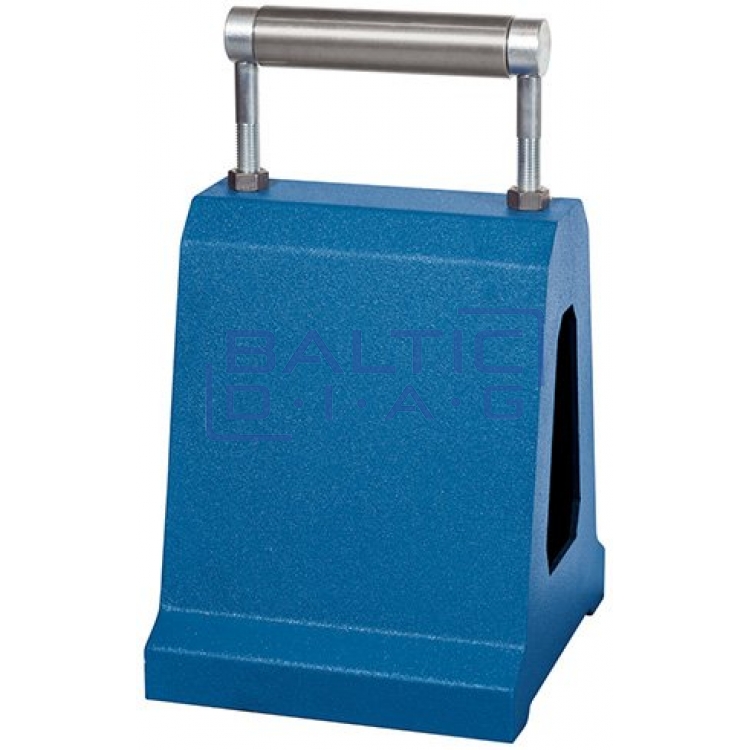

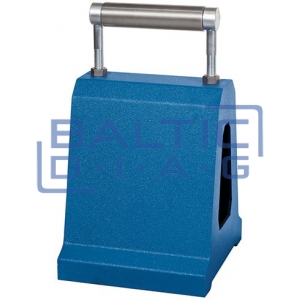

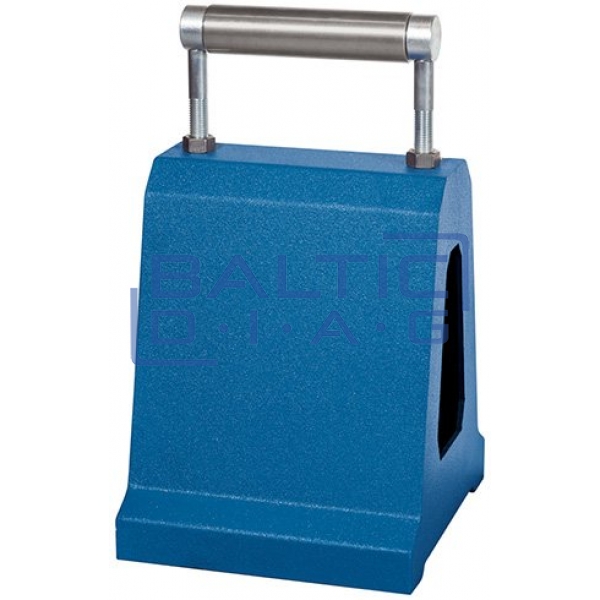

• 3 meter long track with rollers, for HB 280 B machines
• Rotary table, HB 280 B for machine tools
• 3 meter track with rollers, with stop device and digital counter
• 6 meter track with rollers, with stop device and digital counter
• Micro cooling system, ABS 380 L for machine components
• Laser pointer, ABS SNC / ABS H CNC
