Band metal cutting machine Holzmann BS275TOP 230V
Band metal cutting machine Holzmann BS275TOP 230V

Band metal cutting machine Holzmann BS275TOP 230V

  • SKU: BD96800
2,541.00 €

Prices shown include tax

Send Message

Description

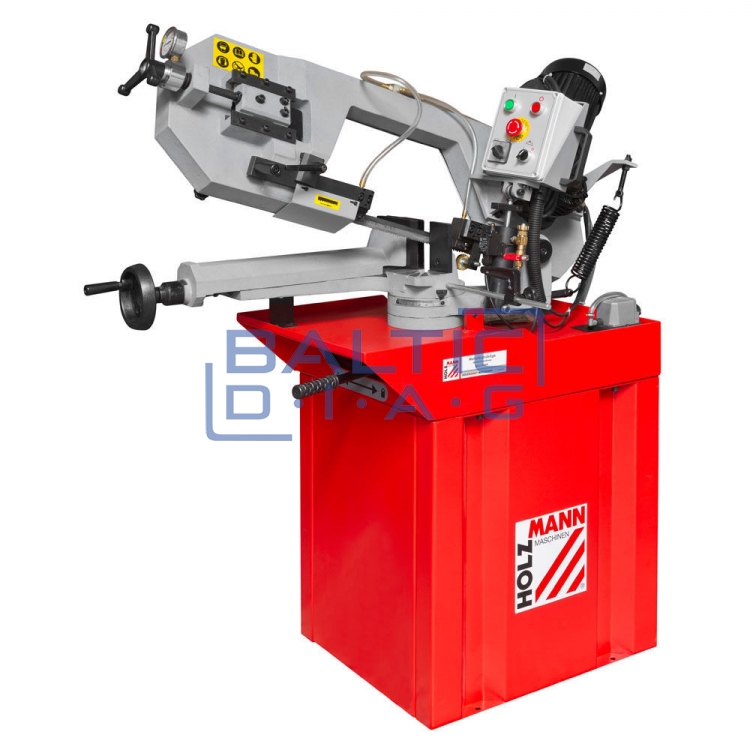

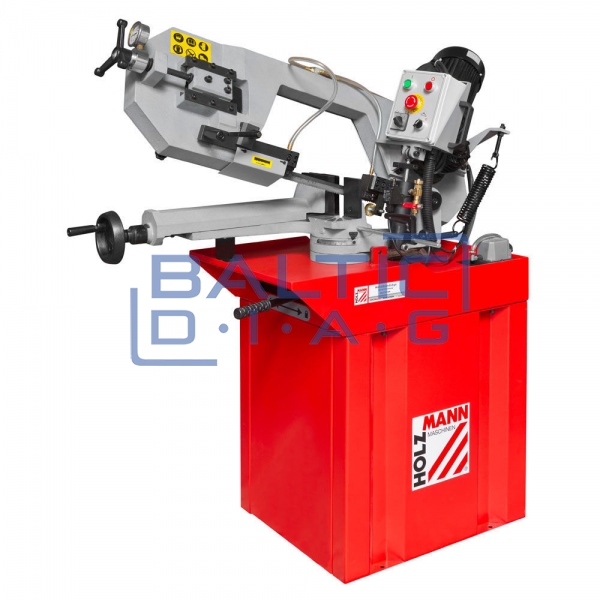

Band Metal Cutting Machine Holzmann BS275TOP 230V
Country of origin: Austria, warranty period - 24 months

The Holzmann BS275TOP 230V is a high-quality band metal cutting machine designed for professional use in various metalworking fields. Thanks to its robust cast iron construction, adjustable saw frame, and high cutting efficiency, this machine ensures top-quality results. The hydraulic system allows smooth adjustment of the saw frame feed, while the automatic shut-off function increases work safety and convenience.

Features:
  • Durable cast iron construction ensures long service life and resistance to vibration.
  • Saw frame with a rotation capability up to 60° enables precise angled cuts.
  • 5-point ball bearing blade guide guarantees maximum cutting accuracy.
  • Automatic rear stop enhances work safety.
  • Sturdy cast iron vice with quick-release lever and workpiece stop.
  • Hydraulic cylinder valve allows adjustable downward feed of the saw frame.
  • Rigid, torsion-resistant saw frame construction ensures minimal vibration and optimal cutting results.
  • Pressure gauge enables precise blade tension adjustment.
  • Included accessories: saw blade, stand, workpiece stop, automatic shut-off device, coolant system, and pressure gauge.
Technical specifications:
  • Motor power (S1 mode): 1100 W
  • Voltage: 230V / 50Hz
  • Rotation range: 0°–60°
  • Cutting capacity (round metal) at 45°: 160 mm
  • Cutting capacity (round metal) at 60°: 110 mm
  • Cutting capacity (round metal) at 90°: 225 mm
  • Cutting capacity (square metal) at 45°: 160 x 160 mm
  • Cutting capacity (square metal) at 60°: 100 x 100 mm
  • Cutting capacity (square metal) at 90°: 200 x 200 mm
  • Saw blade dimensions: 2450 x 27 x 0.9 mm
  • Saw blade speed: 75 m/min
  • Machine weight: 195 kg
  • Total weight with packaging: 235 kg
  • Packaging dimensions: 970 x 580 x 1350 mm
