  • SKU: BD16678
1,499.00 €

Prices shown include tax

Send Message

Description

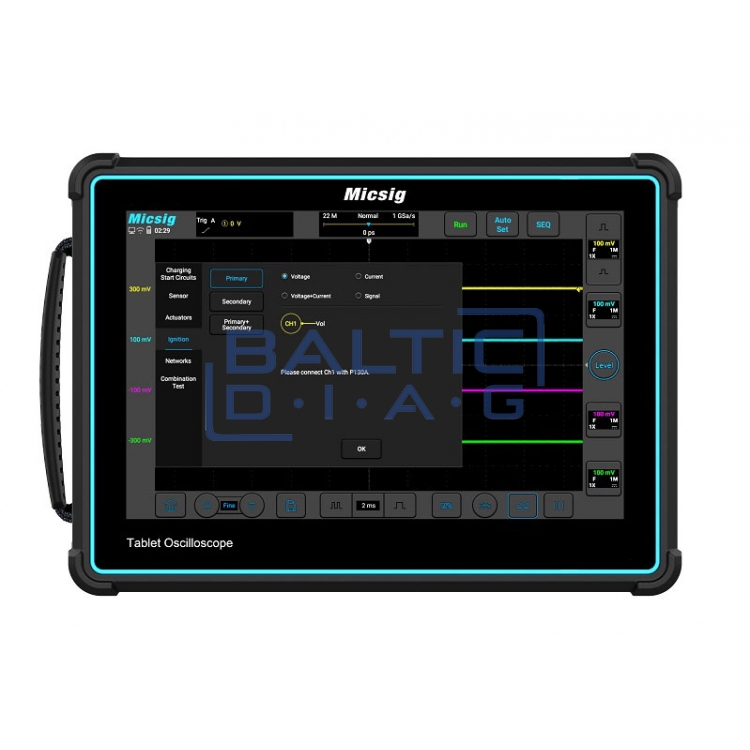

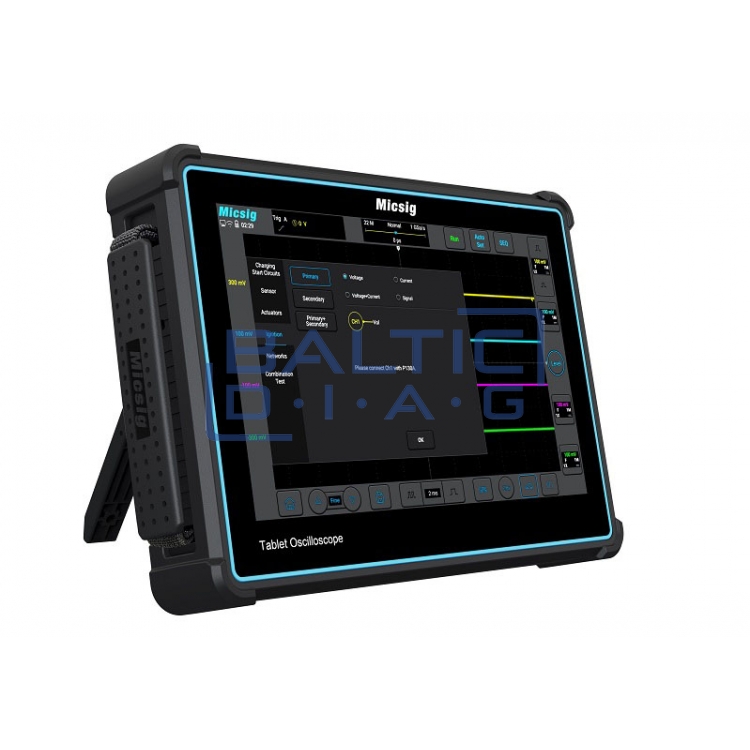

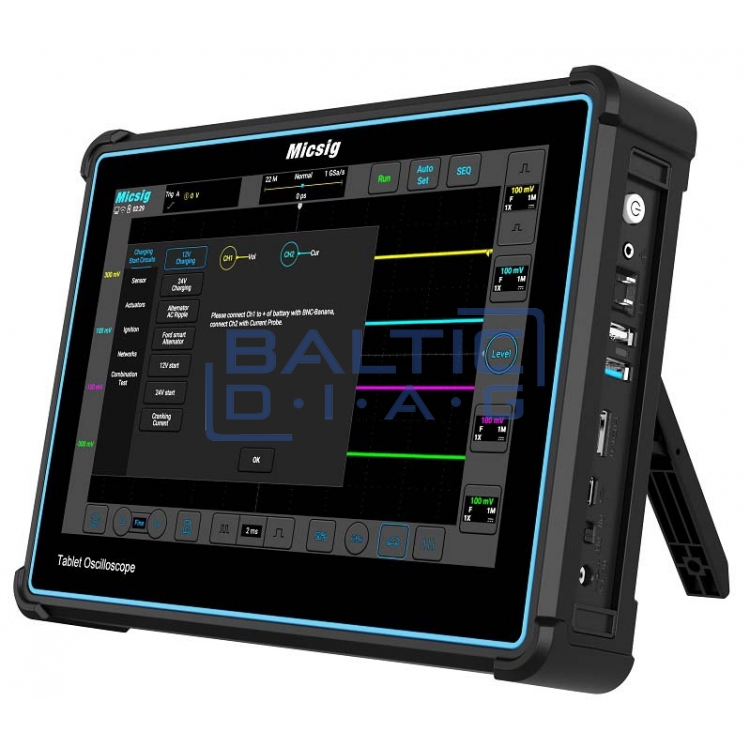

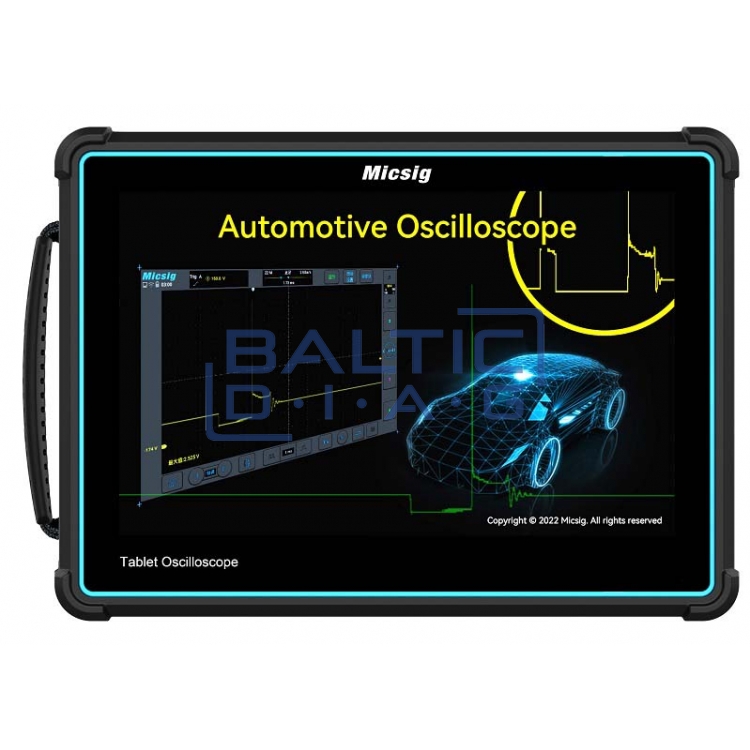

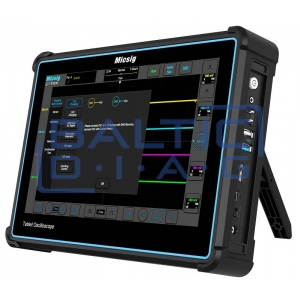

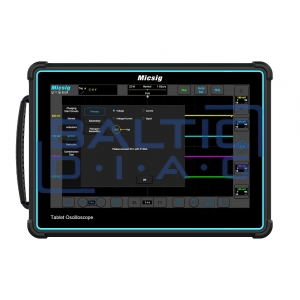

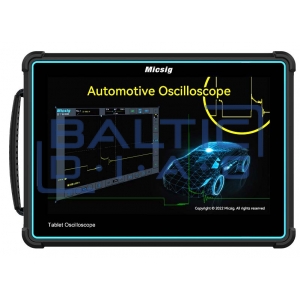

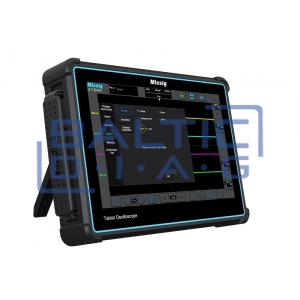

Oscilloscope for cars ATO2004

Manufacturer: Micsig. Warranty: 12 months

Features:
  • Capable of charging/starting circuit tests - 12V and 24V charging and starting systems are supported. Ability to record charging ripples, starting current and other parameters
  • Various sensors test - the ability to check the following sensors: ABS, accelerator pedal, throttle valve, fuel pressure, air flow sensor, crankshaft sensor, camshaft position sensor, detonation knock sensors, MAP sensors, etc.
  • Checking of various actuators - the signal of the components is obtained at the push of a button, and in this way the work is done easily and simply. Compatible with the following components: fuel injectors, their voltages and current, fan control current, variable valve timing, EGR valves, etc.
  • Ignition performance check - possibility to perform primary, secondary and combined ignition tests
  • Communication, signal scanning - CAN (CAN High / CAN Low), CAN FD, LIN, FlexRay and K line scanning
  • Combined testing - the device is equipped with several scanning channels, which allow reading the readings of several components and sensors at the same time and combining them into common results. For example perform a general test of the sensors of the crankshaft and camshafts and the like
Technical parameters:
  • Band width: 200 MHz
  • Rise time: ≤1.75 ns
  • Number of analog input channels: 4 channels
  • Real-time sampling rate: 2 GSa/s (single channel)
  • Memory depth: 220 Mpts (single channel)
  • Waveform capture rate : 300,000 wfms/s
  • Input sensitivity ranges: 1 mV/div ~ 10 V/div (1 MΩ); 1 mV/div ~ 1 V/div (50 Ω)
  • Band width filter: 20 MHz, lowest pass (up to 30 Hz)
  • Segment storage: function supported, up to 10000 waveform scans can be stored
  • Input independence: 1 MΩ / 50 Ω
  • Time base range: 1 ns/div ~ 1 ks/div
  • Supported tests : charging/starting current, sensors, components, ignition, communications (CAN L/H, CAN FD, LIN, Flexray, K line), combined checks
  • Bus signal decoding: RS - 232 / 422 / 485 / UART, CAN, CAN FD, LIN, SPI, I2C
  • I/O interface connections: Wi-Fi, USB 3.0 / 2.0, USB Type-C, ground, HDMI, power button
  • Internal memory: 32 GB

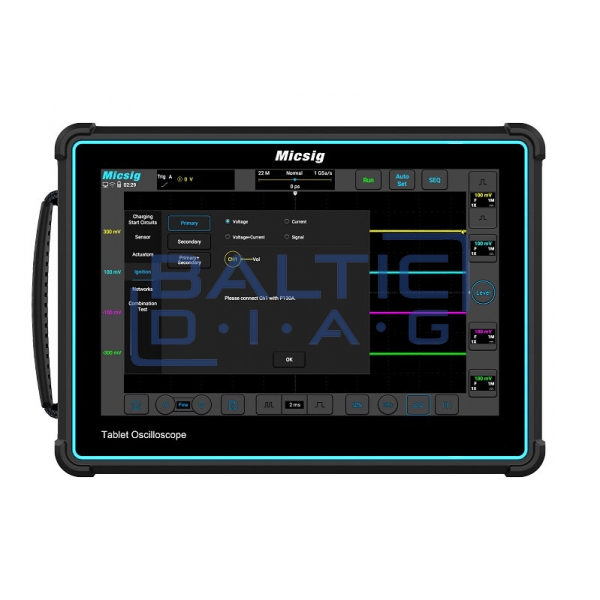

  • Screen: 10.1" inch, LCD, touch, with a resolution of 1280 x 800

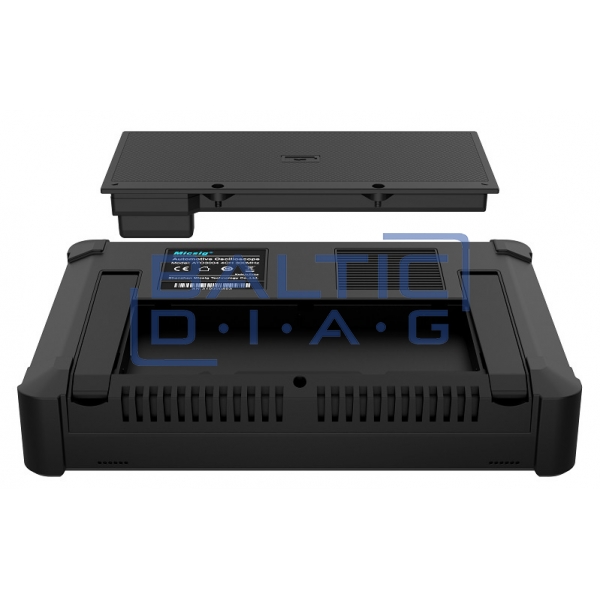

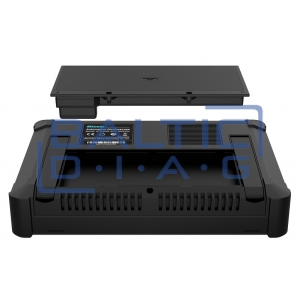

  • Battery pack: 7.4 V, 7500 mAh, Li-ion battery
  • Dimensions: 265 x 192 x 50 mm
  • Weight: 1.9 kg with battery pack
Optional accessories:
  • Suitcase
  • Equipment transport bag
