Automatic wheel balancing machine BD-681AL
Automatic wheel balancing machine BD-681AL

Automatic wheel balancing machine BD-681AL

  • SKU: BD16543
2,320.00 €

Prices shown include tax

Send Message

Description

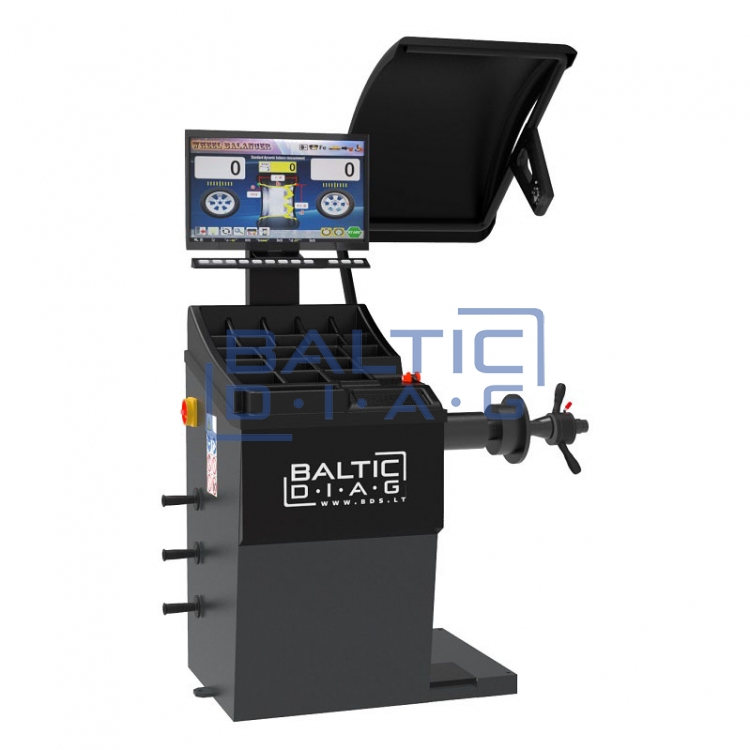

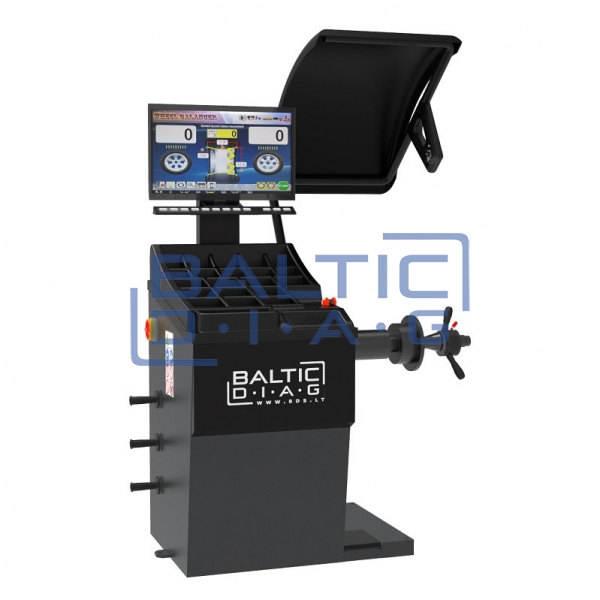

Automatic Wheel Balancing Machine BD-681AL
Country of origin: China, warranty period - 24 months

The BD-681AL automatic wheel balancing machine is a professional and highly precise device designed for balancing passenger car and van wheels. This machine features a CNC-manufactured balancing shaft, ensuring maximum accuracy and corrosion resistance. Thepneumatic rim clamping mechanism simplifies and speeds up the balancing process, while the fully touch-sensitive LCD screen and automatic rim parameter scanning provide maximum ease of use.

Functions:
  • CNC-manufactured balancing shaft for enhanced precision and durability
  • Pneumatic rim clamping mechanism for quick and convenient wheel mounting
  • Fully touch-sensitive LCD screen with an intuitive control menu
  • Automatic rim parameter scanning (distance and diameter)
  • Foot brake for rim locking, facilitating precise weight fixing and application
  • Three convenient rods for storing balancing cones and tools
  • Protective wheel cover with "Start-Stop" function: automatic balancing when the cover is lowered, stopping when lifted
Technical Specifications:
  • Rim diameter: 10” – 32”
  • Maximum wheel diameter: 1000 mm
  • Wheel width: 1.5” – 25”
  • Rotation speed: 150 rpm
  • Maximum wheel weight: 70 kg
  • Balancing accuracy: ± 1 g
  • Motor power: 0.25 kW
Standard Equipment:
  • 4 balancing cones of different sizes
  • Wheel width measuring gauge
  • Quick-release clamping nut
  • 100 g calibration weight
  • Pliers for working with wheel weights
  • Mounting adapter with rubber protection
  • Cone spring
