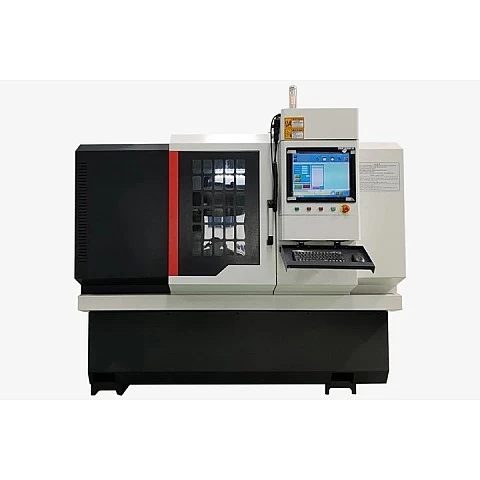

Automated wheel alignment machine WRM28H

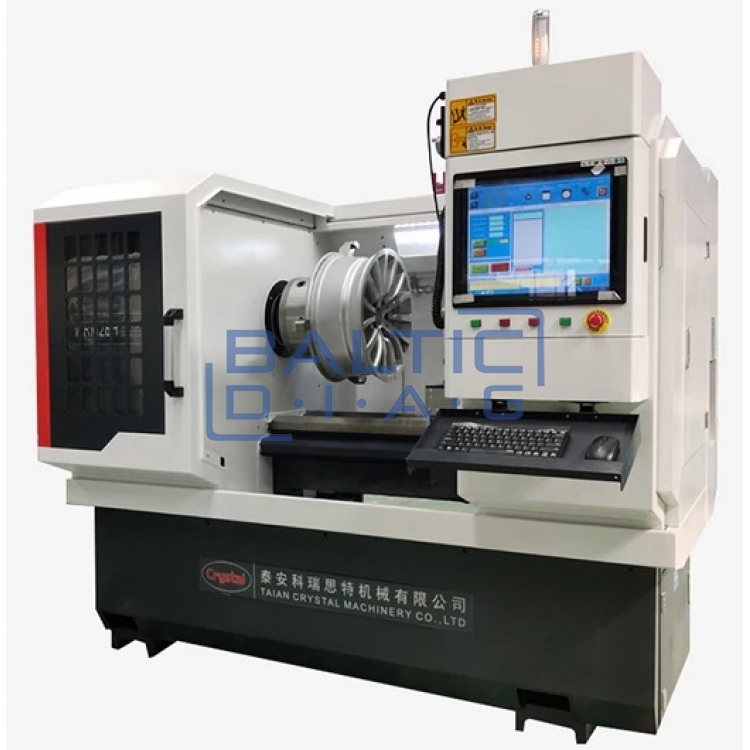

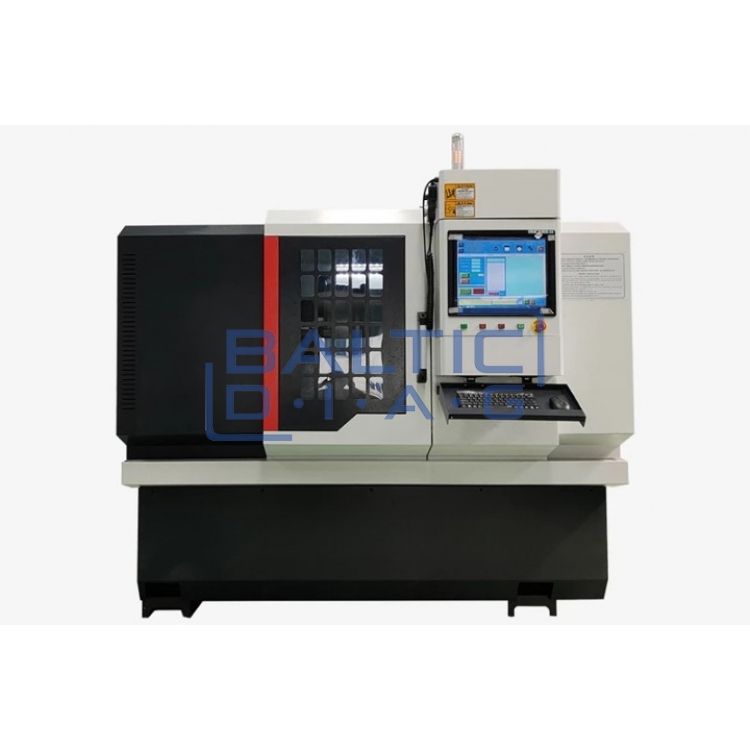

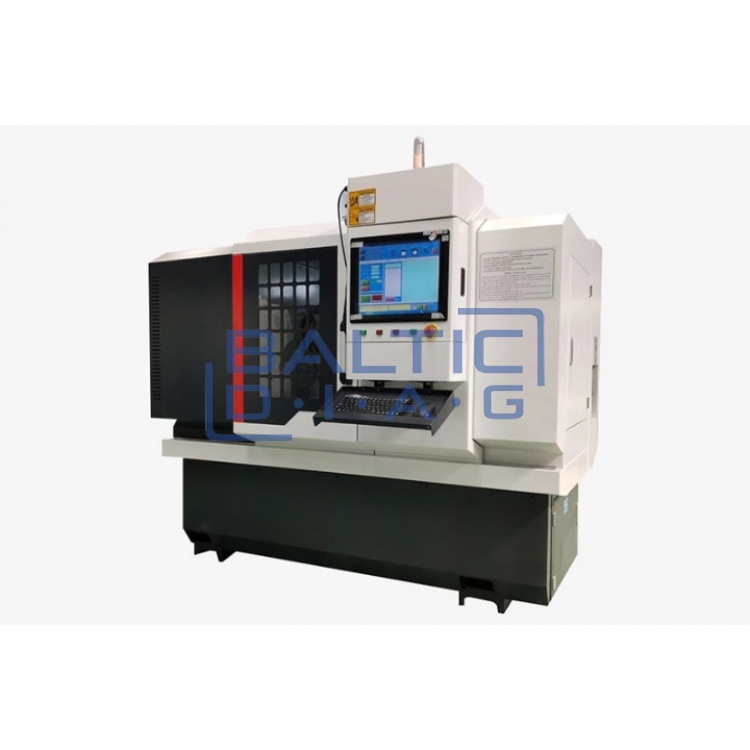

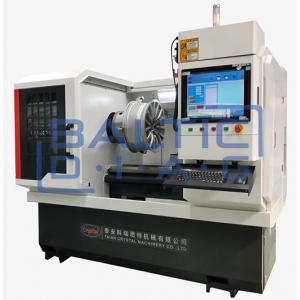

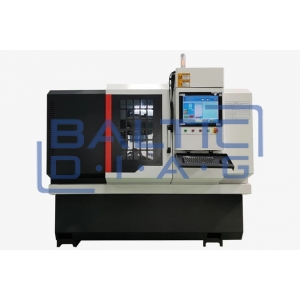

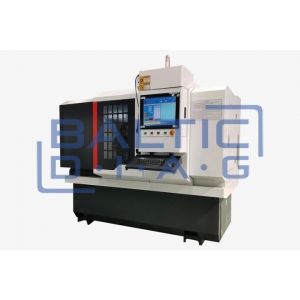

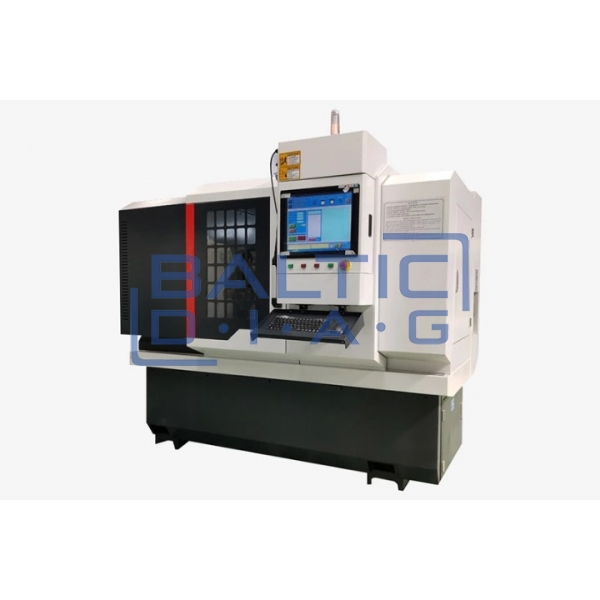

Diamond CUT automated rim lathe WRM28H

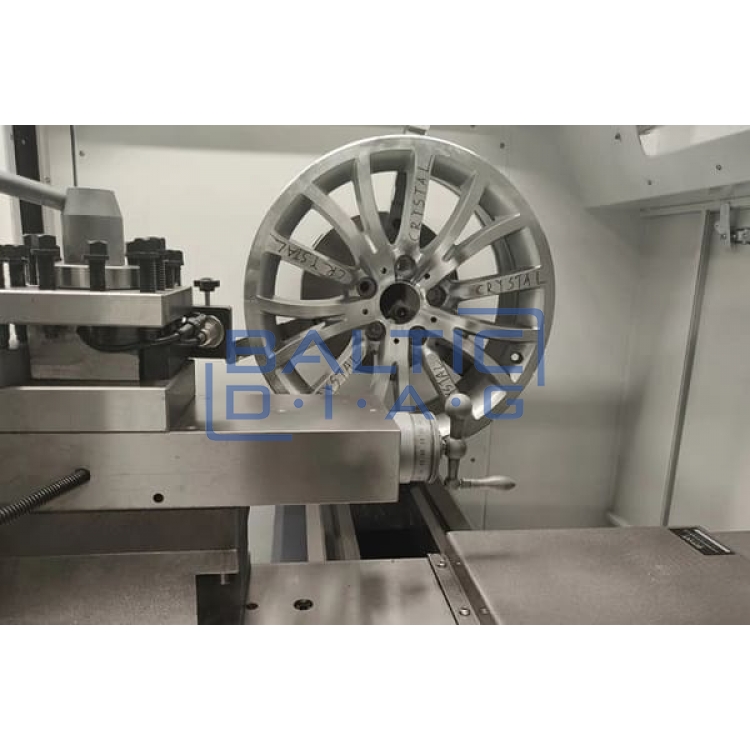

Computerized Diamond CUT rim lathes with a comfortable operator's work space, designed to simplify all rim repair processes. The machine tool will provide you with an easy-to-understand and friendly graphic representation of the processes. The device features new features that have a faster probing cycle, use automated digital probes. It has an automated protection system that automatically stops the rotation shaft if the safety rules are not followed, by connecting the device to a Wi-Fi connection you will have the possibility of remote control and MPG adjustment. Also, the device has an improved installed software version, which allows you to fully adjust the processing of the turning rim and its sill, etc. One-button operations, easy-to-understand control operations. Lathes can achieve a mirror finish or other various textured results.

Advantages:

• Works with rims up to 28" in diameter
• 17" interface touch screen
• With CE, SGS, ISO, BV certificates
• Automatic probe system
• 2 USB ports
• High work efficiency, economical costs
• How-to video for each step
• Adaptive software
• 4 motion axis holder

Technical data:

• Max. turning wheel size: 28"
• Wheel clamp size: 320 mm
• Turning spindle speed: 50 - 2000 rpm
• Turning spindle speed adjustment: automatic
• Adjustable stroke of carrier in X axis: 100 mm
• Max. size of tool post: 25 x 25 mm
• Turning tool carrier movement: 4 axes
• Motor power: 7.5 kW
• Weight: 2250 kg
• Package dimensions: 2300 x 1760 x 2150 mm

Complete set:

• Wireless keyboard and mouse
• Diamond internal turning knife
• Diamond external turning knife
• Claws pads are available on special order
• High precision probing system
• Set for four additional turning knife locations (X-axis)
• Security door
• User manual and usage video
• Automatic lubrication system, cooling system, lighting system
