Automated wheel alignment machine AWR28H

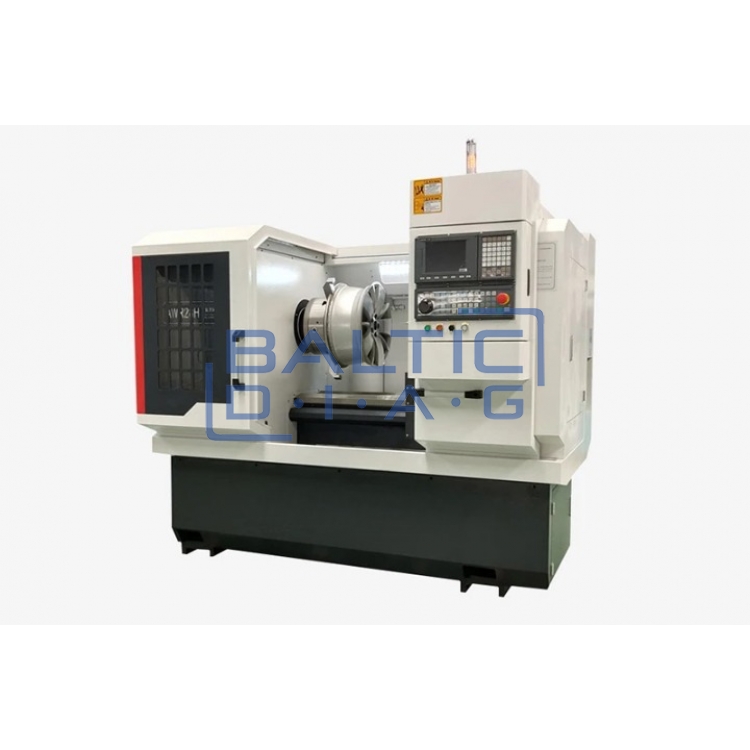

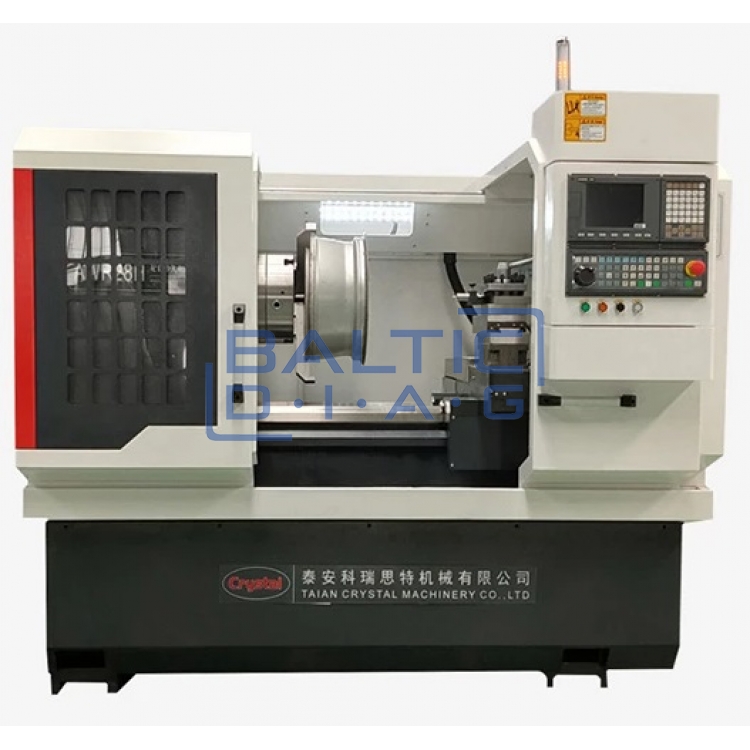

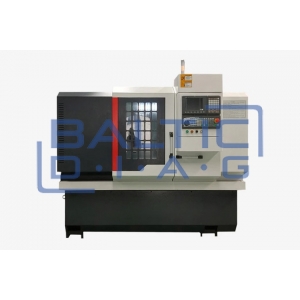

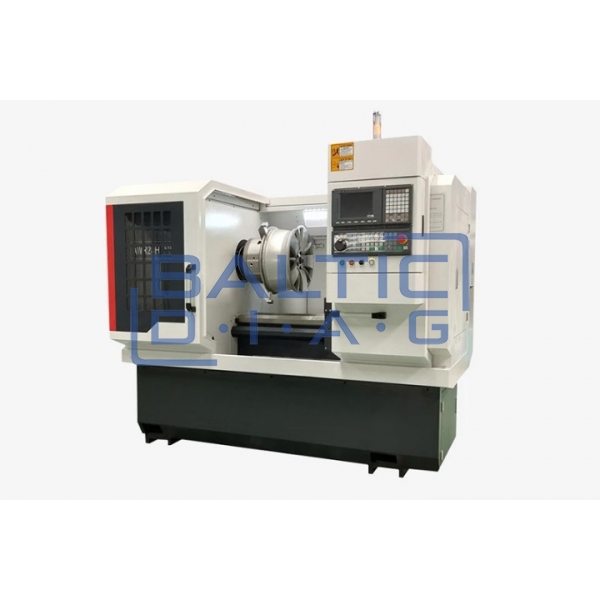

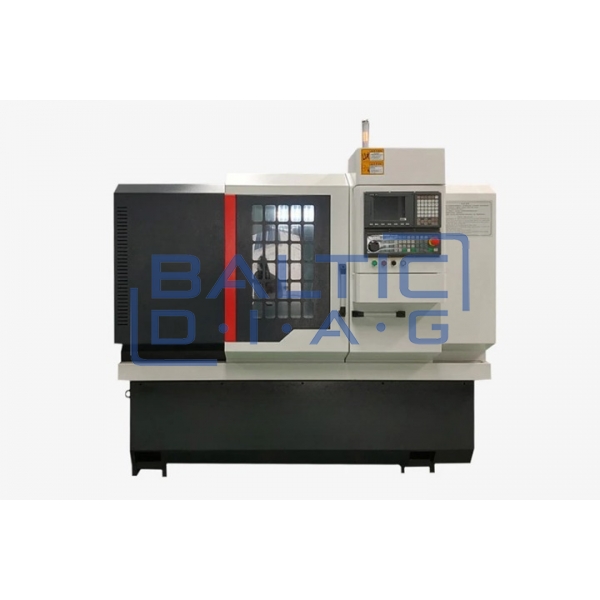

Diamond CUT automated rim lathe AWR28H

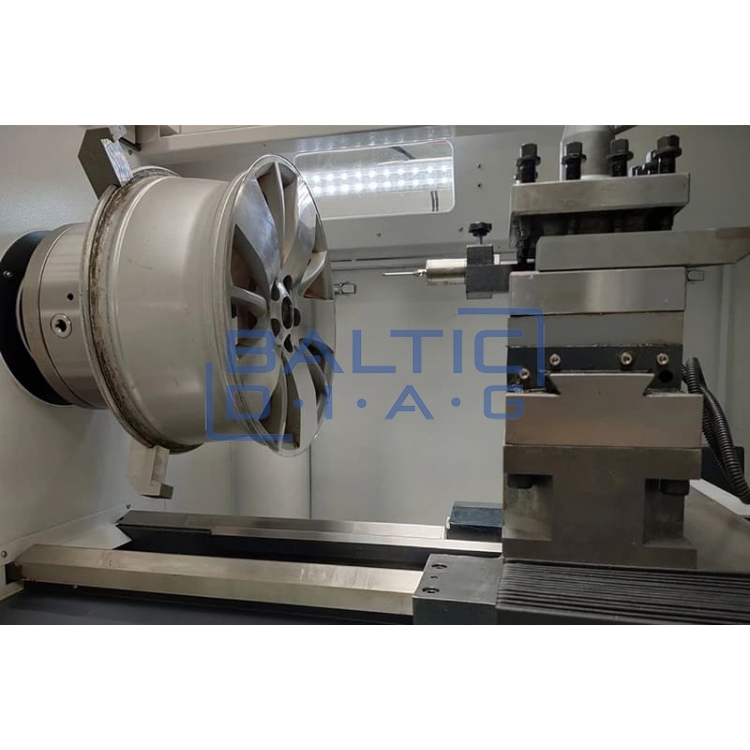

Diamond CUT turning machine for light alloy rims of CNC type is intended for repair and renewal of rims. High-efficiency and easy-to-use machines - adapted to work with the entire surface of the rim. These lathes are equipped with the Syntec 6TA-E system, which is characterized by stability and very high precision. Due to their ease of use, they can be started without much hassle and complex training, without the operator having to learn complex program management tricks. The body of the lathe is large and heavy, so it does not vibrate at all, even at high speeds. Working with these machines, you will be able to achieve a perfect result and mirror reflection, different textural finishing. They also ensure 100% cutting results.

Advantages:

• Works with rims up to 28" in diameter
• With CE, SGS, ISO, BV certificates
• Automatic probe scanning system
• Easy to use
• Adaptive software
• How-to video for each step
• 7x24 hour technical equipment support
• 2 USB ports
• High work efficiency, economical costs

Rim lathe features:

• High quality CNC system
• High precision motors
• Easy to use software
• 4 position bracket
• Specially made 3-step claw
• Reinforced three-piece grips
• Automatic lubrication system, cooling system, lighting system

Technical data:

• Max. turning rim size: 28"
• Rim gripper size: 320 mm
• Turning spindle speed: 50 - 2000 rpm
• Turning spindle speed adjustment: automatic
• Adjustable stoke of carrier in X direction: 100 mm
• Max. size of tool post: 25 x 25 mm
• Turning knife holder movement: 4 axes
• Motor power: 7.5 kW
• Weight: 2250 kg
• Package dimensions: 2300 x 1760 x 2150 mm

Complete set:

• SYNTEC CNC system
• Diamond Cutter sets
• Scanning probe
• 3-claws system (with special claws guards)
• 4 position bracket
• Security door
• Photoelectric protection switch
• Special software
• User manual and usage video
• Automatic lubrication system, cooling system, lighting system.

You can additionally order:

• System of 6 claws
• Longer diamond blade
• Transformer
• PC system
