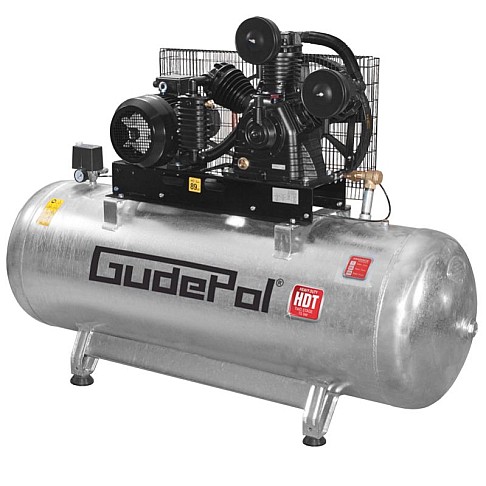

Air compressor 500 l, 1150 l/min, 15 bar GudePol HDT

Air compressor 500 l, 1150 l/min, 15 bar GudePol HDT

Functions:

• Easy and convenient operation for everyday use
• Designed for operation under demanding industrial conditions
• Low-speed cast iron pump – high performance, durability, and quiet operation
• Air tank – 100% galvanized inside and out, corrosion-resistant (compliant with PN-EN ISO-1461 standard)
• Efficient cooling system – pulley fan and inter-cylinder coolers maintain optimal working temperature
• Belt drive with Taperlock system – allows precise and easy adjustment of belt tension
• High-quality electric motor – IP55 insulation class, suitable for continuous operation according to S1 class
• Pressure switch with thermal protection and no-load start system – ensures safe and smooth operation of the device
• All components – made from the highest quality materials to ensure reliability and durability
• Proven quality – each unit is carefully tested during the production process

Technical specifications:

• Suction capacity: 69 m³/h
• Suction capacity: 1150 l/min
• Motor power: 7.5 kW
• Noise level: 82 dB
• Tank capacity: 500 l
• Maximum pressure: 15 bar
• Number of cylinders: 3
• Number of compression stages: 2
• Power supply voltage: 400 V
• Speed: 790 rpm
• Dimensions (width x depth x height): 1900 x 600 x 1190 mm
• Weight: 304 kg
