10 ton mechanical punching press Profi Punch 10 RHTC

10 Ton Mechanical Punching Press Profi Punch 10 RHTC

Country of origin: Netherlands, warranty period – 24 months

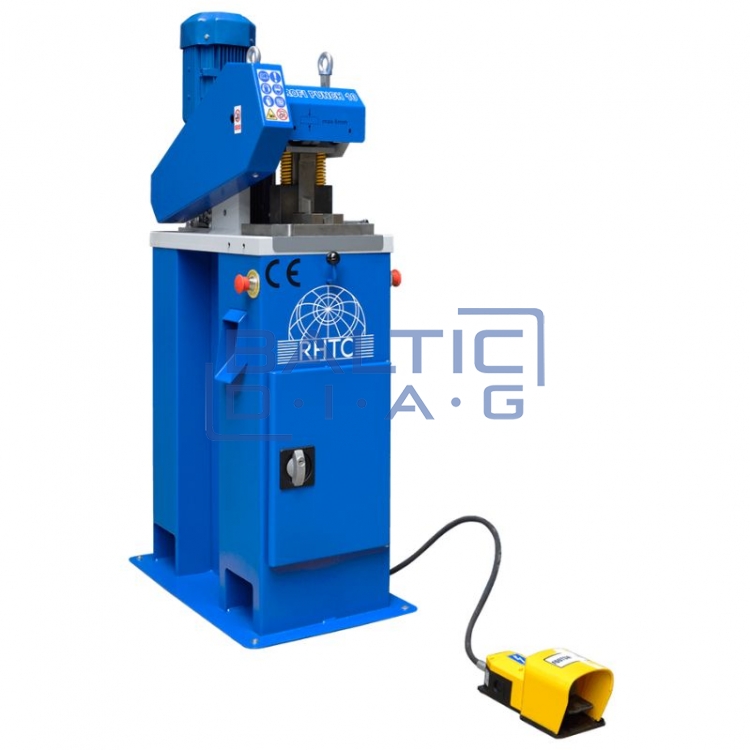

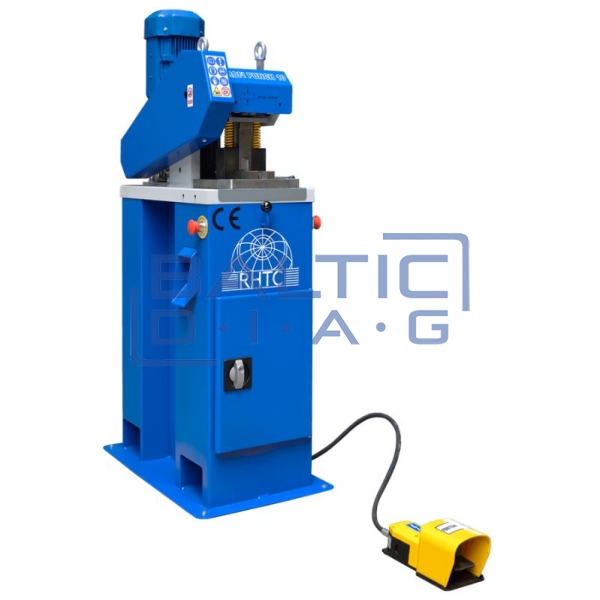

The Profi Punch 10 is a 10-ton eccentric punching press designed for various metal punching operations. Its robust and simple design ensures reliable and easy operation. This press can perform up to 1600 punching cycles per hour in automatic mode and is suitable for both manual and automatic operation. It comes with interchangeable punching tools, and custom-made tools can be provided upon request. Thanks to the wide range of available punch dies, a variety of operations can be performed with a single machine. The press is made in Europe and is available directly from stock.

Features:

• Suitable for punching sheet metal up to 4 mm thick
• Manual and automatic operation modes
• Up to 1600 punching cycles per hour in automatic mode

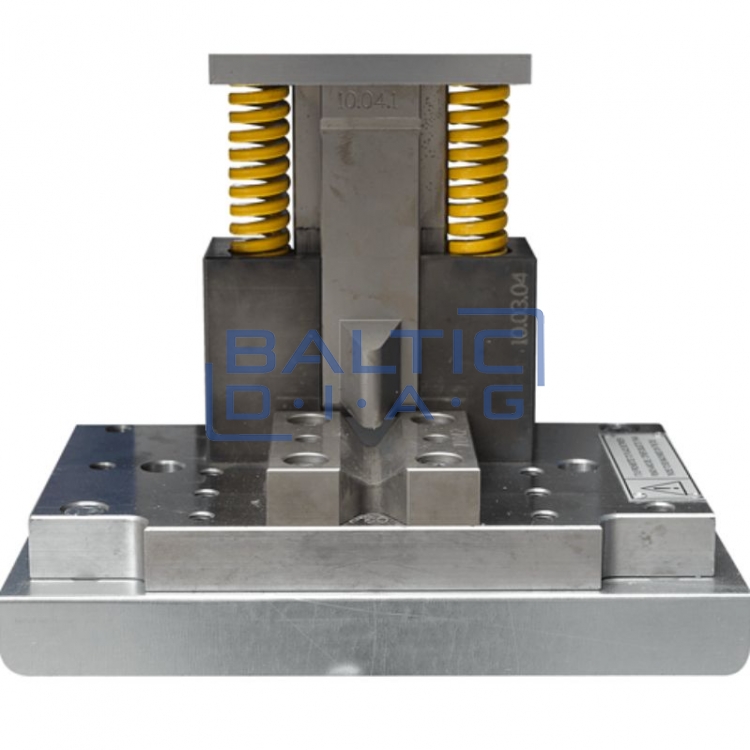

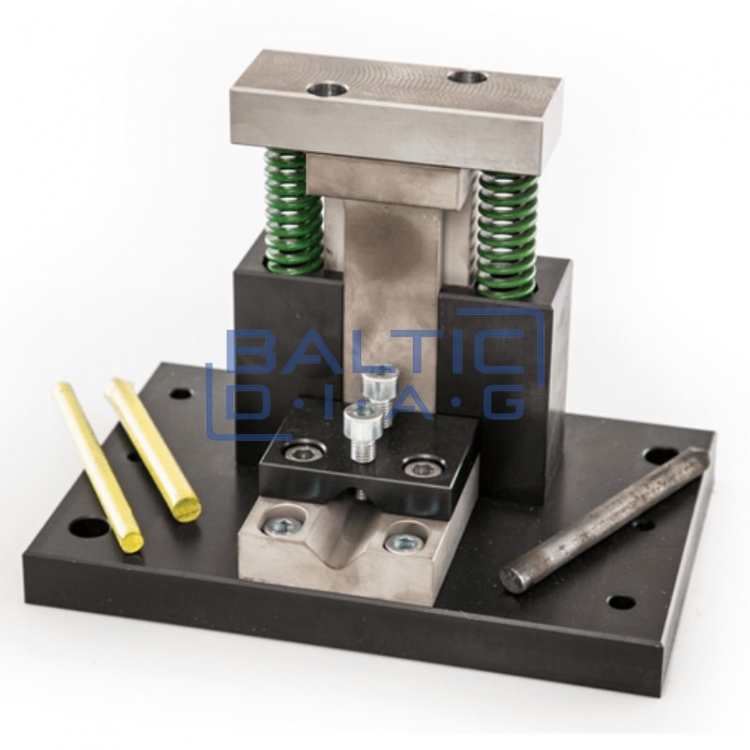

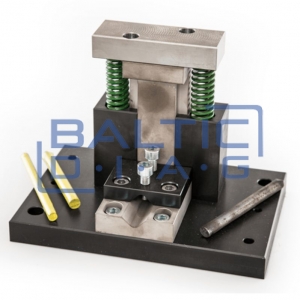

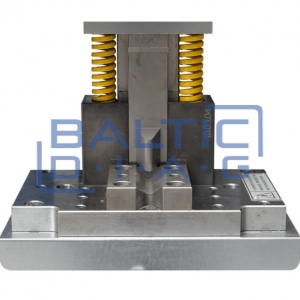

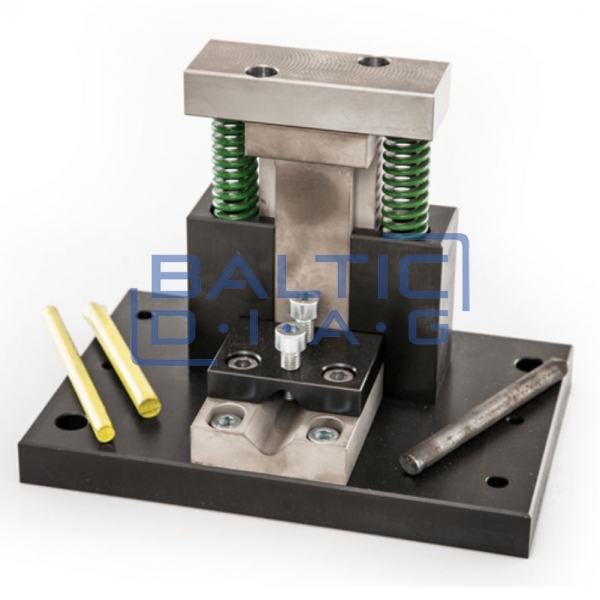

• Interchangeable punching tools, such as:
• Corner wedge-shaped punch
• Pipe cutter for perpendicular cuts
• Slotted hole punch
• Corner rounding notcher
• Corner cutting notcher

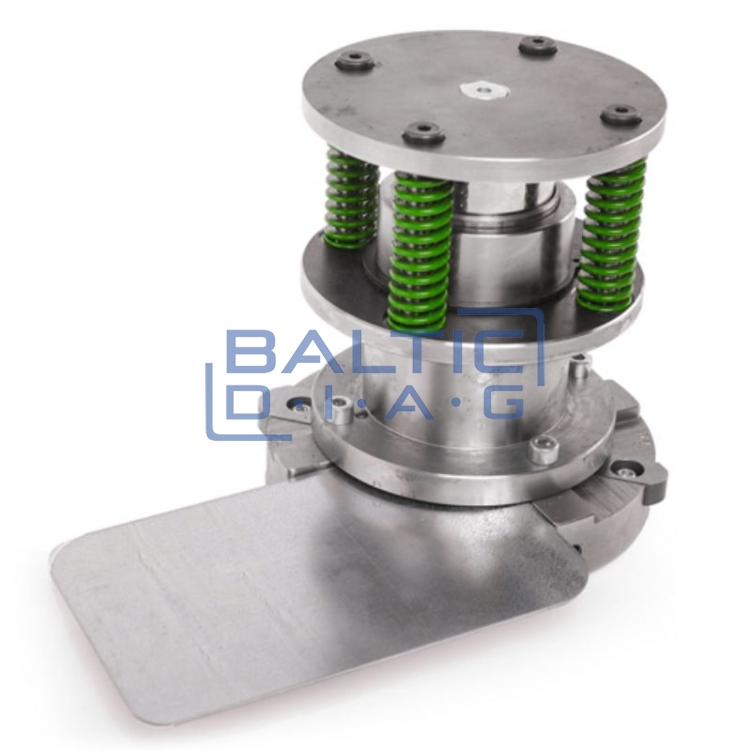

• Hole puncher for pipes
• Sheet metal cutter

Technical Specifications:

• Pressing force: 10 t
• Motor power: 2.2 kW
• Single cycle duration: 1.6 sec
• Average output: 1600 punches/hour
• Total length: 680 mm
• Total width: 440 mm
• Height: 1214 mm
• Weight: 190 kg
