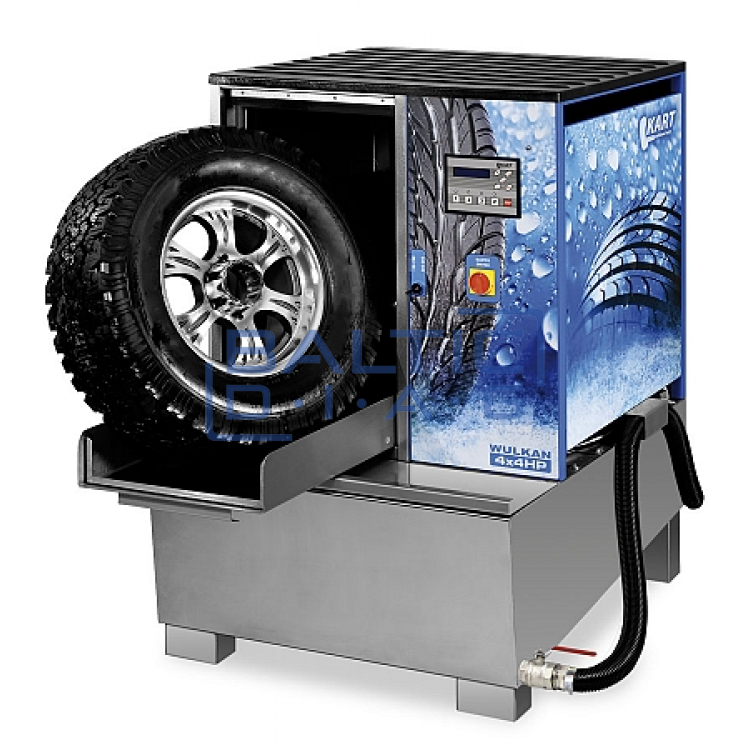

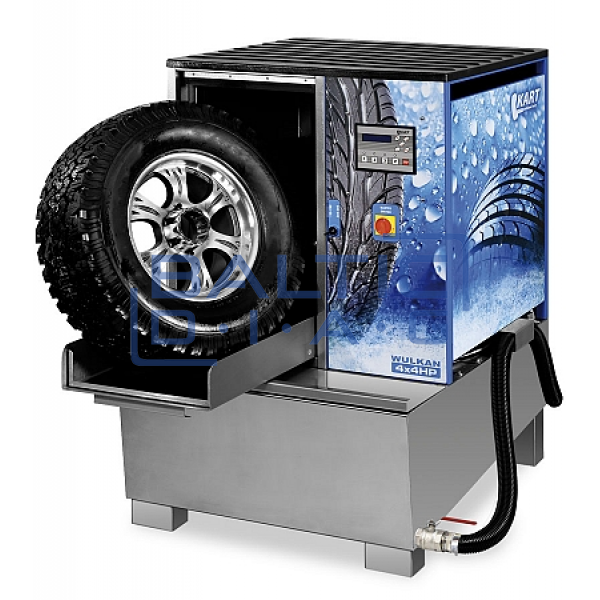

Wheel Washing Equipment Wulkan 4x4HP
Country of Origin: Poland, warranty period - 24 months

The WULKAN 4x4HP is a fully automatic wheel washing system designed for passenger cars and vans with rims and tires up to 360 mm wide and up to 880 mm in diameter. The device utilizes an efficient washing method, combining water, Wulkan MIX granule technology, and Wulkan Turbo cleaning concentrate. A closed water system ensures economical and environmentally friendly operation, while the integrated pneumatic wheel stabilization and water heating systems allow for even more efficient use of the equipment.



Functions:
  • Fully automatic washing process
  • Pneumatic wheel stabilization system
  • Water heating system
  • Utilizes a natural self-cleaning technology
  • Double sound insulation ensures quieter operation
  • Anti-vibration rubber feet for stability
  • Sedimentation tank separated from the washing chamber
  • Drain hose valve for convenient water removal
  • New design with an easy-to-use control system
  • Software available in 6 languages
  • Easy installation and simple operation
  • Energy-efficient operation
  • An optional pneumatic wheel lifter can be ordered separately
Heating System:
  • Heater power: 4 kW
  • Water heating time up to 50°C: 60 - 120 min
  • Overheating protection
Standard Equipment:
  • Wulkan MIX granules – 25 kg
  • Granule basket
  • Wulkan Turbo cleaning concentrate – 30 L
  • Plastic protective cover
  • Rubber anti-slip mat
Technical Specifications:
  • Wheel diameter range: 560 - 880 mm
  • Wheel width range: 135 - 360 mm
  • Maximum wheel weight: 60 kg
  • Washing time (adjustable, 3 programs): 20, 40, 60 sec
  • Drying time (adjustable, 1 program): 15 sec
  • Water heating time up to 50ºC: 60 – 120 min
  • Heater power: 4 kW
  • Pump drive power: 5.5 kW, 3-phase, 400 V, 50 Hz, 2900 rpm
  • Pump capacity: 600 LPM
  • Drive wheels: 3-phase, 400 V, 50 Hz, 0.37 kW, 930 rpm
  • Total power of motors and drives: 6 kW
  • Water pressure: 4 bar
  • Water capacity: 300 L
  • Wulkan MIX granules quantity: 20 kg
  • Wulkan TURBO cleaning concentrate quantity: 3 L
  • Compressed air operating pressure: 8 - 12 bar
  • Acoustic power level: 87.1 dB
  • Dimensions (width x depth x height): 960 x 1212 x 1510 mm
  • Weight: 330 kg
  • Available colors: Red, Blue

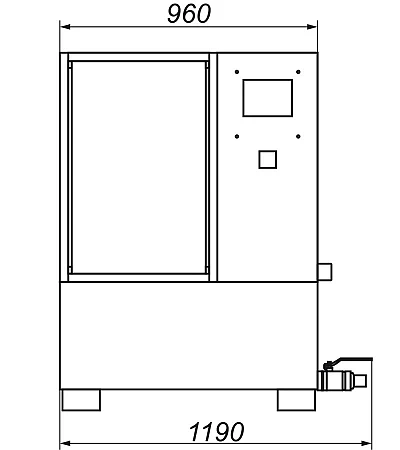

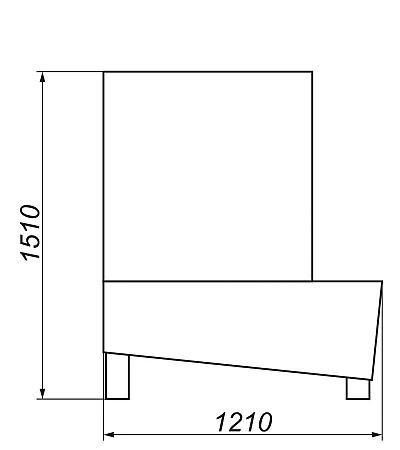

Dimensions:

Wulkan 4x4HP (1)Wulkan 4x4HP (2)
