Wheel clamping flange kit for balancing machines WorldKit I Haweka

Wheel Clamping Flange Kit for Balancing Machines WorldKit I Haweka

Country of origin: Germany, warranty period – 24 months

The Haweka WorldKit I is a universal wheel clamping flange system designed for professional and gentle wheel fastening on balancing machine shafts. When used in combination with internal centering tools such as the DuoExpert or balancing sleeve, this system ensures extremely precise wheel centering. It is particularly well-suited for aluminum alloy rims, where protecting the surface from scratches is essential. Designed for balancing machines with a 40 mm shaft diameter.

Features:

• Suitable for a wide range of rims thanks to the extensive bolt pattern variety
• Ensures high-precision centering when used with the DuoExpert system
• Non-damaging clamping – ideal for sensitive alloy wheels
• Easy and intuitive operation supported by color coding and wall chart
• The complete set is conveniently stored on a wall-mounted board

Technical Specifications:

• Designed for 40 mm shafts

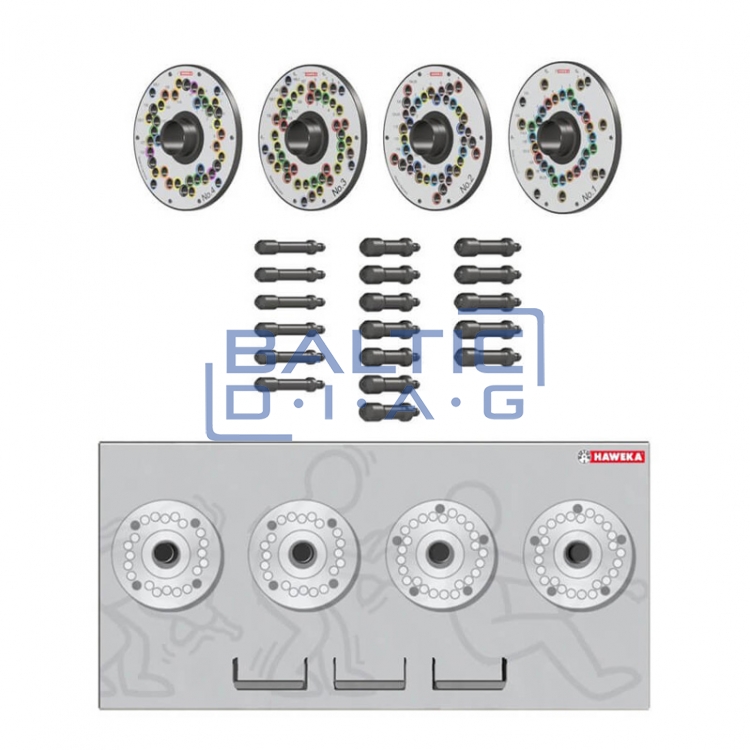

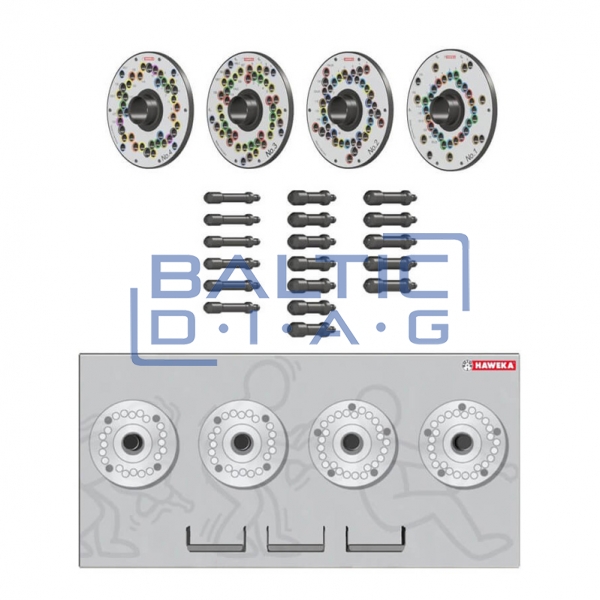

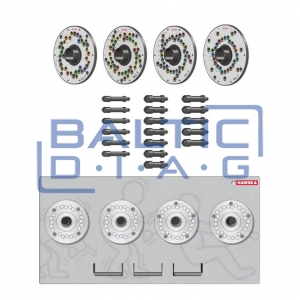

Set includes:

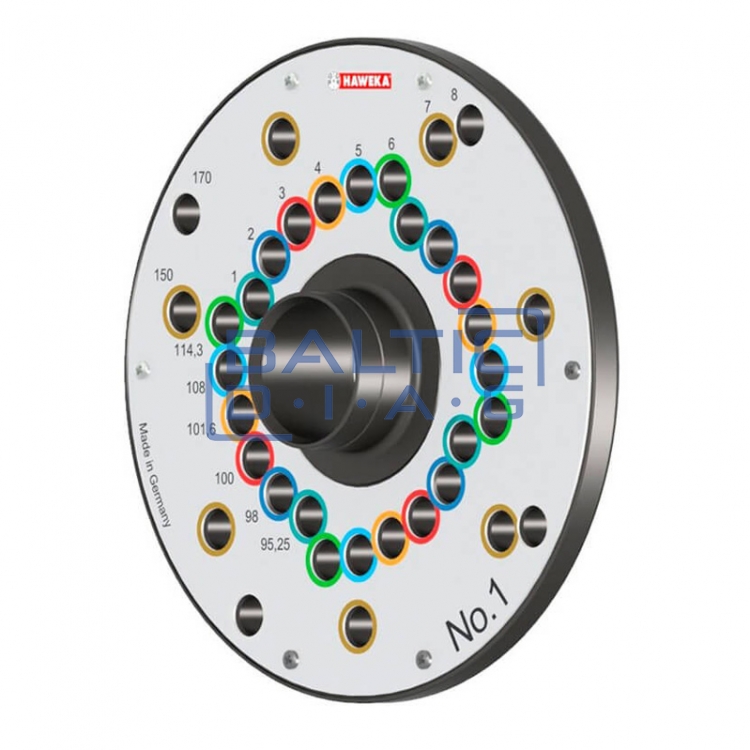

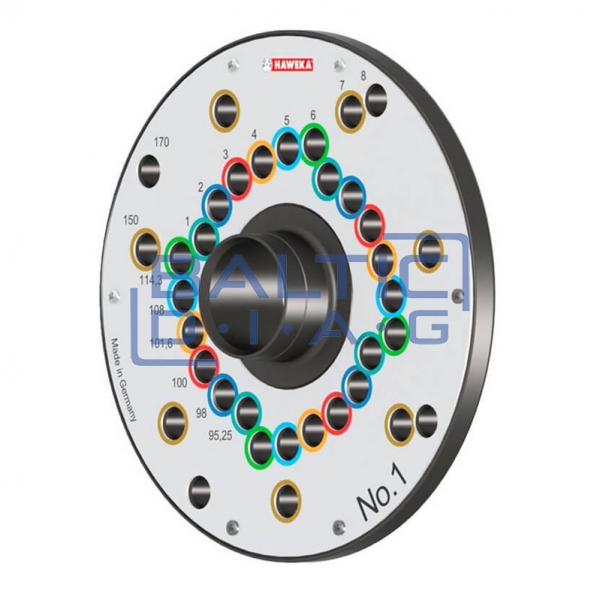

• Flange Adapter No. 1 (4x95.25 / 4x98 / 4x100 / 4x101.6 / 4x108 / 4x114.3 / 4x170 / 7x150)

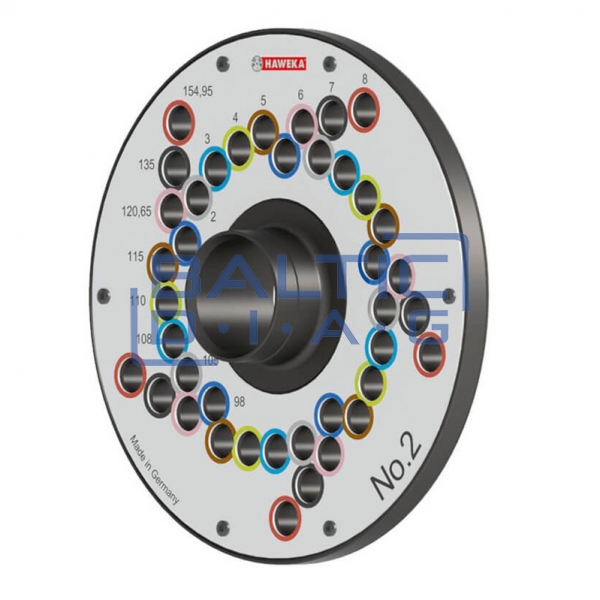

• Flange Adapter No. 2 (5x98 / 5x105 / 5x108 / 5x110 / 5x115 / 5x120.65 / 5x135 / 5x154.95)

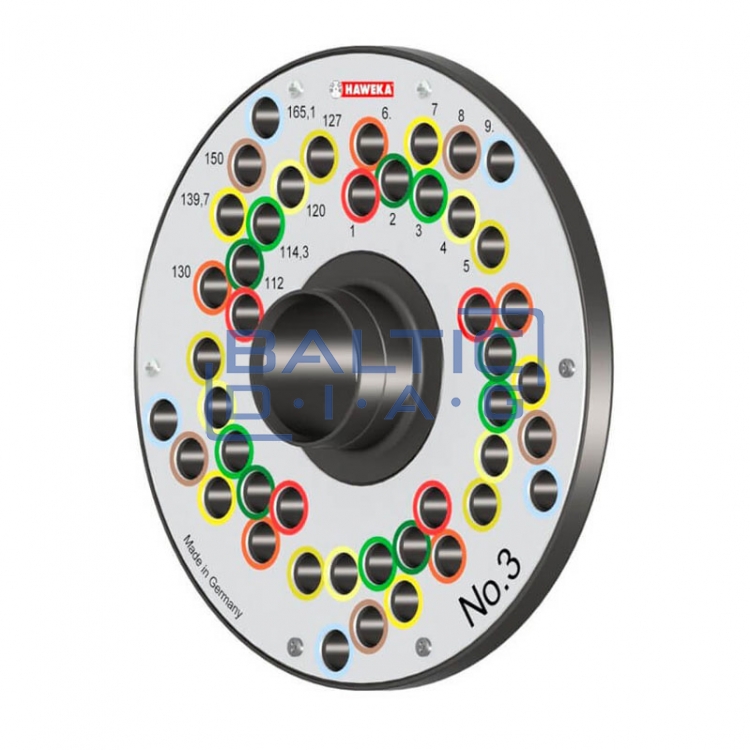

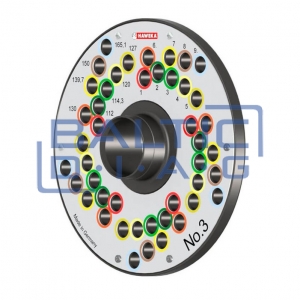

• Flange Adapter No. 3 (5x100 / 5x112 / 5x114.3 / 5x120 / 5x127 / 5x130 / 5x139.7 / 5x150 / 5x165.1)

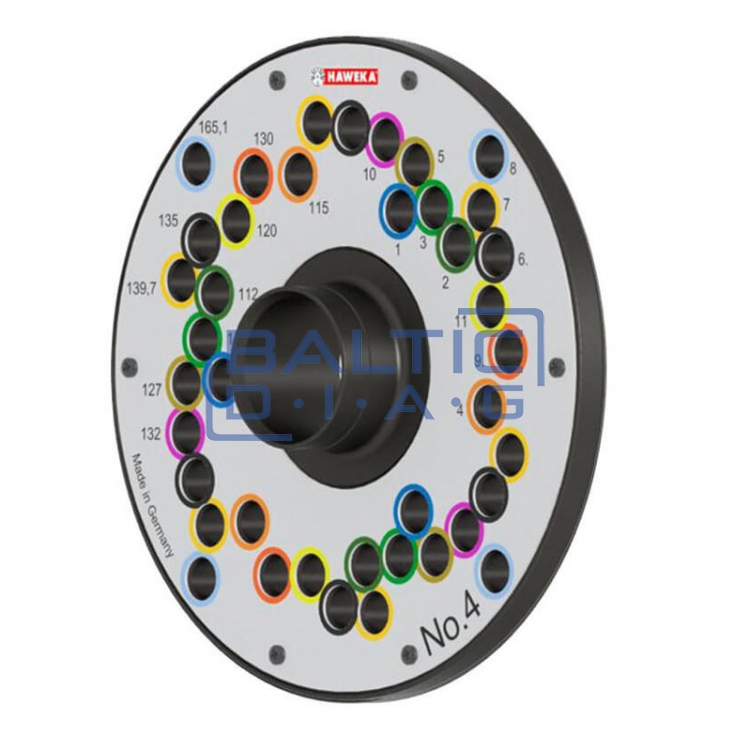

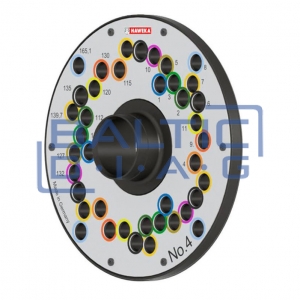

• Flange Adapter No. 4 (3x98 / 3x112 / 3x114.3 / 3x115 / 3x120 / 3x127 / 3x130 / 3x132 / 6x135 / 6x139.7 / 4x165.1)
• 3 sets of studs
• Wall-mounted storage board
• Usage wall chart
• Color-coded guidance system
