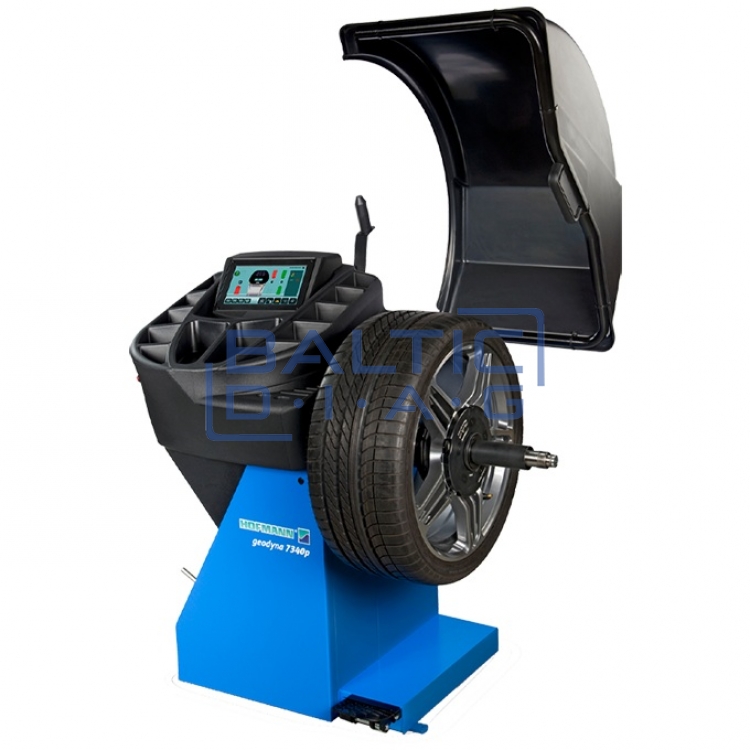

Wheel balancer geodyna® 7340L Hofmann

Wheel Balancer geodyna® 7340L Hofmann

Country of origin: Italy, warranty period - 24 months

The Hofmann® geodyna® 7340L is a high-end wheel balancer designed for high-volume automotive workshops seeking to optimize productivity and complete more tasks in less time. An intuitive interface, ergonomic touchscreen, and integrated weight tray ensure comfortable and efficient operation. The unique software allows two operators to work simultaneously, significantly accelerating the balancing process. Smart technologies, such as smartSonar™, easyWeight™, and easyALU™, ensure a precise, fast, and efficient wheel balancing process.

Features:

• Touchscreen display with a user-friendly interface – easy and fast operation.
• Dual-user configuration – allows two operators to work simultaneously.
• smartSonar™ – automatic wheel width detection using ultrasonic sensors.
• easyWeight™ – laser technology for precise weight placement.
• easyALU™ – quick selection of aluminum rim balancing mode.
• With mechanical locking
• Ergonomic design – integrated weight tray for easier operation.

Technical Specifications:

• Dimensions: 180 x 152 x 135 cm
• Manual rim diameter range: 8” - 32” (20 - 81.2 cm)
• Manual rim width range: 1” - 20” (2.5 - 50.8 cm)
• Maximum rim width: 20" (51 cm)
• Maximum wheel diameter: 42” (107 cm)
• Maximum wheel weight: 70 kg
• Net weight: 115 kg
• Power supply: 115V 1Ph 60Hz
• Semi-automatic rim diameter range: 8” - 25” (20 - 63.5 cm)
• Semi-automatic rim width range: 3” - 15” (7.6 - 38 cm)

EASYWEIGHT™

• This precise weight placement system eliminates guesswork and simplifies the balancing process. It uses laser technology to accurately indicate the exact location for weight application, ensuring perfect balance and highly accurate results.

EZ-COLLETS MOBILE APP

• The EZ-Collets mobile app is a useful tool designed to help technicians find the appropriate clamping handle, flange, or quick-locking nut based on specific job requirements. By selecting the vehicle they are working on, technicians can use the app’s features to compare and evaluate the benefits of different tools.

INTEGRATED TOUCHSCREEN MONITOR

• This system features a raised monitor and integrated touch control panel, ensuring convenient operation, optimized workflow, and a simplified balancing process.

MAIN DIFFERENCE FROM THE geodyna® 7340P VERSION

The integrated flange with a quick-locking nut replaces the Power Clamp™, and the mechanical main shaft lock replaces the electro-mechanical version.

QUICKBAL™

• Designed for optimal workflow, this feature intelligently adjusts the number of revolutions based on each wheel’s specifications. Operating at maximum speed, it reduces balancing cycle time, ensuring fast and efficient results.

REPORT GENERATION

• Easily generate reports on the local network (additional hardware required) or save them as PDFs on a flash drive. This allows convenient sharing of detailed information with customers for documentation or reference purposes.

SEMI-AUTOMATIC DATA ENTRY

• The system features a convenient gauge arm, which simplifies data entry using easyALU™ assisted rim measurement technology. The technician simply touches the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate balancing mode.

SMARTSONAR™

• This intelligent system uses sonar sensors to automatically detect the rim width, eliminating the need for manual input and reducing potential errors. By optimizing the process, it enhances efficiency and accuracy.

SPLIT WEIGHT MODE

• This feature ensures precise balancing while allowing the concealment of balancing weights behind the spokes, maintaining the aesthetic appeal and visual attractiveness of the wheels.
