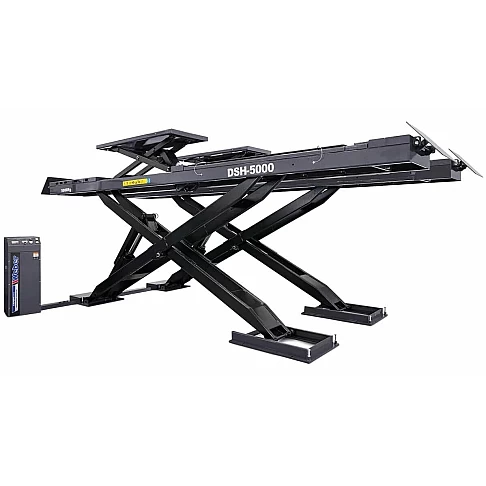

Wheel alignment platform scissor lift Weber DSH-5000

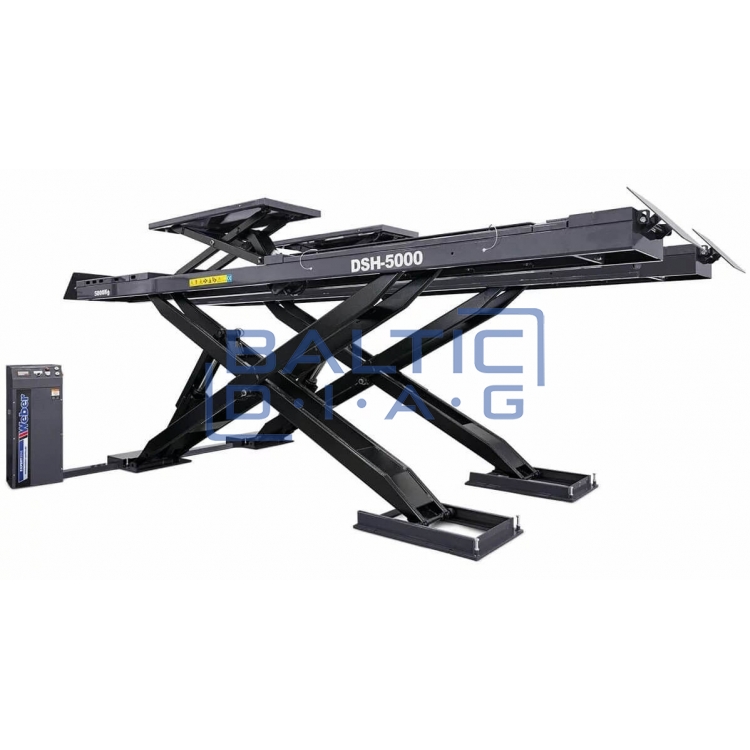

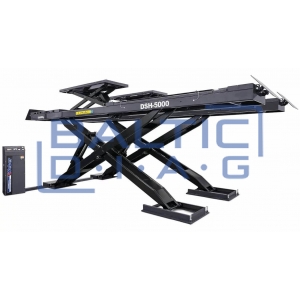

Platform scissor lift for wheel alignment Weber DSH-5000

Manufacturer: Weber (Germany), warranty period – 24 months

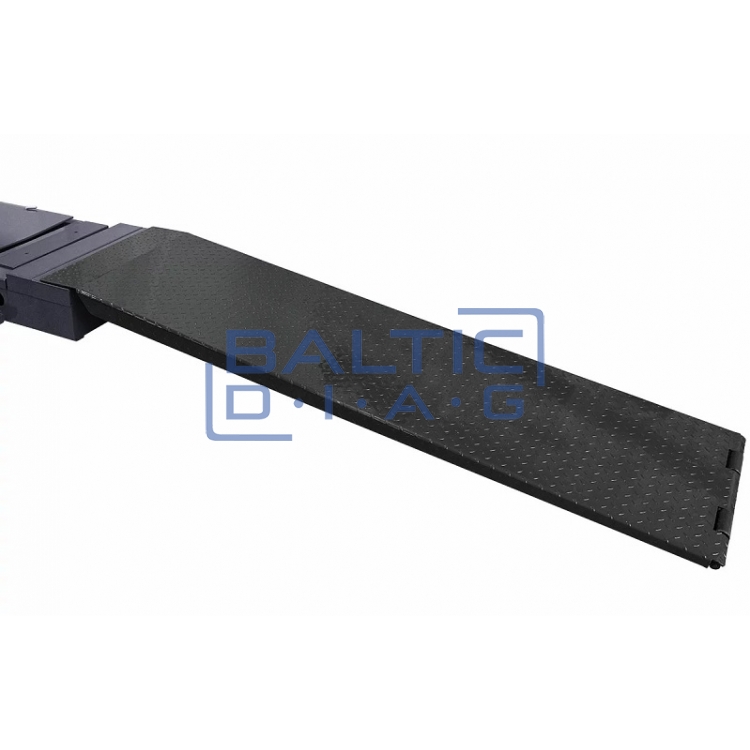

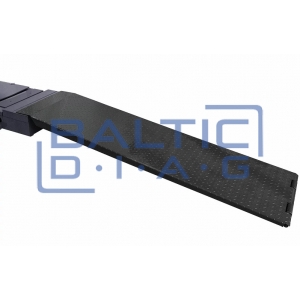

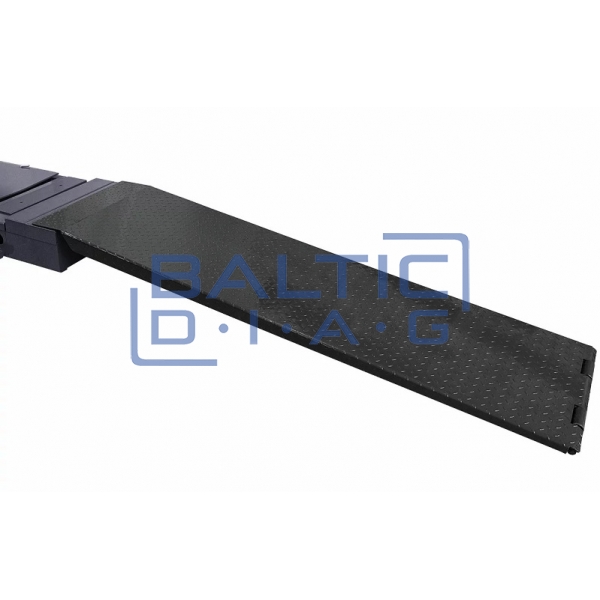

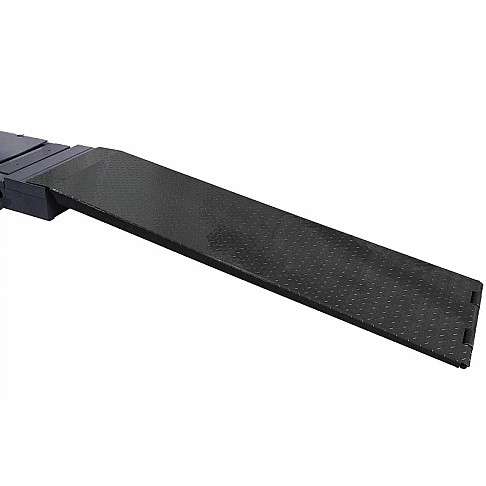

Electro-hydraulic platform scissor lift designed for wheel alignment. Can be installed flush with the floor or surface-mounted with additional ramps. The lift platforms have integrated scissor lifting platforms with adjustable positions for rotating plates. The ends of the platforms feature manually lockable sliding plates, there are no rigid connections between platforms, and the hydraulic system includes protective and overload valves. Electronic platform synchronization ensures precise lifting. The lift has roll-off protection, automatic mechanical lock engagement, and pneumatic release. The design uses low-wear bearings that allow doors to open freely. The rails can be shortened by 300 mm.

Features:

• Electro-hydraulic control
• Integrated scissor lifting platforms in the main platforms
• Adjustable positions for rotating plates

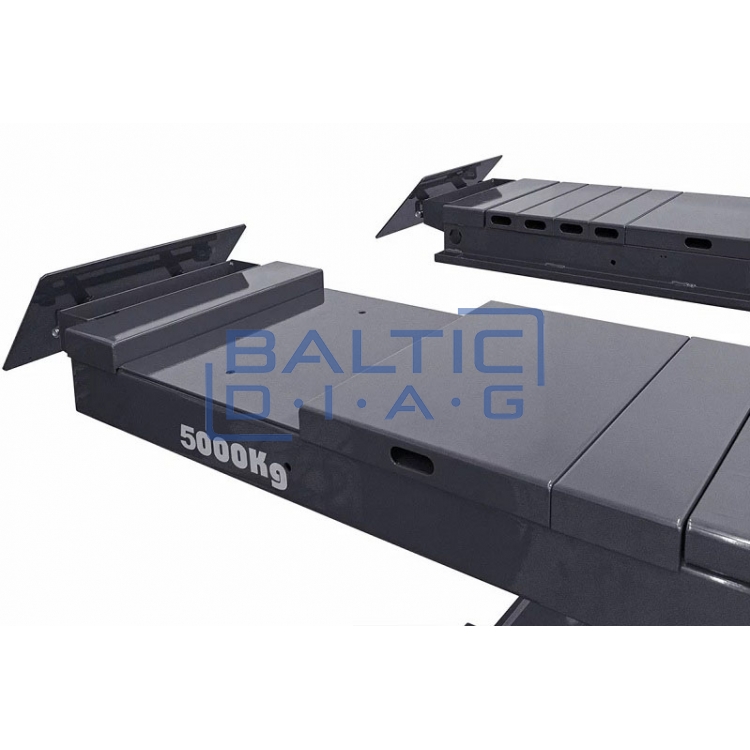

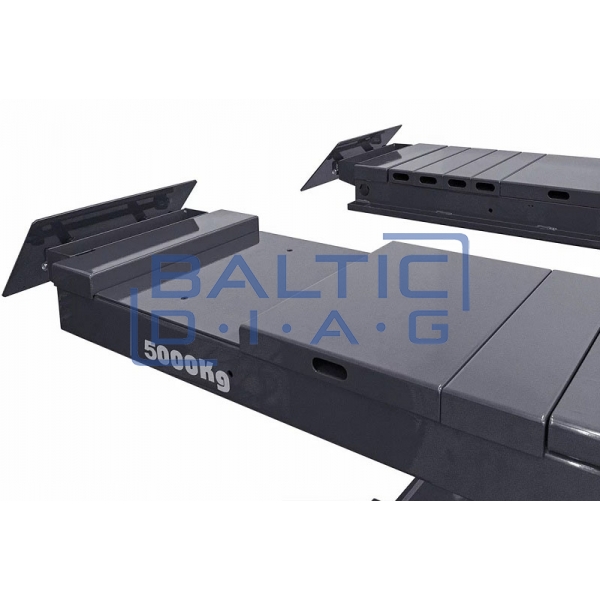

• Manual locking of platform ends
• Electronic platform synchronization
• Roll-off protection
• Automatic mechanical lock engagement and pneumatic release
• Low-wear bearings in construction
• Unrestricted door opening
• Ability to shorten the rails

Technical specifications:

• Lifting capacity: 5000 kg
• Lifting capacity of secondary lifts: 4000 kg
• Maximum lifting height: 2160 mm
• Maximum lifting height of secondary lifts: 430 mm
• Minimum lift height (required pit depth for installation): 310 mm
• Platform length: 5300 mm
• Secondary lift platform length: 1500 - 2000 mm
• Platform width: 608 mm
• Distance between platforms: 997 mm
• Lifting time: about 70 s
• Motor power: 3.5 kW
• Power supply: 400V / three-phase / 50Hz
• Required compressed air pressure: 6 - 8 bar
• Weight: 3040 kg

Equipment included:

• Scissor lift with scissor platforms

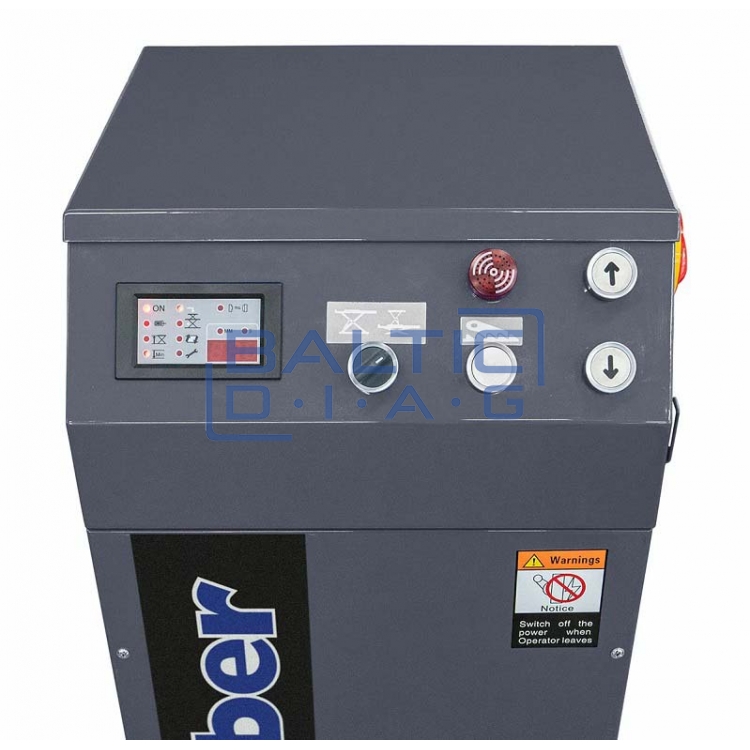

• Control unit with hydraulic motor
• Universal rubber pads
• Other small parts
• Protective cover for power lines from lift to control unit
