Welding machine MULTIWELD 180M-C, GYS

Welding Machine MULTIWELD 180M-C, GYS

Country of origin: France, warranty period - 24 months

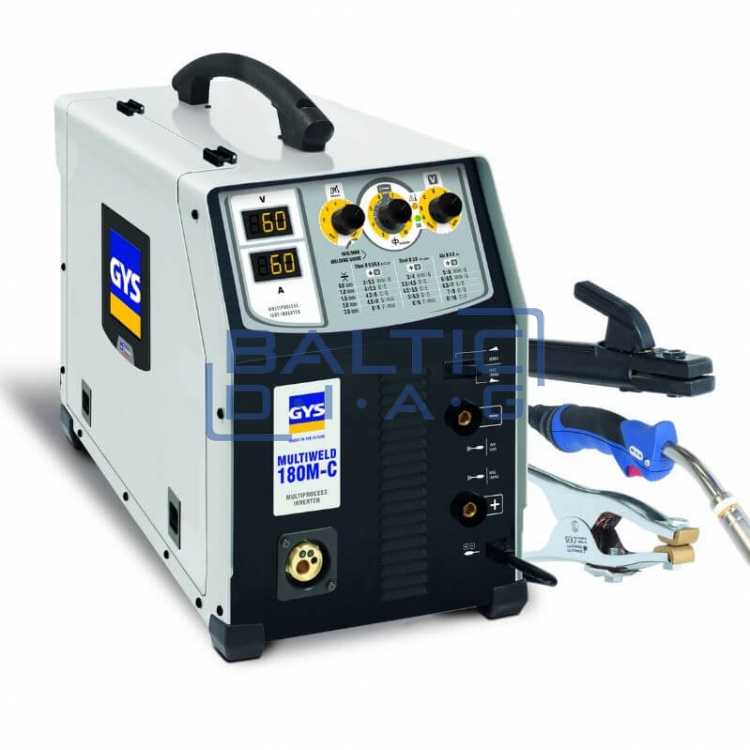

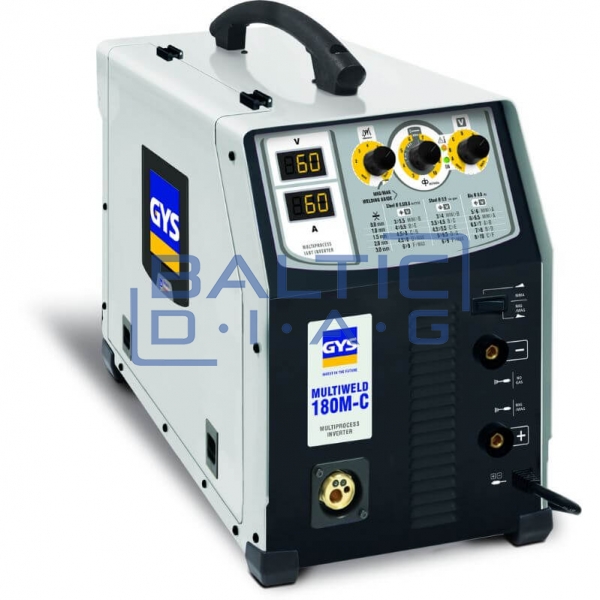

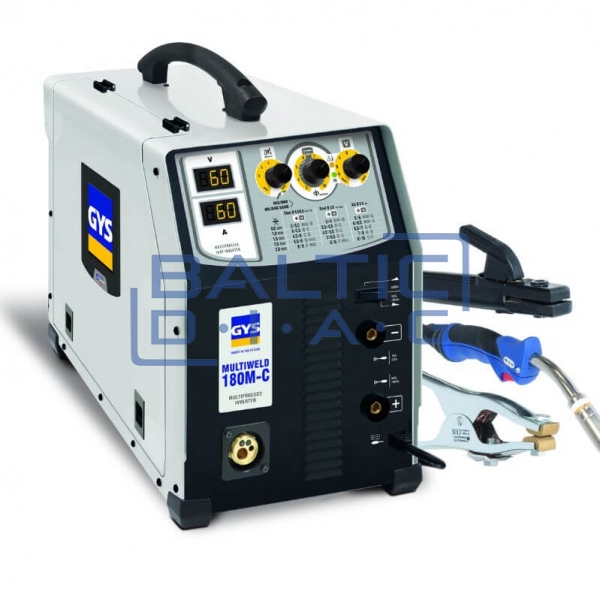

MULTIWELD 180M-C is a compact single-phase welding power source designed for MIG/MAG, gas wire welding, and MMA welding. It features an intuitive control system with two digital screens, allowing quick and precise adjustments. Easily operated in the workplace, this machine is ideal for welding steel, stainless steel, and aluminum up to 3 mm thick (MIG/MAG).

Features:

• Multi-functionality: Suitable for MIG/MAG, MMA, and flux-cored wire welding.
• MIG/MAG welding:
• Steel wire: Ø 0.6 or 0.8 mm.
• Stainless steel wire: Ø 0.8 mm.
• Aluminum wire: Ø 0.8 or 1.0 mm.
• Flux-cored wire (self-shielding polarity).
• MMA welding: Basic and rutile electrodes (up to Ø 3.2 mm).
• Integrated welding assistance feature: Reduces electrode sticking to the workpiece.
• Optimized settings:
• Manual arc dynamics adjustment.

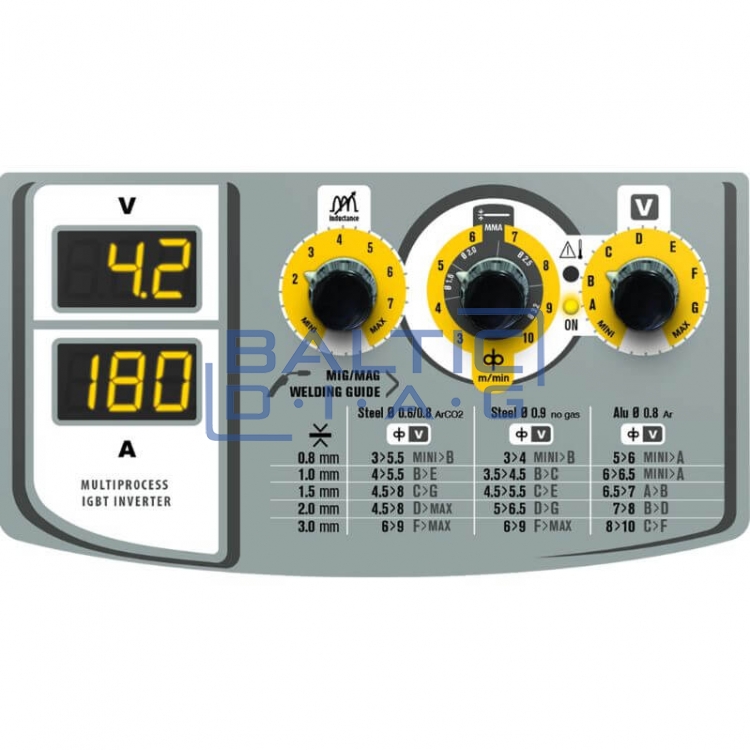

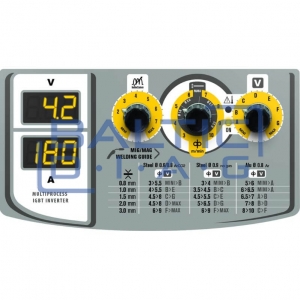

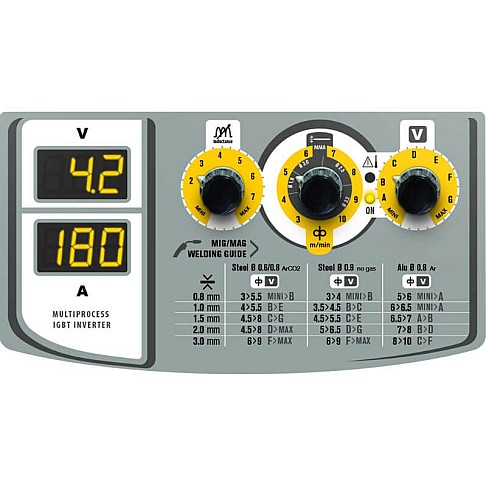

• Welding guide on the front panel helps correctly adjust voltage and wire feed speed.
• Integrated wire feeder:
• Compatible spools: Ø 200 mm / 300 mm.
• 4-roller feed system ensures precise wire feeding.
• Easily accessible mechanism allows for quick wire replacement.
• Safety:
• Advanced thermal protection system with automatic shutdown.
• Voltage fluctuation protection.
• Portability and compactness:
• Reinforced metal housing with non-slip protective feet.
• Compact design and easy transport (weight: 16.5 kg).

Technical specifications:

• Voltage: 230 V ~ 50/60 Hz.
• Current range:
• MMA: 20–150 A.
• MIG/MAG: 30–180 A.
• Maximum wire thickness:
• With gas (GAS): 0.6–1.0 mm.
• With flux-cored wire: 0.6–0.9 mm.
• Wire feed speed: 1.6–3.2 m/min.
• Protection class: IP21.
• Dimensions: 53 x 28 x 45 cm.
• Weight: 16.5 kg.
• Maximum power: 50W.

Included accessories:

• MIG15 torch – 3 m.
• Contact tip (Ø 0.9 mm).
• Special nozzle.
• 2 x 16 mm² cables.
• 1 m gas hose with two clamps.
