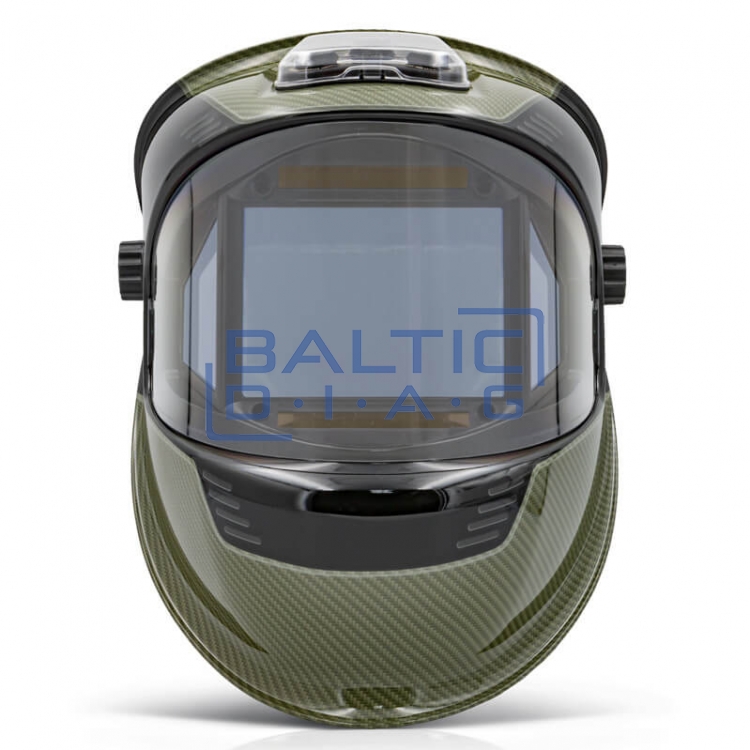

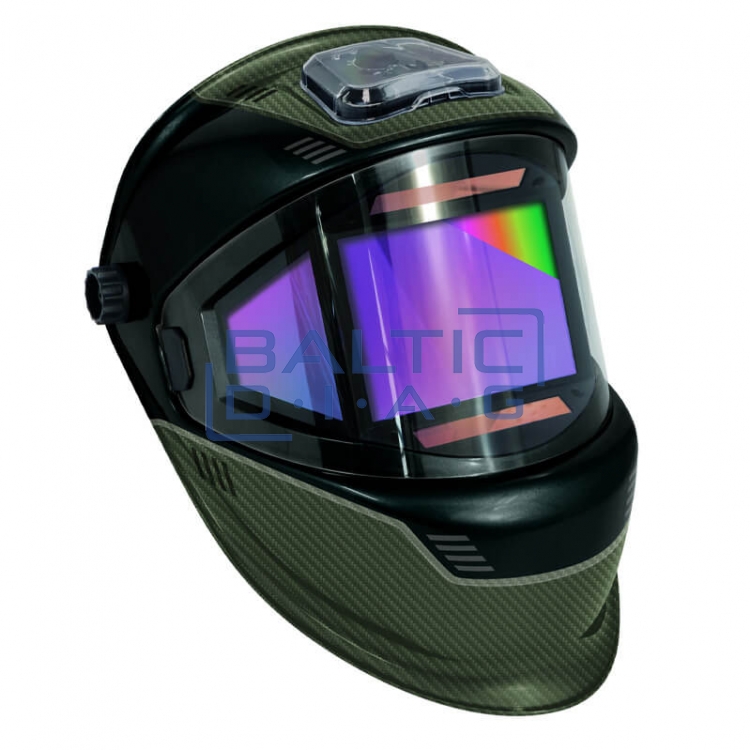

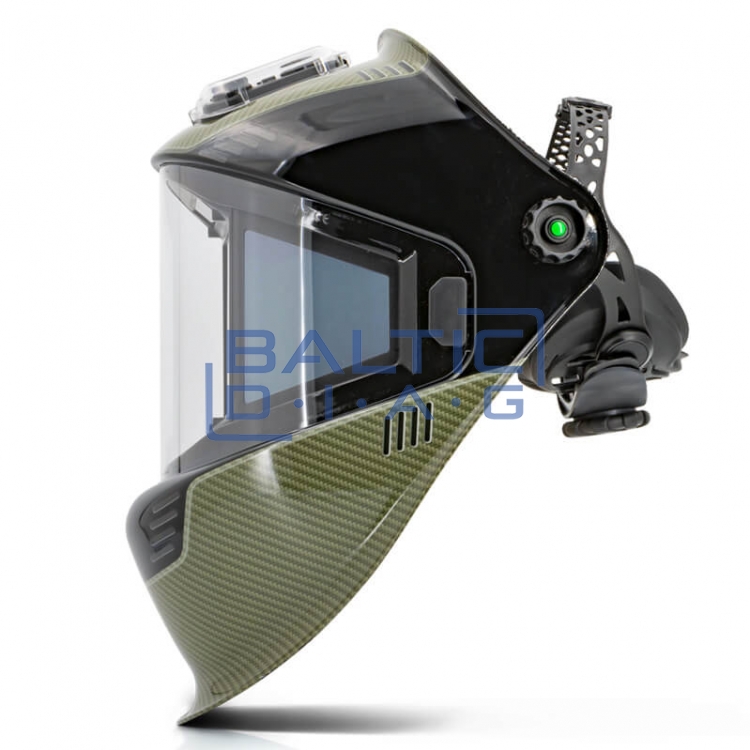

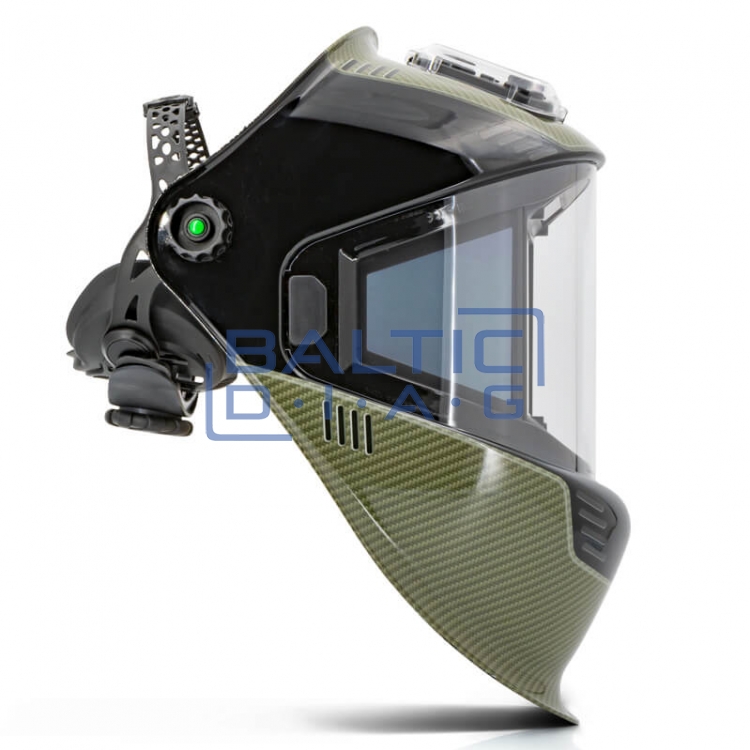

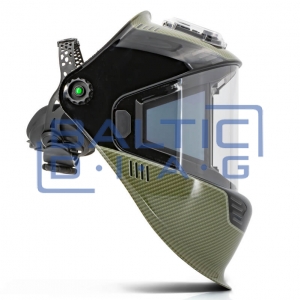

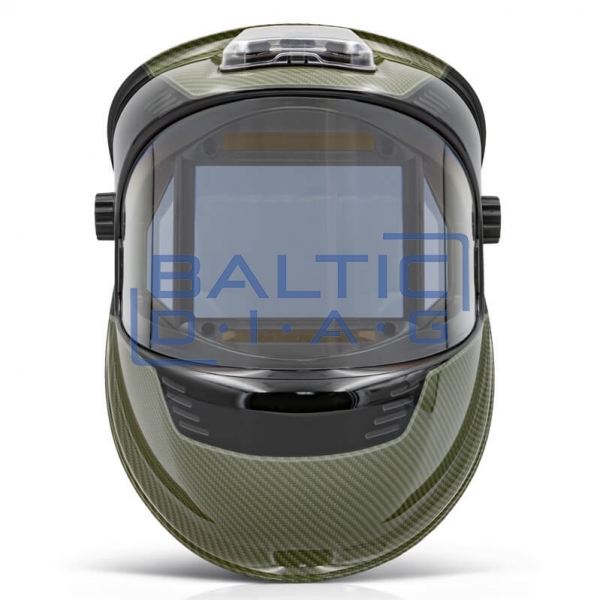

Welding helmet PANORAMIC XXL 3/5-13G

Welding Helmet PANORAMIC XXL 3/5-13G

Country of origin: France, warranty period - 24 months

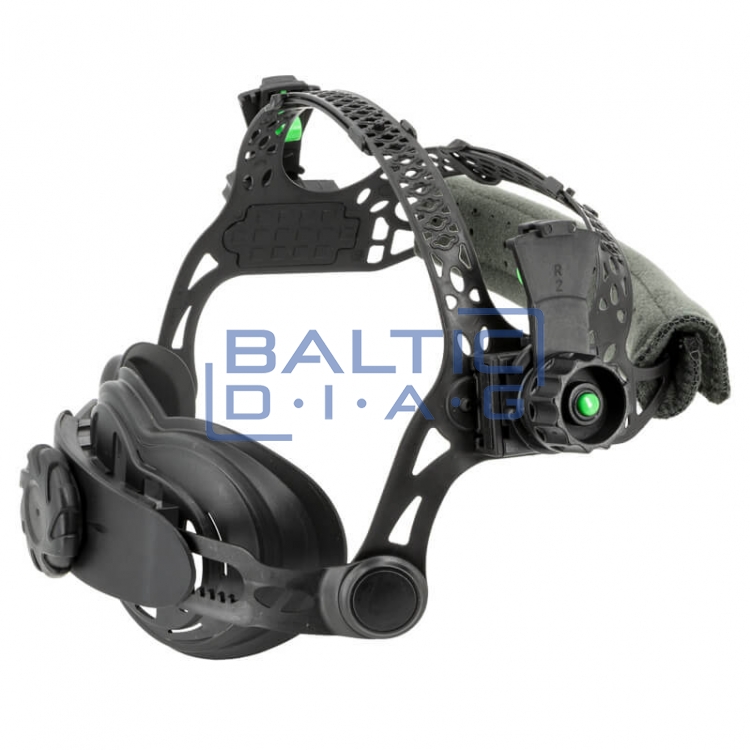

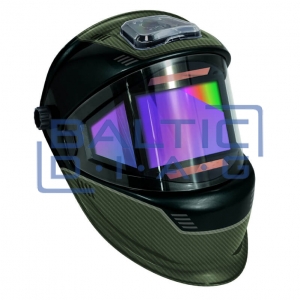

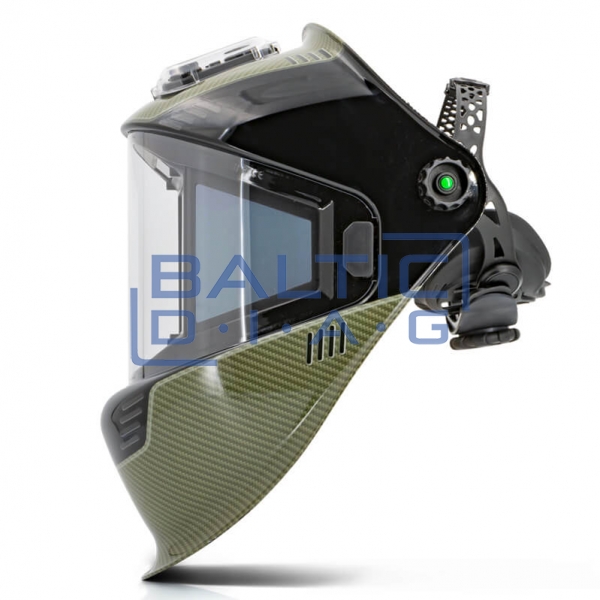

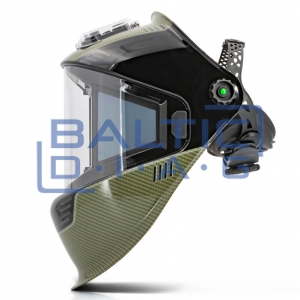

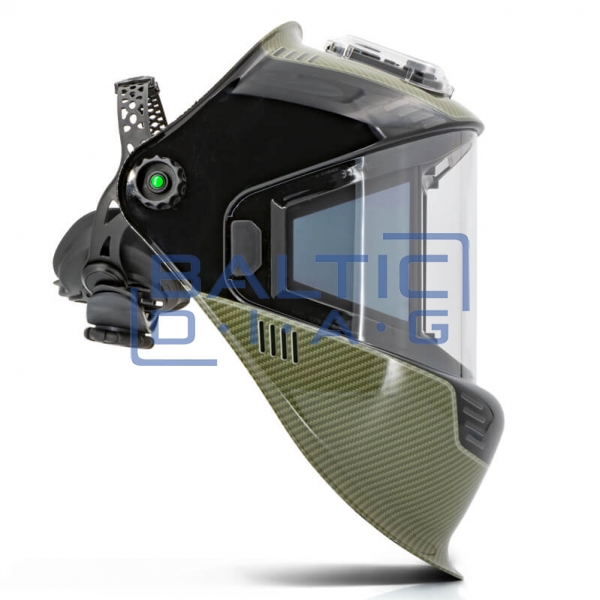

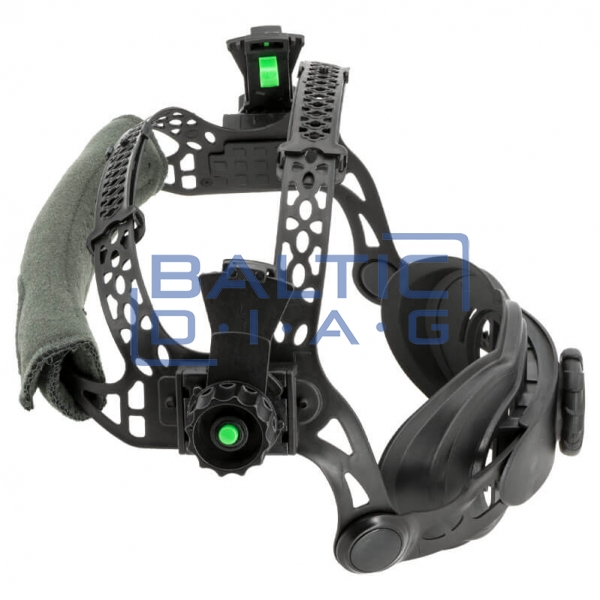

The PANORAMIC XXL 3/5-13G TRUE COLOR is a professional welding helmet designed to protect the welder's face and eyes from UV rays, infrared radiation, and hot metal particles. The fully automatic system ensures instant glass darkening as soon as the welding arc is ignited. A wide field of vision and TRUE COLOR technology provide enhanced color accuracy and a clear view during welding. The ergonomic design with a headband offers maximum comfort, making it easy to work for extended periods.

Features:

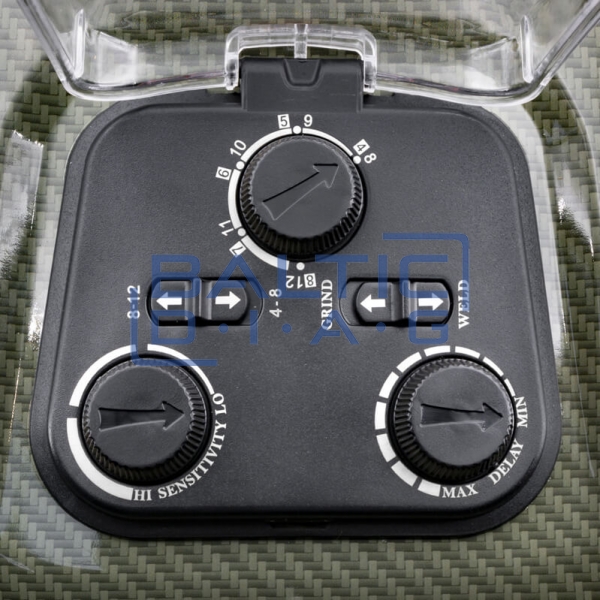

• 4 adjustable settings: Shade adjustment 4-8 / 8-12, sensitivity and delay control, and grinding mode
• Adjustable shade levels, suitable for various welding operations, including TIG welding from 2 A
• 3 light detection sensors – precise arc ignition detection
• Individually adjustable shade customization
• High sensitivity – 4 arc sensors
• Superior optical class (1/1/1/1, EN379) – ensures perfect visual accuracy

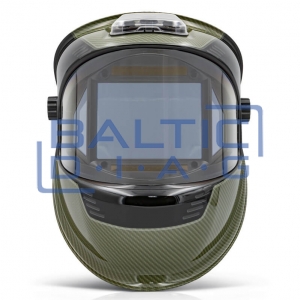

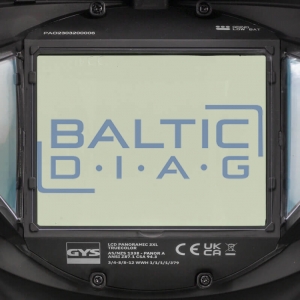

• XXL-sized viewing area – improved visibility during welding
• Ultra-fast switching time – 0.04 ms
• Easily attachable magnifying lens
• TRUE COLOR technology – more realistic and detailed color reproduction compared to traditional filters

Technical Specifications:

• UV/IR protection level: DIN 15
• Classification: 1/1/1/1 (highest quality image with no distortion)
• Light state: DIN 3
• Dark state: Main: 4-8 / 8-12, Side: 10
• Reaction time: 0.04 ms (ultra-fast response to welding arc)
• Clearing time: 0.15–0.8 sec
• Viewing area:

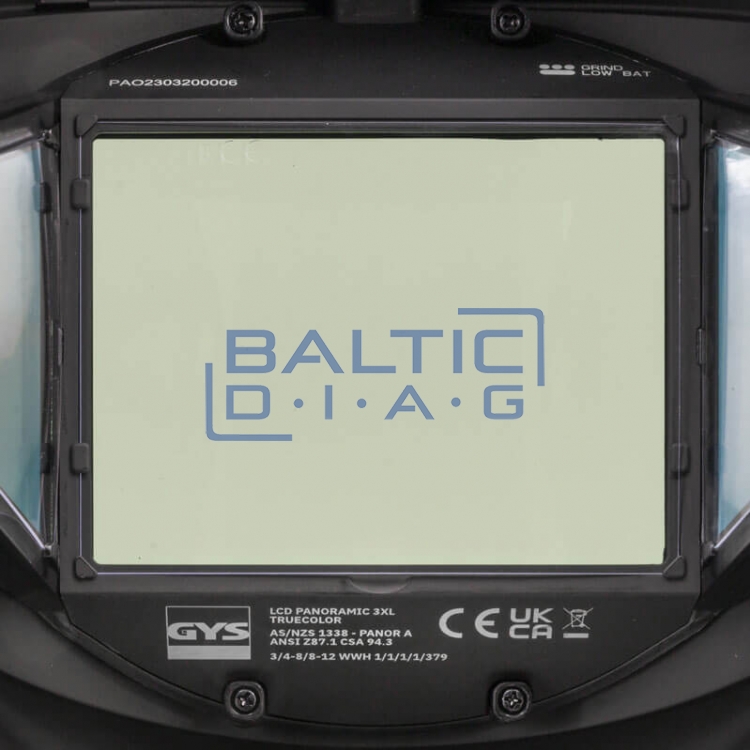

• Main: 114 × 85 mm
• Side: 68 × 80 mm
• Power supply: Solar cells + 2 replaceable CR 2450 batteries
• Weight: 610 g

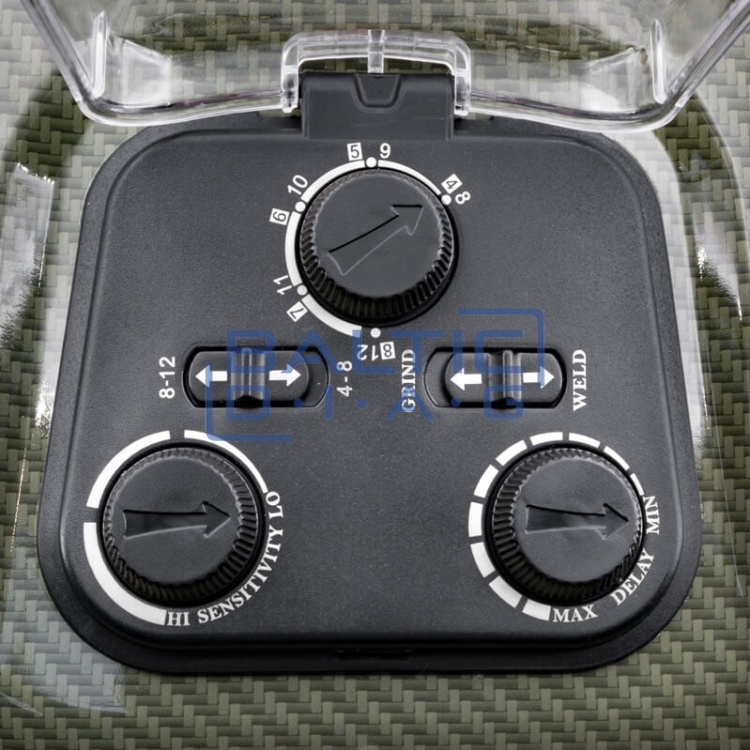

• Settings: Sensitivity, delay, shade, grinding mode
• Number of light sensors: 4

Application fields:

• MMA welding: ≥ 400 A
• TIG welding: ≥ 200 A
• MIG-MAG welding: ≥ 400 A
• Compliance standards: CE / EN 175B / EN 166 / EN 379
