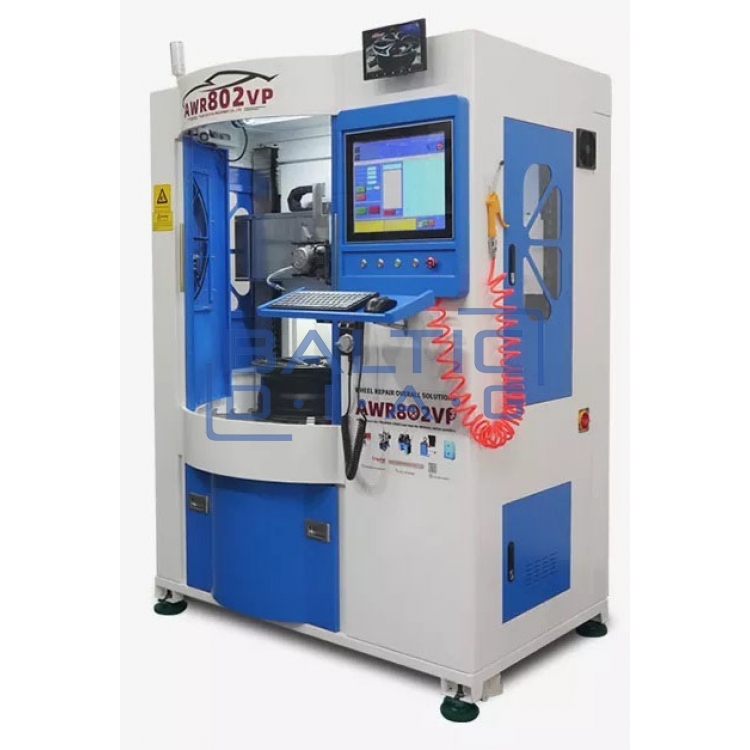

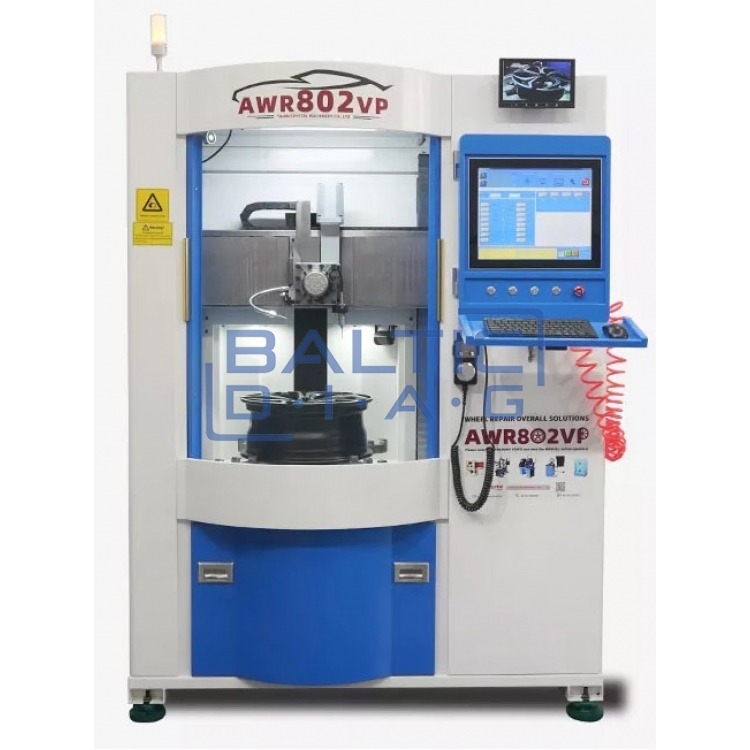

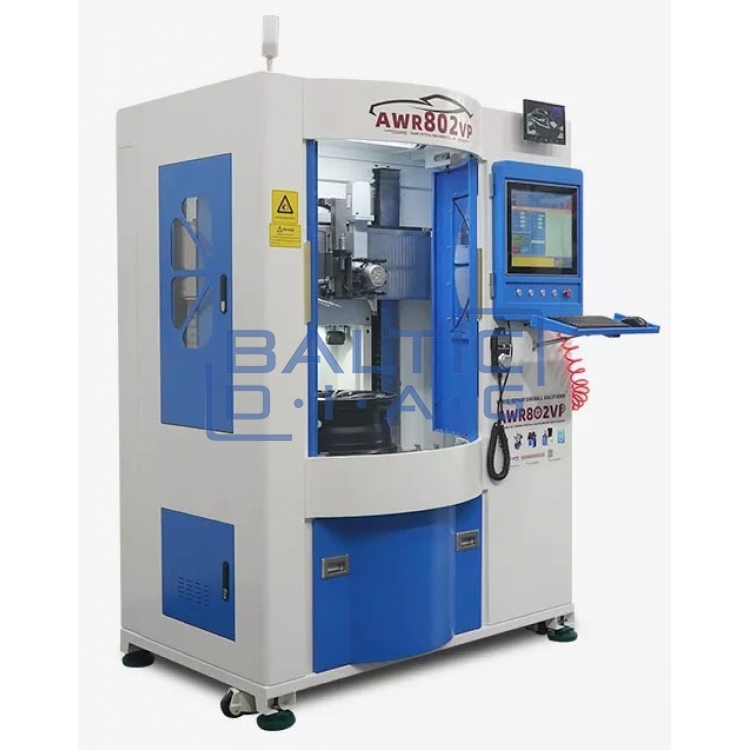

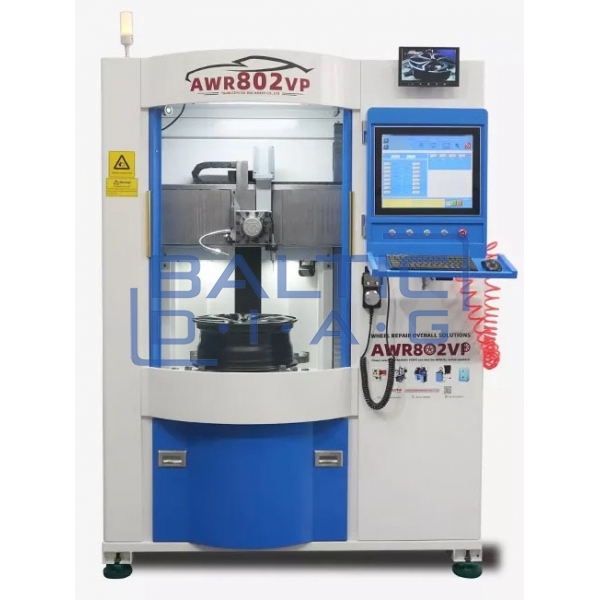

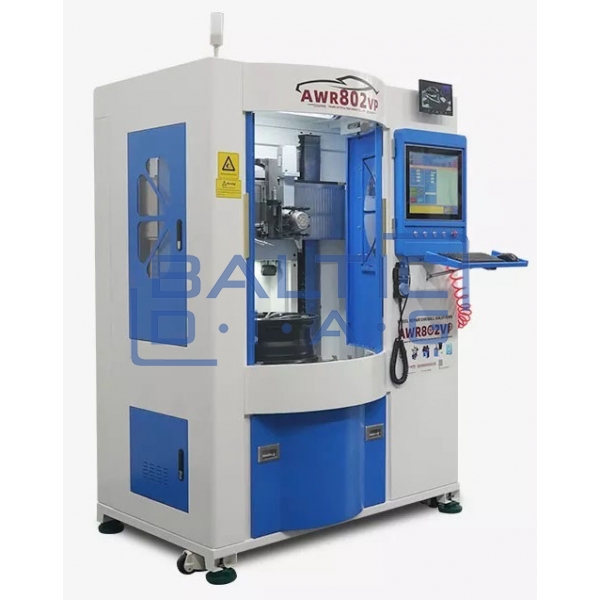

Vertical automatic rim lathe AWR802VP

Vertical automatic rim lathe AWR802VP

Rim turning machines, with the help of which you can repair damaged, damaged rims or simply restore the appearance of a new product to old rims. These machines are professional devices, so when you work with them you will achieve a perfect result.

Features:

• Compact machine design - vertical design that takes up only 1.5 m3. The machine has an arc design and is capable of working with 30" inch rims. Compact machine with the possibility of processing large wheels.
• Fully computerized machine tools - equipped with a touch, 17" inch tablet computer, which is responsible for all machine control commands. Automatic work optimization, multilingual control menu and the latest software version of Crystal is installed in it, which is very easy to use.
• Strong, high-quality machine structure - cast iron body and reinforced structure. 6 high-quality rails for more accurate, faster, higher precision work.
• Refurbished Electronic Components - Newly designed electronic components installation site. Electronic components arranged more neatly and simply. This design makes these components much easier to service and replace.

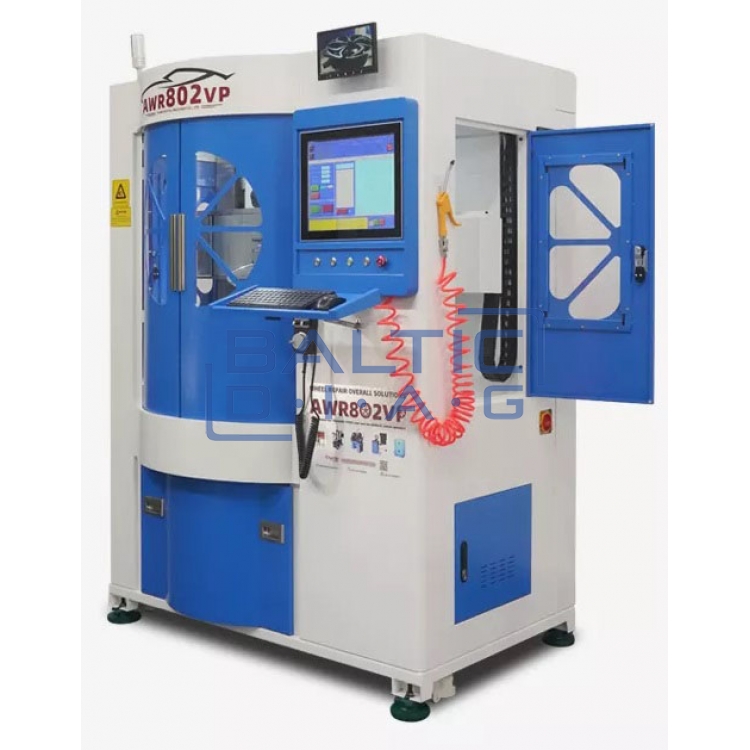

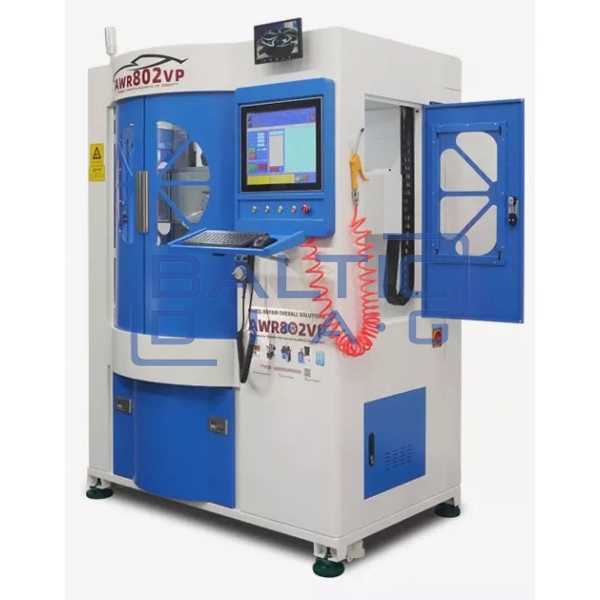

• Optimized manual design – a new ergonomic safety door design. Blowing off dust and metal shavings with compressed air.
• High level protection - high precision, higher quality, thicker and stronger protective plate. This plate protects the machine much better from chips entering its structure. Therefore, you will have to spend less time on machine maintenance.

Technical parameters:

• Max. turning rim size: 30"
• Max. turning depth of rim: 400 mm
• Control system: touch screen 17" diagonal tablet
• Control system software: CNC_WheelCurve V2.0
• Turning tower movement: 4 directions
• Auxiliary turning systems: air blowing, cooling system
• Contact detection system
• Diameter of the mounting rim: 250 mm + 4 extended clamps
• Power supply: 400 V / 3 fz / 50 Hz
• Lathe weight: 1300 kg
• Dimensions: 1450 x 1020 x 1960 mm
• Additional functions: 1 video camera + 10" inch screen; debris blowing gun; 4-level adjustable support bracket
• The lathe is equipped with FOMA wheels.
• FOMA wheels: 360° rotatability, ensuring mobility
