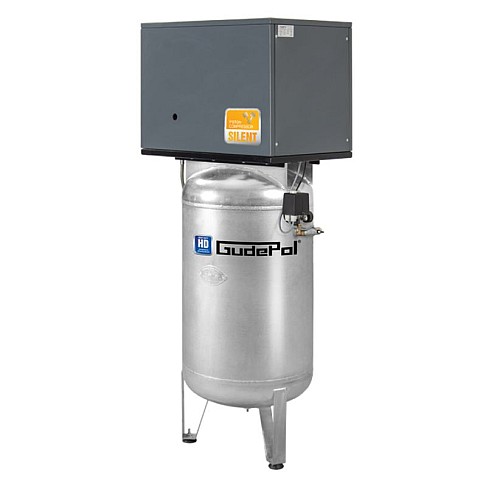

Vertical air compressor 270 l, 700 l/min, 10 bar GudePol

Vertical air compressor 270 l, 700 l/min, 10 bar GudePol

Functions:

• 100% galvanized air tank – corrosion protection both inside and outside according to the PN-EN ISO-1461 standard
• Cast-iron, low-speed compressor pump – reliable, efficient, and suitable for intensive industrial use
• High-efficiency cooling system – pulley fan and inter-cylinder coolers maintain optimal operating temperature
• High-quality electric motor – insulation class IP55, designed for continuous operation (S1 class)
• Pressure switch with thermal protection and no-load start – ensures motor safety and smooth start-up
• Belt drive with Taperlock system – allows precise and easy belt tension adjustment
• Easy operation – the compressor is ready for use immediately, ensuring convenient handling
• Proven reliability – each unit undergoes strict quality control during production
• Quiet operation – only 73 dB noise level

Technical specifications:

• Air delivery: 700 l/min (42 m³/h)
• Maximum pressure: 10 bar
• Motor power: 4.0 kW
• Number of cylinders: 3
• Number of compression stages: 1
• Speed: 1130 rpm
• Power supply: 400 V
• Tank capacity: 270 l
• Noise level: 73 dB
• Dimensions (width x depth x height): 148 x 50 x 110 cm
• Weight: 225 kg
