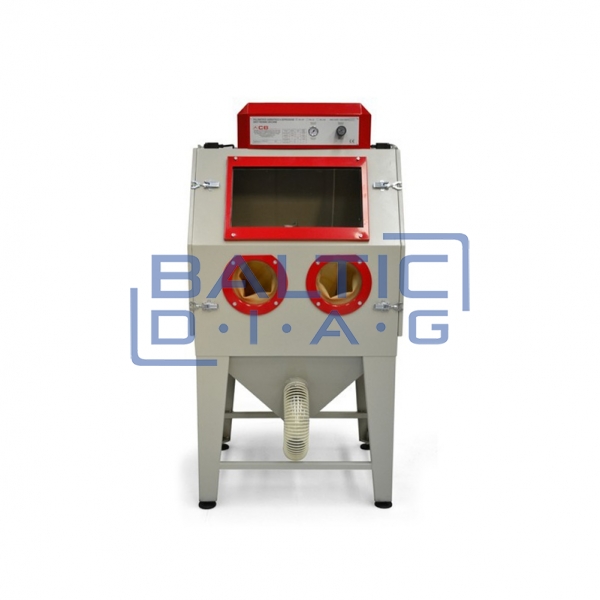

Venturi type blasting booth PAL2-N Sabbiatrici

Venturi type blasting booth PAL2-N Sabbiatrici

Country of origin: Italy, warranty period - 24 months

Possible additional modifications and various accessories are available upon request

The PAL2-N blasting and shot peening booth is designed for various surface treatment operations such as shot peening, decorative sandblasting, metal hardening, deburring, cleaning, or other technical surface preparation tasks. Depending on the abrasive used (corundum, sand, glass microspheres, synthetic or vegetable granules, metal abrasives), this booth enables a wide range of applications in manufacturing, restoration, or maintenance. If needed, it can be equipped with a dust collector, rotary table, loading cart, or abrasive recovery cyclone. The booth can also be converted from vacuum to pressure system.

Functions:

• Suitable for shot peening, sandblasting, cleaning, polishing, and surface hardening
• Compatible with a variety of abrasives – from corundum to metallic granules
• Convertible into a pressure blasting booth for working on various surfaces (aluminum, iron, glass, stainless steel, etc.)
• Optional accessories: dust filtration system, loading cart, rotary table, cyclone separator
• High productivity and efficiency thanks to pressure regulation and wear-resistant components

Technical specifications:

Useful internal dimensions:

• Front – 880 mm
• Side – 600 mm
• Height – 780 mm

External dimensions:

• Front – 920 mm
• Side – 1100 mm
• Height – 1850 mm

Booth access: side, from both left and right

• Dust extractor: 400 V, 50 Hz, 0.75 kW
• Lighting: LED 20 W

Air consumption:

• Injector ∅ 3 mm – 600 l/min
• Injector ∅ 3.5 mm – 800 l/min
• Injector ∅ 4 mm – 1200 l/min
• Operating pressure: from 1.5 to 8 bar
• Tungsten carbide nozzle: ∅ 6, 8 or 10 mm
• Weight: 120 kg
