Universal Truck Diagnostic Equipment JalTest PC Link

Universal truck diagnostic equipment JalTest PC Link

Manufacturer Cojali (Spain), warranty 24 months.

JalTest PC Link is a universal diagnostic device that is used for diagnostics of trucks, buses, minibuses, trailers, agricultural and construction machinery. JalTest diagnostic equipment is one of the best solutions for working with trucks and other heavy equipment. The diagnostic equipment connects to the computer with a USB cable or wireless connection. Leading universal commercial vehicle diagnostic equipment with the widest reach on the market. Device coverage includes all European, American, Asian and other truck, bus, minibus models.

Technical characteristics:

• Connects to a desktop or laptop PC via Bluetooth or a USB cable
• Bluetooth operation: 20-50 m
• Minimum requirements for PC: DVD reader, Windows XP, 7, 8, 10 64-bit OS, 2 Gb RAM, 10 Gb free hard disk space, USB connection
• Power supply via OBD connector or 12/24 V DC power supply
• Power consumption: 7W
• Shockproof housing
• Weight: 1.2 kg
• Dimensions: 183 x 131 x 56 mm
• Operating temperature: from 0 ° C to + 45 ° C
• Multilingual menu
• Certificates: CE, FCC, RoHs

Truck diagnostic equipment features:

• For trucks, buses, passenger and cargo minibuses, pickups
• All commercial transport standards and protocols are supported, including RP1210 and Pass-Thru
• Intuitive and fast software interface

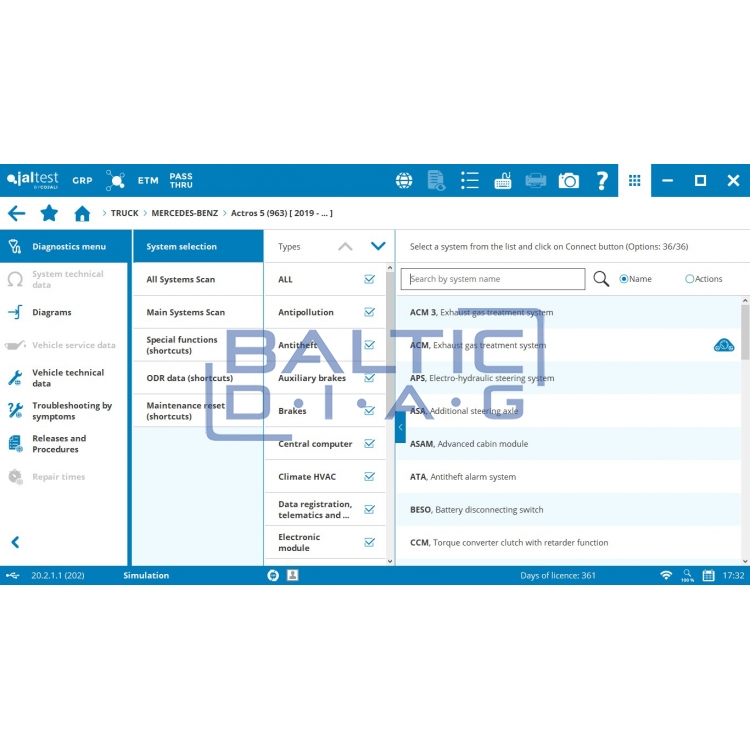

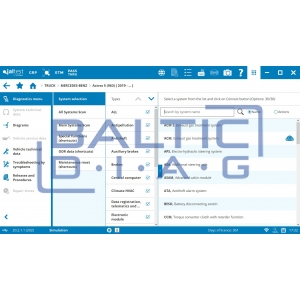

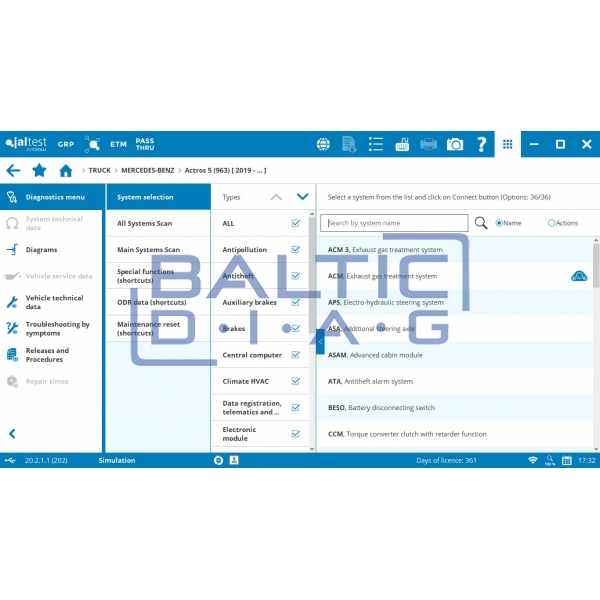

• Automatic detection of systems and errors
• Troubleshooting by symptoms and errors

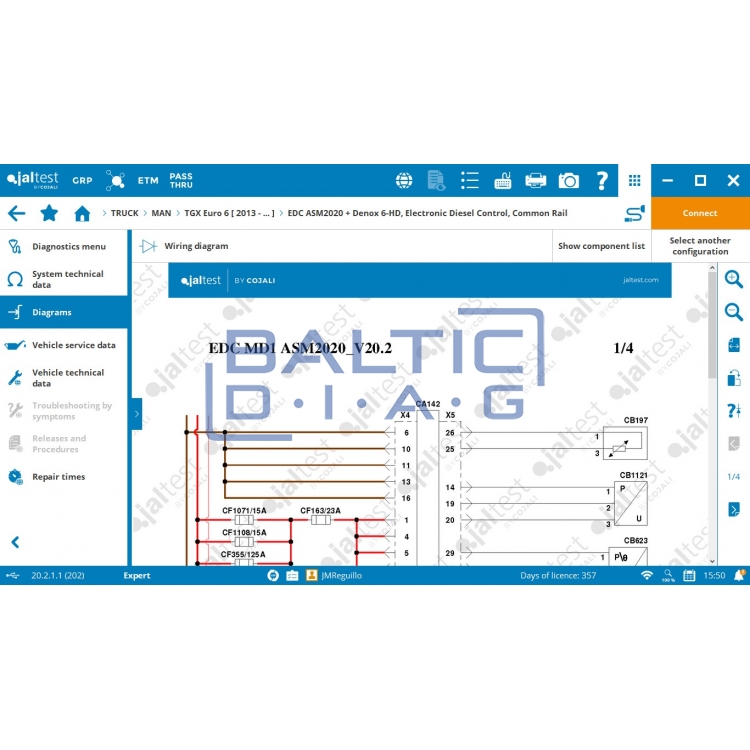

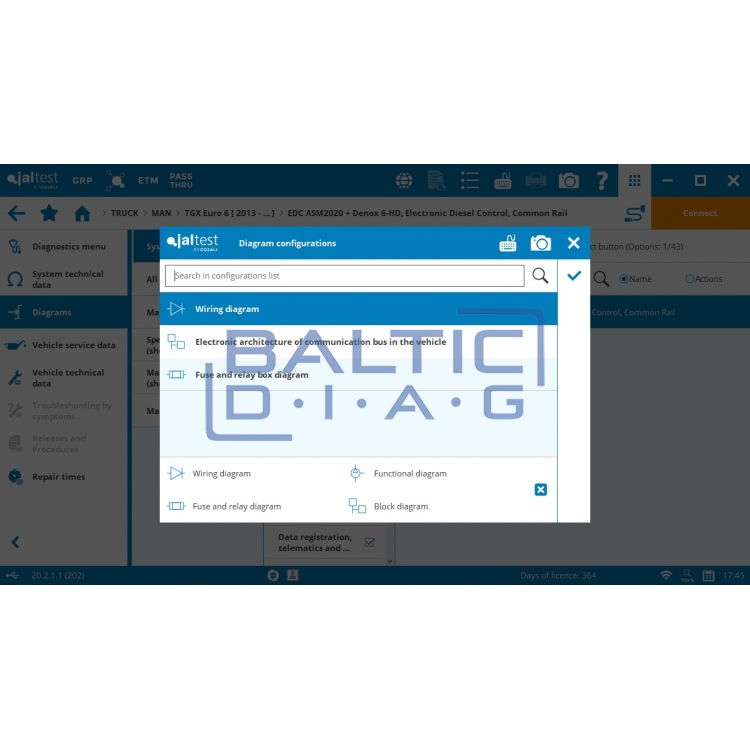

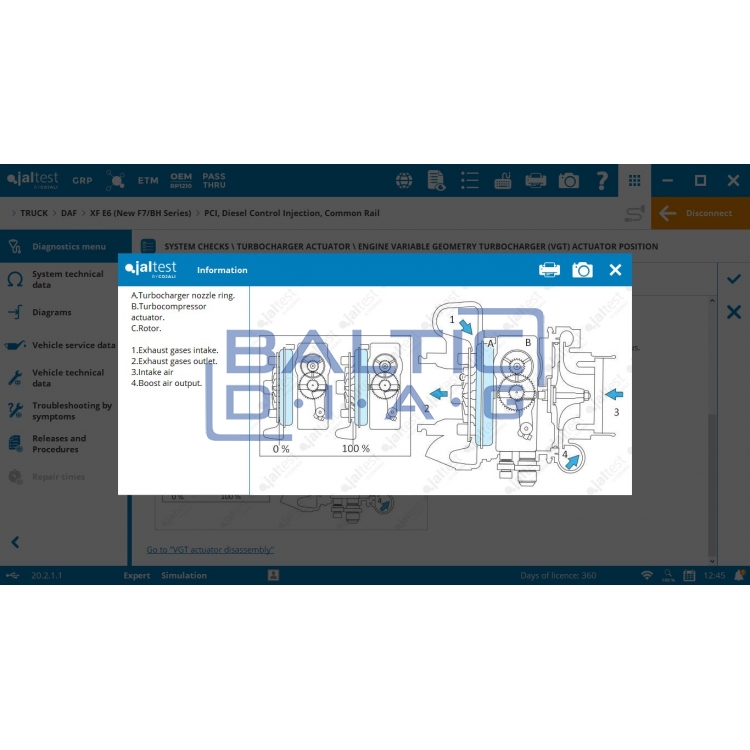

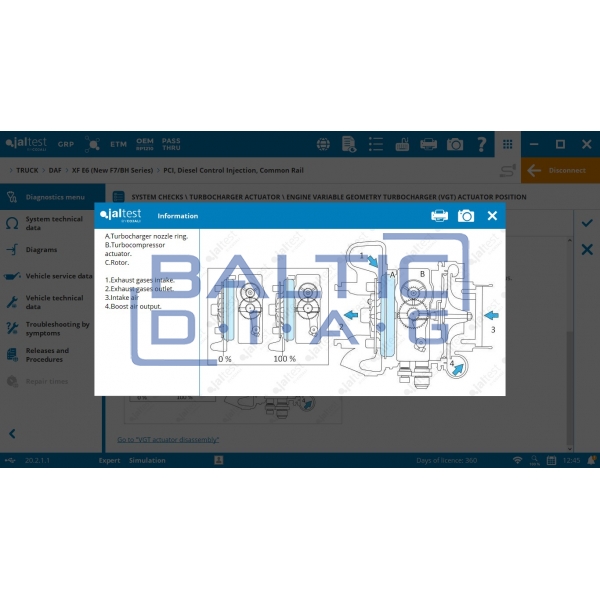

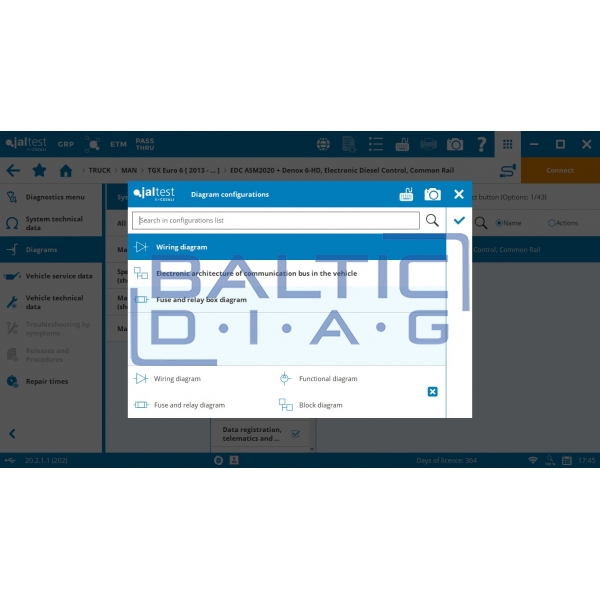

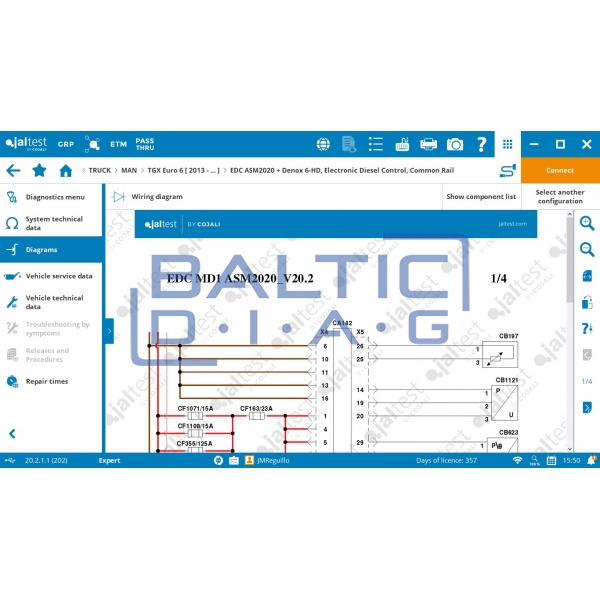

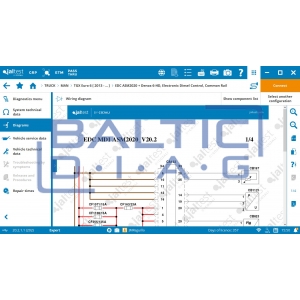

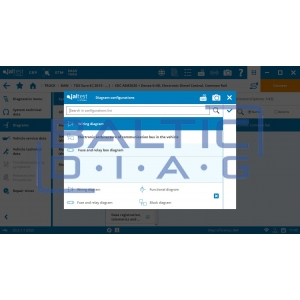

• Integrated technical information, electronic circuits, technical documents
• ETM - electronic test module
• GRP - workshop resource planning
• Suitable for all brands of commercial vehicles
• Repair times

Equipment features and application possibilities:

• Electronic control unit (EVB) diagnostics via OBD interface or specific adapter
• Possibility to connect to any diagnostic connector using a universal diagnostic cable with special terminals
• Integrated automatic multiplexer - automatic switching of K and L, CAN, SAE lines to any OBD connection terminal
• Support for diagnostic protocols: ISO 9141-2, K / L lines; ISO 14230 (KWP2000), K / L lines; SAE-J1850 VPW and PWM; ISO 11519-2; SAE J1708; ISO 15765-4 (OBD); CAN ISO 11898; CAN (High Speed, Middle Speed, Low Speed, single-wire CAN system support); SCI Haldex; RP 1210; SAE J2534 (PASS-THRU).

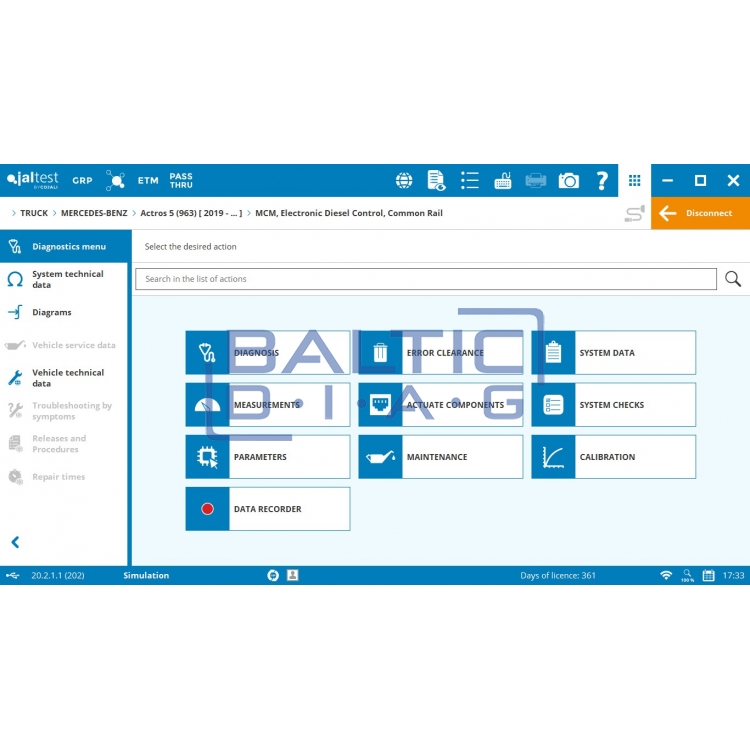

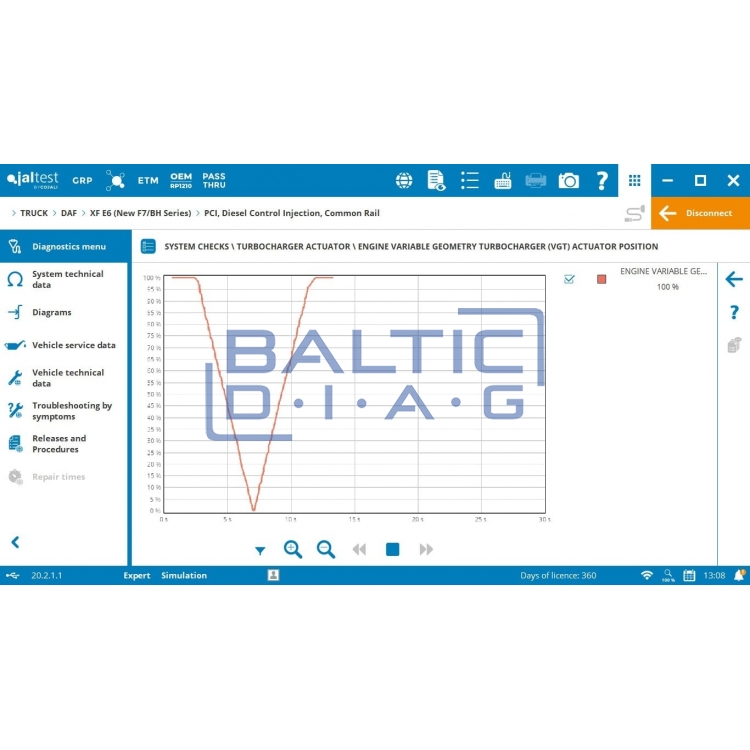

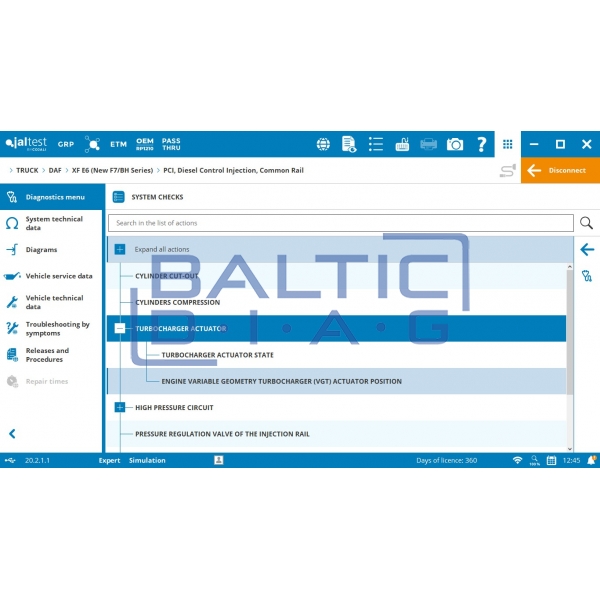

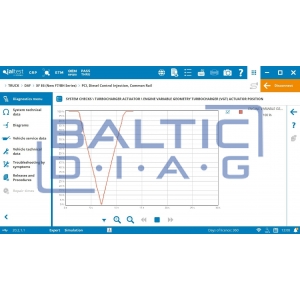

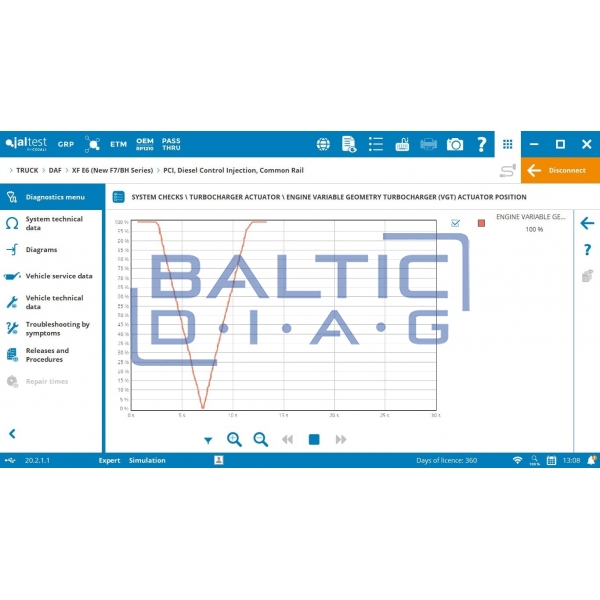

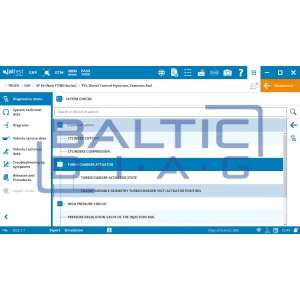

• Component Activation: Ability to send signals to various systems using Jaltest, such as fan on, cylinder shutdown, compression measurement, and operation of different mechanisms
• Up to 8 values ​​/ information on nominal value ranges are measured and displayed simultaneously

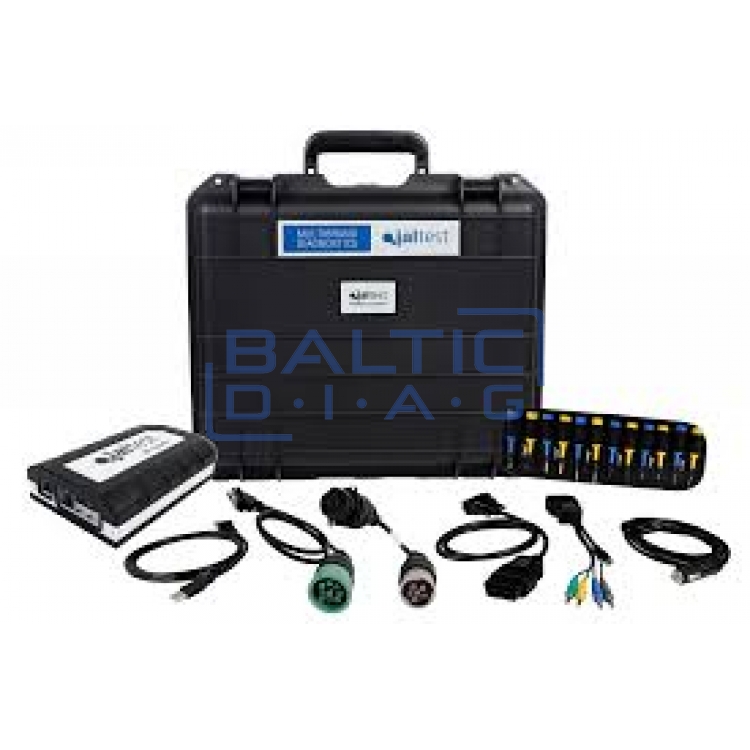

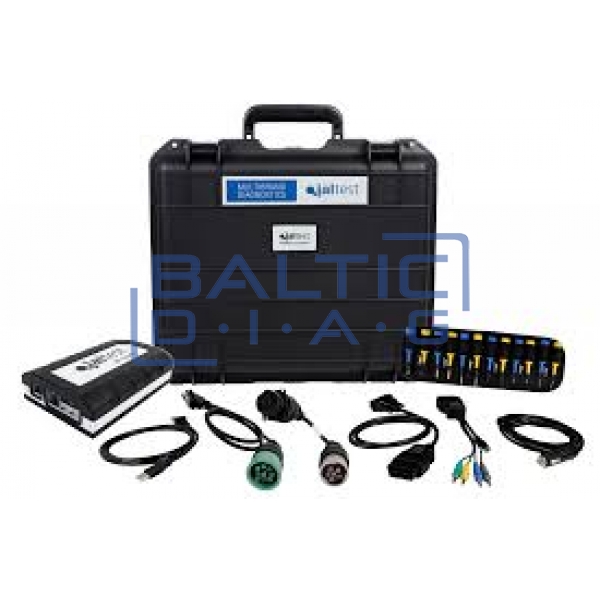

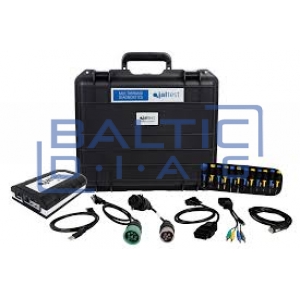

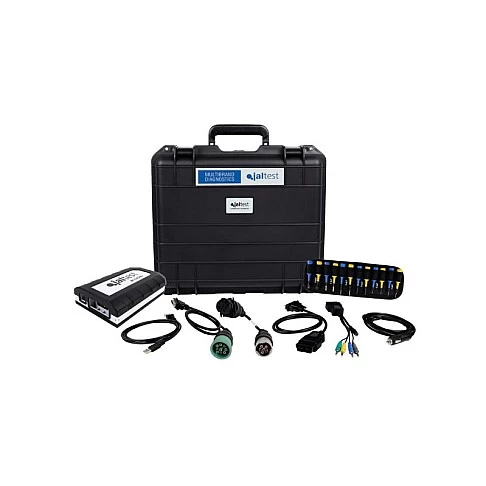

Standard equipment:

• JALTEST PC LINK interface
• OBD cable JDC213M3
• USB cable JDC107.4
• Suitcase 29380
• Universal diagnostic cable with special terminal set JTP96
• Power cables from the battery and from the vehicle power outlet

Additional equipment:

• Cable set for truck and bus diagnostics (8 pcs.) (Volvo; Mercedes Benz; Scania; Renault; Iveco> 1998; MANTGA, TGL, TGM; DAF; MAN F2000)

• Thermoking diagnostic cable COJALI JDC113A
• JalTest Soft + INFO Online software for diagnostics of trucks, trailers, buses and minibuses
• JalTest Soft + INFO Online annual (12-month) update subscription
• Software package for truck and tractor diagnostics
• Software package for bus diagnostics
• Software package for diagnostics of minibuses and commercial vehicles

Supported truck brands: DAF; MAN; VOLVO; ISUZU; IVECO; RENAULT; MERCEDES-BENZ; SCANIA; CATERPILLAR; FORD; TATA; TATRA; AGRALE; ASHOK LEYLAND; ASKAM; ASTRA; AVIA; BEIBEN; BHARATBENZ; BMC; CAMC; CAPACITY; CNHTC SINOTRUK; DENNIS EAGLE; DONGFENG; EICHER; ERF; FAW; FODEN; FOTON; FREIGHTLINER; GAZ; HAOHAN; HINO; HYUNDAI; ; JAC; KAMAZ; KENWORTH; MACK; MAHINDRA; MAZ; MITSUBISHI FUSO; NISSAN; OSHKOSH; PETERBILT; SAIC-IVECO HONGYAN; SEDDON ATKINSON; SHACMAN; CONTENT; SML ISUZU; STERLING; TATA-DAEWOO; TERBERG; UD TRUCKS; URO; VOLKSWAGEN; VOLVO USA; WESTERN STAR.

You can find support for truck models here: https://www.jaltest.com/en/coverage/
