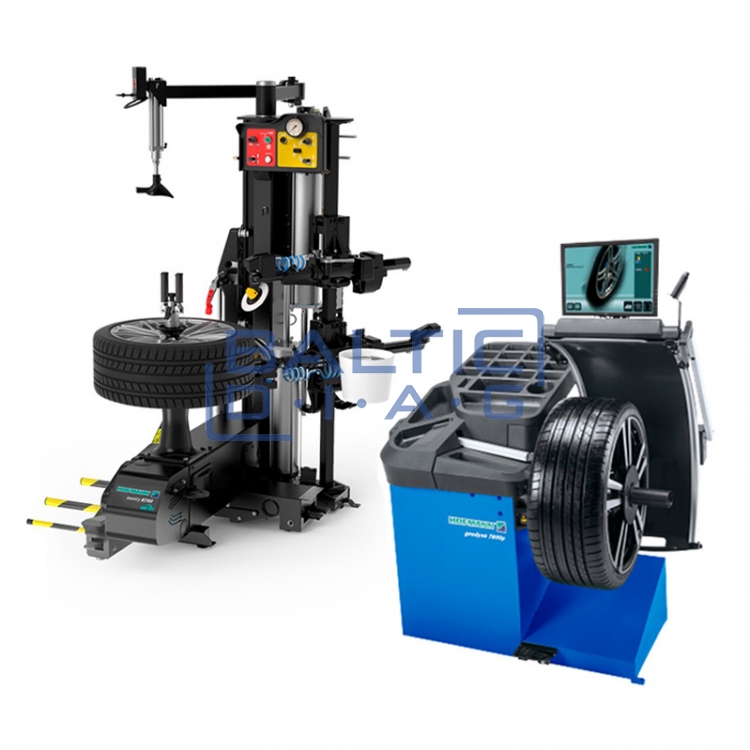

Tyre changer and wheel balancer set BD70423 + BD70435 Hofmann

Wheel Balancer with Touchscreen geodyna® 7800-2P Hofmann + Tyre Changer monty® 8700g smartSpeed™ Hofmann

Country of origin: Italy, warranty period – 24 months

This is a high-quality Hofmann tyre changing and wheel balancing equipment set designed for professional use in automotive workshops. The set includes monty® tyre changers and geodyna® wheel balancers, allowing for efficient, fast, and accurate work with passenger vehicle wheels. This solution helps optimize workflow, increase productivity, and ensure high service quality.

Wheel Balancer with Touchscreen geodyna® 7800-2P

Features:

• 19" touchscreen – ergonomically positioned above the wheel guard for intuitive and convenient operation
• Automatic contactless data entry system – automatically detects the number of spokes and selects the balancing mode
• easyWeight™ – laser technology for precise placement of wheel weights
• Split Weight Mode – hides balance weights behind spokes to maintain wheel aesthetics

Technical specifications:

• Power supply: 230V 50/60Hz
• Dimensions: 190 x 100 x 136 cm
• Maximum rim width: 20" (51 cm)
• Maximum wheel diameter: 42" (107 cm)
• Maximum wheel weight: 70 kg

AUTOMATIC DATA ENTRY

• This intelligent system eliminates the need for manual input by automatically detecting wheel dimensions and selecting the appropriate balancing mode, weight type, and placement location. This automation speeds up the balancing cycle, reduces operating errors, and improves work efficiency.

AUTOMATIC SPOKE DETECTION

• Using a laser scanner, this advanced system autonomously detects the exact number and position of spokes. It optimizes weight placement behind the spokes and enables precise balancing using the Split Weight Mode.

EASYWEIGHT™

• This ultra-precise system simplifies the process of placing weights by using a laser to mark the exact location for weight application, ensuring flawless balance and highly accurate results.

POWER CLAMP™

• Using advanced electromechanical technology, this balancer is equipped with a powerful clamping system that securely holds the wheel with consistent force, ensuring exceptional accuracy and repeatable results every time.

QUICKBAL™

• Designed for maximum efficiency, this feature intelligently adjusts the number of revolutions according to the specifications of each wheel. Operating at maximum speed, it reduces cycle time and ensures fast, effective balancing.

SEMI-AUTOMATIC DATA INPUT

• The device features a convenient measuring arm that simplifies data input using easyALU™ assisted rim measurement technology. The technician only needs to touch the rim with the measuring arm, and the system automatically enters the rim dimensions and selects the appropriate mode.

SMARTSONAR™

• This intelligent system uses sonar sensors to automatically detect rim width, eliminating manual input and reducing errors. It optimizes the process, increasing efficiency and precision.

SPLIT WEIGHT MODE (HIDDEN WEIGHTS BEHIND SPOKES)

• This function ensures precise balancing and allows weights to be hidden behind the spokes, preserving the visual appeal and aesthetic of the wheels.

STOP IN POSITION

• With a single tap on the screen, the user can activate a function that automatically rotates the wheel to the precise position for weight application, simplifying the process and increasing efficiency.

Tyre Changer monty® 8700g smartSpeed™

Features:

• powerMONT™ system – for quick and efficient tyre mounting
• quickLOK™ system – automatic rim locking
• smartSpeed™ technology – optimizes torque and automatically adjusts wheel rotation speed
• Dynamic bead breaker – accurate separation of the tyre bead, ensuring safe operation
• Lower bead viewing camera – improves visibility and mounting accuracy
• Control panel – ergonomically positioned for easy operation
• Pneumatic bead pressing arm – assists in mounting stiff and low-profile tyres
• Upper bead inflation system – for fast and accurate inflation
• Centre-post clamping – ensures firm and stable wheel securing

Technical specifications:

• Maximum tyre width: 15″ | 38 cm
• Maximum wheel diameter: 47″ | 119 cm
• Power supply: 230V 1ph 50-60Hz 16A
• Dimensions: 190 x 160 x 198 cm
• Maximum rim diameter: 30″ | 76 cm
• Maximum rim width: 13″ | 33 cm
• Maximum wheel lift capacity: 154 lbs. | 70 kg
• Required air pressure: 116–174 PSI | 8–12 bar
• Operating pressure: 8–12 bar
• Certifications: CE, WDK

CENTRAL CLAMPING SYSTEM

• This design offers numerous advantages – primarily, it significantly reduces the risk of rim damage and requires less clamping force compared to traditional turntables.

Control Panel

• User-friendly and intuitive control panel with color-coded system and tool-compatible controls for easy operation and navigation.

Dynamic Bead Breaker

• A precisely calibrated dual-disc synchronized system perfectly aligns both upper and lower tyre beads, ensuring flawless accuracy and reducing the risk of rim damage. It includes an adjustable tilt function for tyres with stiff sidewalls.

Pneumatic Bead Pressing Arm

• This arm features a lower hook that helps lift heavy tyres, making it easier to mount the upper bead.

powerMONT™ Technology

• This leverless mounting and demounting system is synchronized with the dynamic bead breaker for optimal positioning. Built from reinforced steel with protective plastic components, it is ideal for RFT (run-flat), UHP (ultra-high performance), OEM, and low-profile tyres.

smartSpeed™ Technology

• This revolutionary patented system optimizes the torque applied to the tyre and automatically determines the maximum rim rotation speed, ensuring smooth and safe operation.
