In stock
-9%
2,541.00€
2,789.00€
Ex Tax: 2,100.00€
Prices include VAT
Want to buy or learn more?

Fill out the inquiry form

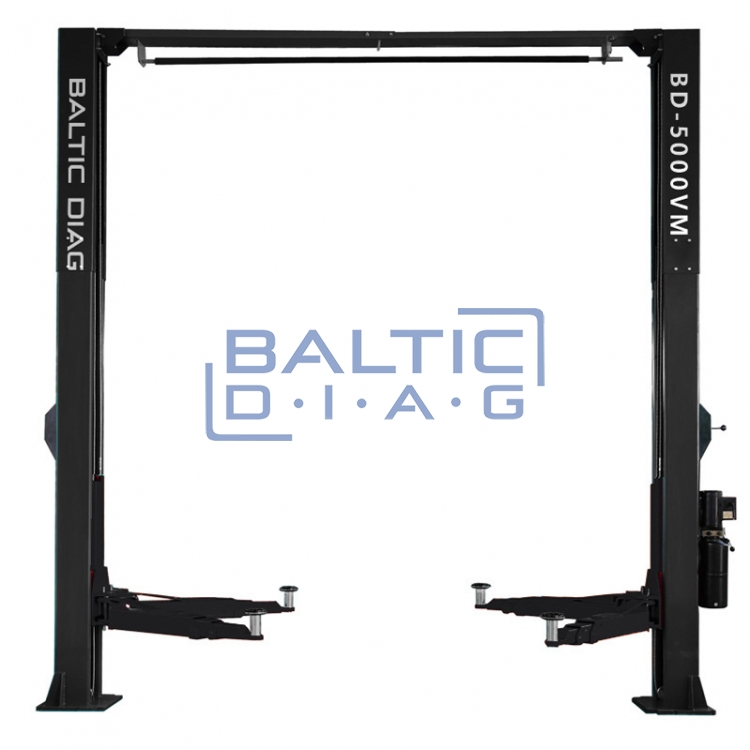

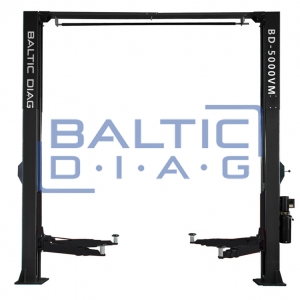

Two-post van lift with top synchronization, 5T BD-5000VM

Warranty period – 24 months

Professional two-post lift designed for lifting vans and other larger vehicles. Synchronization is done over the top beam, and the robust design with self-lubricating sliders and brass bushings ensures long service life and low maintenance. Reinforced arm carriage and double safety unlocking mechanism provide additional safety during operation.

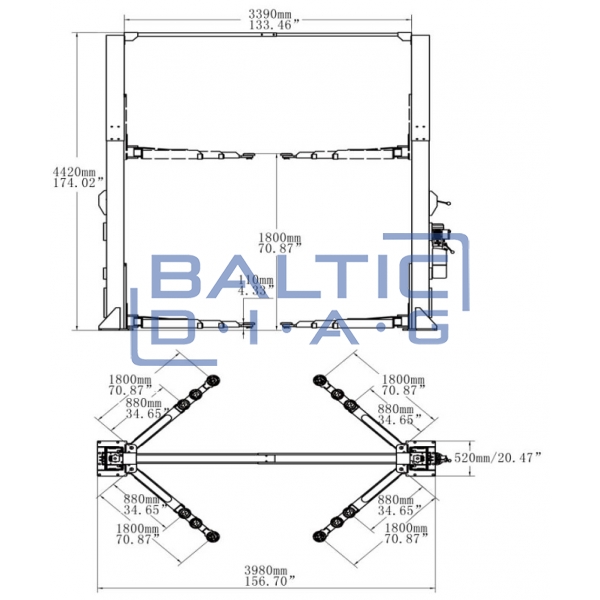

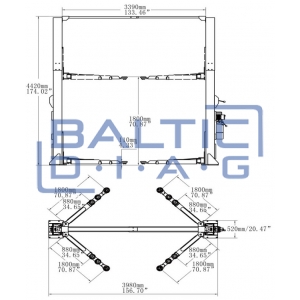

Technical specifications:

  • Lifting capacity: 5000 kg
  • Lifting time: 60–65 s
  • Lifting height: 1800 mm
  • Total width: 3980 mm
  • Total height: 4420 mm
  • Distance between columns: 3390 mm
  • Maximum vehicle width: 3050 mm
  • Minimum pad height: 110 mm
  • Lift weight: 916 kg

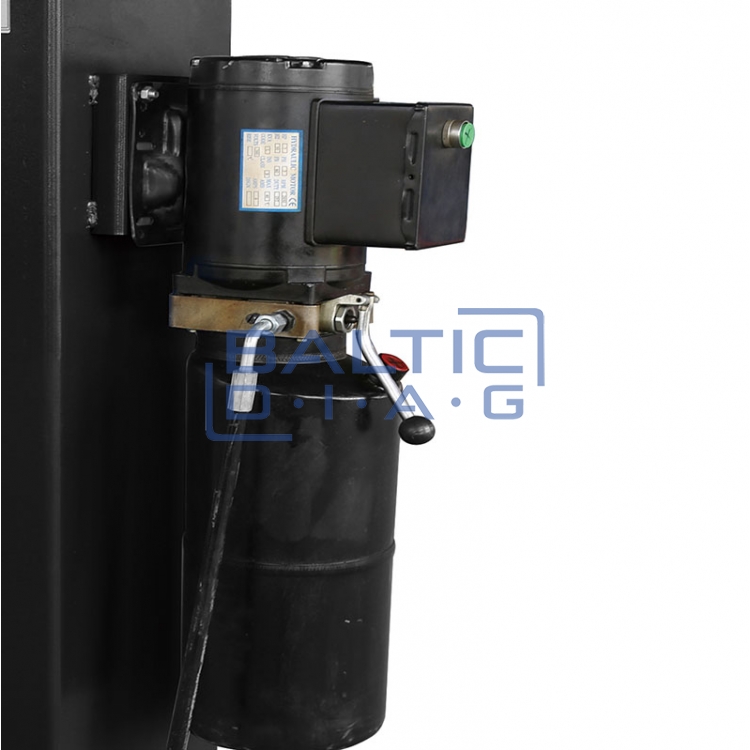

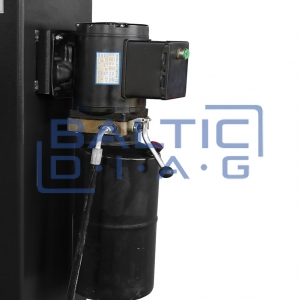

  • Motor power: 3 kW
  • Power supply: 380 V / 50 Hz / 3 phases
  • Color code: RAL7021

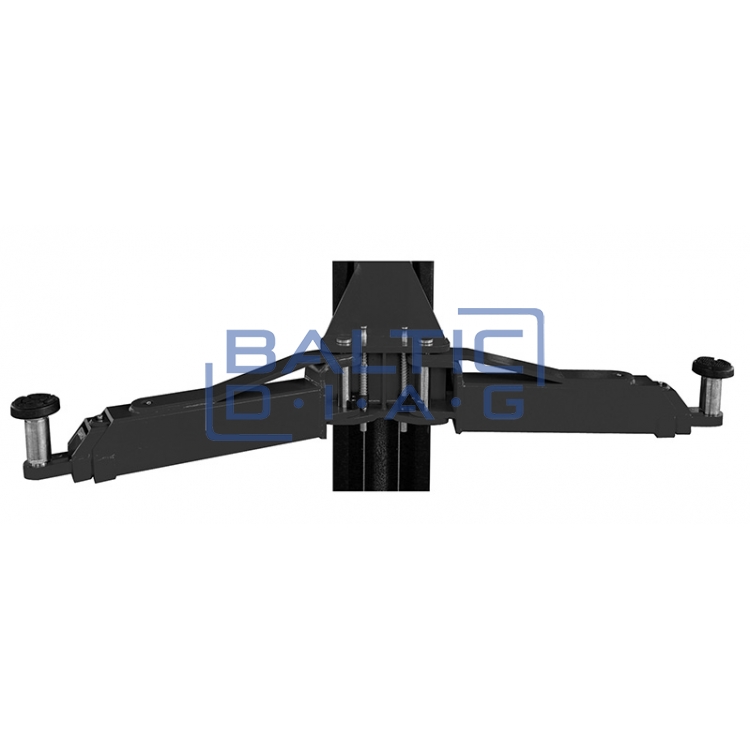

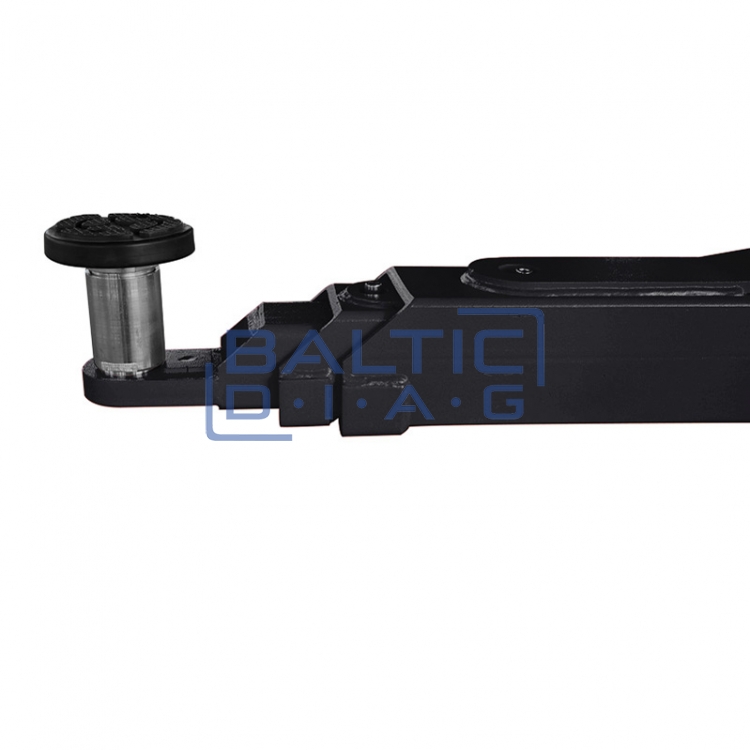

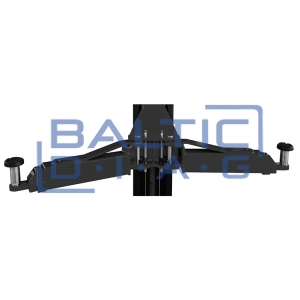

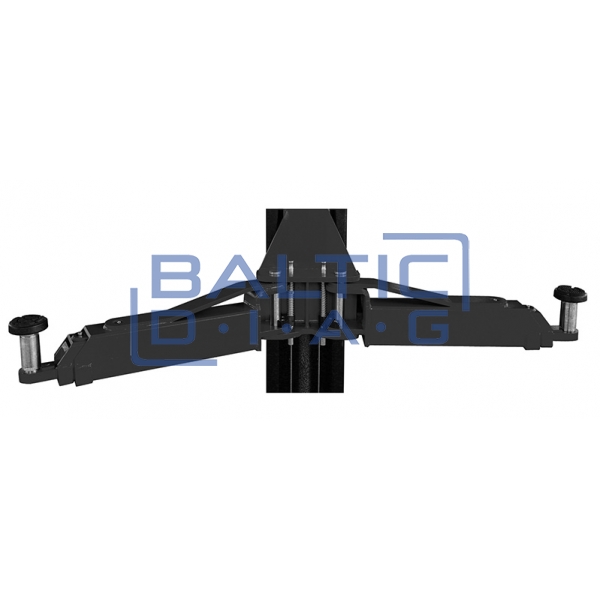

  • 3-stage arm length: 880–1800 mm
  • Noise level: < 80 dB(A)
Technical Specifications
Lifting capacity I kg 5000
Lifting time I sec. 65
Lifting height I mm 1800
Overall height I mm 4420
Total width I mm 3980
Power supply I V 380

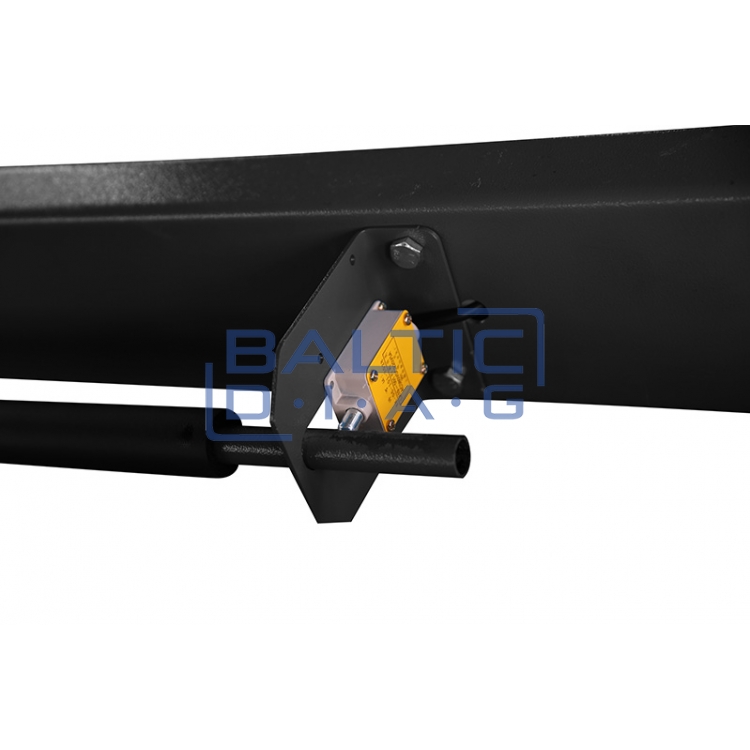

Top synchronization
Compact design with reduced wear
Hydraulic cylinders according to ANSI standards
UHMW polyethylene sliders and brass bushings

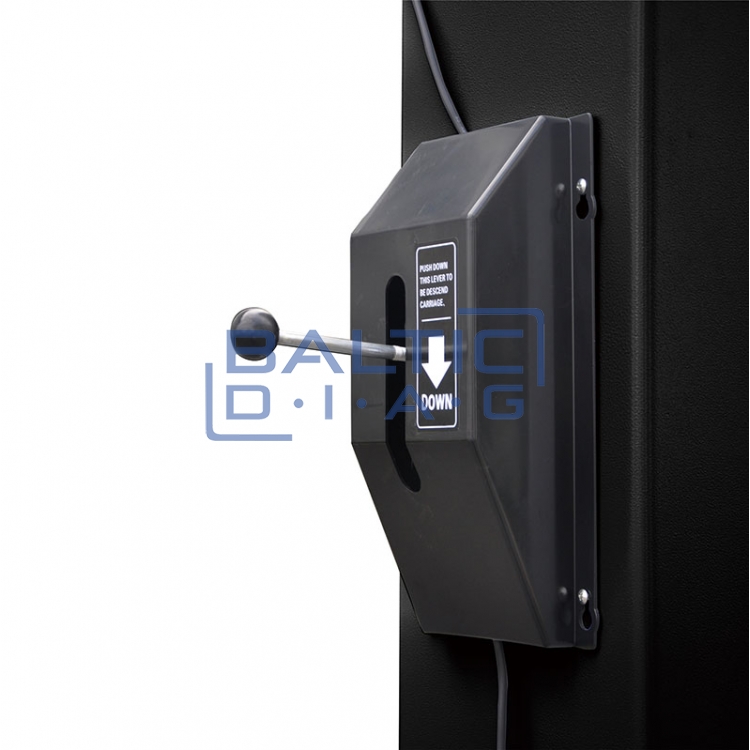

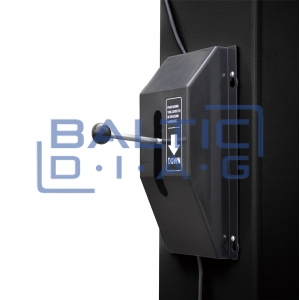

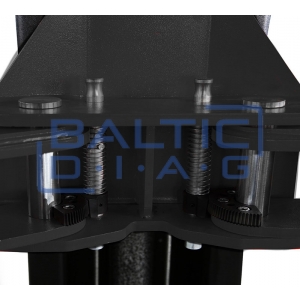

Double safety unlocking mechanism
Reinforced arm carriage

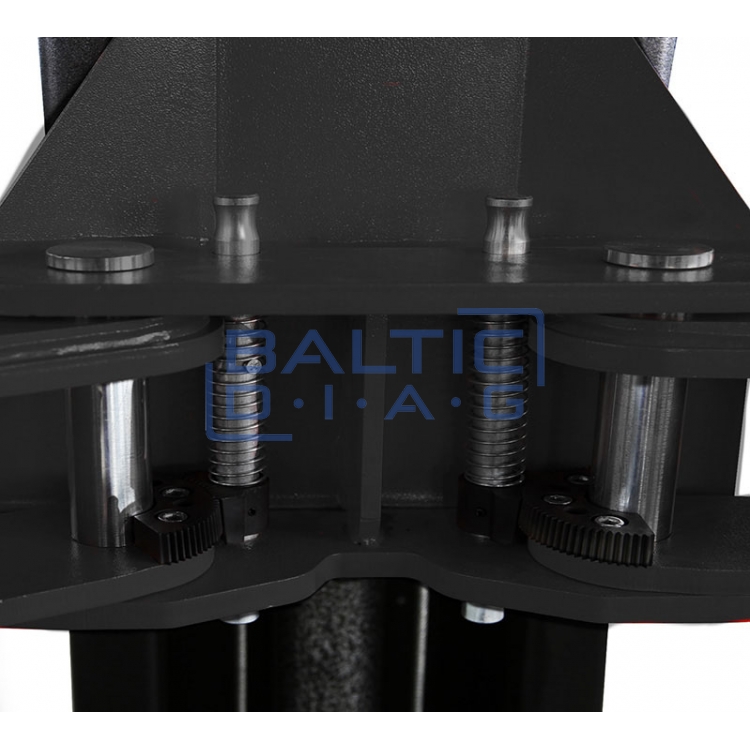

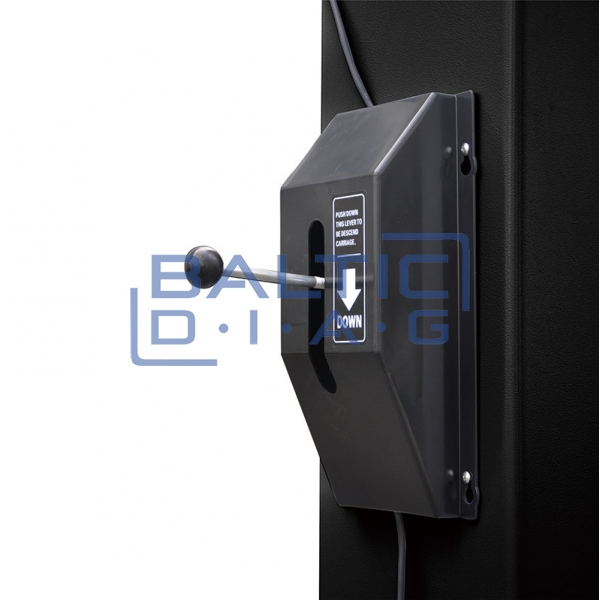

Manual arm unlocking on one side
CE certified

In this video you can see how a two-post lift is installed.
