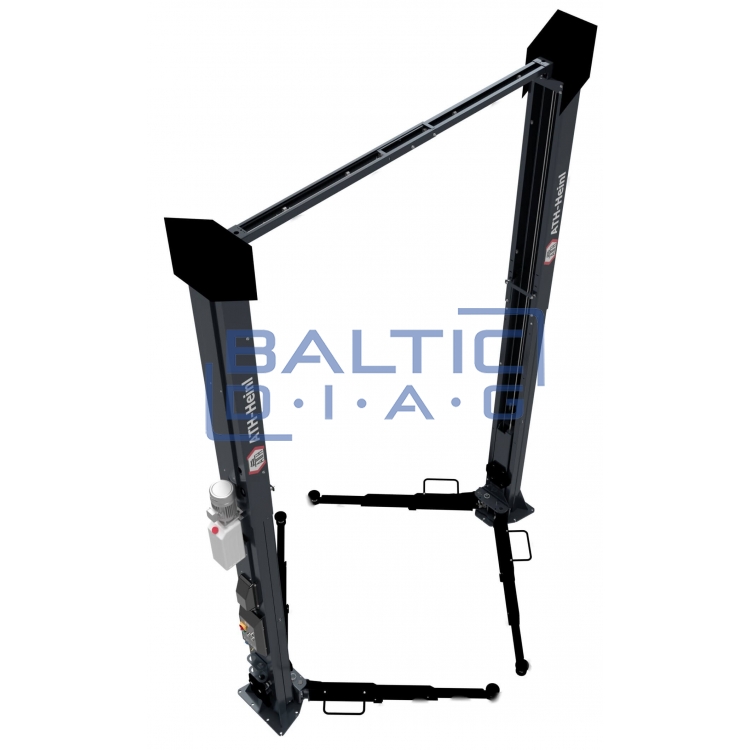

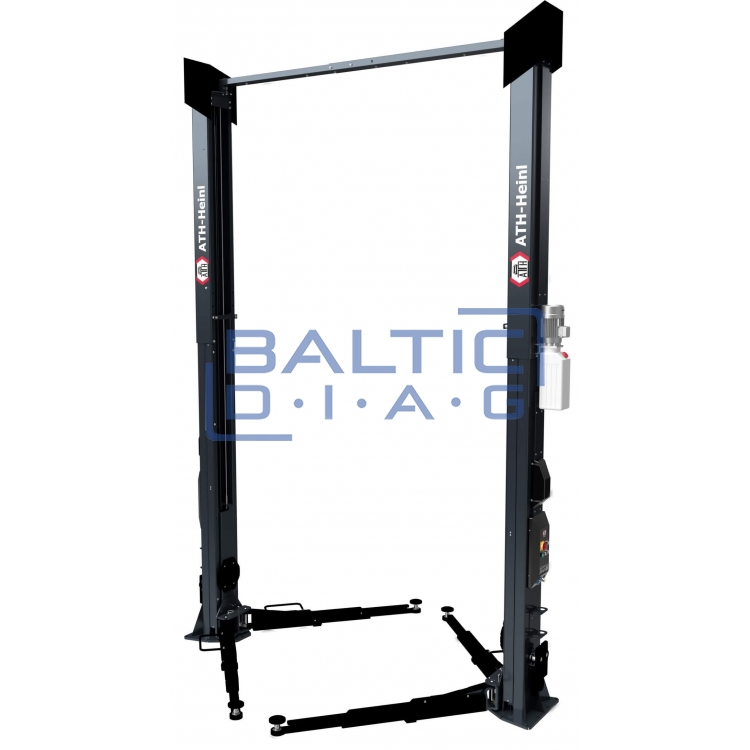

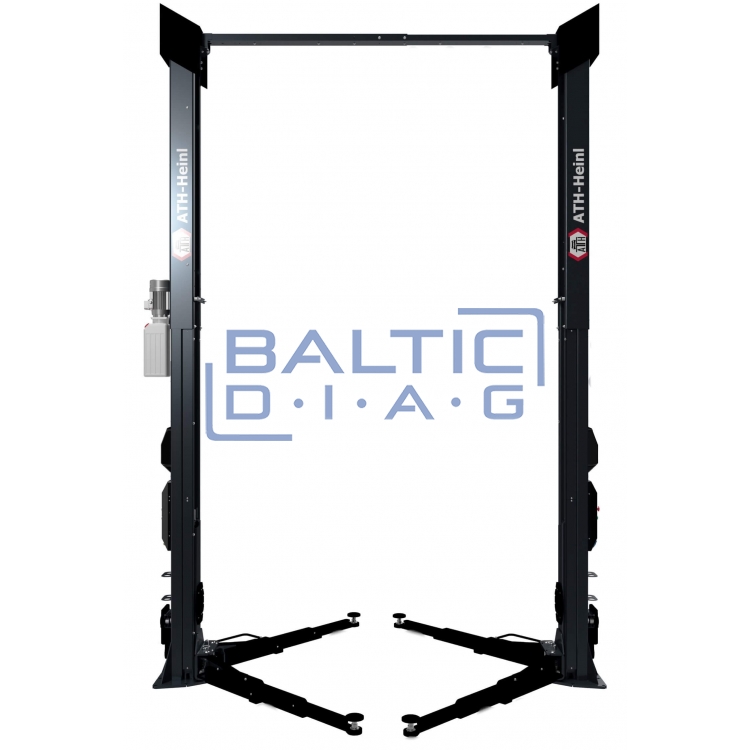

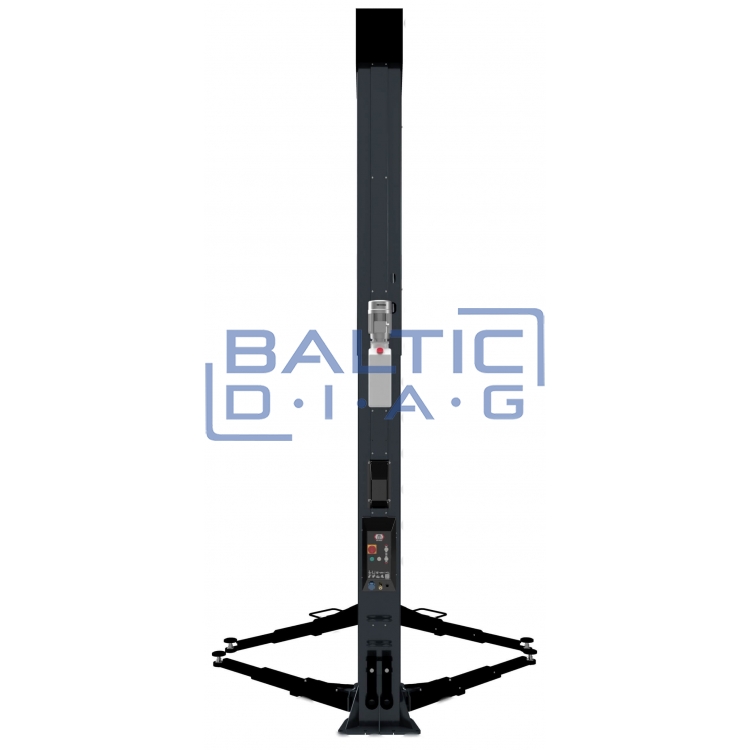

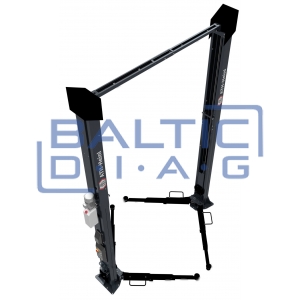

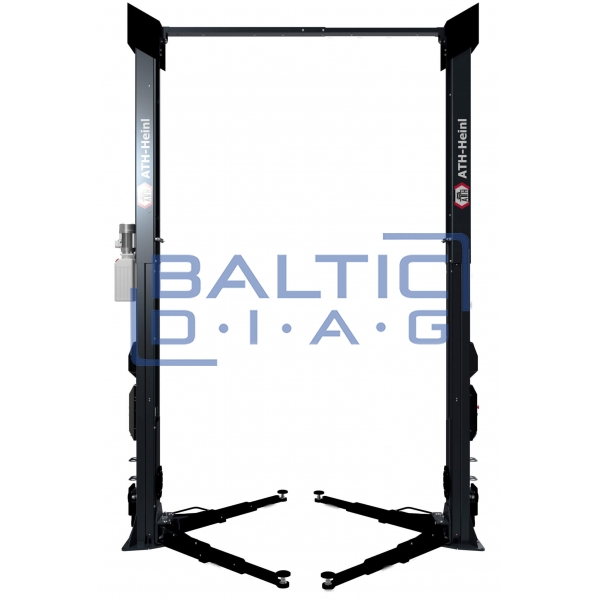

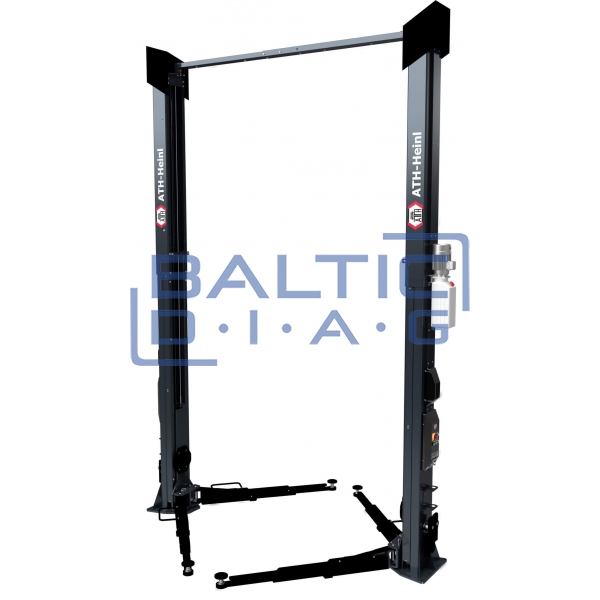

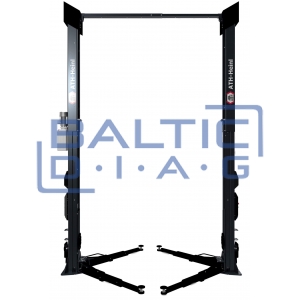

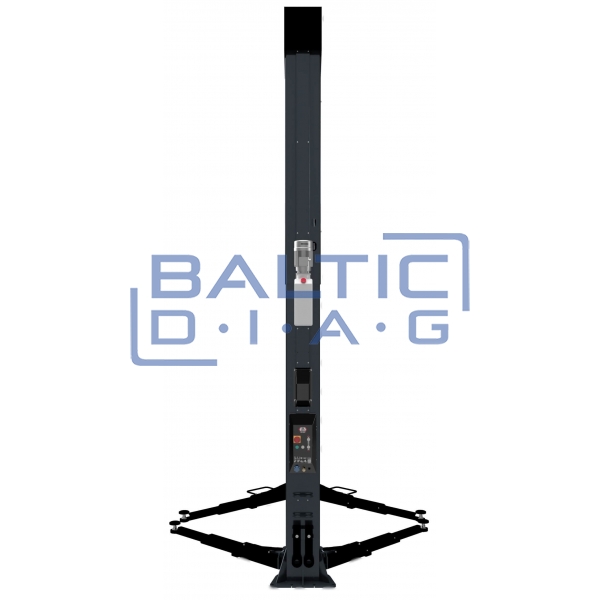

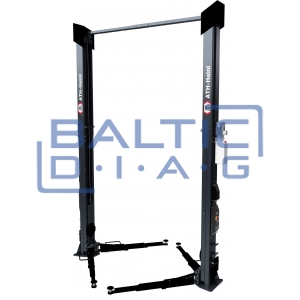

Two-post lift ATH-Comfort 2.55XL

Name: Two-post lift ATH-Comfort 2.55XL
Brand: ATH-HEINL
SKU: 622222
Price: 8518.40 EUR
Availability: InStock

8,518.40 €

Prices shown include tax

Add to Cart

Manufacturer: ATH-Heinl, Germany

Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function

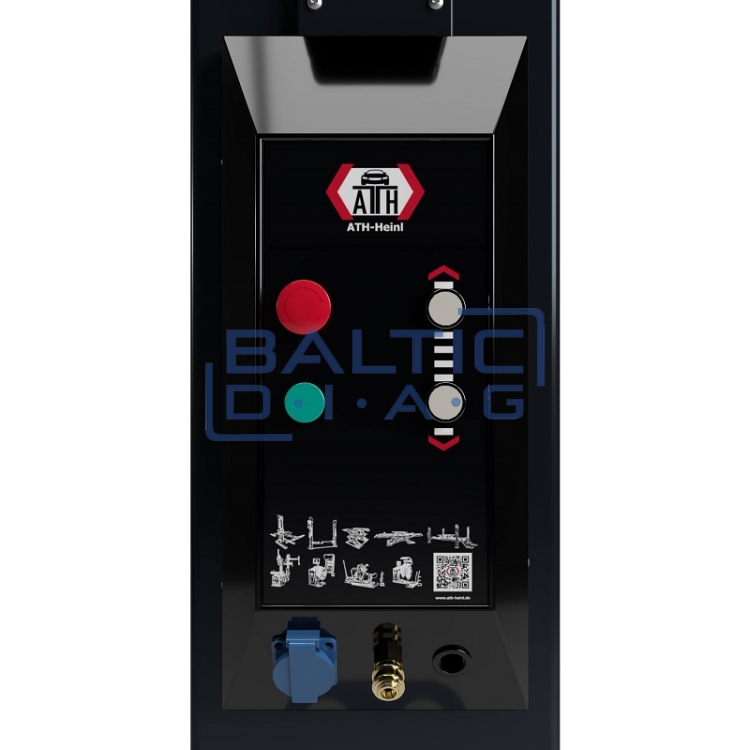

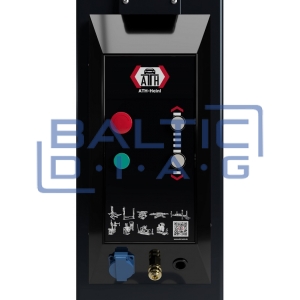

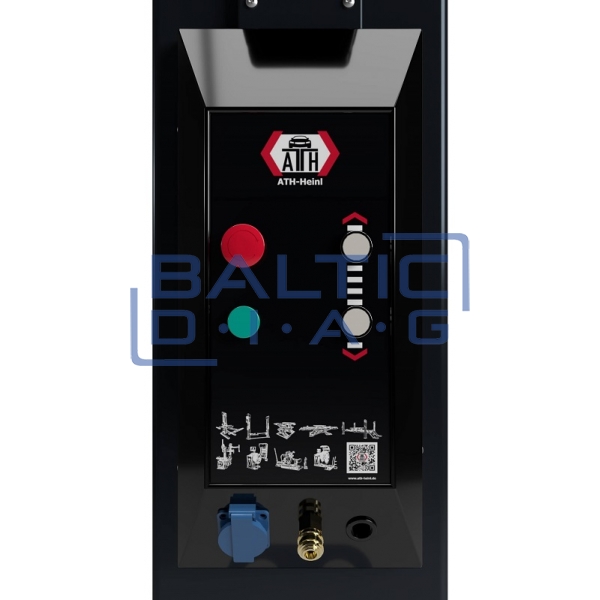

Two control units for flexible use on both columns
Energy set (230V / compressed air / 12V) on both operating units
Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
Safety Lock: ability to lock the load on to the safety mechanism

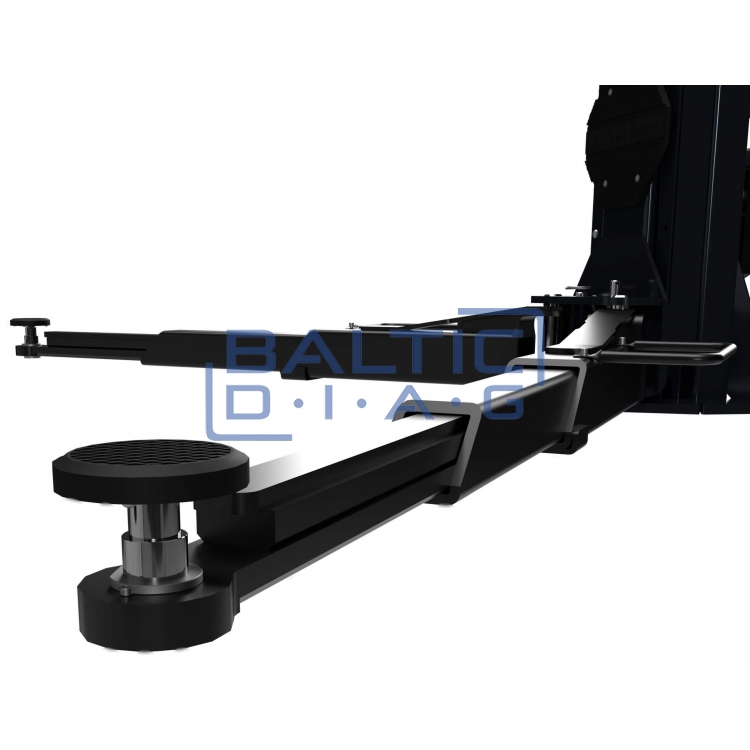

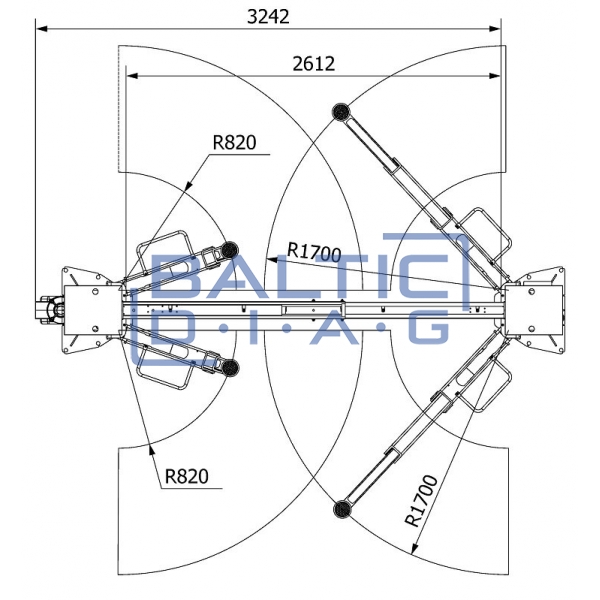

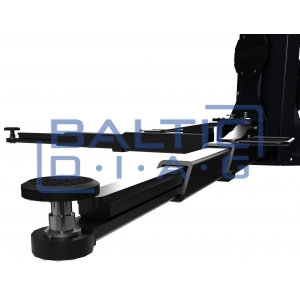

Multifunctional mounting via 3-part support arms and double telescopic support plates

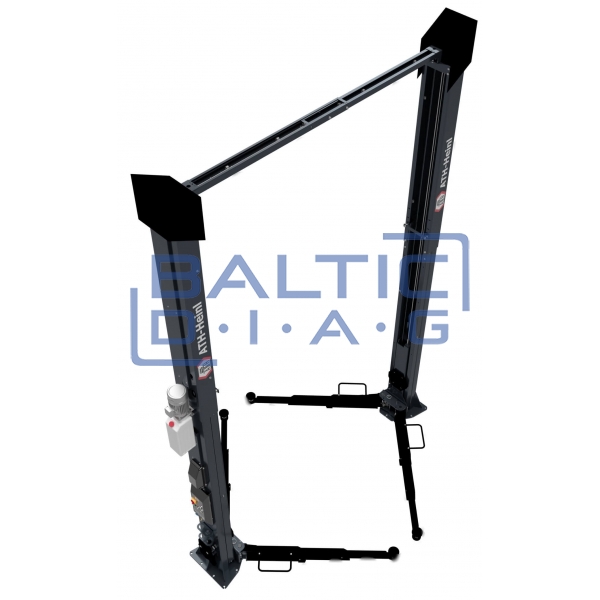

Top-running crossbar with variable height adjustment

Load capacity: 5500 kg

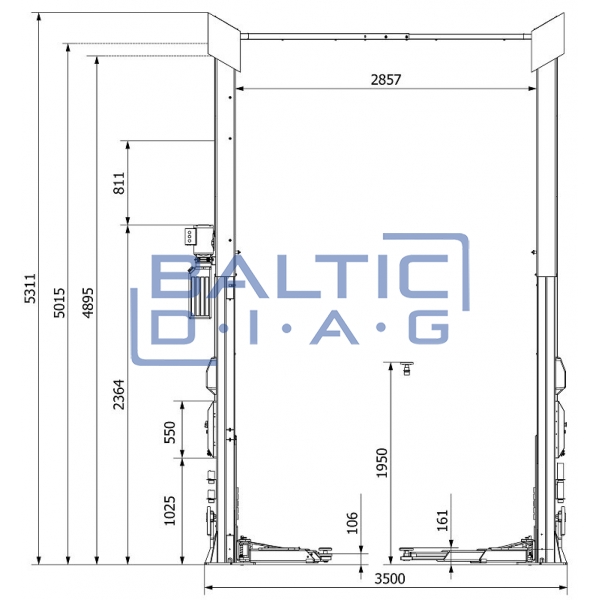

Max. lifting height: 1950 mm

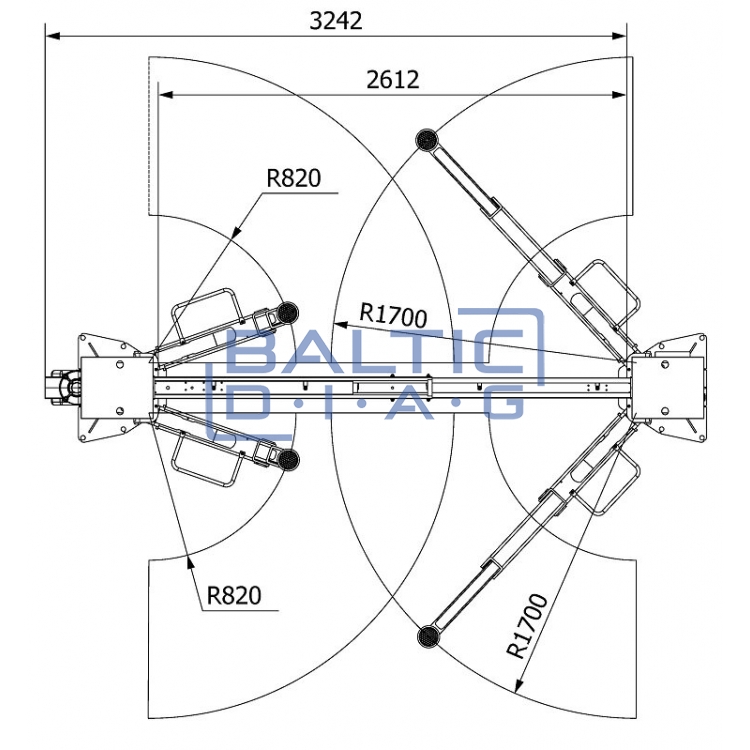

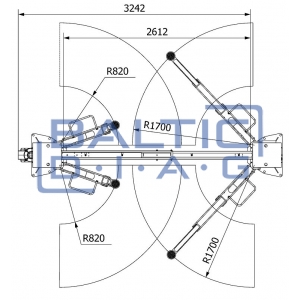

Drive-through width: 2650 mm
Overall width: 3500 mm
Total lift height: 5311 mm
Support arms parts: 3
Driving power: 3 kW
Lifting/lowering time: ~ 40 sec
Power supply: 400 V / 50 Hz / 3 phases
Required base preparation: Concrete strength min C25 / 30. 4500 x 2000 x 220 mm (L x W x D)
