Truck wheel balancer geodyna® 4800-2L Hofmann
Truck wheel balancer geodyna® 4800-2L Hofmann

Truck wheel balancer geodyna® 4800-2L Hofmann

  • SKU: BD70426
9,999.00 €

Prices shown include tax

Send Message

Description

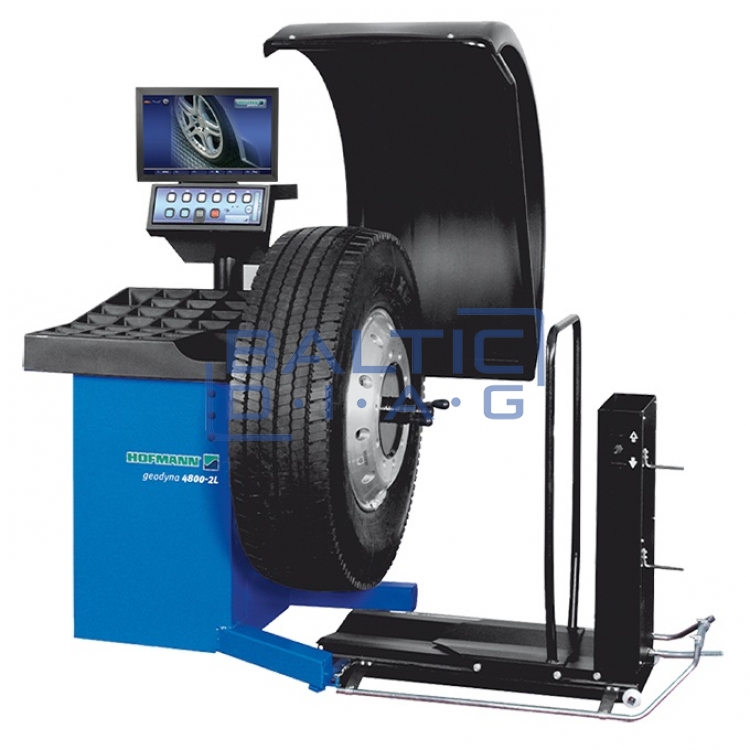

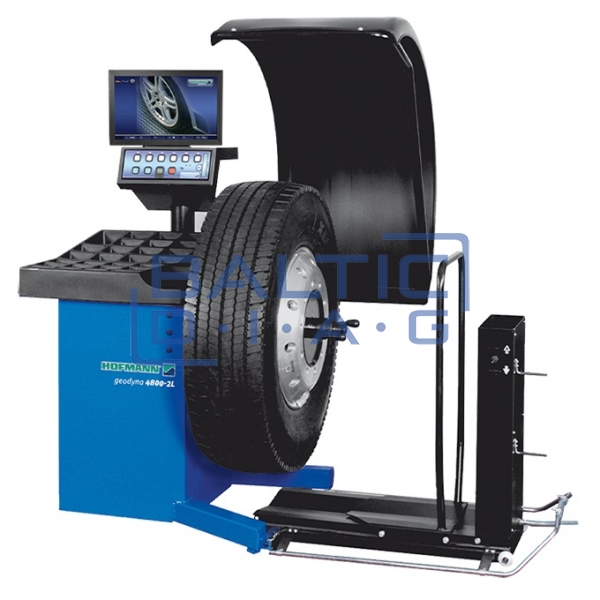

Truck Wheel Balancer geodyna® 4800-2L Hofmann

Country of origin: Italy, warranty period - 24 months

The Hofmann® geodyna® 4800-2L is a highly efficient truck wheel balancer designed for on-vehicle wheel balancing. It features numerous advanced functions, including a semi-automatic rim width input system, an electronic friction brake for stable wheel positioning, the Split Weight Mode function for concealing adhesive weights behind the spokes, and a patented optimization mode. The unit is also equipped with a special cone adapter set with a spacer, specifically designed for light truck wheels. The Virtual Plane Measurement (VPM) technology ensures the highest measurement accuracy, while the integrated 19ʺ TFT widescreen monitor and multilingual online support provide convenient operation.

Features:
  • Permanent friction brake system – ensures convenient wheel retention during clamping and balancing.
  • VPM – Virtual Plane Measurement – guarantees greater measurement accuracy.
  • Weight box with 27 compartments and shelves – designed for cone adapters and weight pliers storage.
  • Automatic wheel braking – after each measurement cycle.
  • Automatic measurement of static and dynamic imbalance – in a single measuring run.
  • Fast balancing cycle – less than 18 seconds (for a 22.5 x 10ʺ wheel).
  • Truck wheel cone adapter with hidden spring – allows using only car cones when balancing passenger car wheels.
  • Split Weight Mode function – enables concealed adhesive weight placement behind the spokes, maintaining the wheel’s aesthetic appeal.
  • Electronic friction brake – ensures stable wheel retention during measurement.
Technical Specifications:
  • Maximum wheel weight: 250 kg
  • Maximum rim width: 650 mm
  • Maximum wheel diameter: 51.2ʺ | 1300 mm
  • Truck wheel cone adapter with a locking nut, light truck cone (4.8-6.8ʺ | 122-172 mm diameter), and spacer.
  • Pneumatic wheel lift – supports up to 250 kg.
  • Storage pegs – mounted on the left side for convenient tool storage.
  • Wheel guard – provides additional safety during operation.
  • 19ʺ TFT widescreen monitor – ensures clear and convenient navigation.
  • 2D SAPE system – with semi-automatic input of offset and rim diameter.
  • Rim width input via capacitive keypad – ensures precise measurement.
HEAVY-DUTY WHEEL LIFT
  • This lift assists in securing heavy truck wheels and offers ample storage space for cones, centering stars, and locking nuts.

pneumatic loading device for wheel balancer

QUICKBAL™ – Quick Balancing Function
  • Engineered for optimal performance, this feature intelligently adjusts the number of revolutions based on each wheel’s specifications. Operating at maximum speed, it reduces the balancing cycle time, ensuring fast and efficient results.

quick balance feature of wheel aligner

Comparative Table of Truck Wheel Balancers

Sunkvežimių ratų balansavimo palyginimo lentelė
