Tire conveyor Martins Industries TC-18

Country of origin: Canada, warranty period – 24 months

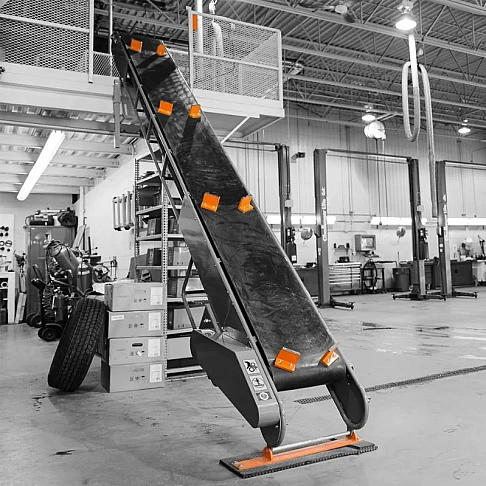

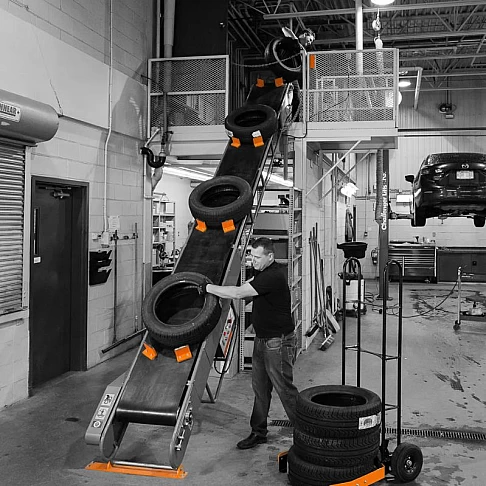

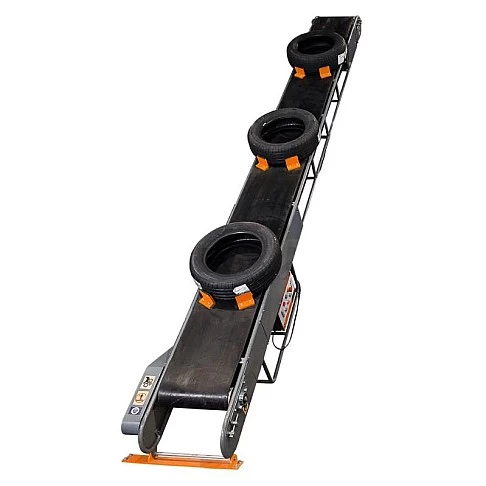

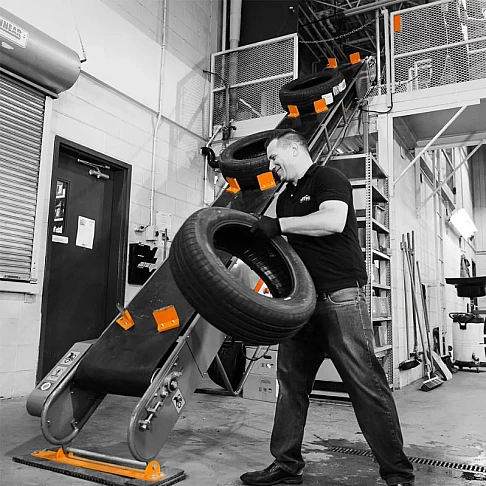

The Martins Industries TC-18 tire conveyor is a high-quality, reliable, and efficient device designed for lifting or lowering tires to and from mezzanines. This 5.5 m long conveyor can transport up to 12 tires per minute, significantly increasing productivity and reducing physical strain on workers. The durable two-ply rubber belt with PVC cleats ensures tire stability and safety during operation, while the 1 HP motor with magnetic brakes guarantees that the conveyor holds tires securely in place when stopped.

Functions:

Fast tire transport – up to 12 tires per minute

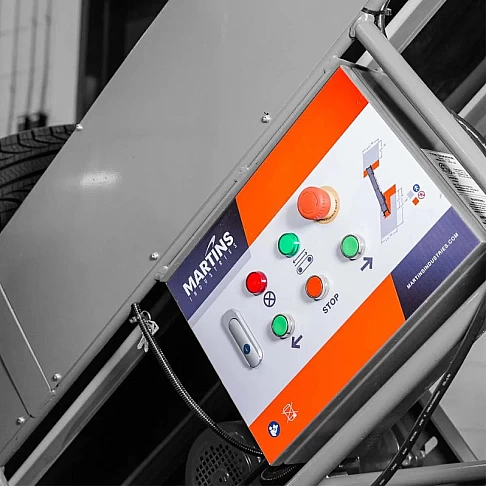

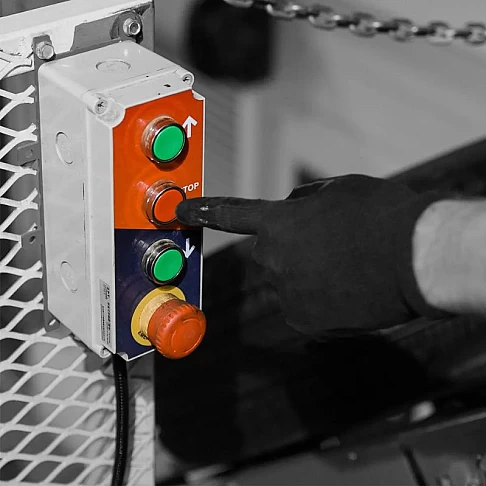

Control panels at both ends – On/Off, Reverse, and Emergency Stop
Convenient plug-and-play setup – operates immediately after connection

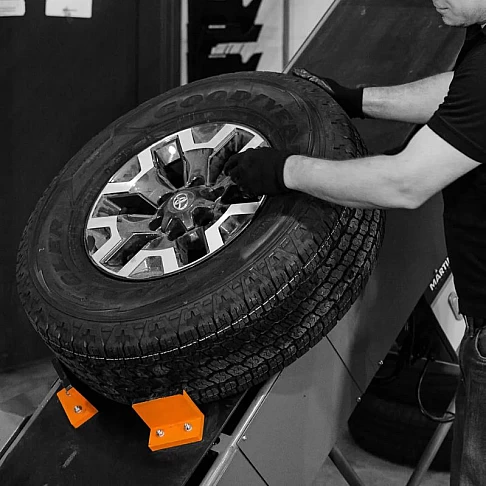

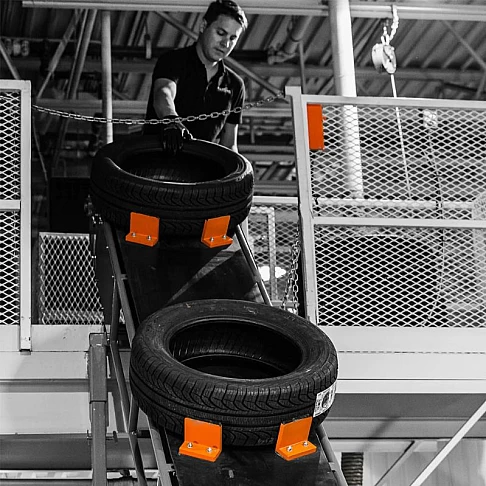

Two-ply rubber belt (8 mm) with PVC cleats – for maximum stability and durability
Sealed ball bearings – maintenance-free operation
Motor with magnetic brakes – keeps tires stable when the conveyor is stopped
Steel frame with powder-coated finish – resistant to corrosion and environmental effects
Ergonomic working height – reduces the risk of injuries and increases work comfort

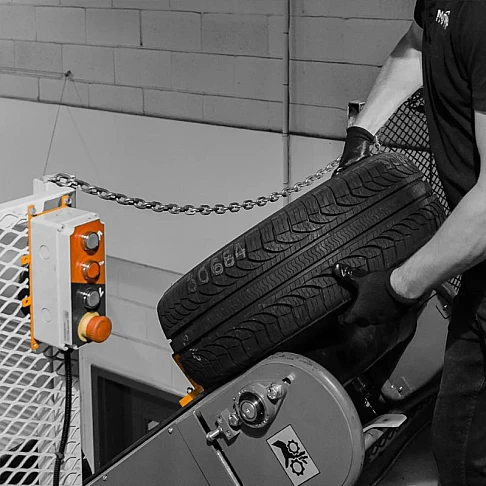

Secondary control box with 3 m power cable – allows installation in various warehouse locations

Technical specifications:

Length: 549 cm
Width: 75 cm
Height: 28 cm
Maximum load capacity: 230 kg
Transport speed: 17.7 m/min
Distance between cleats: 152 cm
Belt material: rubber (2-ply)
Belt width: 46 cm
Belt thickness: 0.8 cm
Bearings: sealed ball bearings, maintenance-free
Motor: 1 HP (750 W) with magnetic brakes
Voltage: 230 V
Current: 7 A
Frequency: 50 Hz
Phase: 1
Power supply: electric
Net weight: 375 kg
Gross weight: 470 kg
Product dimensions (L x W x H): 549 x 75 x 28 cm
Package dimensions (L x W x H): 572 x 99 x 101.5 cm
Material: steel
Finish: powder-coated paint
Color: grey and orange
Certifications: CE, cETLus, UKCA, CSA Z432-16

The Martins Industries TC-18 tire conveyor is professional equipment designed for fast, safe, and ergonomic tire transport between levels. By choosing this model, you invest in efficiency, durability, and maximum workplace safety, ensuring smooth operation in tire storage or service environments for many years.
